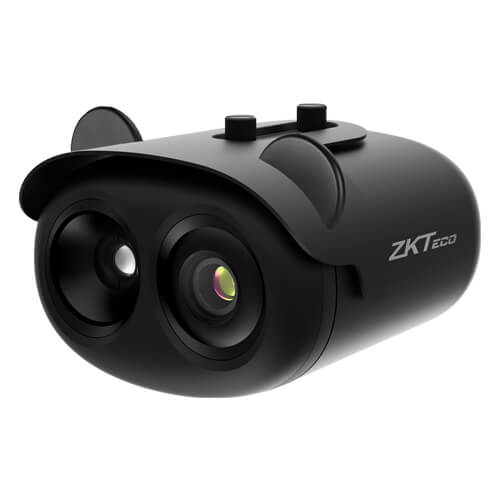

ZKTeco USA - ZN-T1 - Body Temperature Detection Network Camera
Part number:
ZN-T1
Price:
Body Temperature Detection Network Camera
Features:
- On-board temperature-detection algorithm
- Dual lens (Thermal + Visible Light)
- Effective pixels: 320×240
- Thermal sensitivity: ≤50mK
- Thermal: 8mm fixed lens
- Visible: 2.7-12mm motorized lens
- Accuracy: ±0.3°C (must be used with a black body)
- Subject detection (up to 16 targets)
- Response time: ≤50ms
- 14 color palettes
| Specification | |
| Thermal Camera | |
| Thermal Detector | Uncooled IRFPA Microbolometer |
| Effective Pixels | 320(H) * 240(V) |
| Pixel Size | 20um |
| Thermal Sensitivity (NETD) | ≤50mK @ F1.0 300K |
| Spectral Range | 8 ~ 14um |
| Image Setting | Polarity LUT / DVE / Mirror / FCC / 3D DNR Brightness / Contrast / ROI |
| Color Mode | Black-Heat / White-Heat / Rainbow / Iron-Red up to 14 modes |
| Thermal Lens | |
| Lens Type | Fixed |
| Focus Control | Manual Focus |
| Focal Length | 8mm |
| Iris | F1.0 |
| FOV | H: 44°, V: 33° |
| Visible Lens | |
| Image Sensor | 1/2.8” Sony CMOS |
| Effective Resolution | 1920(H) * 1080(V) |
| Shutter Speed | 1/50 ~ 1/64,000s |
| Wide Dynamic Range | True WDR 120dB |
| Min. Illumination | Color: 0.1Lux @(F1.2, AGC ON) B/W: 0.01Lux @(F1.2, AGC ON) |
| S / N Ratio | More than 55dB |
| Focal Length | 2.7 ~ 12mm |
| Max Aperture | F1.6 ~ F2.9 |
| FOV | 105° ~ 32° |
| Focus Control | Motorized |
| Video and Audio | |
| Compression | H.265, H.264, MJPEG |
| Frame Rate | Main Stream: Thermal: D1 @25 / 30fps Visible: 1920 * 1080 / 1280 * 720 @25 / 30fps Sub Stream: Thermal: CIF @25 / 30fps Visible: D1 / VGA / 640 * 360 / CIF / QCIF / QVGA @25 / 30fps |
| Bit Rate Control | CBR / VBR |
| Bit Rate | Thermal: 100Kbps ~ 6Mbps Visible: Main stream: 200Kbps~12Mbps Sub stream: 10Kbps ~ 6Mbps |
| Region of Interest | Off / On (8 rectangular zones) |
| Digital Zoom | 16x |
| Mirror | Support |
| Defog | Support |
| Motion Detection | Support |
| Privacy Masking | Off / On (4 rectangular areas) |
| DVE Image Enhancer | Support |
| Audio Compression | G.711, AMR, RAW_PCM (Optional) |
| Intelligence | |
| Alarm | Motion Detection, Disk Alarm, I/O Alarm, Temperature Alarm |
| IVS | Smart Body Detection, Perimeter,Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed |
| Temperature Detection | |
| Detection Mode | Body temperature monitoring |
| Detection Preset | Max.16 goals |
| Temperature Alarm | Out-of-range temperature alarm,temperature difference alarm |
| Accuracy | ≤0.3°C (Emission rate, distance,ambient temperature, etc.) |
| Response Time | ≤50ms |
| Detection Range | -20°C ~ 60°C (-4°F ~ 140°F) |
| Temperature Display Mode | If temperature difference >5°C, display absolute temperature value; If temperature difference ≤5°C, display relative temperature value (temperature difference DEV =highest value - average) |
| Network | |
| Ethernet | RJ-45 (10 / 100Base-T) |
| Protocol | IPv4 / IPv6, HTTP, RTSP / RTP / RTCP, TCP / UDP, DHCP, DNS,PPPOE, SMTP, SIP, 802.1x |
| Interoperability | ONVIF, CGI, SDK |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Edge Storage | NAS Local PC for instant recording Micro SD card 128GB |
| Web Viewer | |
| Web Language | English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian |
| Interface | |
| Ethernet | 1 Ethernet (10 / 100 Base-T) RJ-45 Connector |
| Audio | 1ch Audio-In, 1ch Audio-Out |
| Alarm | 2ch Alarm-In, 2ch Alarm-Out |
| RS485 | Support |
| BNC Output | N/A |
| Reset Button | Support (Built-in) |
| General | |
| Power Supply | DC12V / POE (IEEE 802.3af) |
| Power Consumption | Max 10W |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Storage Conditions | 0 ~ 90% RH |
| Certifications | CE / FCC |
| Ingress Protection | IP66 |
| Casing | Metal |
| Dimensions (L*W*H) | 212 * 182 * 136 (mm) |
| Net Weight | 2kg |
