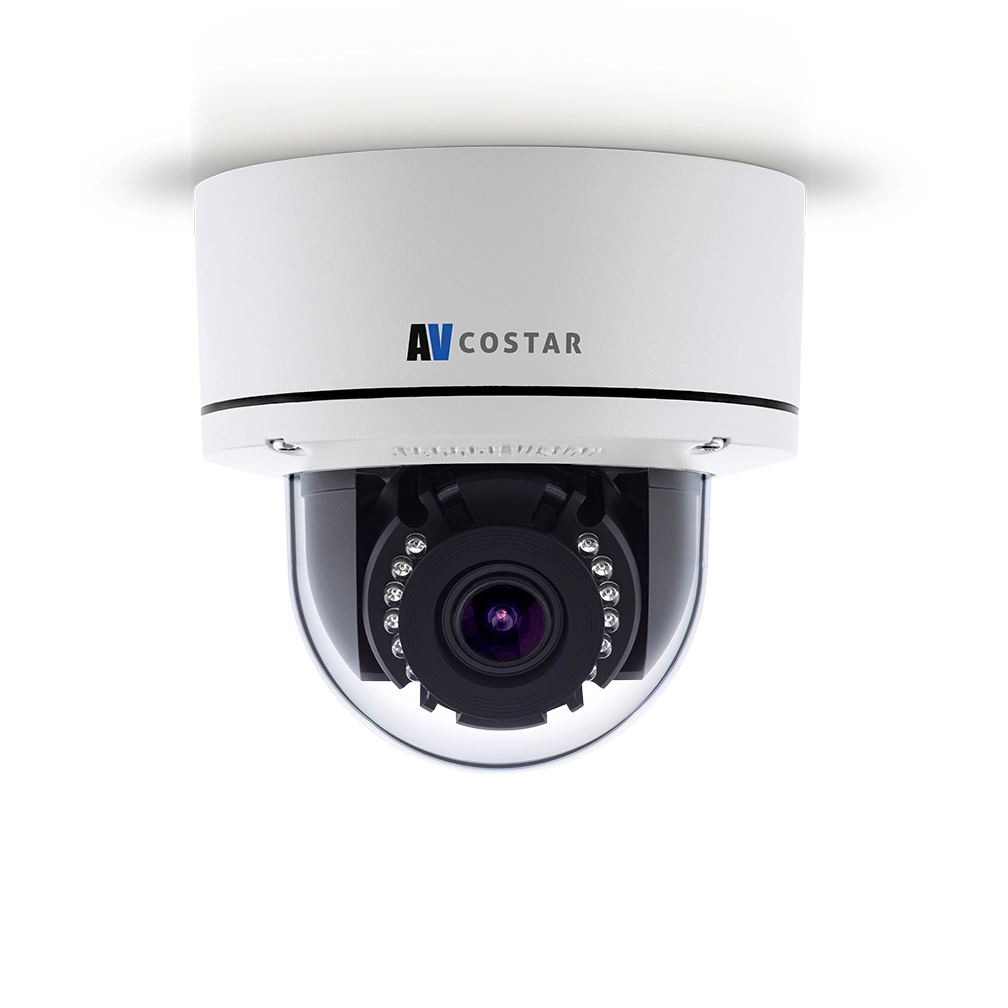

Arecont Vision - AV5456PMIR-S - 5MP Smart IR Contera Outdoor Dome
Part number:
AV5456PMIR-S
Price:
- • On-Camera Video Analytics
- • CorridorView Allows 90° Image Rotation for Better Coverage in Hallways and Corridors
- • Easily Adjustable 3-Axis Gimbal
- • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
- • SDXC Card Slot for Onboard Storage
- • Audio Out
- • Smart IR Illumination with Variable Illumination Ensures that IR Light is Evenly Disbursed up to 66ft (20m) for Scenes with Low or No Ambient Light
- • All-in-One H.265/H.264 Total PoE Solution (No External Power Required for Heater and IR LEDs), PoE and Auxiliary Power: 12–48V DC/24V AC
- • Enhanced WDR up to 120dB at Full Resolution: See Clearly in Shaded and Bright Light Conditions Simultaneously
- • Network Protocols Include SNMP, IPv6, HTTPS, DHCP, 802.1x, and More
- • Triple Encoder: H.265/H.264/MJPEG
- • Defog Technology
- • On-Screen Display (OSD)
- • Privacy Mask, Motion Detection, Bit Rate Control, Multi-Streaming, Multicasting, Forensic Zooming, and Scaling
- • 5-Megapixel Resolution
- • True Day/Night Functionality with Mechanical IR Cut Filter
- • NightView for Strong Low Light Performance
- • SNAPstream+ Capability to Reduce Bandwidth without Impacting Image Quality
- • Remote Focus/Zoom Motorized P-Iris Lens
| Camera | |
|---|---|
| Image Sensor | 5MP CMOS Progressive Sensor |
| Optical Format | 1/2.9" |
| Minimum Illumination | Color (Day Mode): 0.1 Lux |
| B/W (Night Mode): 0.01 Lux | |
| Full FOV Resolution | 2592 H x 1944 V |
| Scaling | Yes |
| IR Illumination | Yes |
| Dynamic Range | 120dB |
| Frame Rates | Single Stream: Up to 30fps (5MP) |
| Multi-Stream: Up to 15fps (5MP) + 10fps (5MP) | |
| Up to 30fps (1080p) + 30fps (720p) + 30fps (VGA) | |
| Lens | Motorized Lens: 2.7–12mm, F1.3, H-FOV = 24°–81°, V-FOV = 18°–57°, P-Iris |
| Programmability | |
| Optics | Remote focus, remote zoom |
| Low-Light Performance | NightView™ technology |
| Smart IR | Programmable |
| Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz selectable |
| Image Rotation | CorridorView™ (90°, 180°, and 270° image rotation) + mirror |
| Scaling | 2592x1944, 2048x1536, 1920x1080, 1296x972, 1280x720, 640x480, 640x360, 320x240 |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+™ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Defog | Supported |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue Electronic pan, tilt, zoom (PTZ) |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Video Analytics | |
| Basic Video Analytics | Motion Detection, Camera Tamper |
| Advanced Video Analytics | Intrusion Detection, Line Crossing, Loitering |
| Optional Advanced Video Analytics | Object Classification (Person/Vehicle), Object Left/Removed, People/Vehicle Counting |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | 64K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Transmission Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| Ethernet | 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, video analytics, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS/SD card, record JPG/mp4 |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, T conformant |
| Listings | UL (CB) UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | CE: EN55032 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Environmental | |
| Operating Temperature | -20°C (-4°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| General Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 Total PoE solution (no external power requirement) |
| Auxiliary Power | 12–48V DC, 24V AC |
| Power Consumption | 6.5W PoE max |
| IR Illuminator | |
| LEDs | 12pcs, Smart IR |
| Projection Distance | 66ft (20m) max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line in / Line output |
| Mechanical | |
| Casing | Die-cast aluminum chassis with 4" polycarbonate dome bubble IP66 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | Easily adjustable 3-axis camera gimbal w/360° pan, 77° tilt and 180° z-axis |
| Dimensions | Unit: Ø 5.77" (146.7mm) x 5.42" H (137.6mm) |
| Packaged: 6" H (150mm) x 7.5" W (190mm) x 8" L (200mm) | |
| Weight | Unit: 2.65lbs (1.2kg) |
| Packaged: 3.31lbs (1.5kg) | |
| On Board Storage | MicroSDXC slot up to 256GB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
The ConteraIP Outdoor Dome EX megapixel camera features 5MP resolution for optimum performance. It combines a day/night mechanical IR cut filter with an integrated motorised remote focus and zoom precision iris (P-iris) lens to deliver excellent image quality. It is ONVIF (Open Network Video Interface Forum) Profile S, G and T compliant, ensuring interoperability between network video products from different manufacturers. Inclusion of on-camera video analytics gives the ConteraIP Outdoor Dome EX the ability to increase situational awareness and gather data for business intelligence. Alarm conditions can be set up to alert security to observed behaviours. Several analytic behaviours can also be used for gathering business intelligence data, such as loitering for tracking dwell time in retail environments.
