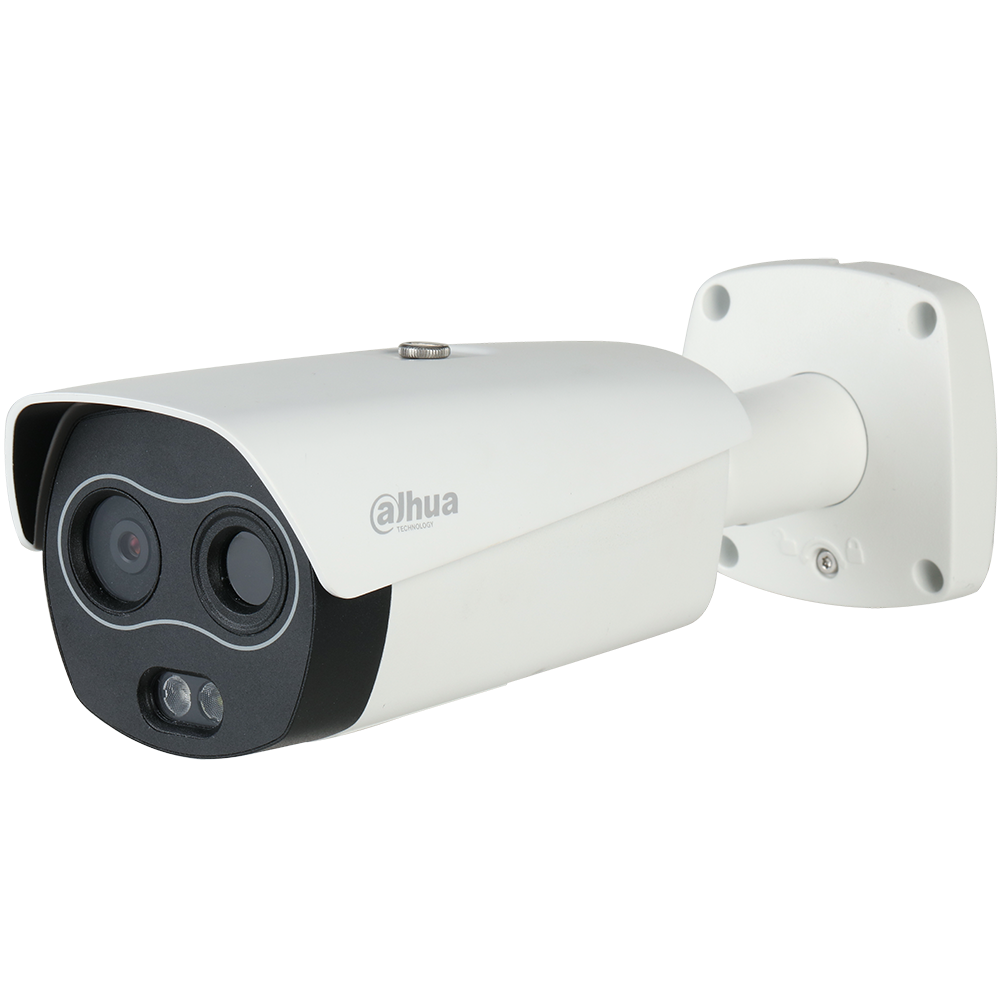

Dahua - DH-TPC-BF5421 - Thermal Network Hybrid Bullet Camera ePoE
Part number:
DH-TPC-BF5421
Price:
The Hybrid Thermal Network camera combines an uncooled VOx 400 x 300 thermal imager with a 2 MP visible-light sensor for cost-effective, long-range surveillance in a rugged all-in-one package. The thermal imager coupled with an athermalized, focus-free lens produces crisp images in total darkness and sees through rain, fog, and snow. The visible imager with an IR illuminator delivers superior video in any lighting condition. Hybrid thermal cameras let you see the visible and the invisible.
Thermal Camera
- 400 x 300 VOx Uncooled Thermal Sensor Technology
- Athermalized Lens, Focus-free
- 13 mm Fixed Thermal Lens
- ≤ 40 mK Thermal Sensitivity
Visible-light Camera
- 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
- 8 mm Fixed Lens
- Maximum IR Distance 50 m (164.04 ft)
System Features
- Intelligent Video System with Excessive Temperature Detection
- Enhanced Power and Data Transmission Distances (ePoE)
- Built-in Speaker and White-light Illuminator for Active Deterrence
- IP67 Ingress Protection
| Thermal Camera | ||
| Image Sensor | Uncooled VOx Microbolometer Plane Detector | |
| Effective Pixels | 400 (H) x 300 (V) | |
| Pixel Size | 17 µm | |
| Thermal Sensitivity (NETD) | ≤ 40 mK (f/1.0) | |
| Spectral Range | 8 µm to 14 µm | |
| Color Palettes | 18, including: Whitehot, Blackhot, Icefire, Fusion, Rainbow, Globow, Ironbow1, and Sepia | |
| Thermal Lens | ||
| Lens Type | Fixed, F1.0 | |
| Focus Control | Athermalized, Focus-free | |
| Focal Length | 13 mm | |
| Angle of View | Horizontal: 30° Vertical: 22.6° | |
| DORI Distance | ||
| Effective Distance, human (1.80 m x 0.50 m)¹ | Detection | 382 m (1253.28 ft) |
| Recognition | 98 m (321.52 ft) | |
| Identification | 49 m (160.76 ft) | |
| Effective Distance, vehicle (2.30 m x 2.30 m)¹ | Detection | 1020 m (3346.47 ft) |
| Recognition | 225 m (738.19 ft) | |
| Identification | 127 m (416.67 ft) | |
| Video | ||
| Compression | H.265, H.264, H.264H, H.264B, MJPEG | |
| Frame Rate | Main Stream | |
| Thermal | 1280 x 1024, 1280 x 960 (default), 1280 x 720, 400 x 300 at 30 fps | |
| Visible | 1920 x 1080 (default), 1280 x 720, 704 x 576 at 30 fps | |
| Sub Stream | ||
| Thermal | 640 x 512, 640 x 480, 400 x 300 at 30 fps | |
| Visible | 704 x 576, 352 x 240 at 30 fps | |
| Bit Rate Control | CBR, VBR | |
| Bit Rate | H.265 | Visible Light Sensor: 256 Kbps to 5632 Kbps |
| Thermal Sensor: 129 Kbps to 3840 Kbps | ||
| H.264 | Visible Light Sensor: 256 Kbps to 8192 Kbps | |
| Thermal Sensor: 216 Kbps to 6144 Kbps | ||
| Day/Night | Auto (ICR), Color, B/W | |
| BLC Mode | BLC, HLC, WDR | |
| White Balance | Auto, Manual, Indoor, Outdoor, ATW, Street Lamp, Natural | |
| Noise Reduction | 2D NR, 3D NR | |
| Motion Detection | Off, On (4 Zones, Rectangular) | |
| Advanced Features | Defog, Exposure Compensation | |
| Flip | 0°, 90°, 180°, 270° | |
| Mirror | Off, On | |
| Privacy Masking | Four (4) Areas | |
| Network | ||
| Ethernet | RJ-45 (10/100 Base-T) | |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP, Multicast, SFTP, 802.1x | |
| Interoperability | CGI | |
| Streaming Method | Unicast / Multicast | |
| Maximum User Access | Up to 20 Users (total bandwidth: 64 Mbps) | |
| Edge Storage | FTP Micro SD Card Slot, maximum 64 GB | |
| Web Viewer | IE8 and later | |
| Management Software | DSS, DMSS | |
| Mobile Operating System | iOS, Android | |
| User Management | Up to 20 users, supports multi-level user permissions (2 levels): management group and user group | |
| Malfunction Detection | Network disconnection detection, IP conflict detection, memory card state detection, memory space detection | |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade | |
| Audio | ||
| Compression | G.711a, G.711Mu, PCM | |
| Visible-light Camera | |
| Image Sensor | 1/2.8-in. CMOS |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Horizontal Definition | ≥1100 TVL |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.01 lux at F1.9 B/W: 0.001 lux at F1.9 0 lux with IR On |
| S/N Ratio | > 55 dB |
| IR Distance | 50.0 m (164.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR Angle | 45° |
| IR LEDs | One (1) |
| Visible-light Lens | |
| Focal Length | 8 mm |
| Maximum Aperture | F1.9 |
| Angle of View | Horizontal: 38.4° Vertical: 22.2° |
| Iris Control | Fixed |
| Certifications | |
| Safety | UL 60950-1, CAN/CSA C22.2 No. 60950-1-07 EN 62368-1:2014+A11:2017 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 subpart B ANSI C63.4-2014 EN 55032:2015+A11:2020, Class B EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55024:2010+A1:2015, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014 |
| Interface | |
| Video | One (1) CVBS Port, BNC |
| Audio | Input: One (1) Channel, 3.5 mm Jack Output: One (1) Channel, 3.5 mm Jack |
| RS485 | One (1) Port |
| Alarm | Input: Two (2) Channels Output: Two (2) Channels |
| Electrical | |
| Power Supply | 12 VDC ± 20%, PoE (IEEE802.3af Class 0), or ePoE |
| Power Consumption | Basic: < 8 W Maximum: < 18 W |
| Environmental | |
| Operating Condition | –40° C to +70° C (–40° F to +158° F) Less than 95% RH |
| Storage Conditions | –40° C to +70° C (–40° F to +158° F) Less than 95% RH |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions (L x W x H) | 280.0 mm x 103.50 mm x 95.80 mm (11.02 in. x 4.07 in. x 3.77 in.) |
| Net Weight | 1.80 kg (3.97 lb) |
| Gross Weight | 2.50 kg (5.51 lb) |
| Intelligence | |
| IVS triggers an alarm and takes a defined action for the following events: | |
| Standard Features | • Tampering with the camera. • Camera loses or changes focus drastically. • Error writing to an onboard Micro SD card. • Error sending or receiving data over the network. • Unauthorized access to the camera. |
| Premium Features | |
| Tripwire | A target crosses a user-defined line. |
| Intrusion | A target enters or exits a defined perimeter. |
| Advanced Features | |
| Excessive Temperature Detection | Detects a rapid rise in temperature over a short time and issues an alarm. |
| Smoking Detection | Detects a person smoking in the thermal image and triggers a pre-determined action (voice prompt, white light) to alert the person of the smoking policy. |
| Human/Vehicle Classification | Detects human or vehicle violations using Tripwire or Intrusion detection methods. |
| Effective IVS Distances – Thermal Lens | |
| 13 mm | |
| Human (1.80 m x 0.50 m) | 91.0 m (298.56 ft) |
| Vehicle (4.0 m x 1.40 m) | 273.0 m (895.67 ft) |
