DHI-VTH1550CHW-2-S - EOL Replacement: DHI-VTH5422HW
This product has been discontinued. Replacement: DHI-VTH5422HW





Part number:
DHI-VTH1550CHW-2-S
Price:

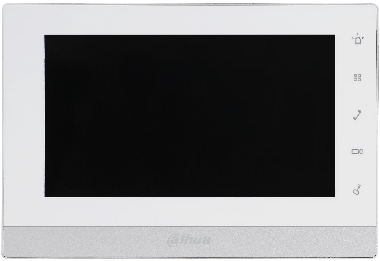

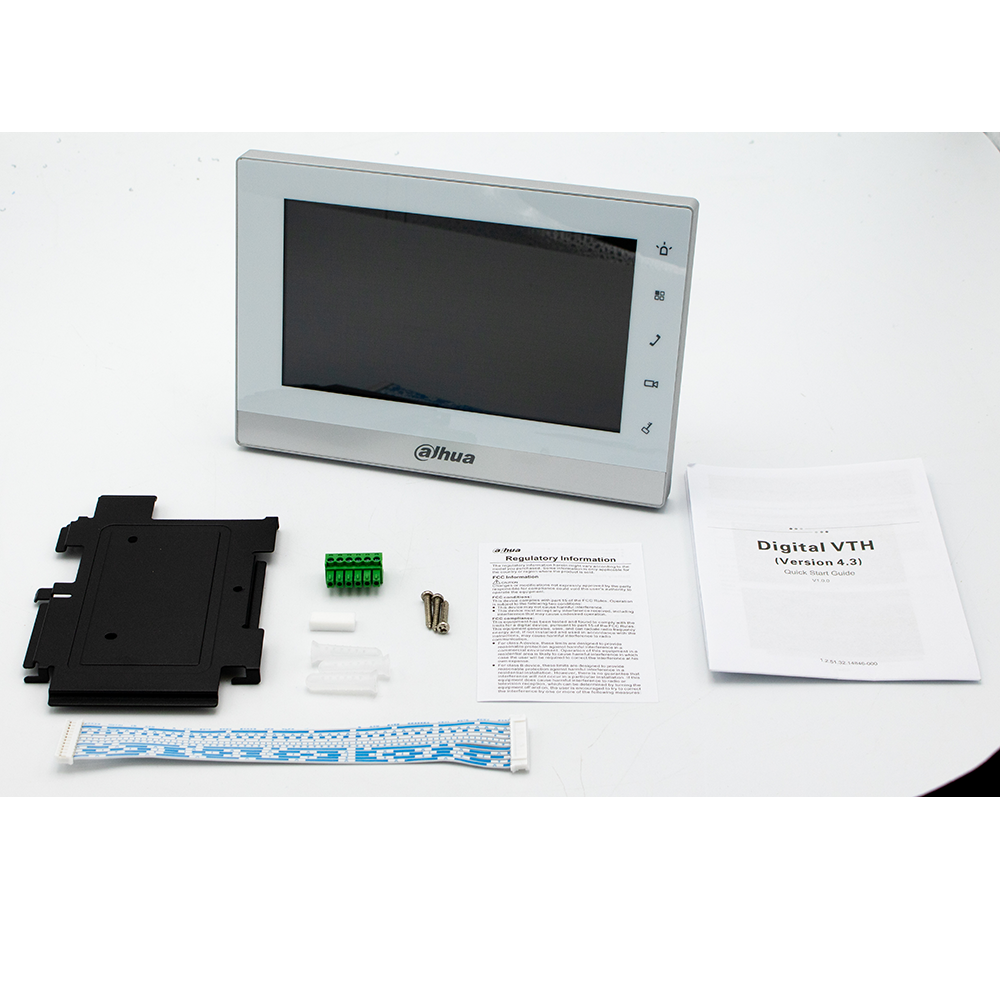

The DHI-VTH1550CHW-2-S indoor monitor allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor or remotely using the iDMSS or gDMSS app. The DHI-VTH1550CHW-2-S indoor monitor is used as part of a video intercom solution with compatible outdoor stations.



Features:

  • 7-inch Capacitive Touch Screen, 800 x 480 Resolution
  • Simplified Connection and Setup to Compatible Outdoor Stations
  • Integrate with Existing Two-wire Cabling
  • Supports Alarm Integration with 3rd Party Intrusion Devices
  • Monitor up to 32 IP Cameras
  • Integrated Micro SD Card Slot, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)
  • Setup and Activate up to Six (6) Alarm Inputs
  • Surface-mounted

System

Main Processor32-bit ARM Cortex-M3
Memory16 MB (32 MB external)

Input/Output Ports

InputsNine (9) Normally Open, Supervised Inputs, 0 VDC to 5 VDC nominal:
• Four (4) Door Sensors
• Four (4) Exit Buttons
• One (1) Alarm
OutputsFive (5) Dry Relays:
• Four (4) Lock Relays Form C, 3 A at 24 VDC maximum¹
• One (1) Alarm Relay, Switching Signal Type, 1 A at 24 VDC maximum
ReadersFour (4) Reader Inputs
• 11 VDC to 13 VDC, current limited
• 300 mA, maximum per port

Capacity

Card Holders100000
Events150000

Functions

Unlock ModesCard, Fingerprint, Password, Card + Password, Card or Password, Card + Fingerprint, Fingerprint + Password, and By Period
User ManagementGeneral, VIP, Guest, Patrol, Black List, Duress
Alarm Function• Door time-out Alarm
• Intrusion Alarm
• Duress Alarm
• Tamper Alarm
Schedule SettingsSchedule: 128 Groups
Period: 128 Groups
Holiday: 128 Groups

Interface

Reader Compatibility²
Wiegand Reader Data24 AWG, 5 conductor stranded cable without shield, 40.0 m (131.23 ft), maximum
RS485 Reader Data24 AWG, 120 Ω Impedance, 3 conductor stranded cable without shield, 100.0 m (328.08 ft) maximum.
Use a separate power supply to extend the RS485 reader data up to 1000.0 m (3280.84 ft), maximum
Network CompatibilityTCP/IP, RJ-45 (10/100 Mbps)
Name
Description
Size
Downloads
File
Data Sheet
0.3mb
