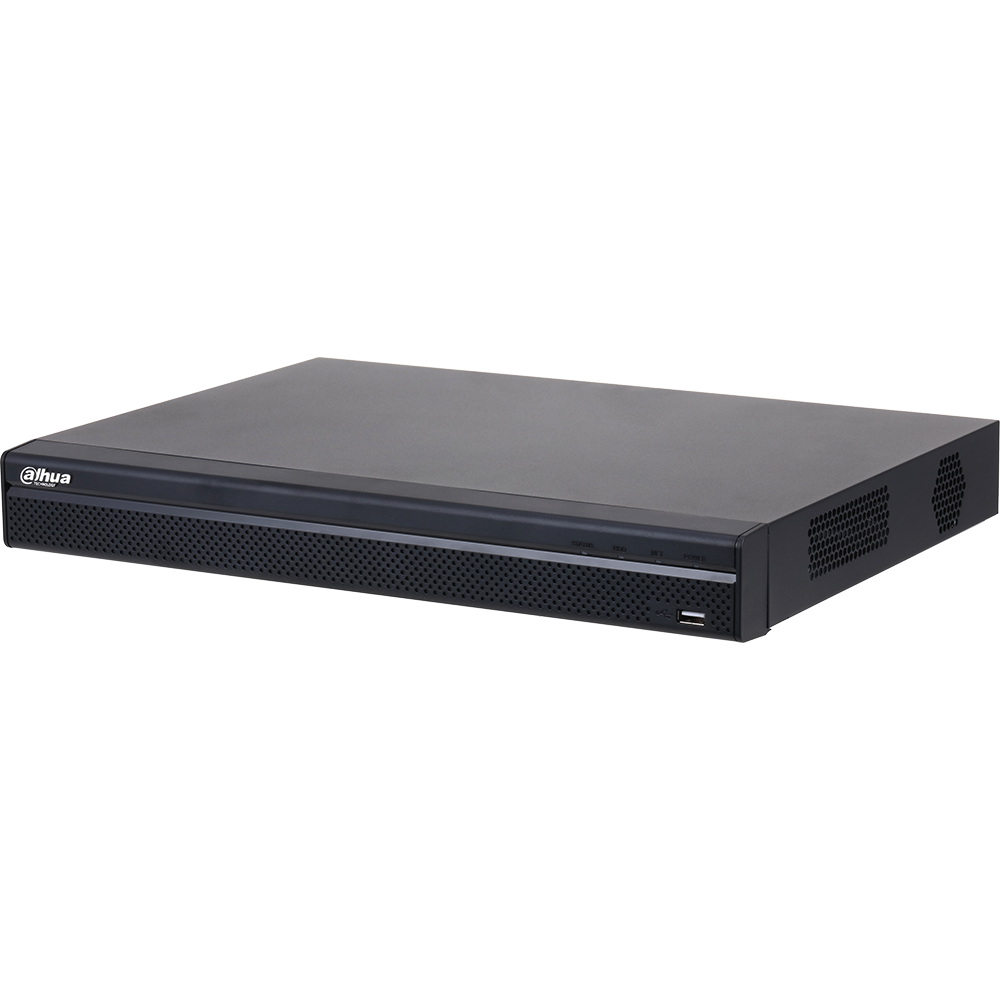

Dahua’s Lite Series network video recorders offer excellent performance and high recording quality for network video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, center storage, edge storage, and back up storage.
Designed as a cost-effective and easy to install recorder, this NVR is an ideal addition to any security system that monitors public spaces, water conservancy, transportation, city centers, schools, and financial institutions.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and it is compatible with ONVIF S, T, and G protocols, enabling interoperability when combined with 4K cameras.
Features:
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum 160 Mbps Incoming Bandwidth
- Up to 8 MP Resolution for Preview and Playback
- Simultaneous HDMI and VGA Video Output
- Supports Remote Configuration and Management of Network Cameras
- Supports P2P Remote Surveillance and DMSS Mobile App
- Records Analytics+ Data from Edge Cameras
- Four (4) PoE/PoE+ Ports
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| System | ||
| Main Processor | Industrial-grade Embedded Processor | |
| Operating System | Embedded Linux | |
| Audio and Video | ||
| IP Camera Input | Four (4) Channels | |
| Audio | Input: One (1) Channel, RCA Output: One (1) Channel, RCA | |
| Analytics+ Recording | ||
| Perimeter Protection | Channels | Four (4) |
| Search | By channel, time, event type | |
| SMD+ | Channels | Four (4) |
| Search | By target classification (human or vehicle) | |
| Display | ||
| Interface | One (1) HDMI One (1) VGA | |
| Native Output Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 | |
| Maximum Decoding | Two (2) Channel of 8 MP at 30 fps Four (4) Channels of 4 MP at 30 fps | |
| Multi-screen Display | 1/4 | |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording | |
| Recording | ||
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG | |
| Audio Compression | PCM, G.711A, G.711Mu, G.726 | |
| Supported IP Camera Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1 | |
| Maximum Recording Bandwidth | 160 Mbps | |
| Record Mode | Manual Recording; Alarm Recording; SMD Recording; Smart Recording | |
| Video Detection and Alarm | ||
| Alarm Input | Four (4) Channels | |
| Relay Output | Two (2) Channels | |
| General Alarms | Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm | |
| Anomaly Alarms | Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception | |
| Analytics+ Alarms | Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms | |
| Alarm Actions | Recording, snapshot, audio, buzzer, log, preset, and email | |
| Playback and Backup | ||
| Sync Playback | 1/4 | |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to one second), Smart Search | |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Reverse, By Frame, Full Screen, Backup Selection (video clip or file), Partial Zoom, Audio On/Off | |
| Backup Mode | USB Device, Network | |
| Third-party Support | ||
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others | |
| Network | ||
| Ethernet | One (1) RJ-45 Port (10/100/1000 Mbps), Self-adaptive | |
| PoE | Four (4) Ports (IEEE802.3af/at) | |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS); P2P; Auto register | |
| Maximum User Access | 128 | |
| Mobile Operating System | IOS, Android | |
| Browser | Chrome, IE 9 or later | |
| Interoperability | ONVIF Profiles S,T,G; CGI, SDK | |
| Storage | ||
| Internal HDD | Two (2) SATA III Ports, Up to 10 TB capacity per HDD | |
| HDD Mode | Single | |
| Auxiliary Interface | ||
| USB | Two (2) USB 2.0 Ports | |
| Electrical | ||
| Power Supply | 53 VDC, 1.36 A | |
| NVR Power Consumption | < 10 W, without HDD | |
| Total PoE Budget | 25.5 W single port, 36 W total | |
| Environmental | ||
| Operating Conditions | –10° C to +55° C (+14° F to +131° F), 10% to 93% RH | |
| Storage Conditions | 0° C to +40° C (32° F to 104° F), 30% to 85% RH | |
| Construction | ||
| Dimensions (W x L x H) | 375.0 mm x 282.90 mm x 53.0 mm (14.76 in. x 11.14 in. x 2.09 in.) | |
| Net Weight | 1.58 kg (3.48 lb), without HDD | |
| Gross Weight | 2.93 kg (6.46 lb), without HDD | |
| Certifications | ||
| Safety | EN62368-1 UL 62368-1 CAN/CSA C22.2 No.62368-1-14 | |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B EN55032, EN55024, EN55035, EN61000-3-2, EN61000-3-3, EN50130-4 |
