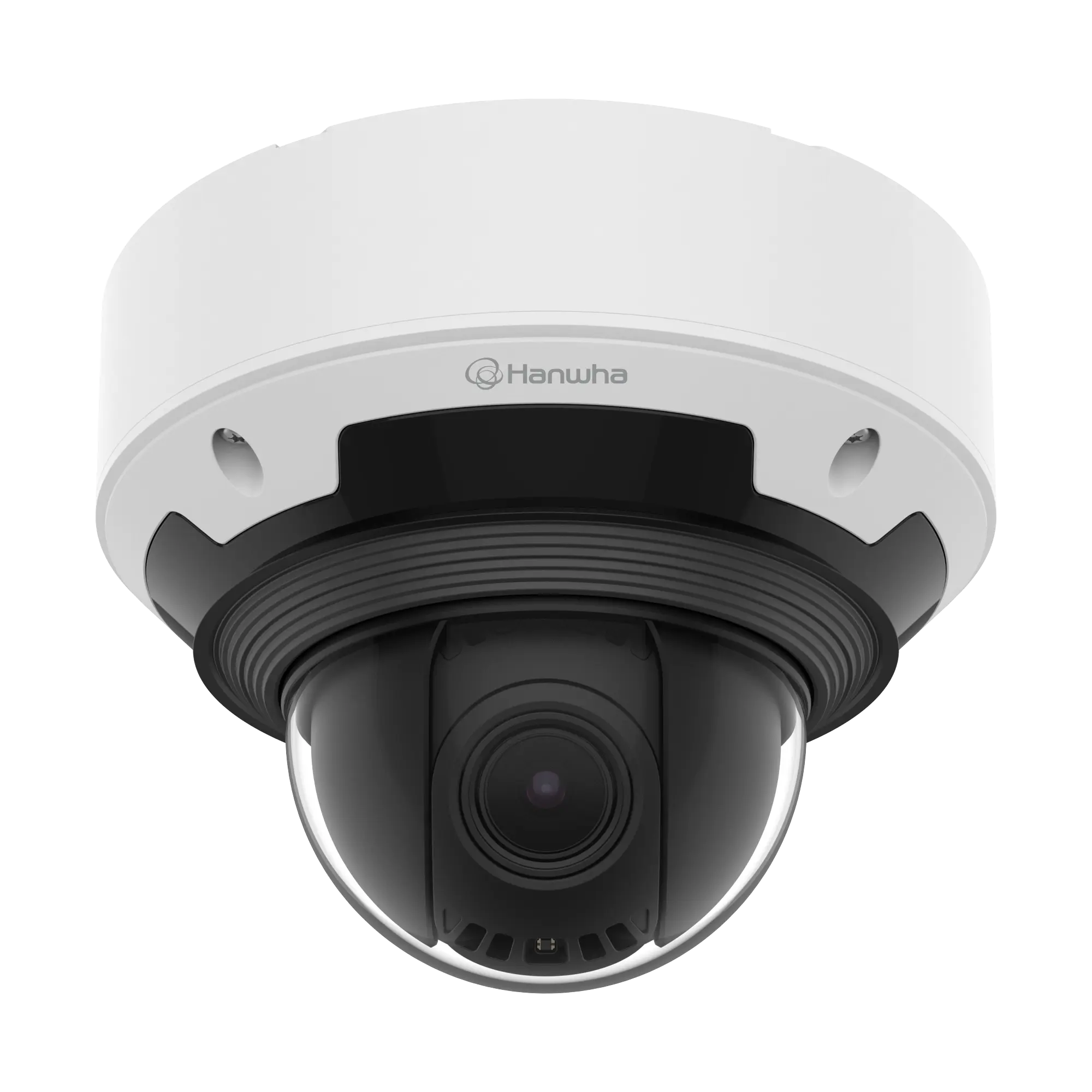

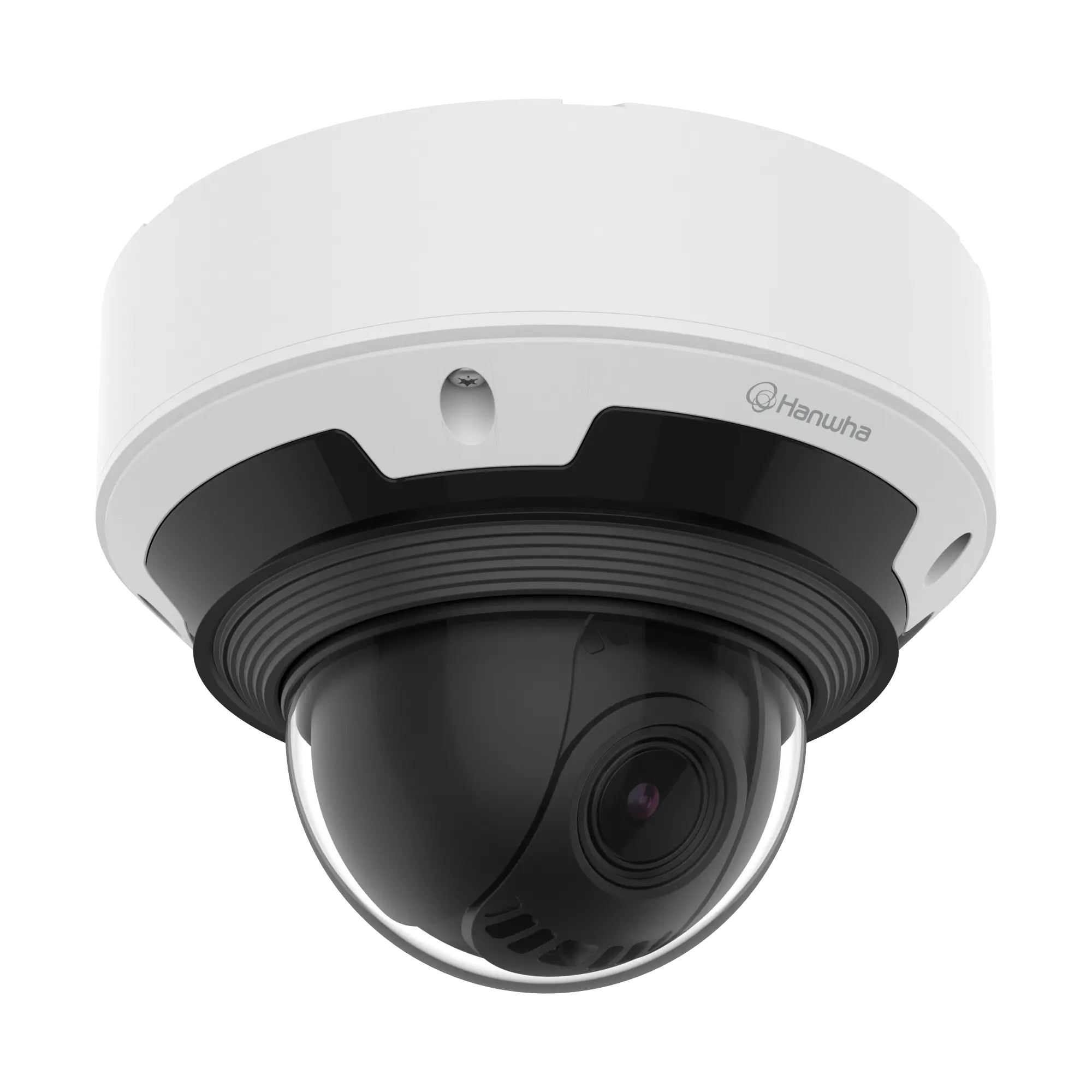

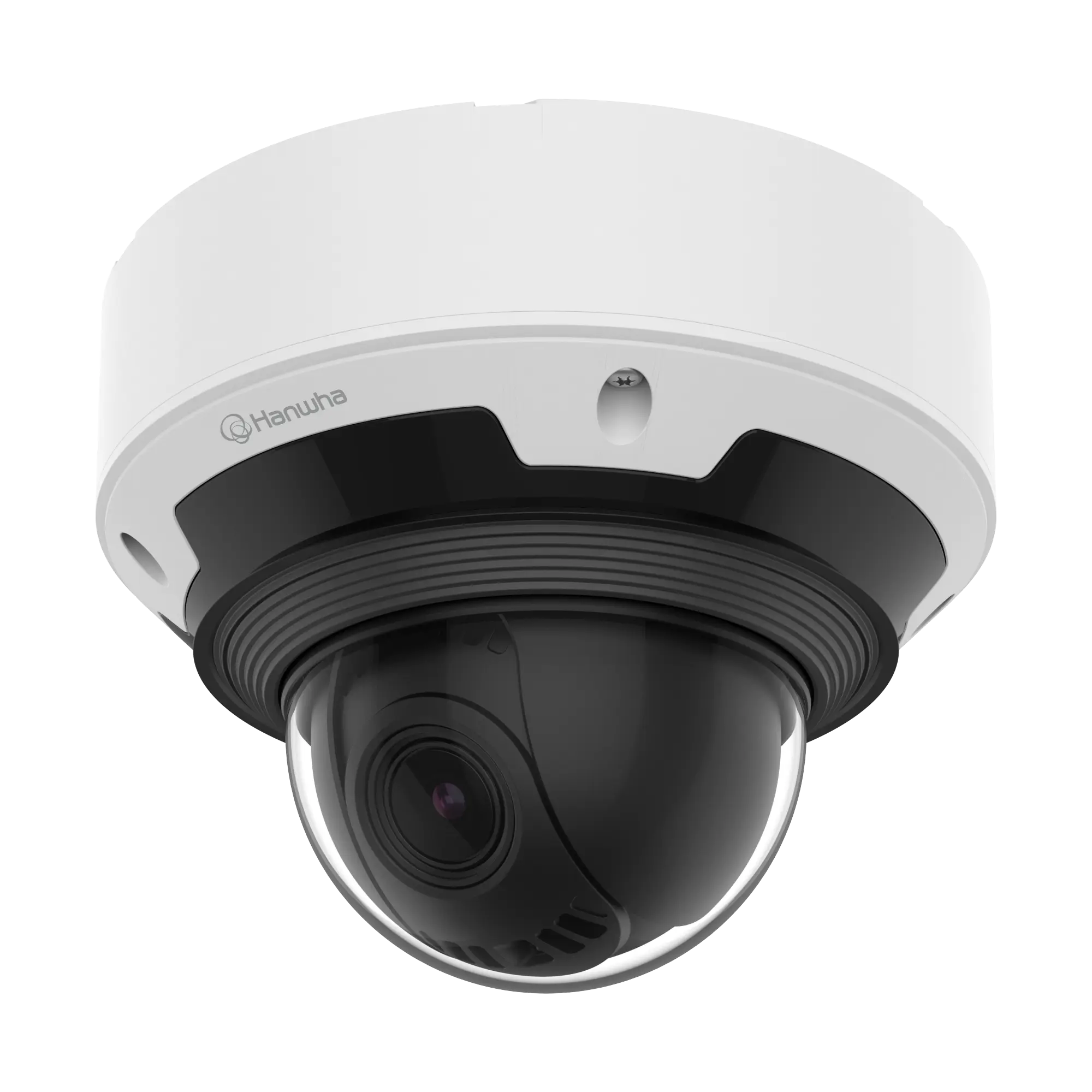

Hanwha - PNV-A7082RZ - 4MP IR Outdoor Vandal Dome AI, PTRZ Camera

Name: Hanwha - PNV-A7082RZ - 4MP IR Outdoor Vandal Dome AI, PTRZ Camera
Brand: Hanwha Vision
SKU: PNV-A7082RZ

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• Maximum 4MP resolution (1/1.8” sensor)
• 4.6~9.35mm(2.0x) motorized varifocal
• Long-range WiseIR distance up to 30m (98.43ft)
• PRTZ for easy installation
• 2 times per a day PTRZ preset support
• Analytics events based on an AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Face mask detection, Social distancing detection
• Business intelligence based on an AI engine: People/Vehicle/Crowd counting, Queue management, Heatmap
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• AI-based Image enhancement
• extremeWDR, WiseNRⅡ and WiseStream (Based on AI engine)
• Support Wisepower(Power monitoring)
• Device certificate(Hanwha Vision Root CA), Secure storage(Secure element withFIPS 140-3 level3/CC EAL6+ certified), SBOM
2 SD slots edge storage
• IP66/IP67/IP6K9K, NEMA4X, IK11, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9)

Video
Imaging Device Size	1/1.8"
Type	CMOS
Resolution	2592x1520, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. Framerate	H.265/H.264: 60fps/50fps (60Hz/50Hz) (WDR off) / 30fps/25fps (60Hz/50Hz) (WDR on) MJPEG: 30fps (@4MP Max. 5fps)
Min. Illumination (Lux)	Color (1/30sec, 30IRE): 0.03 BW (1/30sec, 30IRE): 0.003
Lens
Focal Length (mm)	4.6~9.35
Zoom Ratio	Optical 2.0x
Max Aperture Ratio (F number)	Wide: 1.3 / Tele: 2.15
Angular Field of View	Horizontal: 105°~47° Vertical: 58°~27° Diagonal: 128°~55°
Min. Object Distance	1.5m (4.92ft)
Focus Control	Simple focus
Lens Type	P iris (IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	Pan: 0°~350° Tilt: -45°~85° Rotate: -95°~95°
Others	Remote adjustment (Max. 3,650 cycles)
Operational
Day & Night	Auto (ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)	120
Digital Noise Reduction	WiseNRⅡ (Based on AI engine), SSNRⅤ
Digital Image Stabilization	Support
Defog	Support
Motion Detection	Quantity: 8ea, Shape: 8point Polygonal zones
Privacy Masking	Quantity: 32ea, Shape: 8point Polygonal zones Color: Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Dynamic Privacy Masking Color	Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain Control	Off, Max gain, Manual
White Balance	ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDC	Support (Fill/stretch mode)
Electronic Shutter	Mode: Minimum, Maximum, Anti flicker, Prefer shutter control (Based on AI engine) Speed Range: 2~1/30,000 sec
Video Rotation	Flip, Mirror, Hallway view (90°/270°)
Alarm Interface	Support alarm I/O via optional I/O box
Alarm Triggers	Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption
Alarm Events	File upload (image): e-mail/FTP/SFTP, File upload (video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Light Type	IR LED
Light Viewable Length	IR WiseIR: 30m (98.43ft)
IR Wavelength	850nm
Analytics
Classified Object Type	Person, Face, Vehicle, License plate
Attributes	Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type (car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses
Thumbnail	BestShot
Analytics Events (Based on AI Engine)	Object detection, Virtual line (Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area (Loitering/Intrusion/Enter/Exit/Appear/Disappear)
Normal Analytics Events	Defocus detection, Tampering, Audio detection, Shock detection
Business Intelligence (Based on AI Engine)	People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Network
Ethernet	Metal shielded RJ-45 (10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec	WiseStream (Based on AI engine)
Bitrate Control	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming	Unicast: Up to 20 users, Multicast: Support
Multiple Streaming	Up to 5 profiles, 3 virtual channel support
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
Application Programming Interface
API	ONVIF S, G, T, M, SUNAPI (HTTP API), Hanwha Vision Open Platform, Direct Cloud Connection Support
Security
OS / Firmware Protect	Encrypted firmware, Secure boot, Signed firmware
User authentication	Digest authentication, Prevent brute-force attack
Network authentication	IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication	HTTPS, WSS (WebSocket Secure), SRTP
Access Control	IP-based access control, MAC-based access control, Auto logout
Data Protect	Encryption credentials, Encrypt compress for live recording file export
Audit	Access / System / Event Log management
Device ID	Device certificate (Hanwha Vision Root CA)
Secure Storage	SDcard partition encrypt (AES-256), Secure element
Supply Chain Security	SBOM
Security Certificate	Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
SoC Type	Wisenet 9 (Dual NPU Support)
Memory	RAM: 4GB, Flash: 8GB eMMC
Edge Storage	Micro SD/SDHC/SDXC Max. 1TB x 2 slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating Condition	Temperature: -50°C~+55°C (-58°F~+131°F) Humidity: 0~100% RH (condensing) +74°C (+165°F) (Max) based on NEMA-TS 2(2.2.7) Start up should be done at above -30°C Humidity control with AIR vent
Storage Condition	Temperature: -50°C~+60°C (-58°F~+140°F) Humidity: 0~90% RH (non-condensing)
EPA (Effective Projected Area)	0.017
Input Voltage	PoE+ (IEEE802.3at, Class4)
Power Consumption	PoE: Max. 15.0W, typical 9.0W
WisePower	Power monitoring
Mechanical
Color	White
Material	Aluminum, Hard-coated dome
RAL Code	RAL9003
Product Dimensions	ø180 x 135mm (ø7.09 x 5.31")
Product Weight	2,100g (4.63 lb)
Compatible Conduit Hole	19.1mm (3/4") (M25)
Compatible Gang Box	Single, Double, 4" Octagon, Square
Certifications & Standards
EMC	FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety	UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment	IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK11, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
DORI (EN62676-4 standard)
Detect (25PPM / 8PPF)	Wide: 39.8m (130.51ft) / Tele: 119.2m (391.15ft)
Observe (63PPM / 19PPF)	Wide: 15.9m (52.20ft) / Tele: 47.7m (156.46ft)
Recognize (125PPM / 38PPF)	Wide: 8.0m (26.10ft) / Tele: 23.8m (78.23ft)
Identify (250PPM / 76PPF)	Wide: 4.0m (13.05ft) / Tele: 11.9m (39.12ft)

Name

Description

Size

Downloads

File

Datasheet

0.9mb

The Hanwha Vision PNV-A7082RZ is a 4MP IR outdoor vandal dome AI camera with PTRZ functionality, powered by the Wisenet 9 platform. It features a 1/1.8" CMOS sensor delivering 2592x1520 resolution at up to 60fps, a 4.6~9.35mm 2x motorized lens with a 105° to 47° horizontal FOV, and WiseIR providing 30m of night vision with 0.003 Lux B/W sensitivity. Video enhancements include WiseNR II, 120dB WDR, DIS, and defog. AI analytics include object detection of people, faces, vehicles, and licence plates, as well as virtual lines and areas. They also include face mask and social distancing detection, slip and fall detection, and business intelligence such as people and vehicle counting, queue management and heat maps. The camera is rated IP66, IP67, IP6K9K, IK11, NEMA 4X, and NEMA TS-2, operating from -50°C to +55°C. It features dual microSD slots up to 2TB total, a FIPS 140-3 Level 3 secure element, and is powered by PoE+.
