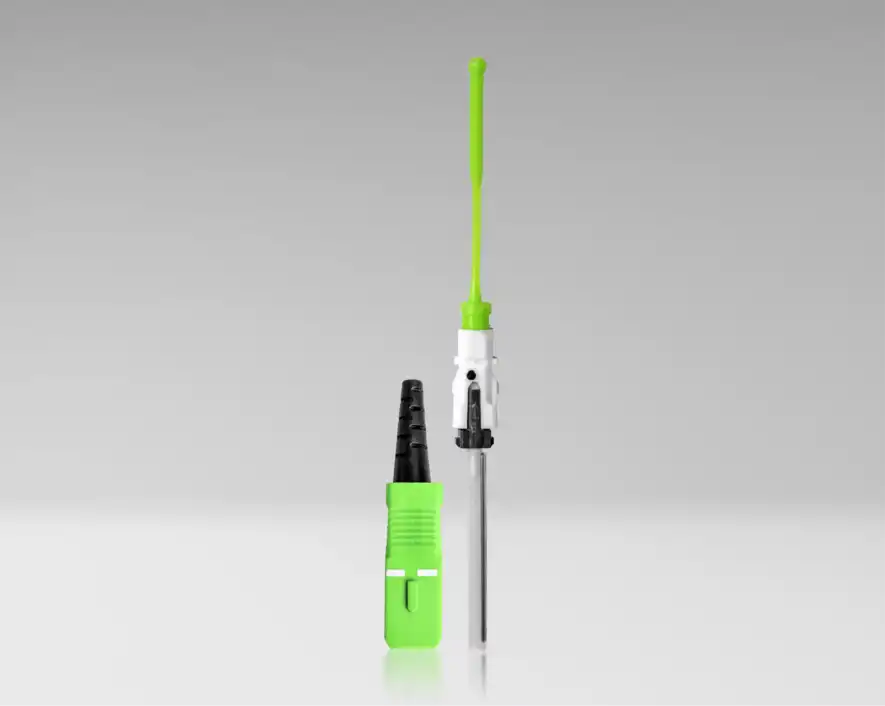

Jonard - SOC-SCA3/10 - SPARC Linc Splice On Connector, Singlemode SC/APC 3.0 mm
• There is no need for polishing or matching gel in the field.
• Protect the splice point inside the connector body.
• It is easy to assemble thanks to the one-touch, push-pull system.
• Enhanced high-quality features with improved optical performance (splice loss and return loss).
• The split boot structure prevents the fibre from bending when the connector is inserted into the termination.
| Fiber Type | Singlemode |
| Insertion Loss | 0.3 dB (Maximum) |
| Return Loss | ≤ -65 dB |
| Repeating Operation Test | 500 Cycles, ≤ 0.2 dB |
| Insertion Loss (Avg/Max) | AVG ≤ 0.3 dB, MAX ≤ 0.5 dB |
| Temperature Range | -40 °C - 75 °C |
| Fiber Diameter | 0.9 mm |
| Tensile Strength | ≥ 25 N (≥ 2.5 kgf) |
| Dimensions | 2.22” x 0.35” x 0.36” (5.64 cm x 0.89 cm x 0.91 cm) |
Designed for easy fusion splicing, this SC/APC splice-on connector provides a seamless, low-loss connection for single-mode fibre applications. Engineered for quick installation without compromising performance, it is ideal for fibre-to-the-home (FTTH) applications, data centres and telecommunications networks. Thanks to its pre-polished ferrule and robust housing, this connector delivers optimal performance and consistent signal integrity, providing a secure, high-speed connection every time.
