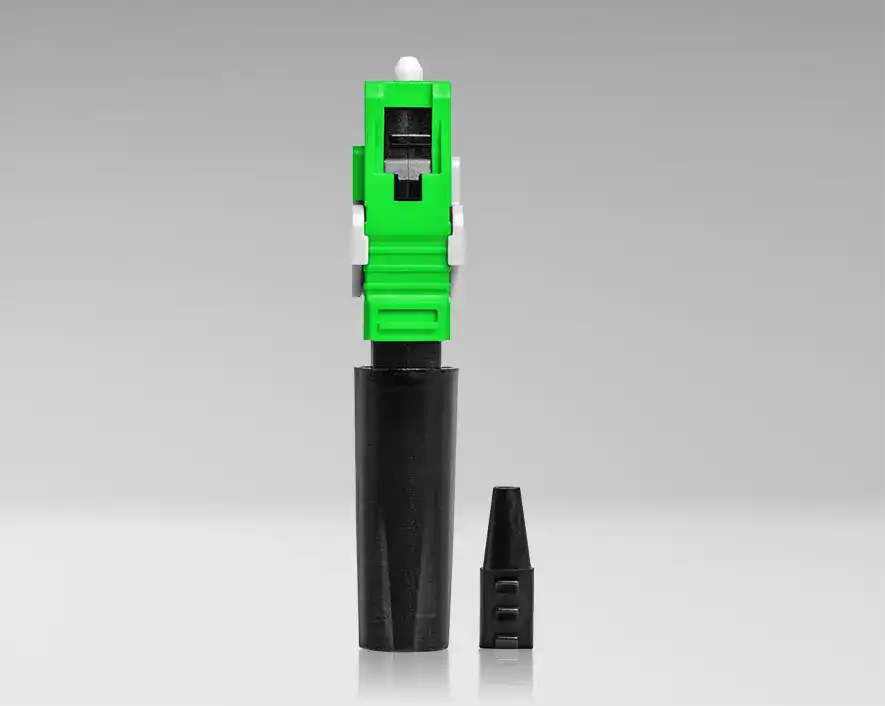

Jonard - SRL-SCA/10 - SPARC Rapid Linc Mechanical Connector, SC/APC, Pack of 10
Part number:
Price:
- • SC/APC polish for optimal performance and minimal signal loss.
- • Compatible with both 250 µm and 900 µm coated fibre cables.
- • It is easy to use and requires no special tools, making it ideal for quick fieldwork.
- • Designed for use in demanding environments to ensure long-lasting reliability.
- • Includes: Ten SC/APC mechanical connectors.
| Connector Type | SC |
| Polish Type | APC (Singlemode) |
| Fiber Type | Singlemode |
| Cable Types | 900 μm & 250 μm |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | APC≥55dB |
| Operating Temperature | -40/+85℃ |
| Standards | TIA/EIA 604-3 |
| Dimensions | 2" x 0.35" x 0.43" (5.08 cm x 0.89 cm x 1.09 cm) |
| Weight | 0.1 lb (45.4 g) |
Name
Description
Size
Downloads
File
Jonard Tools SRL-SCA-10 Instructions.pdf
1.2mb
File
SRL-SCA_10 - Sparc Rapid Linc Mechanical Connector - Data Sheet.pdf
1.7mb
Jonard Tools' mechanical connectors for fibre optic cables offer a reliable and efficient way to connect 250 µm and 900 µm coated fibres. Ideal for quick field installations, these connectors offer a simple, tool-free setup that saves time and enhances productivity.
