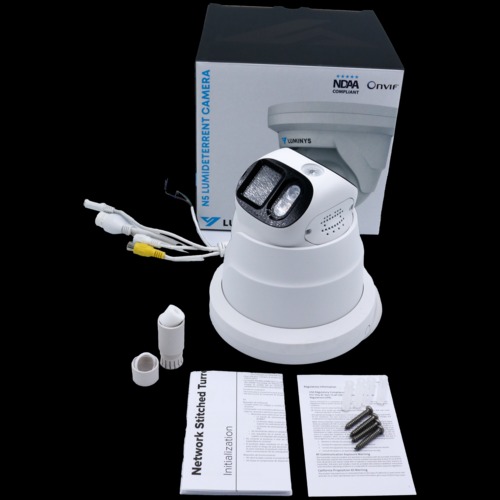

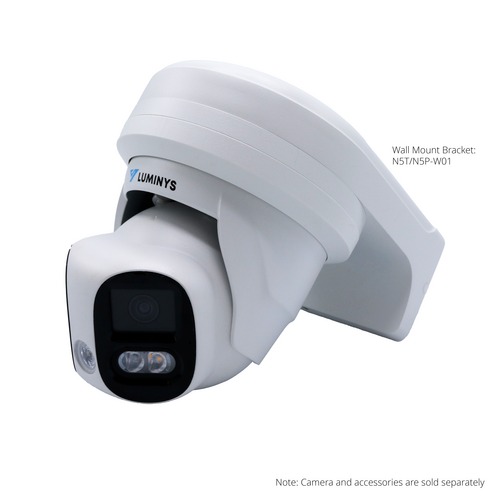

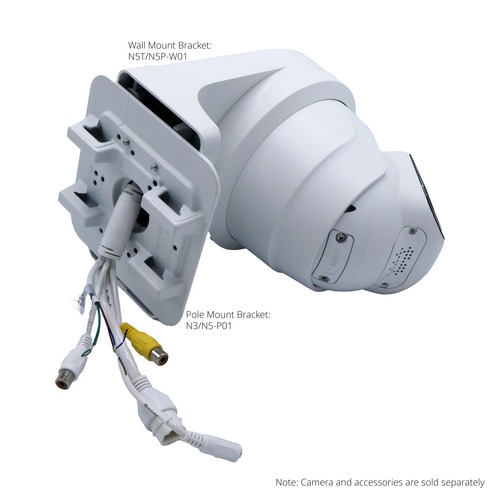

Luminys - N5P-8DA2 - 2 x 4MP LumiDeterrent IP Turret 2.8mm, 180º Stitched Image, IR and White-light LEDs, Flashing Lights
Part number:
N5P-8DA2
Price:

The N5P-8DA2 is part of Luminys’s N5 mainstream series of security devices. N5 mainstream series devices are designed a with suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.

LumiDeterrent technology technology integrates full-color video, active deterrence, and AI algorithms to provide 24/7 security. This technology can accurately identify potential risks and prevent incidents with red and blue light alarms and enhanced sound alarms.


LumiLuxSmart technology allows cameras to capture clear, full-color video day or night. When motion is detected, LumiLuxSmart cameras switch from IR LEDs to white-light LEDs to illuminate a scene, then switch back to IR mode once motion has ceased to prevent light pollution and energy inefficiency.


LumiSearch technology lets you quickly find, track, and identify targets in security footage usingm a reference image. The LumiSearch+ algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch+-enabled camera and NVR.


LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.



Features:

  • 2 x 4MP Turret Housing
  • 180° Stitched Multi-Sensor
  • 2.8 mm Lens
  • LumiLuxSmart With IR and White-Light LEDs
  • LumiDeterrent With Red/Blue Lights and Built-In Speaker
  • Video Content Analytics: Line Crossing and Intrusion
  • iMD, LumiSearch, LumiTracking
Luminys SeriesN5 Series (Mainstream)
Image Sensor1/2.7-in. 4MP Progressive CMOS
Maximum Resolution4096 × 1860
Minimum Illumination

Color: 0.002 Lux at F1.4

Black/White: 0.0002 Lux at F1.4

0 Lux With IR Light On

Number of Illuminators

IR: Two (2)

White Light: Two (2)

Illuminator ControlAutomatic, Manual
Maximum Illumination Distance

IR: Up to 25.0 m (82.0 ft)

White Light: Up to 20.0 m (66.0 ft)

Electronic Shutter SpeedAutomatic, Manual 1/3 s to 1/100,000 s
Pan/Tilt/Zoom

Pan: 0° to 360°

Tilt: 0° to 77°

Zoom: 0° to 360°

S/N Ratio> 56 dB
Lens
Iris TypeFixed
Lens TypeFixed
Focal Length2.8 mm
Maximum AperatureF1.4
Field of ViewHorizontal: 180° Vertical: 86°
Close Focus Range`0.8 m (2.6 ft)
DORI Distance

Detect: 50.6 m (166.0 ft)

Observe: 20.2 m (66.3 ft)

Recognize: 10.1 m (33.1 ft)

Identify: 5.1 m (16.7 ft)

Video
CompressionLumiFocus, H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream Only)
Stream CapabilityThree (3) Streams
Resolution

8MP (4096 × 1860), 6MP (3632 x 1632),

4MP (3040 x 1368), 1.6MP (1920 x 860),

1200 x 530, 960 x 432

Maximum Frame Rate

Main Stream: 4096 × 1860 at 1–20 fps

Sub Stream 1: 1200 × 530 at 1–20 fps

Sub Stream 2: 1920 × 1080 at 1–20 fps

Video Bit RateH.264: 6 to 16384 kbps H.265: 6 to 16384 kbps
Bit Rate ControlCBR/VBR
Day/NightAutomatic (ICR), Color, Black and White
Light BalancingWide Dynamic Range (120 dB)
Noise Reduction3D NR
DefogSupported
Region of InterestFour (4) Zones
Privacy MaskingFour (4) Zones
Analytics
Video Content AnalyticsLine Crossing, Intrusion, Loitering Detection
Intelligent Motion Detection

Supported With Alarms for Vehicles and

Humans

LumiSearchSupported When Used With LumiSearch-Enabled NVRs
LumiTracking

Zoom and Track Multiple Humans/

Vehicles and Trigger Alarms

Automatically

Audio
CompressionPCM, G.711a, G.711Mu, G.726, G.723
Interface

Input: Built-in Dual Microphones and

One (1) RCA Port

Output: Built-in Speaker and One (1) RCA Port

Alarm
Event

No SD Card, SD Card Full, SD Card

Error, Network Disconnection, IP

Conflict, Illegal Access, Motion

Detection, Video Tampering, Voltage Detection, Security Exception, Line

Crossing, Intrusion, Scene Changing,

Audio Detection, External Alarm, iMD

InterfaceInput: One (1) Channel (3V-5VDC, 5 mA) Output: One (1) Channel (12 VDC, 300 mA)
Network
ProtocolRJ-45 (10/100 Base-T)
Protocol

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP,

RTP , RTSP, RTCP, RTMP, SMTP, FTP,

SFTP, DHCP, DNS, DDNS, QoS, UPnP;

NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x

InteroperabilityONVIF (Profile S/G/T), API, SDK
BrowserChrome, Firefox
ClientLumiViewer, LumiViewer Mobile App
StrorageFTP, SFTP, NAS, Micro SD Card (Max. 256 GB)
Electrical
Power Supply12 VDC/PoE (802.3af)
Power Consumption

12 VDC

•   Maximum: 8.7 W

•   Normal: 4.0 W

PoE

•   Maximum: 10.9 W

•   Normal: 5.0 W

Construction
Net Weight1.0 kg (2.2 lb)
Gross Weight1.3 kg (2.8 lb)
Operating Temperature -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing)
Storage Temperature-40 to 60 °C (-40 to 140 °F)
Protection RatingsIP67
Dimensions

140.6 mm × Φ 142.5 mm

(5.5 in. × Φ 5.6 in.)

MaterialMetal
