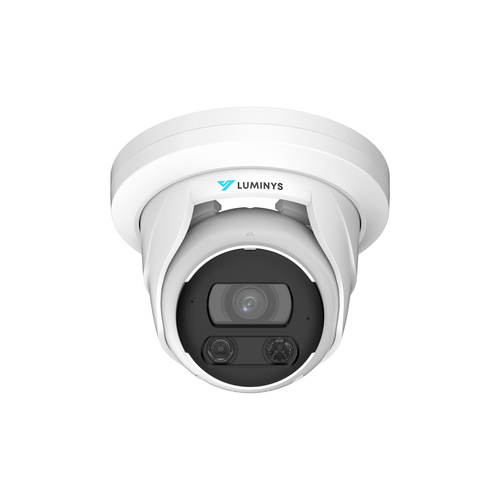

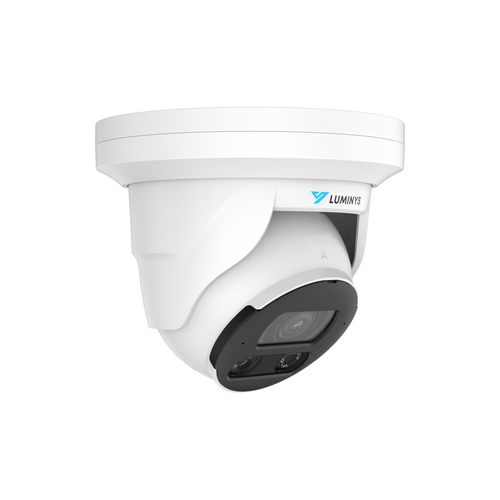

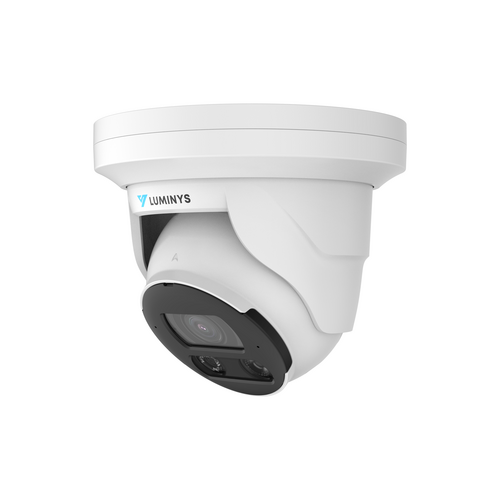

The N5T-4DA2 is part of Luminys’s N5 mainstream series of security devices. N5 mainstream series devices are designed with a suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.
LumiDeterrent technology technology integrates full-color video, active deterrence, and AIalgorithms to provide 24/7 security. This technology can accurately identify potential risks and prevent incidents with red and blue light alarms and enhanced sound alarms.
LumiLuxSmart technology allows cameras to capture clear, full-color video day or night. When motion is detected, LumiLuxSmart cameras switch from IR LEDs to white-light LEDs to illuminate a scene, then switch back to IR mode once motion has ceased to prevent light pollution and energy inefficiency.
LumiSearch technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch+ algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by many LumiSearch+-enabled camera and NVR
Features:
- 4MP Turret Housing
- 2.8 mm Lens
- LumiLuxSmart — IR and White-Light LEDs
- LumiDeterrent With Red/Blue Lights and Built-In Speaker
- Video Content Analytics: Line Crossing and Intrusion
- iMD, LumiSearch
- NDAA Compliance
- FCC
- IC
- UL
| Luminys Series | N5 Series (Mainstream) |
| Image Sensor | 1/2.7-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | Color: 0.001 Lux (F1.0) Black/White: 0.0001 Lux (F1.0) 0 Lux With IR Light On |
| Number of Illuminators | One (1) Dual-Core (IR and White Light) LED |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR: Up to 30.0 m (98.4 ft) White Light: Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Pan/Tilt/Zoom | Pan: 0° to 360° Tilt: 0° to 78° Zoom: 0° to 360° |
| S/N Ratio | > 56 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperature | F1.0 |
| Field of View | Horizontal: 101° Vertical: 53° Diagonal: 120° |
| Close Focus Range` | 1.5 m (4.9 ft) |
| DORI Distance | Detect: 66.0 m (216.5 ft) Observe: 26.4 m (86.6 ft) Recognize: 13.2 m (43.3 ft) Identify: 6.6 m (21.7 ft) |
| Video | |
| Compression | LumiFocus, H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Resolution | 4MP (2688 × 1520/2560 × 1440), 3MP (2304 × 1296/2048 × 1536), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| Maximum Frame Rate | Main Stream: 2688 × 1520 at 1–30 fps Sub Stream 1: 704 × 576 at 1–25 fps, 704 × 480 at 1–30 fps Sub Stream 2: 1920 × 1080 at 1–30 fps |
| Video Bit Rate | H.264: 32 to 8192 kbps H.265: 12 to 8192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower) |
| Mirroring | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Eight (8) Zones |
| Video Content Analytics | Line Crossing, Intrusion |
| Intelligent Motion Detection | Supported With Alarms for Vehicles and Humans |
| LumiSearch | Supported When Used With LumiSearch-Enabled NVRs |
| Audio | |
| Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
| Interface | Input: Built-in Dual Microphones and One (1) RCA Port Output: Built-in Speaker and One (1) RCA Port |
| Alarm | |
| Event | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, External Alarm, iMD |
| Interface | Input: One (1) Channel (3V-5VDC, 5 mA) Output: One (1) Channel (12 VDC, 300 mA) |
| Network | |
| Protocol | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP; NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox |
| Client | LumiViewer, LumiViewer Mobile App |
| Strorage | FTP, SFTP, NAS, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | 12 VDC • Maximum: 8.3 W • Normal: 3.7 W PoE • Maximum: 8.8 W • Normal: 4.8 W |
| Construction | |
| Net Weight | 0.8 kg (1.9 lb) |
| Gross Weight | 1.0 kg (2.2 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions | 123.5 mm × Φ 142.0 mm (4.9 in. × Φ 5.6 in.) |
| Material | Metal |
