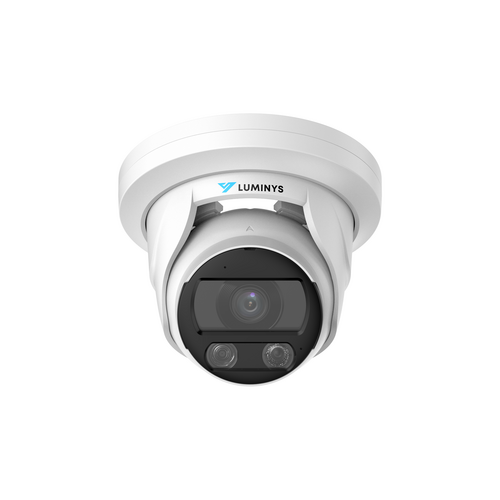

The N5T-8CA2 is part of Luminys’s N5 mainstream series of security devices. N5 mainstream series devices are designed with a suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.
Features:
- 8MP Turret Housing
- 2.8 mm Lens
- LumiColor With White-Light LEDs
- Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
- LumiAnalytics, Face Detection, People Counting, Heat Map, LumiSearch
- iMD, Queue Management, Smart Object Detection
- LumiPower
- NDAA Compliant
- FCC
- IC
| Luminys Series | N5 Series (Mainstream) |
| Image Sensor | 1/1.8-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination | 0.0005 Lux at F1.0 0 Lux With IR/White-Light On |
| Number of Illuminators | Two (2) White-Light LEDs |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Pan/Tilt/Zoom | Pan: 0° to 360° Tilt: 0° to 78° Zoom: 0° to 360° |
| S/N Ratio | > 56 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperature | F1.0 |
| Field of View | Horizontal: 110° Vertical: 59° Diagonal: 130° |
| Close Focus Range` | 1.6 m (5.3 ft) |
| DORI Distance | Detect: 95.6 m (313.6 ft) Observe: 38.2 m (125.3 ft) Recognize: 19.1 m (313.6 ft) Identify: 9.6 m (31.5 ft) |
| Video | |
| Compression | LumiFocus, H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream Only) |
| Stream Capability | Three (3) Streams |
| Resolution | 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728/2592× 1944), 4MP (2688 × 1520), 3MP (2048 × 1536), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| Maximum Frame Rate | Main Stream: 3840 × 2160 at 1–30 fps Sub Stream 1: D1 at 1–30 fps Sub Stream 2: 1920 × 1080 at 1–30 fps |
| Video Bit Rate | H.265: 12 kbps to 16384 kbps H.264: 32 kbps to 16384 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° With 4MP Resolution and Lower) |
| Mirroring | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection, Parking Detection |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Face Detection | Capture Snapshots and Facial Attributes |
| Heat Map | Supported |
| People Counting | Tripwire and In-Area People Counting, Queue Management With Report |
| LumiSearch | Supported When Used With LumiSearch-Enabled NVRs |
| LumiAnalytics | Supported |
| Object Monitoring | Supported |
| Audio | |
| Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
| Interface | Input: Built-in Microphone |
| Alarm | |
| Event | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Fast Moving, Abandoned Object, Missing Object, Loitering Detection, People Gathering, Scene Changing, Audio Detection, External Alarm, Face Detection, iMD, Area People Counting, Stay Alarm, People Counting, People Number Exception Detection |
| Network | |
| Protocol | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), API, SDK |
| Browser | Chrome, Firefox |
| Client | LumiViewer, LumiViewer Mobile App |
| Strorage | FTP, SFTP, NAS, MicroSD Card (Max. 512 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3at), LumiPower |
| Power Consumption | 12 VDC • Maximum: 7.9 W • Normal: 3.6 W PoE • Maximum: 9.6 W • Normal: 5.0 W |
