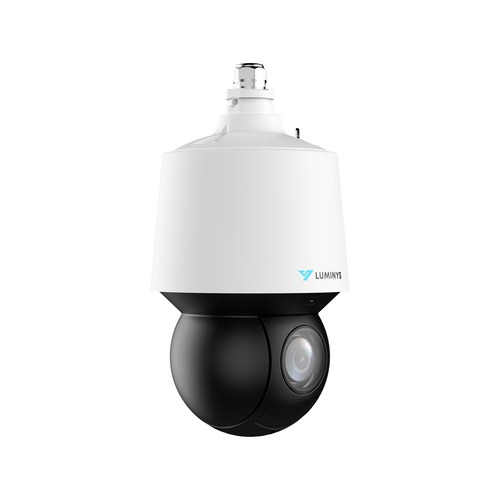

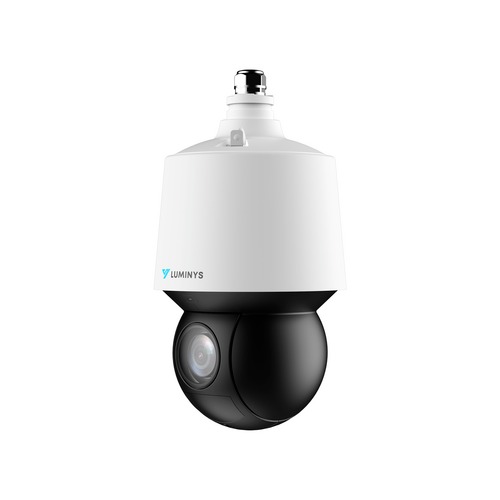

Luminys - P45-8RA25 - P4 Mainstream Series 8MP 25x IP PTZ with IR

Part number:
P45-8RA25
Price:

The P45-8RA25 is part of Luminys’s P4 mainstream series of security devices. P4 mainstream series devices are designed a with suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.


Key Technologies:
LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.


LumiFocus technology ensures a target stays in focus during the zooming process. LumiFocus uses advanced algoritms to accurately measure the distance from a target and predict the direction of its movement for enhanced image stability and clarity when zooming.



Features:

  • 8MP Dome Housing
  • 25x Max Optical Zoom
  • VCA+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • Face Detection, People Counting, Queue Managment
  • iMD, LumiTracking, LumiFocus
  • NDAA Compliant
  • FCC
  • IC
  • UL
Camera
Luminys SeriesP4 Series (Mainstream)
Zoom25x
Image Sensor1/1.8-in. 8MP Progressive CMOS
Maximum Resolution3840 × 2160
Minimum Illumination

Color: 0.005 Lux at F1.6

Black/White: 0.0005 Lux at F1.6

0 Lux With IR On

Number of IlluminatorsFour (4) IR LEDs
Illumination Range492.1 ft (150.0 m)
Illuminator ControlManual, Automatic
Electronic Shutter Speed1/3 s to 1/100,000 s
Control Speed

Manual Control

Pan: 0.1° to 250°

Tilt: 0.1° to 140°

S/N Ratio> 55 dB
Power-Off MemorySupported
Lens-
Iris TypeFixed
Lens TypeFixed
Focal Length5.4 mm to 135.0 mm
AperatureF1.6 to F4.0
Field of View

Horizontal: 61.6° to 3.6°

Vertical: 35.7° to 2.0°

Diagonal: 66.6°to 4.0°

Close Focus Range`0.3 ft to 6.6 ft (0.1 m to 2.0 m)
DORI Distance

Detect: 353.0 ft to 8858.3 ft (107.6 m to

2700.0 m)

Observe: 141.1 ft to 3541.7 ft (43 m to

1079.5 m)

Recognize: 70.5 ft to 1771.0 ft (21.5 m to

539.8m)

Identify: 34.5 ft to 885.8 ft (10.5 m to

270.0 m)

Pan/Tilt/Zoom-
Range

Pan: 0° to 360° Endless

Tilt: -15° to 90°,

Auto Flip: 180°

Pan SpeedManual Control: 0.1°/s to 250°/s Preset: 250°/s
Tilt SpeedManual Control: 0.1°/s to 140°/s Preset: 140°/s
Preset300
Patrol8 (Up to 32 Presets per Patrol)
Pattern5
Scan5
Scheduled ModesPreset, Pattern, Tour, Scan
Preset FreezingSupported
LumiFocus

Images Maintain Focus When Zooming

In or Out

3D PositioningSupported
Video-
Compression

Smart Encoding H.265+, H.265, Smart

Encoding H.264+, H.264, MJPEG (Sub

Stream 1 Only)

Smart CodecSupported
Stream CapabilityThree (3) Streams
Resolution

8MP (3840 x 2160), 4MP (2560 × 1440),

3MP (2048 × 1536/ 2304 × 1296), 1080p

(1920 ×1080), 1.3MP (1280 × 960), 720p

(1280 × 720), D1 (704 × 480), VGA

(640x480), CIF (352 × 240)

Maximum Frame Rate

Main Stream:

8MP/4MP/3MP/1080p/1.3MP/720p at

30 fps

Sub Stream 1: D1/VGA/CIF at 30 fps

Sub Stream 2: 1080p/1.3MP/720p at 30 fps

Video Bit RateH.265: 38 kbps to 8960 kbps H.264: 96 kbps to 14848 kbps
Bit Rate ControlCBR/VBR
Day/NightAutomatic (ICR), Color, Black and White
Light BalancingWide Dynamic Range (120 dB), BLC, HLC
Noise Reduction3D NR
Image Rotation180°
Image StabilizationElectronic
DefogElectronic
Region of Interest8 Regions
Privacy Masking

24 Areas (Up to 8 Areas in the Same

View)

Analytics-
Video Content Analytics+

Line Crossing, Intrusion, Parking

Detection, Crossing Virtual Fence,

Aggregate Detection, Vehicle/Human

Alarm Classification, Linkage Tracking,

Loitering Detection

Intelligent Motion Detection

Supported with Alarms for Vehicles and

Humans

Face DetectionCapture Snapshots and Facial Attributes
People Counting

Entry/Exit and In-Area People Counting,

Queue Management With Report

LumiTracking

Automatically Tracks a Target in Motion

for an Allotted Amount of time or Until

the Object Exits the Scene

Audio-
CompressionG.711a, G.711Mu, PCM, AAC
Sampling Bitrate

PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz

G.711A: 8,000 Hz

G.711Mu: 8,000 Hz

AAC: 8,000 Hz, 16,000 Hz, 32,000 Hz

48,000 Hz, 64,000 Hz

InterfaceInput: One (1) Channel Output: One (1) Channel
Alarm-
Event

Motion/Tampering Detection, Audio

Detection, Network Disconnection

Detection, IP Conflict Detection, SD

Card Error, Insufficient SD Card Storage

Linkage

Capture, Recoding, Send Email, Preset,

Tour, Pattern, Alarm Digital Output,

Audio

InterfaceInput: Two (2) Channel Output: One (1) Channel
Network
InterfaceRJ-45 (10/100 Base-T)
ProtocolHTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP,NTP, DHCP, DNS, DDNS, IPv6, 802.1x,SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP,RTP, PPPoE, RTMP, Bonjour, NFS
InteroperabilityONVIF (Profile S/G/T), CGI, SDK, P2P
BrowserChrome, Firefox, Safari, Edge
ClientLumiViewer, LumiViewer Mobile App
StrorageFTP/SFTP, NAS, Micro SD Card (Max.512 GB)
Electrical
Power Supply24 VDC (2.5 A ± 25%), PoE+ (802.3at)
Power Consumption23 W (Max.)
Construction
Net Weight: 4.7 kg (10.4 lb)
Gross Weight: 8.0 kg (17.6 lb)
Operating Temperature: -40 °F to158 °F (-40
Protection Ratings: IP67, IK10
Dimensions: Φ191.0 mm × 332.0 mm(Φ7.5 in. ×
MaterialMetal
Certifications and Compliance
CertificationsFCC, UL, IC
ComplianceNDAA
