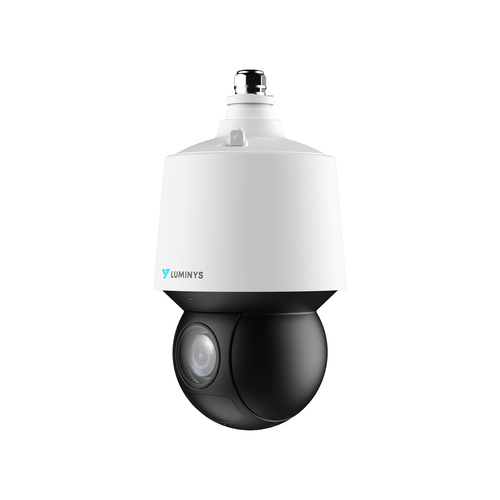

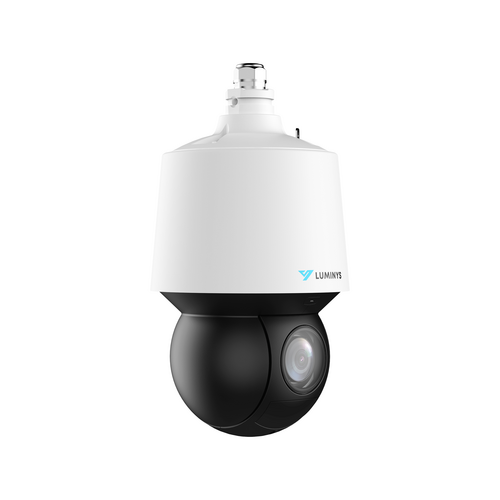

Luminys - P55-4SA45 - P5-S Mainstream Series 4MP 45x LumiSearch IP PTZ with IR
The P55-4SA45 is part of Luminys’s P5-S mainstream series of security devices. P5-S mainstream series devices are designed a with suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.
Key Technologies
LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.
LumiSearch+ technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch+ algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch+-enabled camera and NVR.
LumiAnalytics uses detailed metadata and advanced AI algorithms to track important metrics such as people counting and behavior analysis. These insights give businesses highly valuable information to improve and optimize operations.
LumiFocus technology ensures a target stays in focus during the zooming process. LumiFocus uses advanced algoritms to accurately measure the distance from a target and predict the direction of its movement for enhanced image stability and clarity when zooming.
Features:
- 4MP Dome Housing
- 45x Max Optical Zoom
- Video Content Analytics+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
- LumiAnalytics, Face Detection, LumiSearch+, People Counting, Queue Management
- iMD, LumiTracking, LumiFocus
- NDAA Compliant
- FCC
- IC
- UL
| Camera | |
| Luminys Series | P5-S Series (Mainstream) |
| Zoom | 45x |
| Image Sensor | 1/2.8-in. 4MP Progressive CMOS |
| Maximum Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.005 Lux at F1.6 |
| Black/White: 0.0005 Lux at F1.6 | |
| 0 Lux With IR Light On | |
| Number of Illuminators | Four (4) IR LEDs |
| Illumination Range | 492.1 ft (150.0 m) |
| Illuminator Control | Manual, Smart IR, Zoom Priority, Off |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Control Speed | Manual Control |
| Pan: 0.1° to 250°/s | |
| Tilt: 0.1° to 140°/s | |
| S/N Ratio | > 55 dB |
| Power-Off Memory | Supported |
| Lens | - |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 4.0 mm to 177.8 mm |
| Aperature | F1.6 to F4.95 |
| Field of View | Horizontal: 65.7°to 1.9° |
| Vertical: 39.4°to 1.1° | |
| Diagonal: 73.1°to 2.1° | |
| Close Focus Range` | 0.1 m to 1.0 m (0.3 ft to 3.3 ft) |
| DORI Distance | Detect: 258.5 ft to 11,661.8 ft (78.8 m to |
| 3,554.5 m) | |
| Observe: 103.6 ft to 4,665.4 ft (31.5 m to | |
| 1,422.0 m) | |
| Recognize: 51.2 ft to 2,332.0 ft (15.6 m | |
| to 710.8 m) | |
| Identify: 24.6 ft to 1,164.7 ft (7.5 m to | |
| 355.0 m) | |
| Pan/Tilt/Zoom | - |
| Range | Pan: 0° to 360° Endless |
| Tilt: -15° to 90°, | |
| Auto Flip: 180° | |
| Pan Speed | Manual Control: 0.1°/s to 250°/s Preset: 250°/s |
| Tilt Speed | Manual Control: 0.1°/s to 140°/s Preset: 140°/s |
| Preset | 300 |
| Patrol | 8 (Up to 32 Presets per Patrol) |
| Pattern | 5 |
| Scan | 5 |
| Scheduled Modes | Preset, Pattern, Tour, Scan |
| Preset Freezing | Freezes Images Between Presets |
| LumiFocus | Images Maintain Focus When Zooming |
| In or Out | |
| 3D Positioning | Supported |
| Video | - |
| Compression | Smart Encoding H.265+, H.265, Smart |
| Encoding H.264+, H.264, MJPEG (Sub | |
| Stream Only) | |
| Smart Codec | Supported |
| Stream Capability | Three (3) Streams |
| Resolution | 4MP (2560 × 1440), 3MP (2048 × 1536/ |
| 2304 × 1296), 1080p (1920 × 1080), | |
| 1.3MP (1280 × 960), 720p (1280 × 720), | |
| D1 (704 × 480), VGA (640x480), CIF (352 | |
| × 240) | |
| Maximum Frame Rate | Main Stream: |
| 4MP/3MP/2.9MP/1080p/1.3MP/720p at 1 to 30 fps | |
| Sub Stream 1: D1/CIF at 1 to 30 fps | |
| Sub Stream 2: 720p at 1 to 30 fps | |
| Video Bit Rate | H.265: 38 kbps to 8960 kbps H.264: 96 kbps to 14848 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB), BLC, HLC |
| Noise Reduction | 3D NR |
| Image Rotation | 180° |
| Image Stabilization | Electronic |
| Defog | Electronic |
| Region of Interest | 8 Regions |
| Privacy Masking | 24 Areas (Up to 8 Areas in the Same |
| View) | |
| Analytics | - |
| Video Content Analytics+ | Line Crossing, Intrusion, Loitering |
| Detection, Parking Detection, Fence | |
| Climbing, Abandoned/Missing Object, | |
| People Gathering, Vehicle/Human Alarm | |
| Classification, Linkage Tracking | |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and |
| Humans | |
| Face Detection | Capture Snapshots and Facial Attributes |
| LumiSearch+ | Supported When Used With |
| LumiSearch+-Enabled NVRs | |
| People Couning | Tripwire and In-Area People Counting, Queue Management With Report |
| LumiAnalytics | Face Detection, People Counting, Heat |
| Map, Queue Management Smart Object | |
| Detection | |
| LumiTracking | Automatically Tracks a Target in Motion |
| for an Allotted Amount of time or Until | |
| the Object Exits the Scene | |
| Audio | - |
| Compression | G.711a, G.711Mu, PCM |
| Sampling Bitrate | PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz |
| G.711A: 8,000 Hz | |
| G.711Mu: 8,000 Hz | |
| Interface | Input: One (1) Channel Output: One (1) Channel |
| Alarm | - |
| Event | Motion/Tampering Detection, Audio |
| Detection, Network Disconnection | |
| Detection, IP Conflict Detection, | |
| Memory Card State Detection, Memory | |
| Space Detection | |
| Linkage | Capture, Recoding, Send Email, Preset, |
| Tour, Pattern, Alarm Digital Output, | |
| Audio | |
| Interface | Input: Two (2) Channel Output: One (1) Channel |
| Network | |
| Interface | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP,NTP, DHCP, DNS, DDNS, IPv6, 802.1x,SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP,RTP, PPPoE, RTMP, Bonjour, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK, P2P |
| Browser | Chrome, Firefox, Safari, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Strorage | FTP/SFTP, NAS, Micro SD Card (Max.512 GB) |
| Electrical | |
| Power Supply | 24 VDC (2.5 A ± 25%), PoE+ (802.3at) |
| Power Consumption | 23 W (Max.) |
| Construction | |
| Net Weight | 4.7 kg (10.4 lb) |
| Gross Weight | 8.0 kg (17.6 lb) |
| Operating Temperature | -40 °F to 158 °F (-40 |
| Protection Ratings | IP67, IK10 |
| Dimensions | Φ191.0 mm × 332.0 mm (Φ7.5 in. × 13.1 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, UL, IC |
| Compliance | NDAA |
