SECO-LARM - DP-266-1C7Q - Wireless Video Door Phone
Part number:
DP-266-1C7Q
Price:

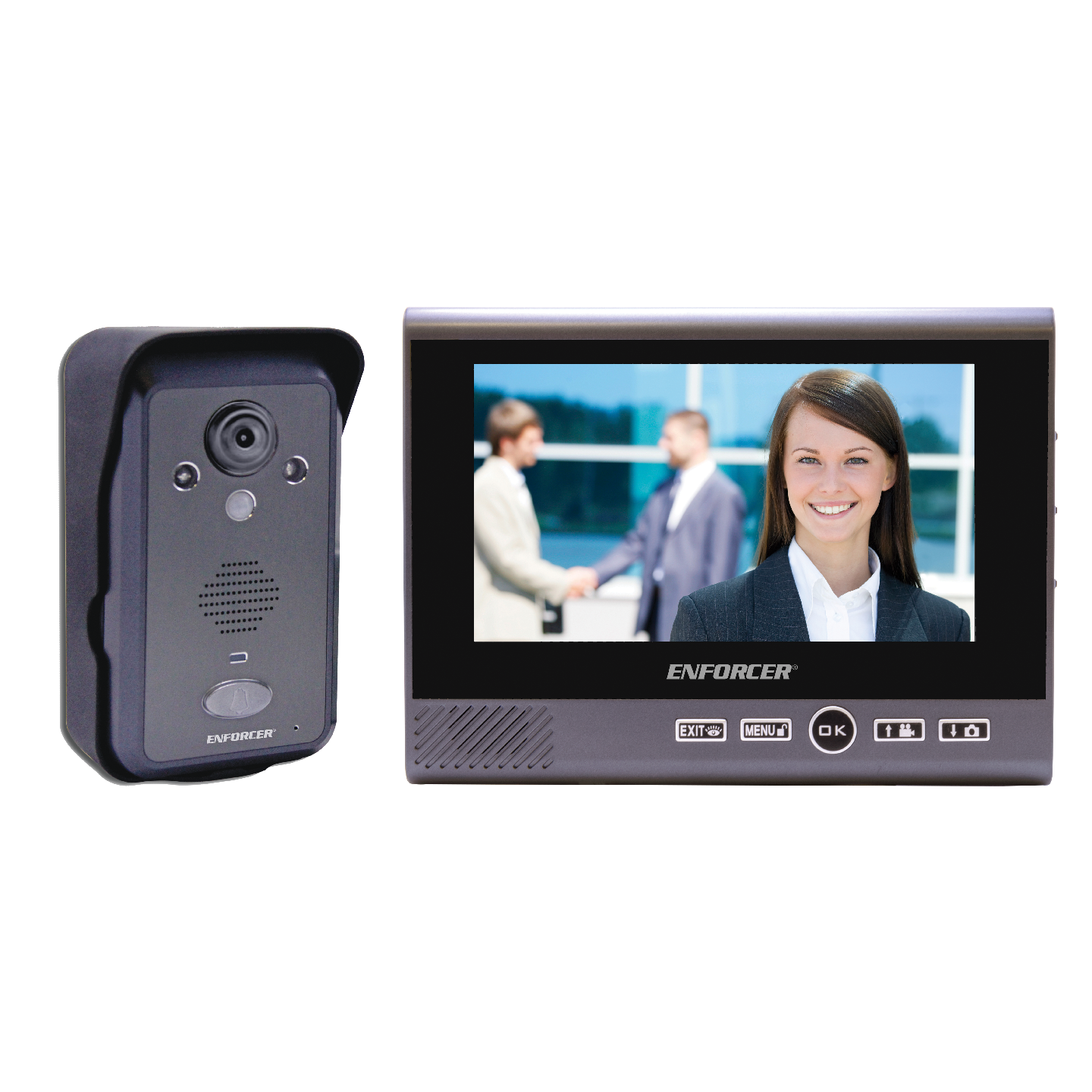

The ENFORCER Wireless Video Door Phone is a convenient and secure way to monitor and control an entryway, such as a door or gate, from up to 492 feet (150 meters)* away. When a guest or visitor presses the doorbell button on the camera unit, the homeowner can use one of up to three lightweight, wireless LCD monitors† to see who is requesting entry, speak with the caller, take a photo, and decide whether to grant entry. The video door phone can be expanded with up to two additional monitors and one additional camera. If multiple monitors are set up, then the system can also be used as an intercom system between each monitor.



Features:

  • Wireless operation – camera and monitor can operate from up to 492ft (150m)* away
  • Remotely and securely talk to visitors and unlock doors or gates via the monitor
  • Monitor can be carried around the premises while talking to the visitor
  • Connect up to two additional monitors and one additional camera†
  • Intercom calling between paired monitors†
  • Camera has built-in IR LEDs for nighttime use
  • Camera powered by 9~16 VAC/5~16 VDC
  • Camera includes a built-in PIR sensor that activates the camera and takes photos of the visitor when they approach
  • Monitor includes a kickstand
  • Monitor front door at any time
  • Egress input
  • 170° wide field of view
  • Adjustable camera pan and tilt angle—up to 20° from centerline in any direction—to allow for mounting variations
Monitor
IP RatingCamera Only: IP55 Weatherproof
TypeColor camera
ChipCMOS
Resolution640 TV Lines
Lens2mm
Viewing AngleUp to 20° any direction
Operating Voltage9~16 VAC / 5~16 VDC
Relock Delay3/6/8 Seconds
Relay Output3A@24VAC/24VDC
Current DrawActive 300mA@12VDC Standby 15mA@12VDC
Battery LifeActive ~7 Hours Standby ~60 Days
Dimensions3 1/8″x 5 11/16″x1 15/16″
 (80x144x50 mm)
Weight4.3-oz (122g)
Operating Temperature14°~122° F (-10°~50° C)
Camera
TypeColor camera
ChipCMOS
Resolution640 TV Lines
Lens2mm
Field of view170°
Camera angle adjustmentUp to 20° any direction
Operating voltage9~16 VAC / 5~16 VDC
Relock delay3/6/8 Seconds
Relay output3A@24VAC/24VDC
Current drawActive: 300mA@12VDC, Standby: 15mA@12VDC
Battery lifeActive: ~7 hours, Standby: ~60 Days
IR LED Range5′ (1.5m)
IR LED Frequency940nm
PIR Detection range9′ (3m)
PIR Detection angle60°
Dimensions (with bracket)3-1/8″x5-11/16″x1-15/16″(80x144x50 mm)
Weight4.3-oz (122g)
Operating temperature14°~122° F (-10°~50° C)
Name
Description
Size
Downloads
File
Product Information Sheet
1mb
File
Manual
0.4mb
