SECO-LARM - MVE-AH1E4-42NQ - 4K HDMI 1×4 Splitter/Extender over Cat6
Part number:
MVE-AH1E4-42NQ
Price:
- • Signal Strength – Active operation ensures signal strength remains strong over the entire cable length.
- • Distance – The 4K HDMI 1×4 Splitter/Extender over Cat6 is capable of providing a clear HDMI signal up to 131ft (40m) at 4K resolution or 230ft (70m) at 1080p resolution.
- • Formats Supported – The 4K HDMI 1×4 Splitter/Extender over Cat6 supports both progressive and interlaced formats: 4K@30Hz/1080p/1080i/720p/576p/480p/480i.
- • Plug and Play – The 4K HDMI 1×4 Splitter/Extender over Cat6 comes as a complete set consisting of a transmitter and 4 receivers, power supply, and IR dongles.
- • Zero Signal Loss – Integrated circuits in the transmitter and receivers clean, buffer, and amplify the HDMI signal to prevent signal loss and ensure a clear signal regardless of the length of the cable.
- • IR – Send IR signals from the monitors to the source for discrete operation of devices.
- • Loop out – Supports a local monitor.
- • Power – One (1) 12VDC power supply included – set powered at transmitter end
| Input Video Signal | 3.3V |
| Input DDC Signal | 5Vp-p (TTL) |
| Maximum Single Link Range | 4K@30Hz |
| Video Format Supported | HDMI 2.0b, HDCP |
| Audio Formats Supported | LPCM, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Output Video | Up to 4K@30Hz/2K@30Hz |
| Resolutions Supported | 4K@30Hz/2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i |
| Range | Up to 131′ (40m) at 4K@30Hz / Up to 230′ (70m) at 1080p |
| Video Amplifier Bandwidth | 297MHz / 10.2Gbps |
| Video Input Connector | HDMI Type A 19-pin female |
| Video Output Connector | HDMI Type A 19-pin female |
| IR Pass-through Frequency | 30~60 kHz |
| Operating Voltage | 12VDC |
| Power Supply | 2.5A@12VDC (1 Adapter) (2.1mm plug) |
| Operating Temperature | 32°~104° F (0°~40° C) |
| Operating Humidity | 20~90% RH (non-condensing) |
| Dimensions | Transmitter:8-1/4″x11/16″x3-1/4″ (210x18x83 mm) Receivers: 3-1/8″x5/8″x2-3/4″ (80x17x69 mm) |
| Weight | Transmitters: 15.8-oz (448g) Receivers: 4.6-oz (130g) (each) |
Name
Description
Size
Downloads
File
Product Information Sheet
0.4mb
File
Manual
0.4mb
File
Advertisement
0.7mb

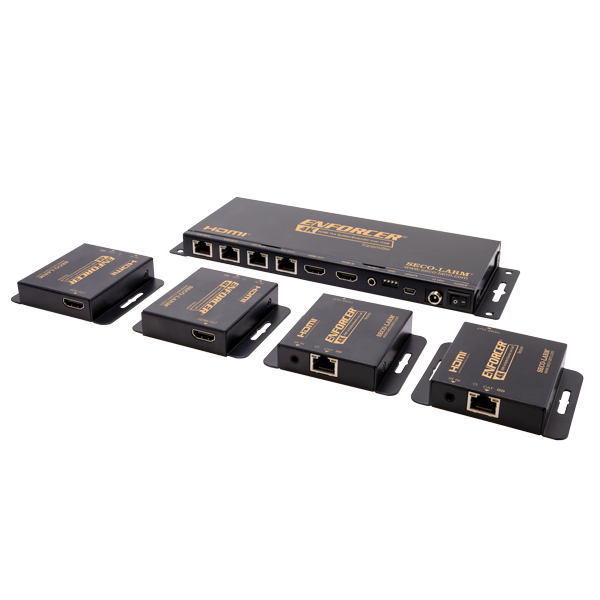

The Enforcer 4K HDMI® 1×4 Splitter/Extender over Cat6 uses an active transmitter and four receivers to extend the range of traditional HDMI® cabling methods by sending video and audio over Cat6. HDMI formats as large as 4K can be transmitted between the units with zero signal loss over a distance of up to 230 ft (70 m) by using integrated circuits in the receivers and transmitter.
