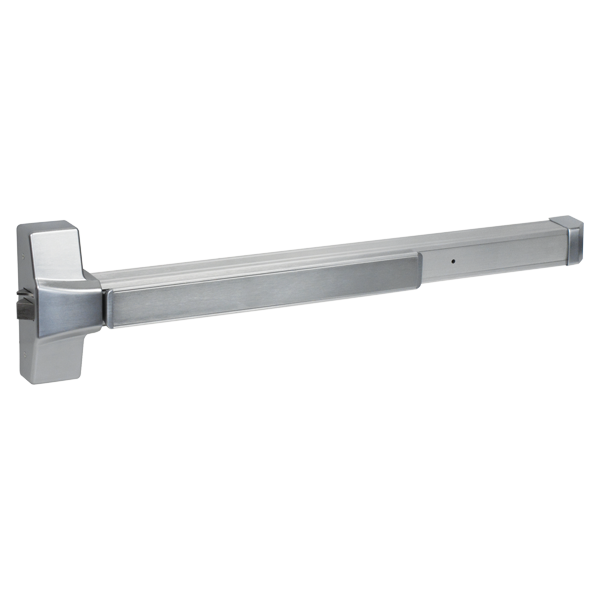

The ENFORCER SD-962AR-36G Rim-Type Exit Device, when mounted on the inside of a door to block entry to a protected premises, securely locks the door from outside access while allowing users inside the protected premises to exit. The stainless steel enclosure protects the exit device from abuse, yet easily unlocks the door from the inside by users who require exit. It can be connected to an entry-type lever trim or to any physical locking device on the outside of the door in order to allow entry to authorized personnel.
Features:
Construction | ANSI Grade 1 steel |
Door Type | Up to 1-3/4″ (44mm) thick, wood or metal |
Hand Type | Non-handed |
Latch Bolt | Stainless-steel, 3/4″ (19mm) throw |
Dead Latch | Stainless-steel 5/8″ (16mm) |
Strike | For 5/8″ (16mm) stop |
Spring | Stainless steel |
Chassis | Plated steel |
Cover | Plated zinc cast |
Rail Assembly | Aluminum |
End Cap | Plated zinc cast |
Dogging | Allen-type dogging standard |
Dimensions | 33″x8″x2-3/16″ (838x203x56 mm) |
Weight | 9-lb 12-oz (4.4kg) |
