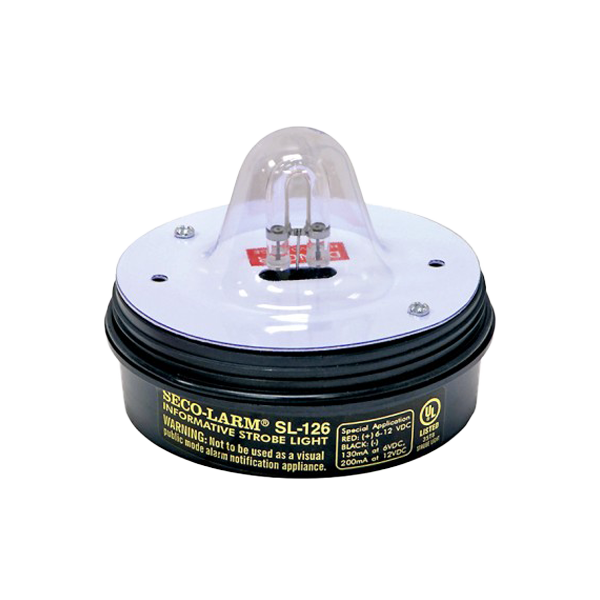

SECO-LARM - SL-126Q/R - Xenon Tube Strobe Light Red, 6-12VDC, UL Listed
Part number:
SL-126Q/R
Price:
- • For “informative” general signaling requirement applications
- • 100,000 Candle-power xenon tube makes flash visible from a distance
- • Simple 2-wire installation with reverse polarity protection
- • 12″ Heavy-duty 18-gauge UL-listed leads
- • All solid-state circuits
- • Operating life over 300 hours
- • IP55 Weatherproof*
- • Lens is high-impact, heat-resistant acryrex, available in clear, amber, blue, green, or red
- • High-impact resistant ABS plastic housing
- • Visible in all directions
| Operating voltage | 6~12 VDC |
| Current draw (max.) | 6VDC: 180mA |
| Flash rate | 12VDC: 330mA 6VDC: Over 60/min 12VDC: Over 90/min |
| Operating life (flashes) | Over 2,000,000 flashes |
| Operating life (hours) | 6VDC: 550 12VDC: 370 |
| IP Rating | IP55 Weatherproof |
| Operating temperature | -22°~140° F (-30°~60° C) |
| Dimensions | ø2-15/16″x3-15/16″ (ø74×100 mm) |
Name
Description
Size
Downloads
File
Product Information Sheet
0.3mb
File
Manual
0.6mb
