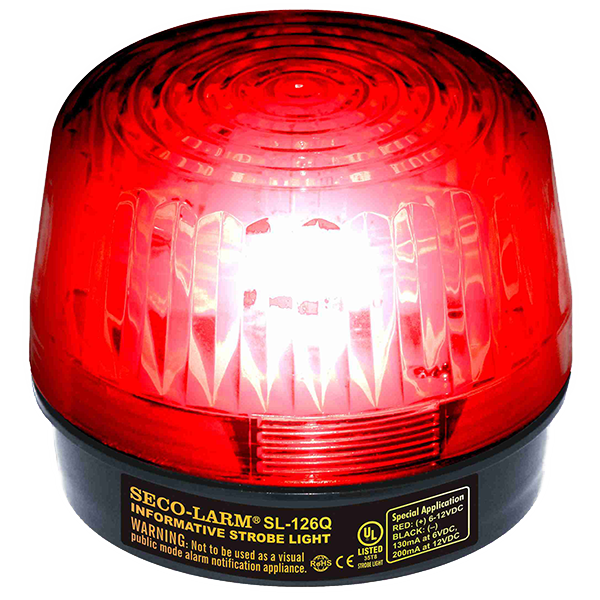

SECO-LARM - SL-126Q/R - 6~12 VDC (2-wire connection) Strobe Light. “U”-Type Xenon tube. 100,000 Candlepower, over 90 flashes/min, 180mA current draw at 12VDC. UL listed. Red lens.
Part number:
SL-126Q/R
Price:
6~12 VDC (2-wire connection) Strobe Light. “U”-Type Xenon tube. 100,000 Candlepower, over 90 flashes/min, 180mA current draw at 12VDC. UL listed. Red lens.
Features:
- For “informative” general signaling requirements
- Incorrect polarity cannot damage circuit or draw current
- Easy 2-wire installation, regardless of voltage. Also, if the strobe light is being powered by a battery, as the battery is drained the strobe light will continue to function
- Low current consumption with long operating lifespan of over 300 continuous hours (2,000,000 flashes)
- Includes choice of amber, blue, clear, green or red lens
- Lens is made of high-impact resistant acrylic, case of high-impact resistant ABS plastic

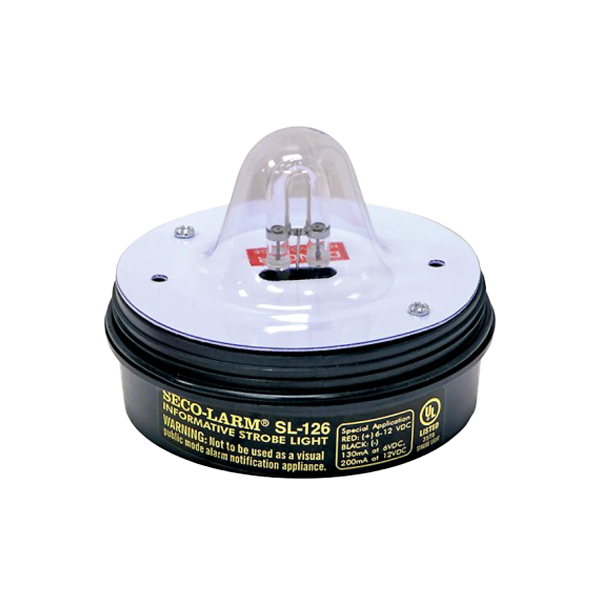

- SECO-LARM SL-126Q strobe lights come with a protective inner cover. This protects the high-voltage xenon tube when the colored lens has been removed
- Use in temperature ranging from -22ºF (-30ºC) to 140ºF (60ºC)
- For 6- to 12-Volt use
| Circuits | All solid-state |
| Input Connections | Red/Positive, Black/Ground |
| Leads | #18 Gauge, 12″ long |
| Electrical Protection | Reverse polarity protected |
| Illumination | 100,000 Candlepower |
| Operating Life | Over 2,000,000 flashes (300 hours continuous) |
| Input voltage | 6~12 VDC |
| Operating Temperature | -22º~140º F (-30º~60º C) |
| Base | High-impact black ABS |
| input current | 120mA±20% @ 6VDC 200mA±20% @ 12VDC |
| Flash Rate | Over 60 per minute at 6 VDC Over 90 per minute at 12 VDC |
| Lens | High-impact resistant acrylic |
Name
Description
Size
Downloads
File
Data Sheet
0.3mb
File
User Manual
0mb
