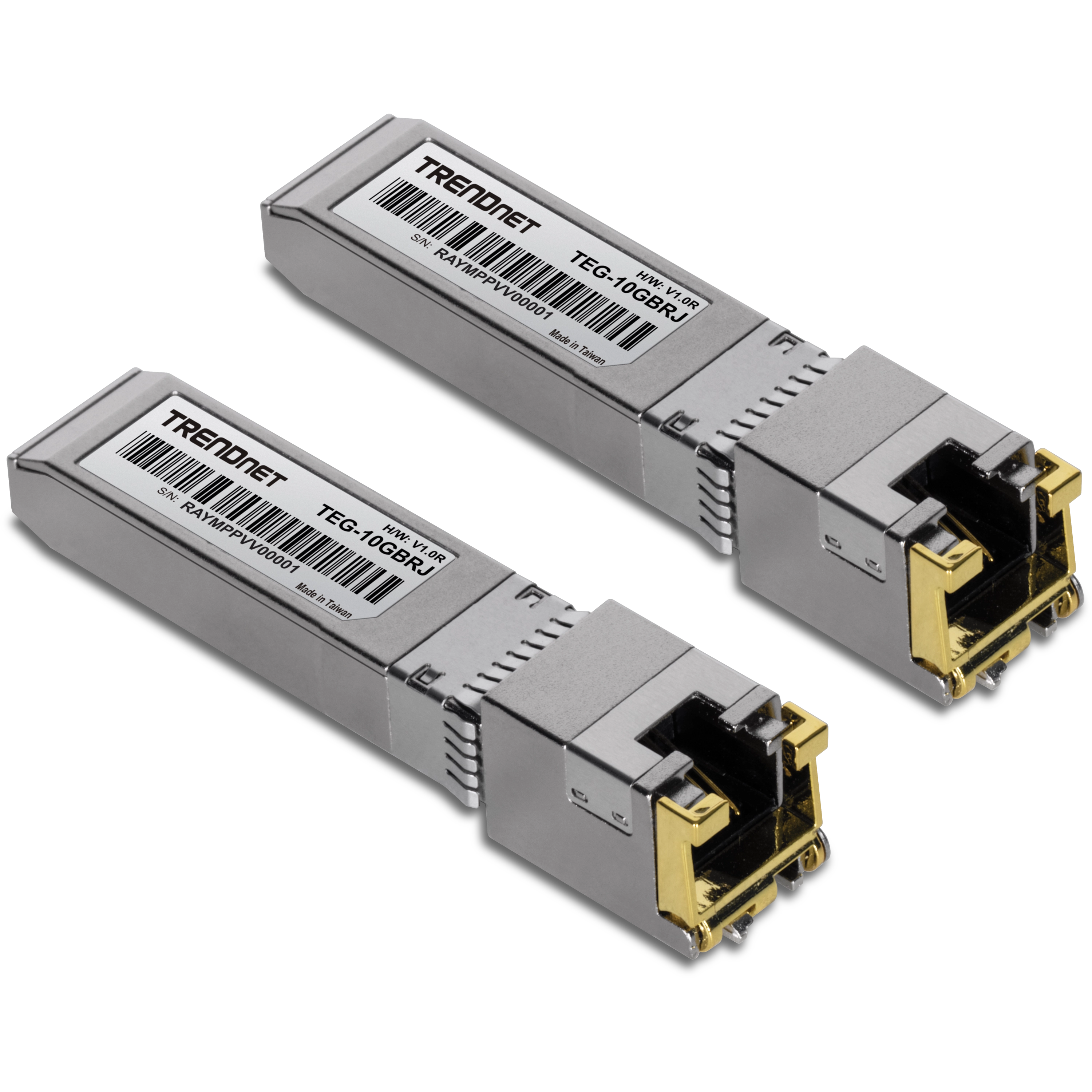

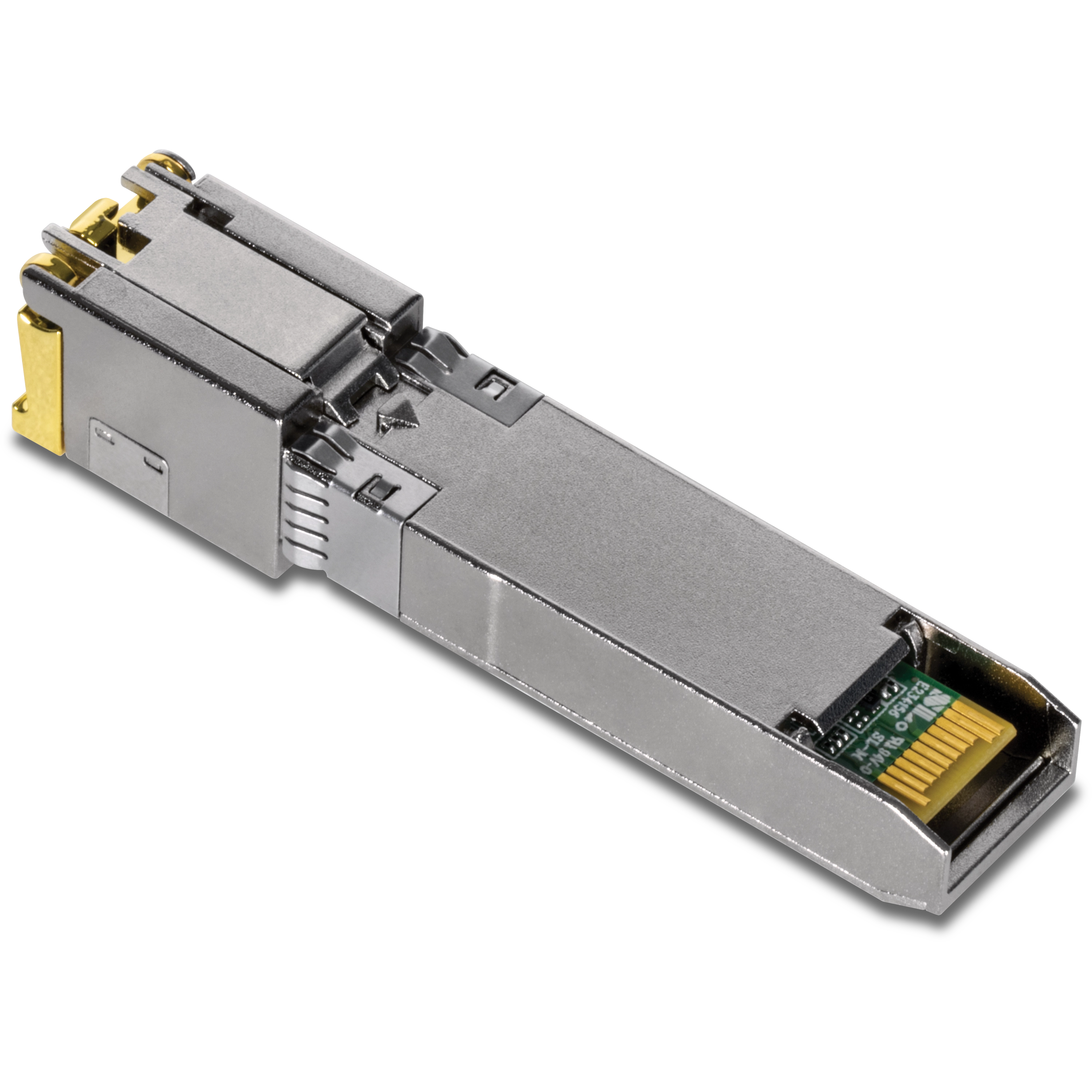

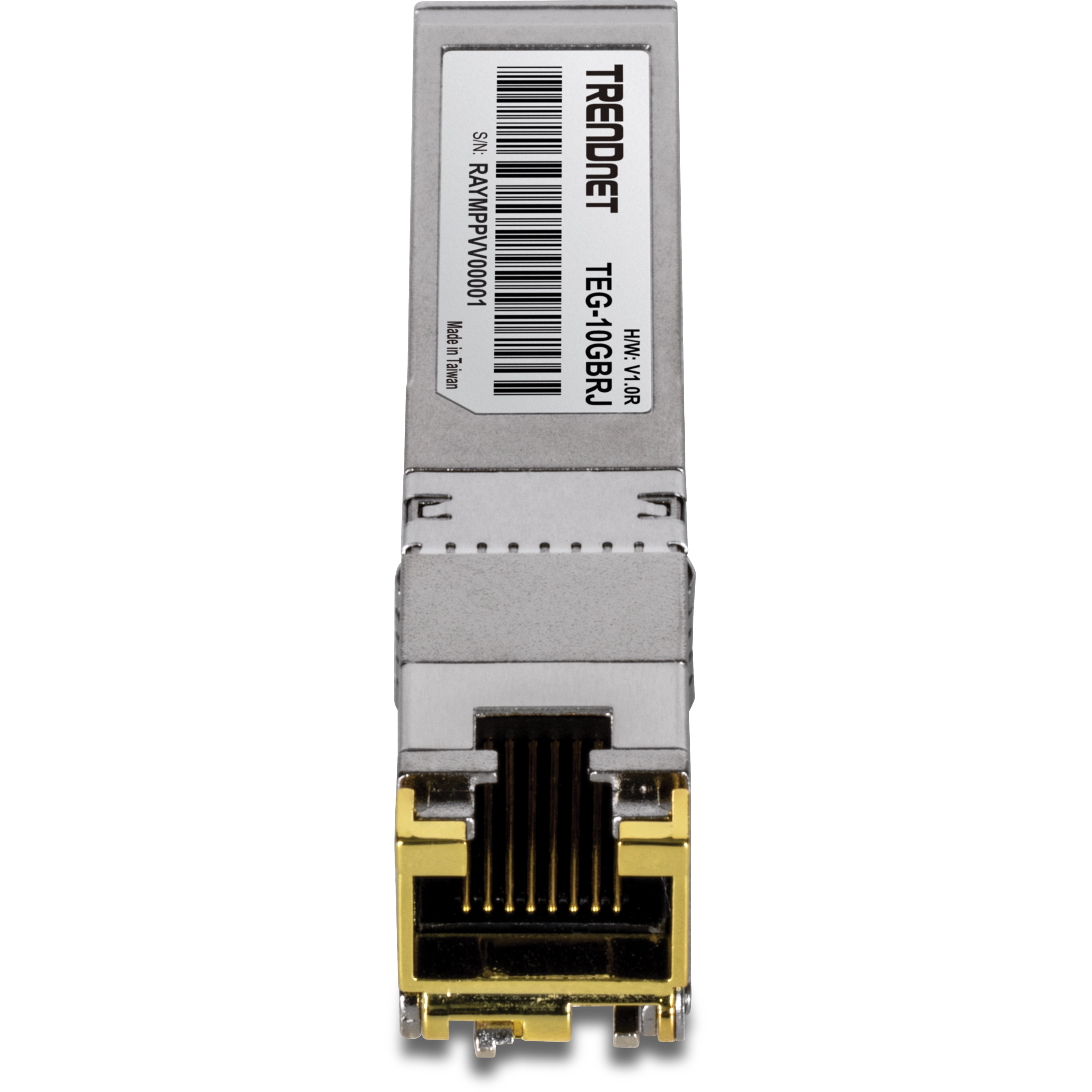

Trendnet - TEG-10GBRJ/2 - 2-Pack 10G RJ45 Copper SFP+ Module
Part number:
Price:
- • Connect devices up to 30m (98ft.) over Cat6A cabling (or better) at 10G speeds
- • Compliant with IEEE 802.3an 10G Ethernet
- • Backwards compatible with IEEE 802.3bz multi-gigabit (2.5G / 5G) speeds
- • Shielded RJ45 copper interface
- • Low Electromagnetic Interference (EMI) design
- • Digital Diagnostics Monitoring (DDM) support
- • Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
- • Hot-Pluggable
- • Low power consumption
- • NDAA / TAA compliant (U.S. and Canada only)
- • Lifetime Warranty
| Standards | • IEEE 802.3 • IEEE 802.3az • IEEE 802.3an • IEEE 802.3ab • IEEE 802.3bz |
| Device Interface | • SFP+ MSA compliant • RJ45 connector |
| Data Transfer Rate | Up to 10Gbps |
| Distance | • 10Gbps up to 30m (98 ft.) with Cat6A/7 • 2.5G/5Gbps up to 50m (164 ft.) with Cat5e • 1Gbps up to 100m (328 ft.) with Cat5e |
| Special Features | • Hot pluggable • Metal enclosure • DDM support |
| Power (per unit) | Max. consumption: 3W |
| Operating Temperature | 0° – 65° C (32° – 149° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions (per unit) | 68.8 x 13.8 x 13.4mm (2.7 x 0.53 x 0.52 in.) |
| Weight (per unit) | 24g (0.8 oz.) |
| Certifications | CE FCC |
| Warranty | Lifetime Warranty |
| Package Contents | 2 x TEG-10GBRJ |
Name
Description
Size
Downloads
File
TEG-10GBRJ/2 - 2-Pack 10G RJ45 Copper SFP+ Module - Datasheet.pdf
0.4mb
The TRENDnet 2-Pack 10G RJ45 Copper SFP+ Module model TEG-10GBRJ/2 converts standard SFP+ ports into RJ45 multi-gigabit ports, providing additional high-speed copper connectivity. These 10G copper SFP+ modules are compatible with standard SFP+ ports, which are commonly found in network switches and fibre media converters. Reduce equipment costs by repurposing a switch’s unused SFP+ ports for reliable copper connectivity with TRENDnet’s 10G copper SFP+ modules.
