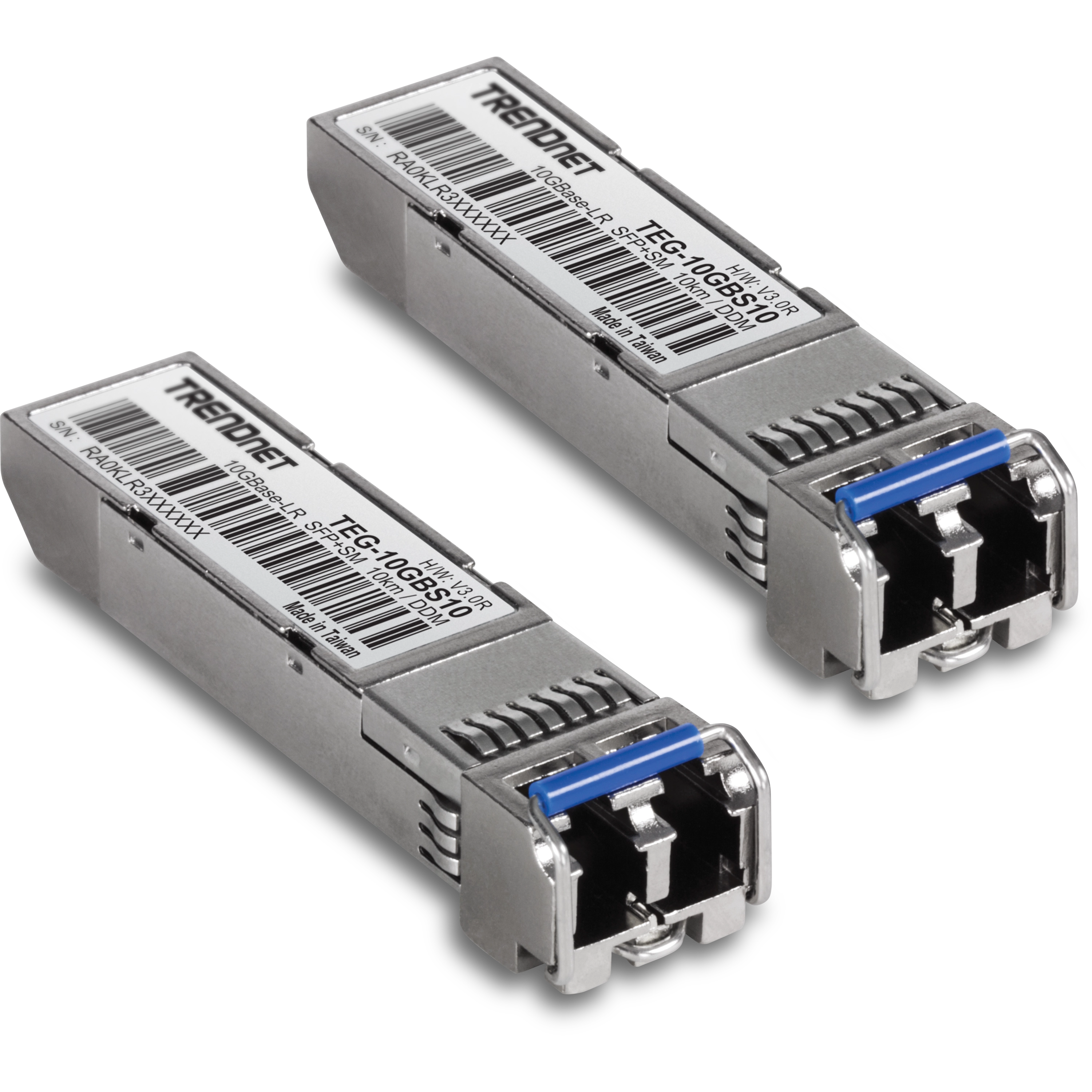

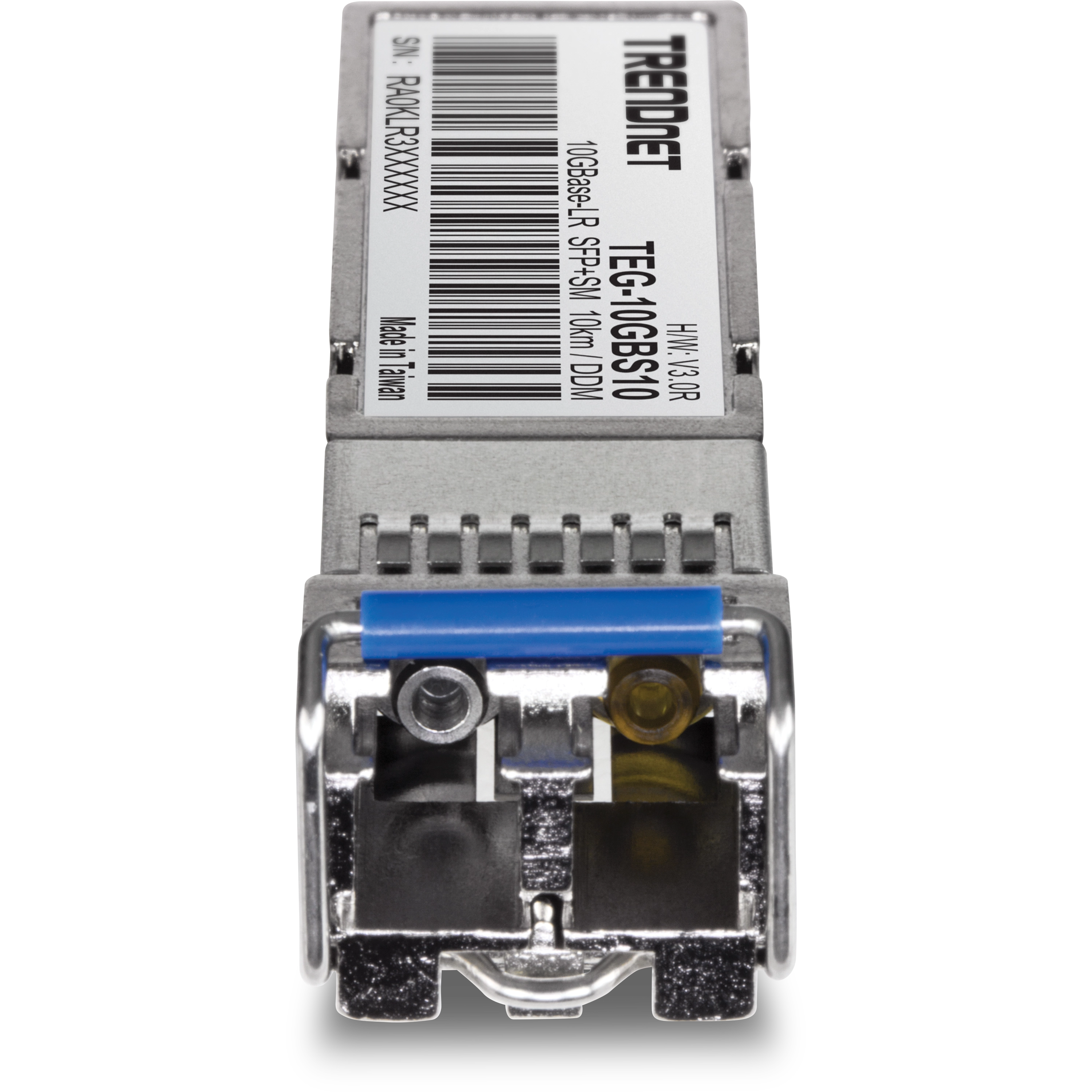

Trendnet - TEG-10GBS10/2 - Two-Pack 10G SFP+ Single Mode LC Module
Part number:
Price:
- • Transmission distance of up to 10km (6.21 mi.)
- • Duplex LC optical interface
- • Supports data rates of up to 10.31Gbps
- • Supports 1310nm single mode network transmissions
- • Low Electromagnetic Interference (EMI) design
- • Compliant with IEEE 802.3ae 10 Gigabit Ethernet
- • Digital Diagnostics Monitoring (DDM) support
- • Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
- • Low power consumption
- • NDAA / TAA compliant (U.S. and Canada only)
- • Lifetime Warranty
| Standards | • IEEE 802.3 • IEEE 802.3u • IEEE 802.3z • IEEE 802.3ae • 10GBASE-LR |
| Device Interface | • SFP+ MSA Compliant • LC/UPC duplex connector |
| Data Transfer Rate | Up to 10.31Gbps |
| Wavelength | 1310nm |
| Optical Output Power | -6.2 ~ 0.5 dBm |
| Distance | 10km (6.2 mi.) |
| Special Features | • Hot pluggable • Metal enclosure • DDM support |
| Sensitivity | -15 dBm |
| Power (per unit) | Max. Consumption: 0.8W |
| Operating Temperature | 0° – 70° C (32° – 158° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions (per unit) | 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.) |
| Weight (per unit) | 18g (0.6 oz.) |
| Certifications | CE, FCC |
| Warranty | Lifetime Warranty |
| Package Contents | 2 x TEG-10GBS10 |
Name
Description
Size
Downloads
File
TEG-10GBS10/2 - Two-Pack 10G SFP+ Single Mode LC Module - Datasheet.pdf
0.2mb
TRENDnet’s 2-Pack 10G SFP+ Single Mode LC Modules are compatible with standard SFP+ ports found on network switches and fibre converters. Each 10G SFP+ transceiver features a duplex LC fibre connection interface and supports high-speed data rates of up to 10.31 Gbps. All TRENDnet 10G SFP+ fibre modules provide reliable connections for long-distance network applications.
