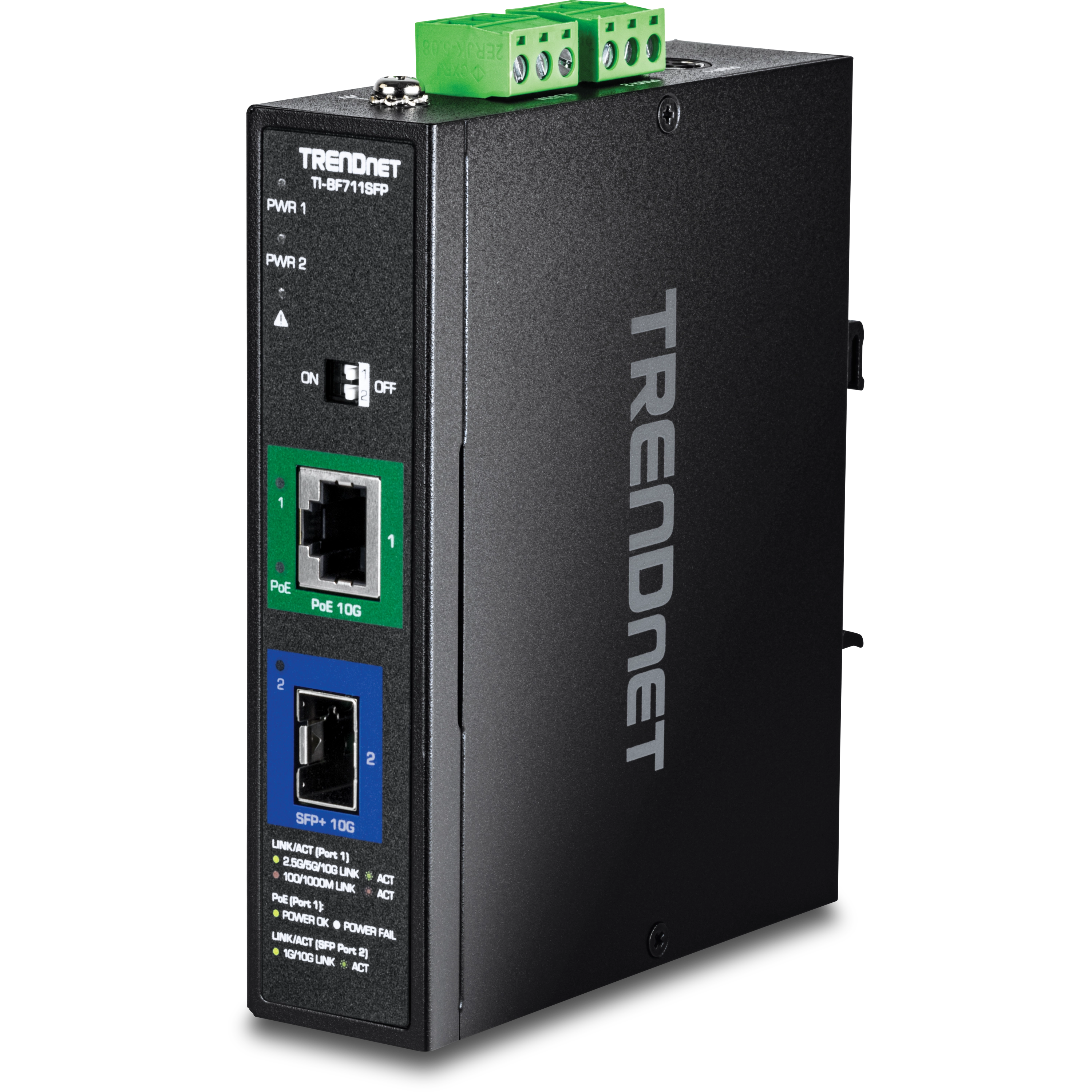

Trendnet - TI-BF711SFP - Industrial 10G SFP+ to 10G PoE++ Media Converter

Name: Trendnet - TI-BF711SFP - Industrial 10G SFP+ to 10G PoE++ Media Converter
Brand: Trendnet
SKU: TI-BF711SFP

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 1 x 10G SFP+ port
• 1 x 10G PoE++ RJ-45 port
• Hardened IP50-rated metal housing
• Provides up to 95W for PoE, PoE+ and PoE++ compliant devices
• Extreme operating temperature range -40°– 75° C (-40° – 167° F)
• Overload current protection

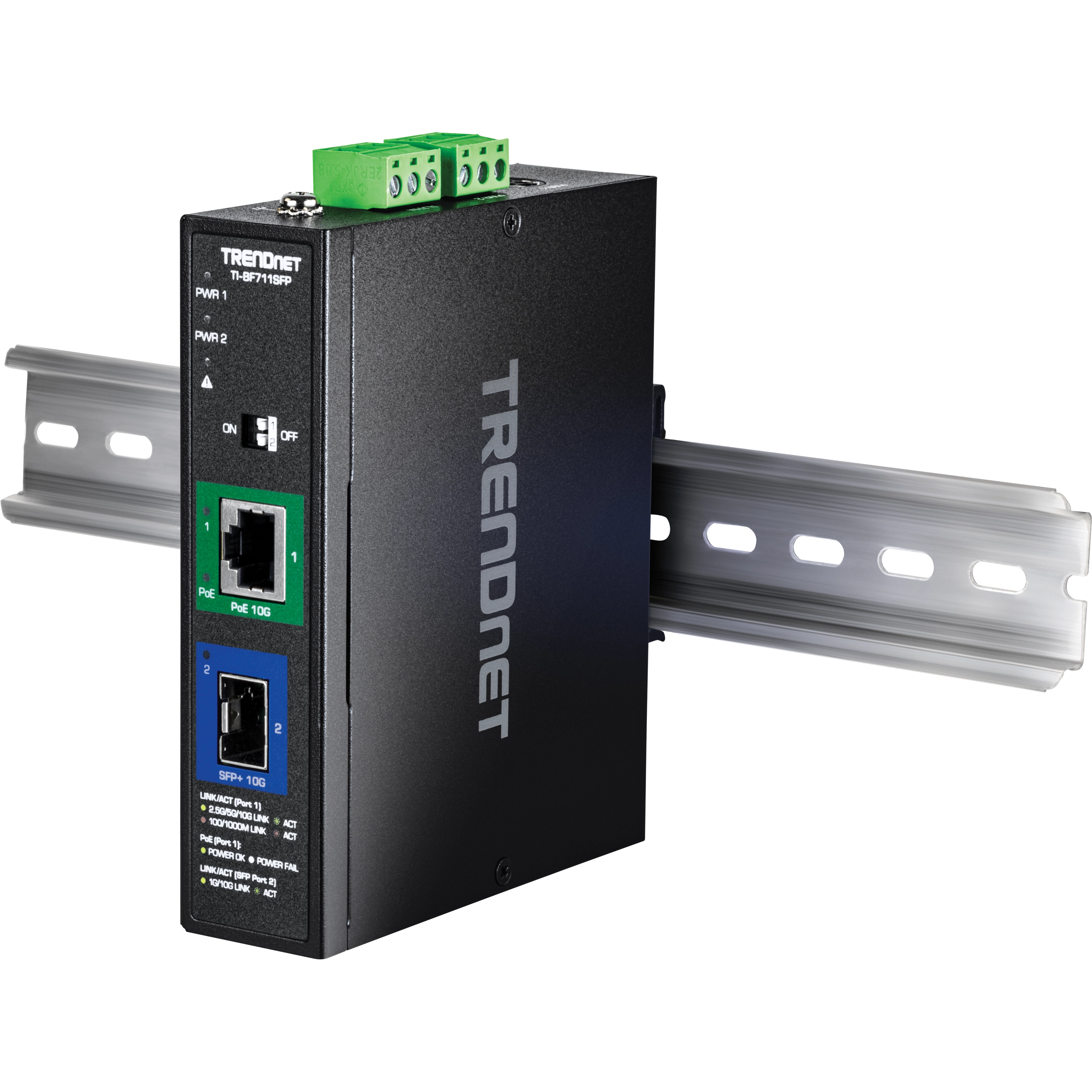

• Includes DIN-Rail and wall mounts
• Power supply sold separately (model: TI-S15052)
• NDAA / TAA compliant (U.S. and Canada only)

Standards	• IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3an • IEEE 802.3ae • IEEE 802.3bz • IEEE 802.3x • IEEE 802.3af • IEEE 802.3at • IEEE 802.3bt

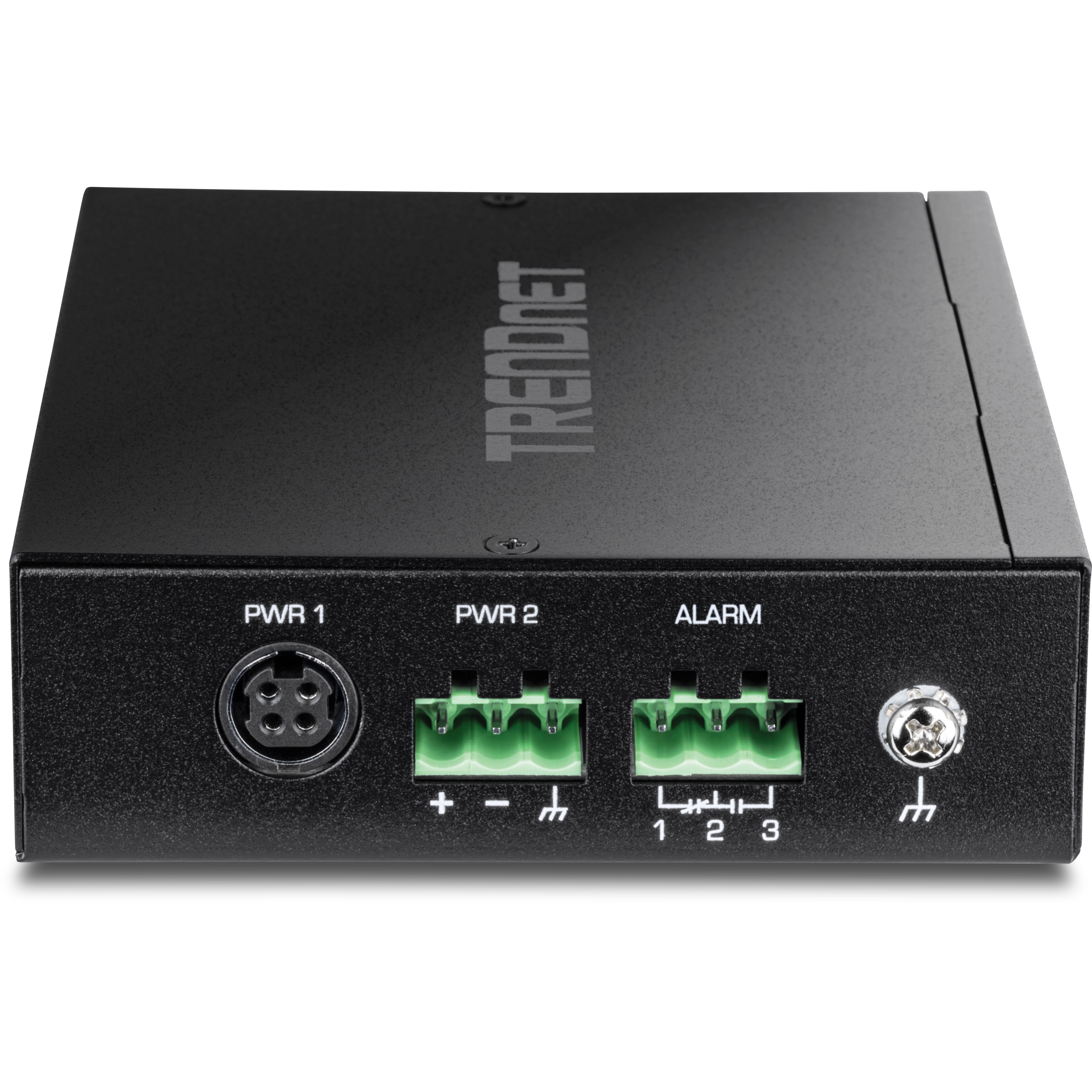

Device Interface	• 1 x 10G RJ-45 PoE++ port (100Mbps/1Gbps/2.5Gbps/10Gbps) • 1 x 10G SFP+ port (1Gbps/10Gbps) • 3-pin power terminal block • 3-pin alarm relay terminal block • LED indicators
Data Transfer Rate	• Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit Ethernet: 2Gbps (full duplex) • 2.5G Ethernet: 5Gbps (full duplex) • 10G Ethernet: 20Gbps (full duplex) • Gigabit SFP: 2Gbps (full duplex) • 10G SFP+: 20Gbps (full duplex)
Performance	• Data RAM Buffer: 1MB • Switching Fabric: 20Gbps • MAC Address Table: 4K entries • Jumbo Frame: 12KB • Forwarding rate: 29.8Mpps (64-byte packet size)
DIP Switch	• 1: LFPT (Link Fault Pass Through) on/off (default ON) • 2: EEE (Energy Efficient Ethernet, IEEE 802.3az) on/off (default OFF)
DC Power	• Input: 48 – 57V DC • Required power supply: TI-S15052 (sold separately) • Max. consumption: 8W (without PoE) @ 56V DC
AC Power	• Input: 100 – 240V AC, 50/60Hz, 2A • Compatible power adapter: 48VDC3000 (sold separately) • Output: 48V DC, 3.34A 160W max. • Max. consumption: 6.8W (without PoE)
PoE	• PoE budget: 95W • Pins 3, 4, 5, 6 +; 1, 2, 7, 8 -
Terminal Block	• 3-pin terminal blocks • Wire range: 2.5mm^2 • Solid wire (AWG): 12-19 • Stranded wire (AWG): 12-19 • Torque: 3.5 lb. – In / 0.5Nm • Wire strip length: 7-8mm
Alarm Relay Contact	• Relay outputs with current carrying capacity of 1A, 24V DC • Short circuit mode when two power sources are connected • Open circuit mode when only one power source is connected
MTBF	1,873,755 hours @ 25° C
Housing	• IP50 metal case • DIN-Rail mount • Wall mount • Grounding point • 6kV ESD protection • 2kV surge protection
Operating Temperature	- 40° - 75° C (-40°- 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	120 x 98 x 30mm (4.7 x 3.9 x 1.2 in.)
Weight	476g (16.8 oz.)
Certifications	• CE • FCC • LVD • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-31) • Vibration (IEC 60068-2-6) • IEC 61000-4-2 • IEC 61000-4-4 • IEC 61000-4-5
Warranty	3 year
Package Contents	• TI-BF711SFP • Removable terminal blocks • DIN-Rail and wall mount kit

Name

Description

Size

Downloads

File

TI-BF711SFP - Industrial 10G SFP+ to 10G PoE++ Media Converter - Datasheet.pdf

0.2mb

TRENDnet’s Industrial 10G SFP+ to 10G PoE++ Media Converter model TI-BF711SFP converts long-distance fibre connections to copper connections while providing power to PoE-, PoE+ and PoE++-compliant devices such as IP cameras, VoIP phones and wireless access points. With an operating temperature range of -40° to 75°C (-40° to 167°F) and a hardened IP50-rated metal housing, the industrial PoE++ media converter is suitable for tough industrial environments. Its rugged design also protects against shock, freefall and vibration.
