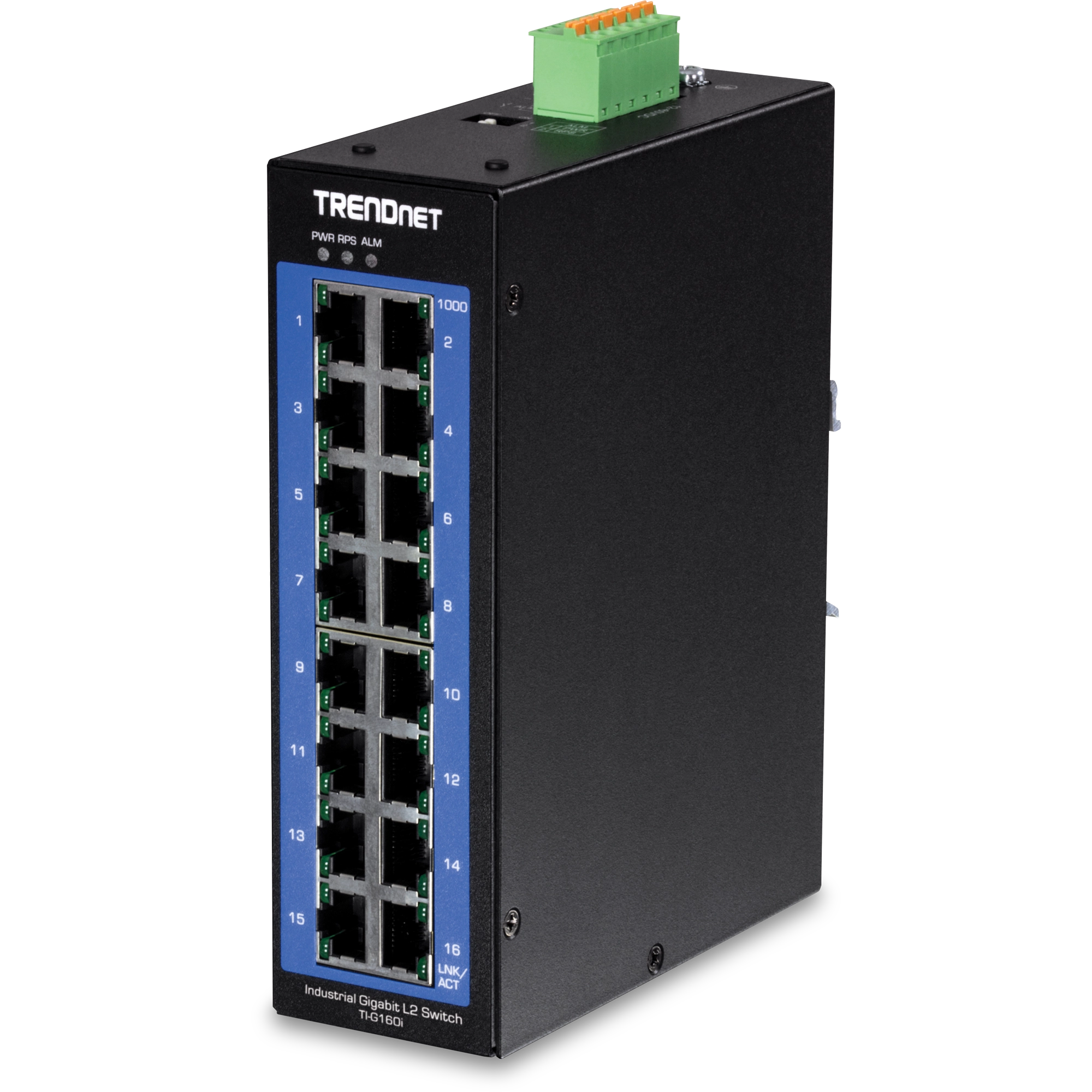

Trendnet - TI-G160 - 16-Port Industrial Gigabit DIN-Rail Switch

Name: Trendnet - TI-G160 - 16-Port Industrial Gigabit DIN-Rail Switch
Brand: Trendnet
SKU: TI-G160

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 16 x Gigabit ports
• 32Gbps switching capacity
• Hardened IP40 rated metal housing

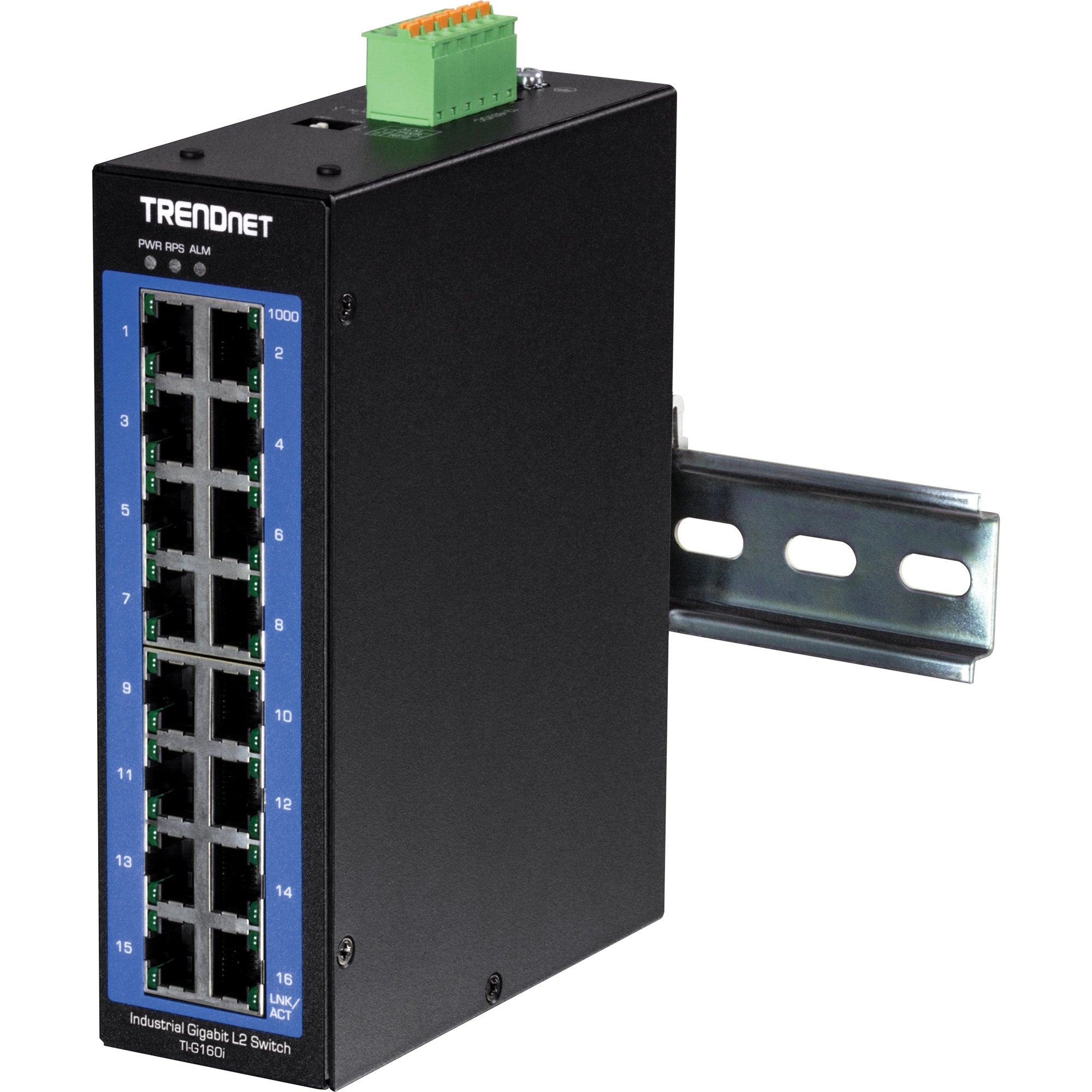

• Includes DIN-rail mounting bracket
• Remote cloud management with TRENDnet Hive (Additional fee applies)
• Operating temperature range of -40° – 75° C (-40° – 167° F)
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
• IEEE 802.1p QoS with queue scheduling support
• Bandwidth control per port
• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Power supply sold separately (models: TI-M6024, TI-S12024, TI-S12048, TI-S24048, TI-S15052, TI-S24052)
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

Standards	• IEEE 802.1d • IEEE 802.1p • IEEE 802.1Q • IEEE 802.1w • IEEE 802.1X • IEEE 802.1ab • IEEE 802.1ax • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3ad • IEEE 802.3az

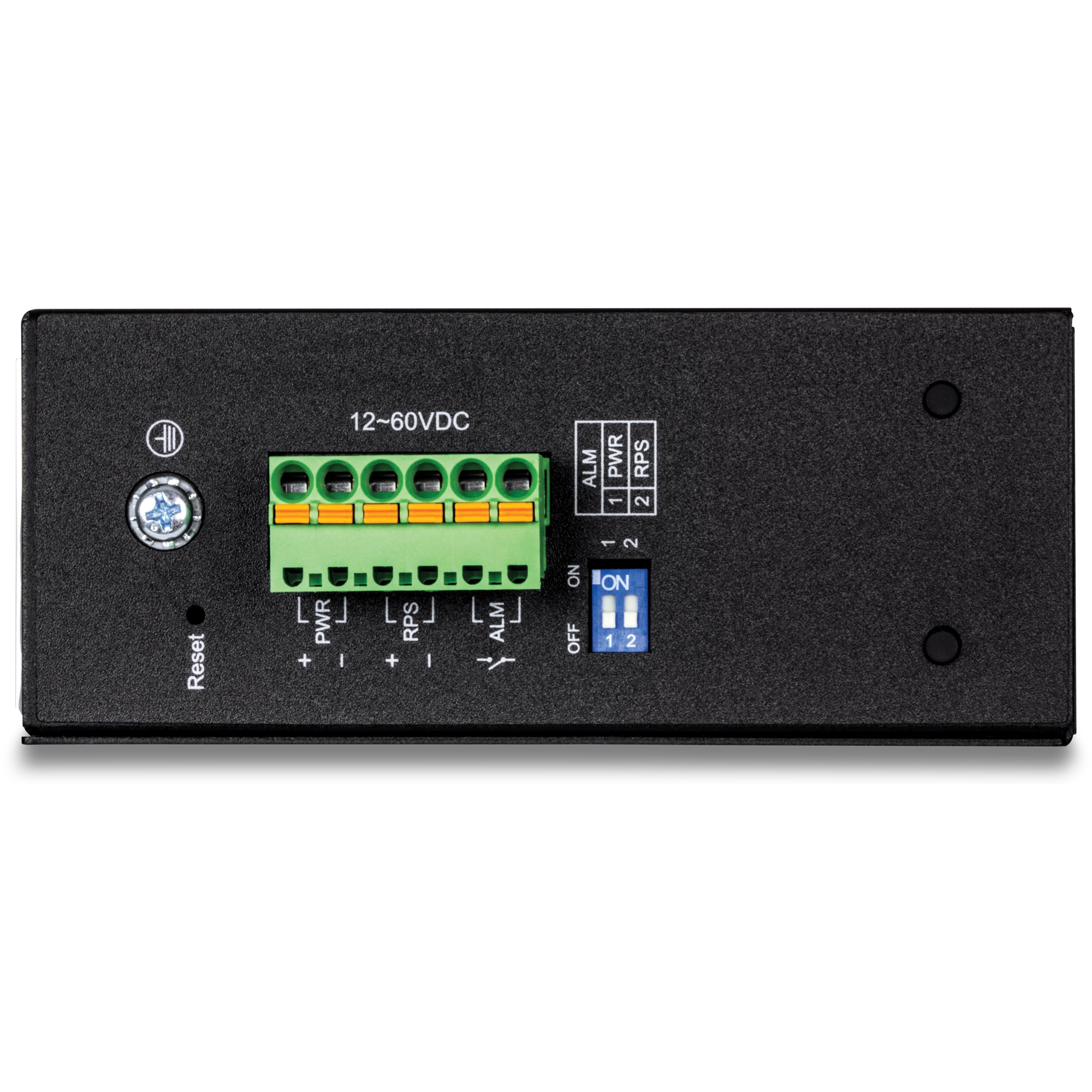

Device Interface	• 16 x Gigabit ports • 6-pin removable terminal block (primary/RPS power inputs & alarm relay output) • DIP switch (Alarm for Primary/RPS power) • LED indicators • Reboot button
Data Transfer Rate	• Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit Ethernet: 2000Mbps (full duplex)
Performance	• Switch fabric: 32Gbps • RAM buffer: 512KB • MAC address table: 8K entries • Jumbo frames: 10KB • Forwarding mode: store and forward • Forwarding rate: 23.8Mpps (64-byte packet size)
Management	• HTTP web based GUI • CLI: Telnet / SSHv2 • SNMP v1, v2c, v3 • SNMP trap (up to 5 receivers) • RMON groups 1/2/3/9 • Device configuration backup & restore, upgrade firmware, reboot, and reset to default • Multiple administrative or read-only user accounts • Enable or disable power saving mode per port • Static MAC entries • Static unicast entries • LLDP (Link layer discovery protocol) • Netlite device map • ONVIF device discovery • SNTP • SMTP alert • Syslog • Port statistics/utilization • Traffic monitor • Port mirror: one to one, many to one • Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps) • Loopback detection • DHCP relay/option 82 • Modbus/TCP • ERPS (Ethernet Ring Protection Switching) G8032v2
Hive Cloud Management	• Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser • Multi-device management • Provisioning through scheduled batch firmware or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Enable & disable PoE, set PD (powered device) alive check, configure PoE scheduling, and monitor PoE budget utilization (for PoE switches only) • Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB	• MIB II RFC 1213 • Bridge MIB RFC 1493 • RMON (Group 1,2,3,9) RFC 2819 RFC 1757
Spanning Tree	• IEEE 802.1d STP (spanning tree protocol) • IEEE 802.1w RSTP (rapid spanning tree protocol) • BPDU filter, guard, and root guard
Link Aggregation	Static link aggregation and 802.1ax/802.3ad dynamic LACP (Up to 8 groups)
Quality of Service (QoS)	• 802.1p Class of service (CoS) • DSCP (Differentiated Services Code Point) • Bandwidth control per port • Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
VLAN	• 802.1Q tagged VLAN • MAC-based VLAN • Port isolation • Up to 256 VLAN groups, ID range 1-4094
Multicast	• IGMP snooping v1, v2, v3 • IGMP querier • IGMP fast/immediate leave • Up to 256 multicast groups • Static multicast entries
Access Control	• 802.1X authentication (Local user database, RADIUS, guest VLAN assignment) • DHCP snooping/screening • Trusted host/IP access list for management access • Port Security/MAC address learning restriction (Up to 100 entries per port) • Static/dynamic ARP inspection
ACL	• Source/Destination MAC address • Source/Destination IP address • Source Interface • VLAN ID • EtherType • TCP/UDP port 1-65535
Special Features	• Netlite device discovery and map display in GUI • Port security: MAC address learning restriction per port • DHCP relay/option 82 & DHCP server snooping/screening support • Wide operating temperature range • Redundant power inputs • Alarm relay triggered by power failure • Surge and ESD protection
Power	• PWR (Primary) terminal input: 12 – 60V DC • RPS (Redundant) terminal input: 12 – 60V DC • Compatible power supply: TI-M6024 (60W), TI-S12024 (120W),TI-S12048 (120W), TI-S24048 (240W) sold separately • Max. Consumption: 12W
Terminal Block	• Redundant power inputs, alarm relay contact, 6 pin • Wire range: 0.5 mm^2 to 2.5 mm^2 • Solid wire (AWG): 12-26 • Stranded wire (AWG): 12-26 • Wire strip length: 10-11mm
DIP Switch	• Switch Status Function • 1 OFF Disable alarm relay for PWR power input • ON Enable alarm relay for power failure on PWR power input • 2 OFF Disable alarm relay for RPS power input • ON Enable alarm relay for power failure on RPS power input
Alarm Relay Output	• Relay outputs with current carrying capacity of 1A, 24V DC • Short circuit mode when one power source is connected • Open circuit mode when two power sources are connected
Enclosure	• IP40 rated metal enclosure • Fanless passive cooling • DIN-Rail mount • Grounding Point • ESD (Ethernet) Protection: 8KV DC • Surge (Power) Protection: 6KV DC
MTBF	• 1,072,674 hours @ 25° C • 177,143 hours @ 75° C
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)
Weight	884 g (1.95 lbs.)
Certifications	• CE • FCC • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-32) • Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty
Package Contents	• TI-G160i • DIN rail mounting bracket • Quick Installation Guide

Name

Description

Size

Downloads

File

TI-G160 - 16-Port Industrial Gigabit DIN-Rail Switch - Datasheet.pdf

1.8mb

TRENDnet's 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch model TI-G160i delivers advanced management features and a 32 Gbps switching capacity. Users can connect up to sixteen devices to the switch to enjoy high-speed Gigabit network connections. Designed for industrial environments, the switch is equipped with an IP40-rated metal enclosure that can withstand a high degree of vibration and shock while operating within a wide temperature range of -40°C to 75°C (-40°F to 167°F). Advanced traffic management controls, troubleshooting and SNMP monitoring support make this a powerful solution for SME networks.
