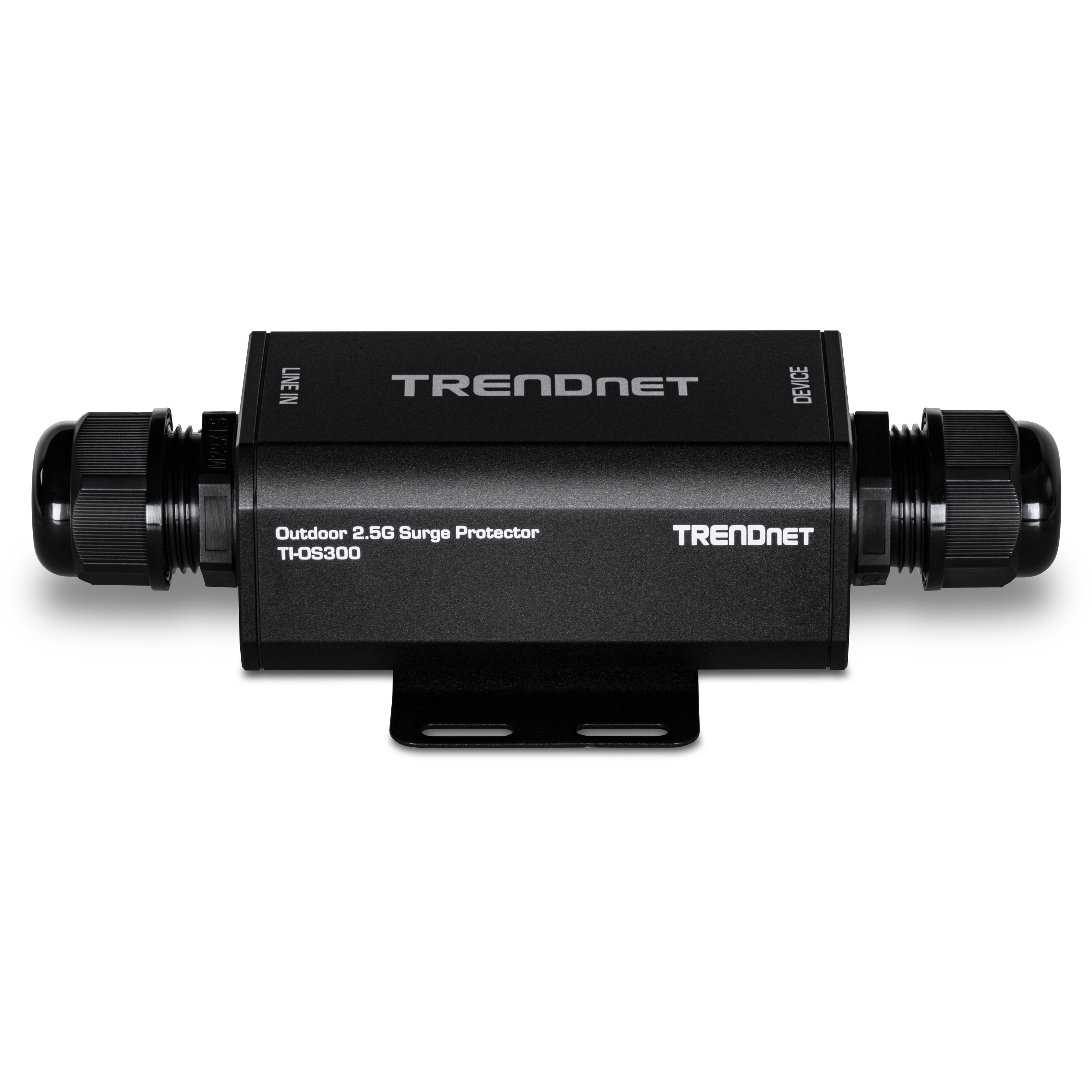

Trendnet - TI-OS300 - Outdoor 2.5G PoE++ Ethernet
Part number:
Price:
- • Two 2.5Gbps RJ45 Ethernet ports and ground terminal
- • Supports PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices
- • Operating temperature range of -40°– 75° C (-40° – 167° F)
- • IP67-rated metal enclosure and Ethernet cable glands
- • Line to line and line to ground protection modes
- • Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA and clamping voltage of 20V@1kA
- • Compliant with shock, freefall, vibration, IEC 61643-21, and IEC 61000-4-5 standards
- • Compact design with detachable mounting bracket
- • NDAA / TAA compliant (U.S. and Canada only)
| Device Interface | • 1 x 2.5Gbps Ethernet RJ45 Line In port • 1 x 2.5Gbps Ethernet RJ45 Device out port • Ground terminal |
| Nominal Discharge Current (8/20µs) | 10kA+ |
| Nominal PoE Voltage | <60V |
| Cable Impedance | 100 ohms |
| Clamping Voltage | 20V@1kA (Line to Line / Line to Ground) |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Impulse Spark-Over Voltage | 700V @ 1kV/µs max. |
| Insulation Resistance | 1G ohm @ 50V max. |
| Surge Protector Type | Gas Discharge Tube (GDT) |
| Data Line Protection | Up to 2.5Gbps |
| Protection Modes | • Line to Line • Line to Ground |
| PoE | • PoE current: 1.6A (2 pairs), 3.2A (4 pairs) • PoE Mode Support: Mode A, Mode B • Supports PoE (15.4W), PoE+ (30W), PoE++ (up to 95W) |
| Enclosure | • IP67 rated • Detachable mounting bracket |
| MTBF | 2,097,667 hrs @ 25° C |
| Operating Temperature | -40° – 75° C (-40° – 167° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions (L x W x H) | 170 x 55mm x 42mm (6.7 x 2.2 x 1.7 in.) |
| Weight | 298g (10.5 oz.) |
| Certifications | • CE • FCC • LVD • Shock (EN 60068-2-27) • Freefall (EN 60068-2-31) • Vibration (EN 60068-2-6) • Low voltage surge protective devices (IEC 61643-21) • Surge immunity (IEC 61000-4-5) |
| Warranty | 3 year |
| Package Contents | • TI-OS300 • 2 x Detachable cable glands • Mounting bracket |
Name
Description
Size
Downloads
File
TI-OS300 - Outdoor 2.5G PoE++ Ethernet - Datasheet.pdf
0.3mb
The TRENDnet Outdoor 2.5G PoE++ Surge Protector model TI-OS300 is installed in line with Ethernet cabling to prevent electrical surges caused by lightning strikes, electrical overloads and faulty or damaged wiring from damaging internal low-voltage network devices. The surge protector supports networking speeds of up to 2.5 Gbps and PoE++ devices with a power budget of up to 95 W. It also features an IP67-rated metal enclosure, a detachable mounting bracket and Ethernet cable glands for water protection. Its wide operating temperature range of -40°–75°C (-40°–167°F) makes it suitable for outdoor installations.
