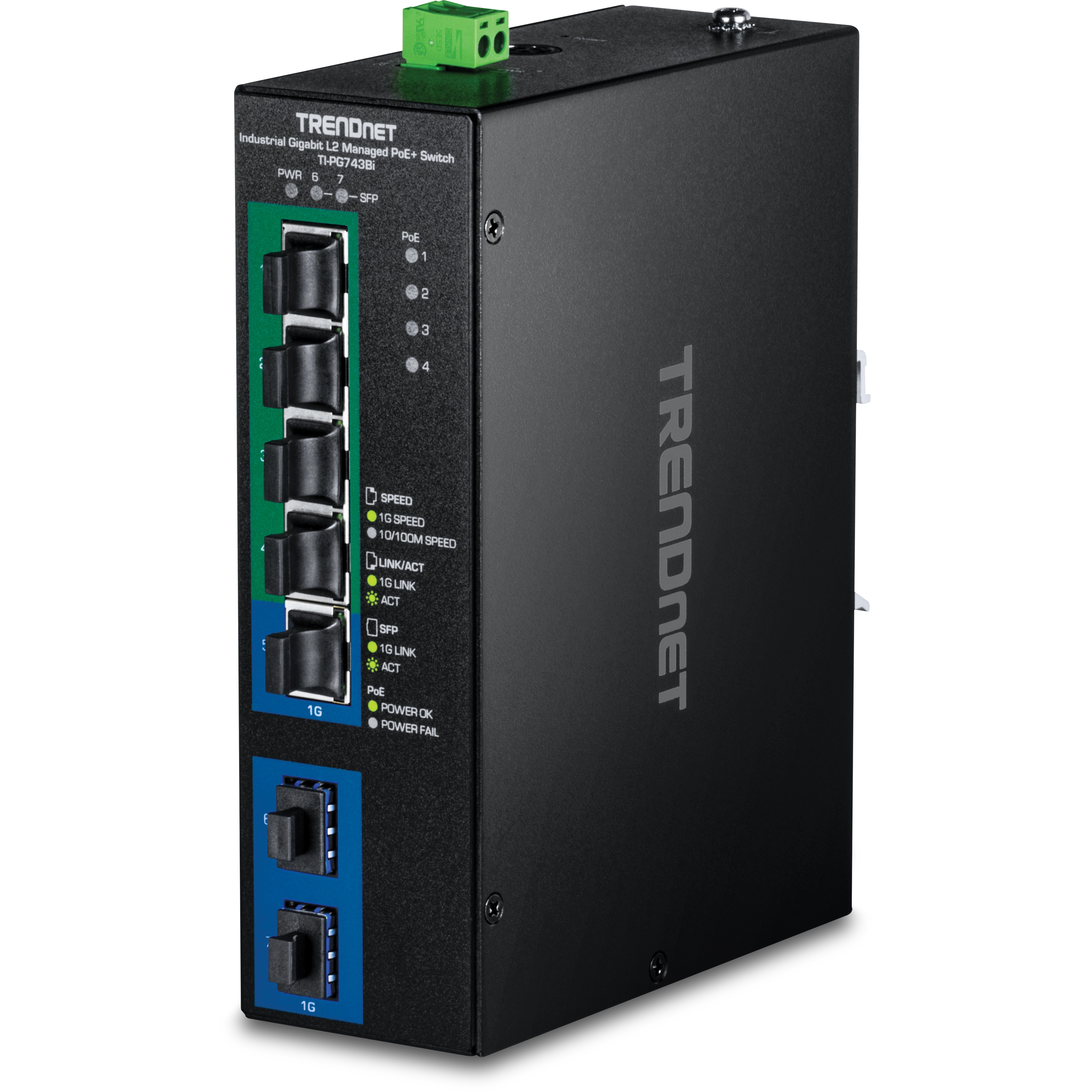

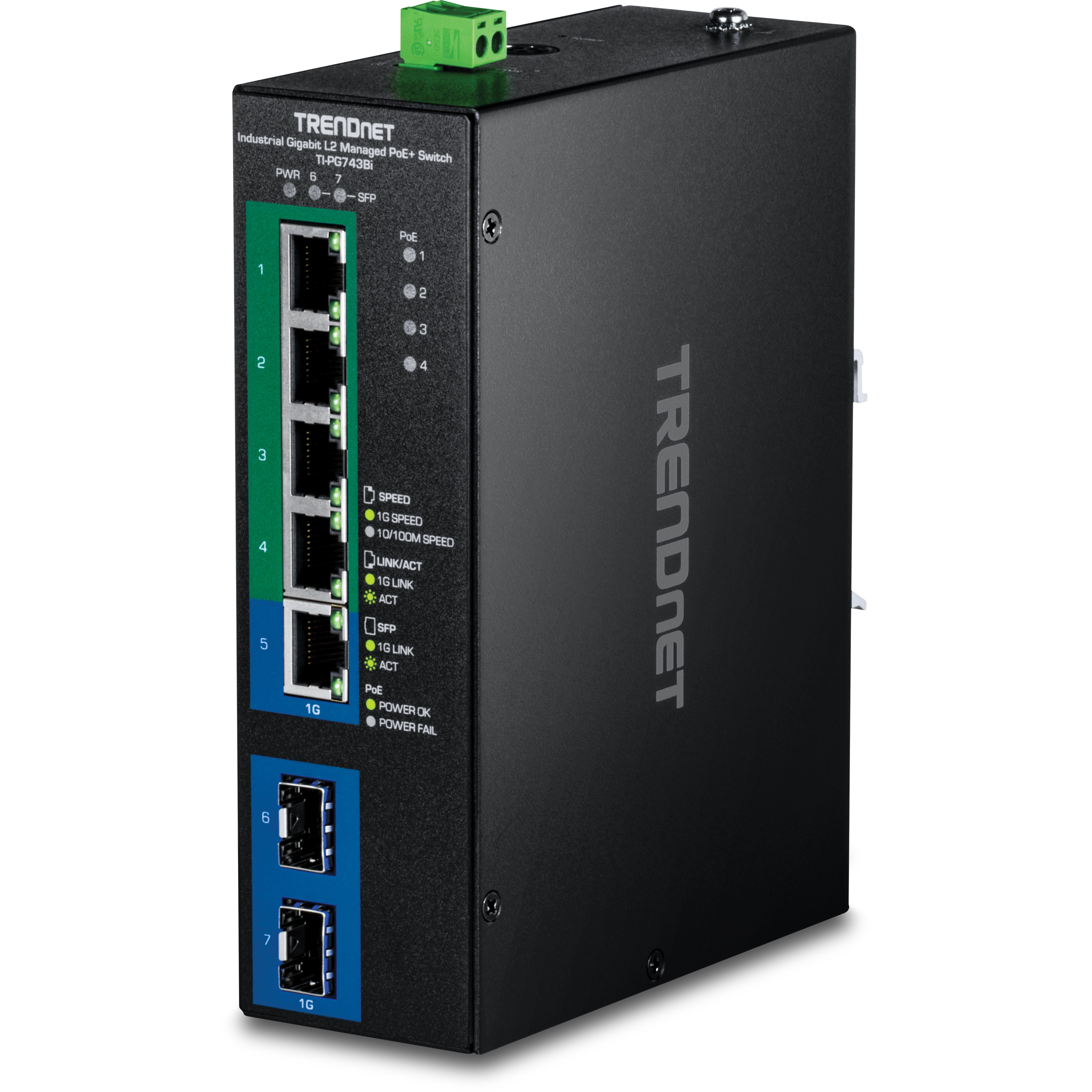

Trendnet - TI-PG743Bi - 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch 24 - 57V

Name: Trendnet - TI-PG743Bi - 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch 24 - 57V
Brand: Trendnet
SKU: TI-PG743Bi

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 4 x Gigabit PoE+ ports
• 1 x Gigabit port
• 2 x SFP ports
• Supports 100/1000Base-FX fiber SFP modules
• PoE power budget: 120W@48V DC or 120W@24V DC
• PoE alive check restarts unresponsive PoE powered devices
• 14Gbps switching capacity
• Hardened IP40 rated metal housing

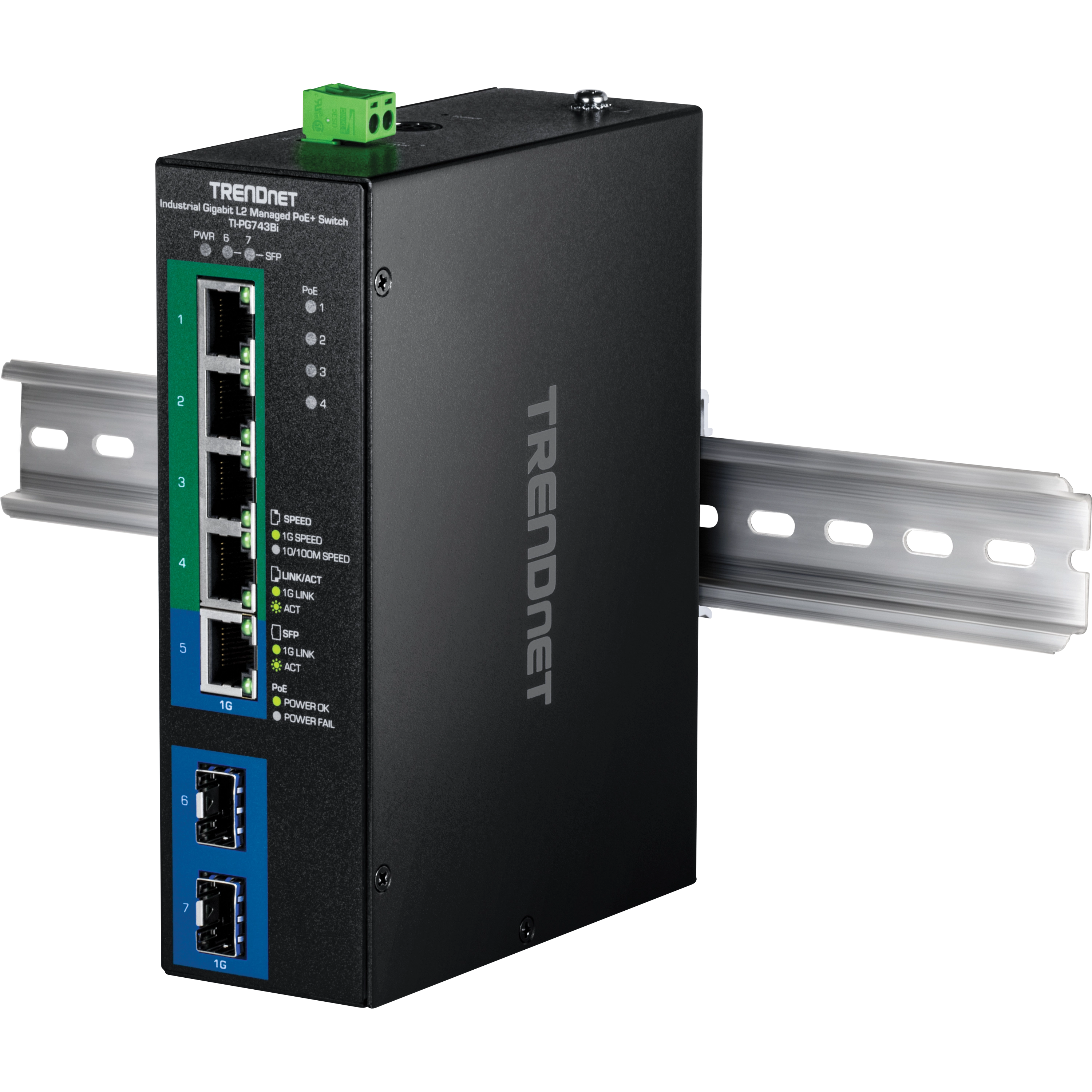

• Includes DIN-Rail mounting bracket
• Operating temperature range of -40° – 75° C (-40° – 167° F)
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
• IEEE 802.1p QoS with queue scheduling support
• Bandwidth control per port
• Remote cloud management with TRENDnet Hive™ (Additional fee applies)
• Single power input with overload current protection
• Supports Ethernet Ring Protection Switching (ERPSv2)
• Power supply sold separately (models: TI-S24048, TI-S24052, TI-S15052)
• Power adapter sold separately: 48VDC3000
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

Standards	• IEEE 802.1d • IEEE 802.1p • IEEE 802.1Q • IEEE 802.1w • IEEE 802.1X • IEEE 802.1ab • IEEE 802.1ax • IEEE 802.3u • IEEE 802.3x • IEEE 802.3z • IEEE 802.3ab • IEEE 802.3ad • IEEE 802.3az • IEEE 802.3af • IEEE 802.3at
Device Interface	• 4 x Gigabit PoE+ ports • 1 x Gigabit port • 2 x 100/1000Mbps SFP ports • 2-pin removable terminal block (power input) • 4-pin DIN (power adapter input) • LED indicators • Reset button • Ground terminal
Performance	• Switch fabric: 14Gbps • RAM buffer: 512KB • MAC address table: 8K entries • Jumbo frames: 10KB • Forwarding rate: 10.42Mpps (64-byte packet size)
Management	• HTTP web-based GUI • CLI: Telnet / SSHv2 • SNMP v1, v2c, v3 • SNMP trap (up to 5 receivers) • RMON groups 1/2/3/9 • Modbus TCP/IP • Device configuration backup & restore, upgrade firmware, reboot, and reset to default • Multiple administrative or read-only user accounts • Enable or disable power saving mode per port • Static MAC entries • LLDP (Link layer discovery protocol) • Topology Map • ONVIF device discovery • SNTP • SMTP alert • Syslog • Port statistics/utilization • Traffic monitor • Port mirror: one to one, many to one • Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps) • Loopback detection • DHCP relay/option 82 • SFP DDMI (Digital Diagnostic Monitoring Interface) • ERPS (Ethernet Ring Protection Switching) G8032v2
Hive Cloud Management	• Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser • Multi-device management • Provisioning through scheduled batch or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB	• MIB II RFC 1213 • Bridge MIB RFC 1493 • RMON (Group 1,2,3,9) RFC 2819 RFC 1757
Spanning Tree	• STP (spanning tree protocol) • RSTP (rapid spanning tree protocol) • BPDU filter, guard, and root guard
Link Aggregation	Static link aggregation and dynamic LACP (Up to 3 groups)
Quality of Service (QoS)	• 802.1p Class of service (CoS) • DSCP (Differentiated Services Code Point) • Bandwidth control per port • Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
VLAN	• 802.1Q tagged VLAN • MAC-based VLAN • Protocol VLAN • Port isolation • Up to 256 VLAN groups, ID range 1-4094
Multicast	• IGMP snooping v1, v2, v3 • IGMP querier • IGMP fast leave • Up to 256 multicast groups • Static multicast entries
Access Control	• 802.1X authentication (Local user database, RADIUS, guest VLAN assignment) • DHCP snooping/screening • Trusted host/IP access list for management access • Port Security/MAC address learning restriction (Up to 100 entries per port) • Static/dynamic ARP inspection
ACL	• Source/Destination MAC address • Source/Destination IP address • Source Interface • VLAN ID • EtherType • TCP/UDP port 1-65535
Power	• PWR (Primary) terminal input (2-pin): 24 – 57V DC • Power adapter input (4-pin DIN): 24 – 57V DC • Note: Power inputs are not redundant, only one power source can be used for operation. • Compatible power supply: TI-S12048 (120W), TI-S15052 (150W), TI-S24052 (240W) sold separately • Compatible power adapter: 48VDC3000 (sold separately) • Max. Consumption: 14W (no PoE load), 134W (full PoE load)
PoE	• PoE budget: 120W@48V DC input, 120W@24V DC input • 802.3at: Up to 30W per port • PoE Mode A: Pins 1, 2, 3, and 6 for power • PoE auto classification • PoE port priority/power scheduling/PD alive check • Over current/short circuit protection
Terminal Block	• Power input, 2 pin • Wire range: 0.5 mm2 to 2.5 mm2 • Solid wire (AWG): 18-20 • Stranded wire (AWG): 18-20 • Wire strip length: 10-11mm
Enclosure	• IP40 rated metal enclosure • Fanless passive cooling • DIN-Rail mount • Grounding point • ESD (Ethernet) Protection: 8kV DC • Surge (Data) Protection: 1kV DC • Surge (Power) Protection: 0.5kV DC
MTBF	754,136 hours @ 25° C
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)
Weight	844g (1.86 lbs.)
Certifications	• CE • FCC • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-32) • Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty
Package Contents	• TI-PG743Bi • Removable terminal block • DIN-Rail mounting bracket

Name

Description

Size

Downloads

File

TI-PG743Bi - 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch 24 - 57V - Datasheet.pdf

0.2mb

TRENDnet's TI-PG743Bi 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch features four Gigabit PoE+ ports with a 120W PoE budget, one Gigabit port and two SFP ports supporting both 100Base-FX and 1000Base-FX modules for long-distance fibre applications. This hardened network switch has an IP40-rated metal enclosure and is designed to withstand high levels of vibration and shock while operating within the wide temperature range of -40°C to 75°C (-40°F to 167°F) required in industrial environments. Advanced traffic management, troubleshooting and SNMP monitoring capabilities make this a powerful managed PoE+ switch solution for SMB networks.
