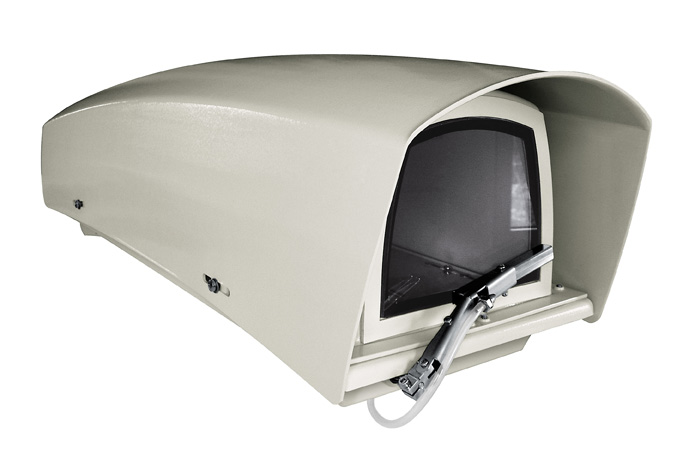

Name: VideoTec - HGV52K1A100 - HGV housing 520mm with sunshield, triple fan assisted heater, wiper 230Vac and camera power supply IN 100-240VAC - OUT 12Vdc
Brand: VideoTec
SKU: HGV52K1A100

Home — Brands — VideoTec — Fixed Cameras and Housings —

VideoTec - HGV52K1A100 - HGV housing 520mm with sunshield, triple fan assisted heater, wiper 230Vac and camera power supply IN 100-240VAC - OUT 12Vdc

Part number:

HGV52K1A100

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

The HGV housing is ideal for outdoor monitoring of great distances for applications in public safety, environmental monitoring and border surveillance or at harbours, along coastlines and at airports. Robust housing with aluminium base designed to simplify installation and service and guarantee total protection in all environmental conditions. The big dimensions of this camera housing make it suitable to contain the largest zoom lenses of the market. For easy access during the installation and the adjustment of the camera, it is possible to remove the upper part of the housing body, which is held by a robust safety cord.

Features:

Extra-large dimensions to fit the largest motorised zoom lenses
Base constructed from aluminium and top part of the body in robust ABS material
Removable top body with safety cord
Equipped as standard with camera power supply, reinforced triple heater with two continuous duty fans, wiper
Supplied with wiper, camera power supply and reinforced triple heater with two continuous-duty fans

GENERAL

Base in aluminium, epoxypolyester powder painting, RAL9002 colour
Upper body and sunshield in ABS
Stainless steel external screws

MECHANICAL

Internal usable area: See drawing
Cable glands: 4xM16 (on plate)
Stainless steel plate without customised holes
Glass window extra clear
Dimensions (WxH): See drawing
Unit weight: 9.2kg (20.3lb)

ELECTRICAL

Supply voltage/Current consumption (version with triple heater, continuous cycle fans, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
24Vac, 3.35A max, 50/60Hz
230Vac, 0.66A max, 50/60Hz
Supply voltage/Current consumption (integrated wiper):
24Vac, 0.3A max, 50/60Hz
230Vac, 32mA max, 50/60Hz
Camera power supply
IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A (already installed in the 230Vac version)

ENVIRONMENT

For indoors and outdoors installation
Operating temperature with heating: from -20°C (-4°F) up to +60°C (140°F)

Relative humidity: from 5% up to 95%

CERTIFICATIONS

Electrical safety (CE): EN60950-1
Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3
IP protection degree (EN60529): IP66
EAC certification

ACCESSORIES

WAS0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
WAS0V23L5M00 Water tank 23l (6gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
WAS0V23L11M00 Water tank 23l (6gal), pump with delivery up to 11m (36ft), IN 230Vac-24Vac-120Vac
WAS1V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
WAS3V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
WASPT0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
WASPT0V23L5M00 Water tank 23l (6gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
WASPT0V23L11M00 Water tank 23l (6gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac
WASPT1V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
WASPT3V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
DTWRX Data receiver for remote control of the wiper and WASPT range pumps in stand-alone housings
