NVX is an IP FULL HD super low-light camera with high corrosion resistance. This camera incorporates the DELUX imaging and encoding technology for recording incredibly clear colour video day or night.
In particular, thanks to the camera’s increased light sensitivity, the DELUX technology can obtain bright images with well-defined colours in very low light conditions – even typical night-time conditions to 0.006 lux (0.0006 lux in black and white).
Videotec’s NVX camera is super low-light Day/Night Full HD 1080p, with 30x optical zoom and 60 fps shooting speed. Images can be transmitted via network with H.264/AVC, MPEG4, MJPEG or JPEG compression, and it’s possible to have up to 3 simultaneous and independent Full HD video streams.

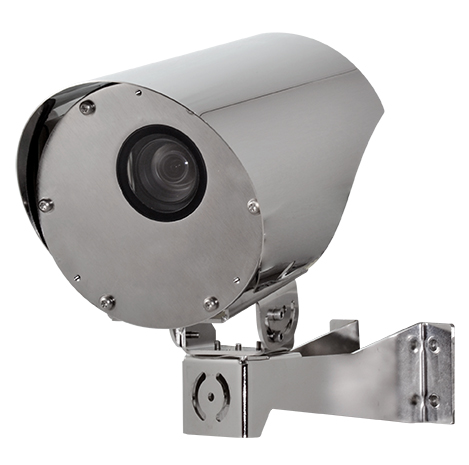

The NVX external housing is made entirely from AISI 316L stainless steel and has a compact and lightweight design that, along with the quick connectors, helps installation and maintenance.

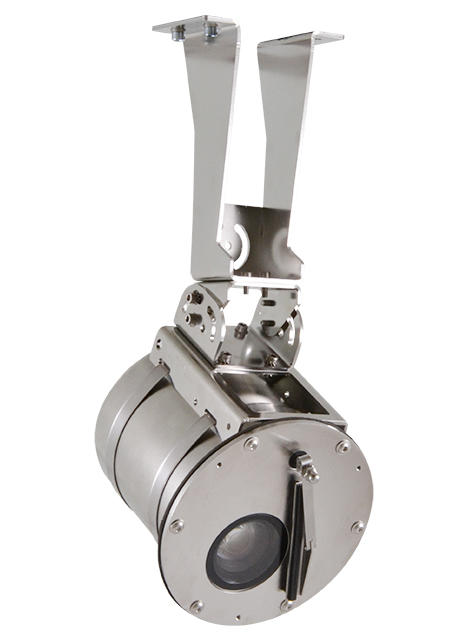

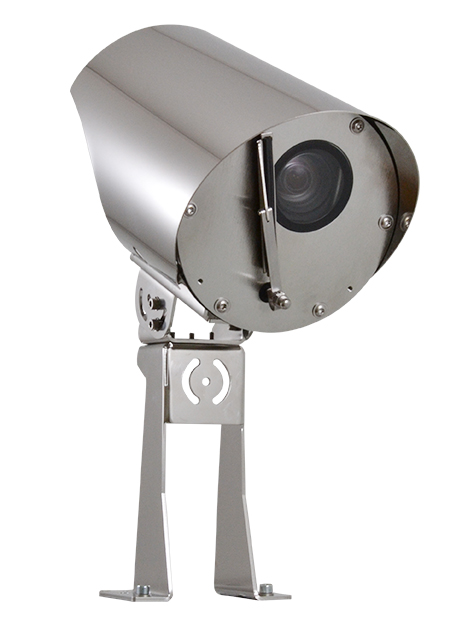

The modular support for wall, ceiling or parapet mounting is a standard feature.

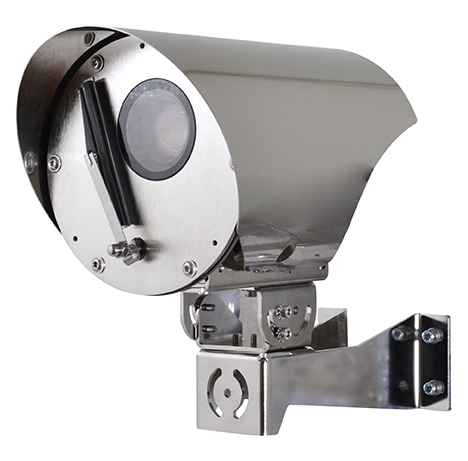

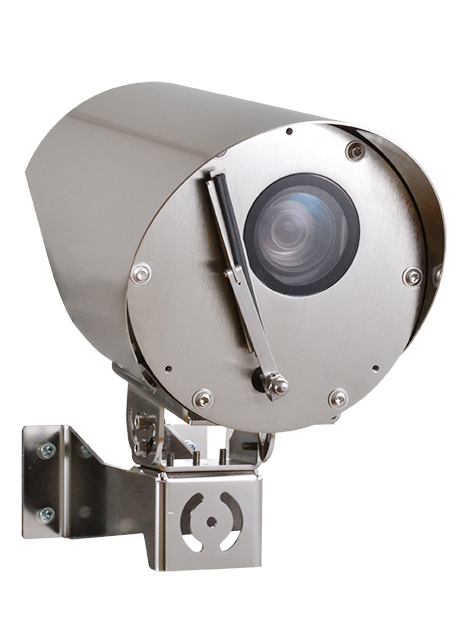

A version is available with integrated wiper and a version with polycarbonate window for foodstuff industry applications.
NVX has exceptional corrosion resistance, a wide operational temperature range and IP66/IP67/IP68/IP69 protection. These features mean it is well suited to marine and industrial areas, motorway tunnels and rail applications.
Features:
- Exceptional corrosion resistance
- Video recordings with incredibly bright day and night colours
- Quick connectors and modular integrated support
- Version available with polycarbonate window
| GENERAL |
| Simple installation thanks to quick connectors |
| Quick configuration and setup |
| MECHANICAL |
| AISI 316L stainless steel construction |
| Slot for safety chain |
| Unit weight: • 4.9kg (10.8lb) (fastening support included) • 4kg (8.8lb) (fastening support not included) |
| HOUSING'S WINDOW |
| Extra clear glass window • Thick: 3mm (0.1in) |
| ELECTRICAL |
| Supply voltage/Current consumption: • 24Vac, 1.32A, 50/60Hz • 24Vdc, 0.9A |
| Power consumption: • 25.2W |
| NETWORK |
| Ethernet connection: 100 Base-TX |
| Connector: RJ45 |
| CYBERSECURITY |
| Digitally signed firmware |
| Password restricted access (HTTP digest) |
| Support of various user access levels |
| Control of accesses IEEE 802.1X |
| HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3 |
| Centralised certificate management |
| Complies with ONVIF Security Service specifications |
| VIDEO ANALYTICS |
| Highly robust detection algorithms, specifically for outdoor perimeter control. |
| Targets Classification: People, vehicles, generic objects |
| Programmable rules for video analysis, VIDEOTEC ANALYTICS (it is possible to rapidly configure up to ten rules for every preset using an intuitive control management interface) • Line crossing: the target triggers an alarm if it crosses the line in one or both directions • Entering/leaving area: the target triggers an alarm if it leaves or enters the configured area • Appearing in area: the target triggers an alarm if it appears inside the configured area • Loitering: the target triggers an alarm if it stays inside the configured area over the set time |
| Detection Mask: disables the detection activity in a portion of the image to prevent false alarms |
| Video Tampering Detection: a specific ONVIF alarm is triggered if the video camera view is obstructed (e.g. spray) |
| VIDEO |
Video encoder • Communication protocol: ONVIF, Profile Q, Profile S and Profile T |
| I/O INTERFACE |
| I/O alarm board (version with wiper) • Input for remote reset: 1 • Relay outputs: 1+1 (1 relay reserved for washer pump and one configurable, 1A, 30Vac/60Vdc max) |
| CAMERAS |
| Day/Night Full HD 30x DELUX |
| Resolution: Full HD 1080p (1920x1080) |
| Image Sensor: 1/2.8" Exmor™ R CMOS sensor |
| Effective Pixels: approx. 2.38 Megapixels |
| Minimum Illumination: • Colour: 0.006lx (F1.6, 30 IRE) • B/W: 0.0006lx (F1.6, 30 IRE) |
| Focal length: from 4.5mm (wide) up to 135mm (tele) |
| Zoom: 30x (480x with digital zoom) |
| Iris: from F1.6 up to F9.6 (Auto, Manual) |
| Horizontal Viewing Angle: from 61.60° (wide end) up to 2.50° (tele end) |
| Vertical Viewing Angle: from 37.07° (wide end) up to 1.44° (tele end) |
| Shutter speed: from 1/1s up to 1/10000s (Auto, Manual) |
| White balance: Auto, Manual |
| Gain: from 0dB up to 100dB (Auto, Manual) |
| Wide Dynamic Range: 120dB |
| Focus System: Auto, Manual, Trigger |
| Picture Effects: E-flip, Colour enhancement |
| Noise removal: 2D (3 levels), 3D (3 levels) |
| Exposure Control: Auto, Manual, Priority (Iris Priority, Shutter Priority), Brightness, Custom |
| De-fog: On/Off |
| Privacy zones masking: maximum 8 settable masks |
| Indoor Flicker Reduction |
| Auto Slowshutter: Off, On (from 1/30s up to 1/1s) |
| Exposure compensation: Off, On (from level 0 up to level 14) |
| Sharpness: from level 0 up to level 3 |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature: from -40°C (-40°F) up to +50°C (122°F) |
| Surge immunity: up to 1kV line to line, up to 2kV line to earth (Class 3) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN61000-6-4, EN50130-4, EN55032 (Class A), FCC Part 15 (Class A), ICES003 (Class A) |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| IP protection degree (EN60529): IP66, IP67, IP68 (2h30min, 2m (6.56ft)), IP69 |
| EAC certification |
