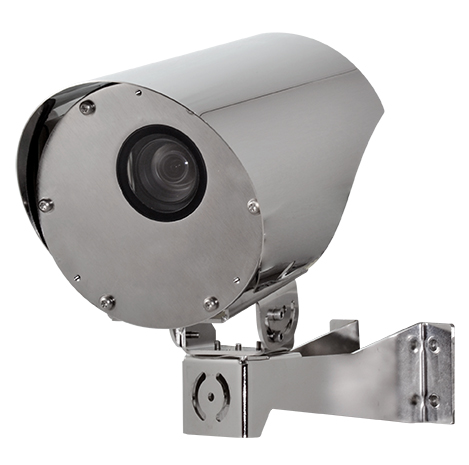

The NVX camera is entirely made of AISI 316L stainless steel and stands out for its exceptional resistance to corrosion. NVX was designed to guarantee efficient video surveillance in offshore/onshore marine environments, but also in applications for the rail and transport sectors.
Thanks to its mechanical characteristics, the compact design and the light weight, its use is also indicated in industrial environments, in particular in foodstuff industry applications, with the possibility of mounting the polycarbonate window.
The high anti-corrosion properties of its AISI316L stainless steel structure combined with the vast temperature range and the IP66/IP67/IP68 degrees of protection guarantee complete protection against bad weather and temporary immersion in water. In addition, the IP69 certification allows camera cleaning with high pressure water jets at high temperature.

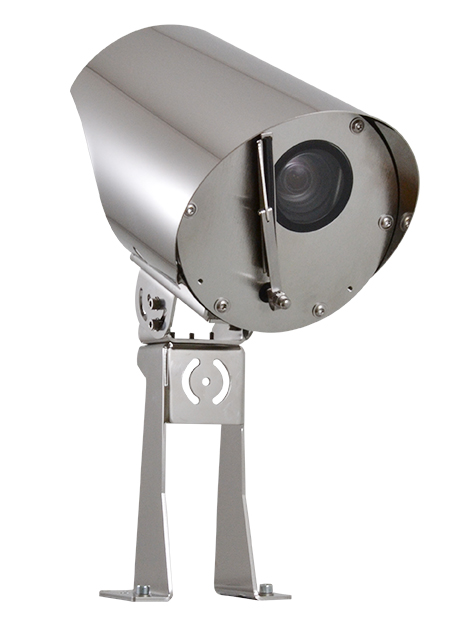

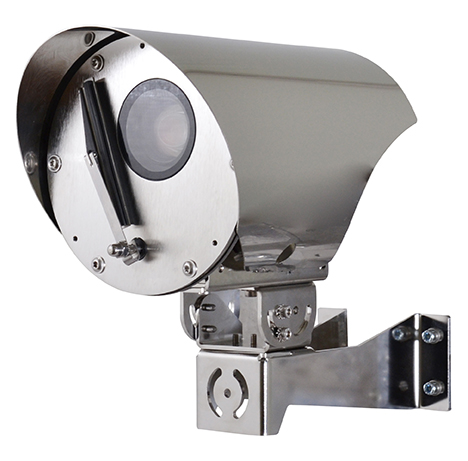

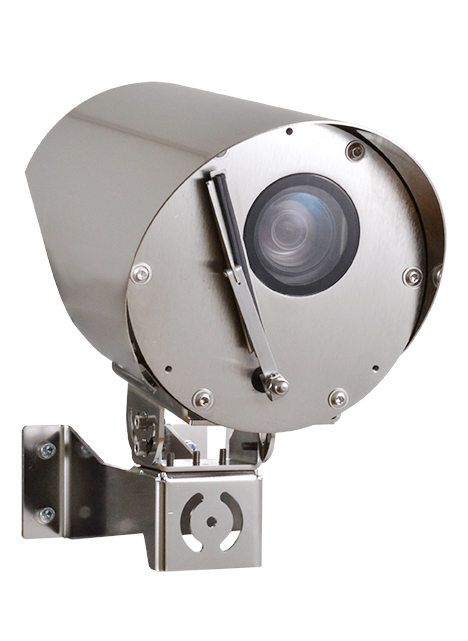

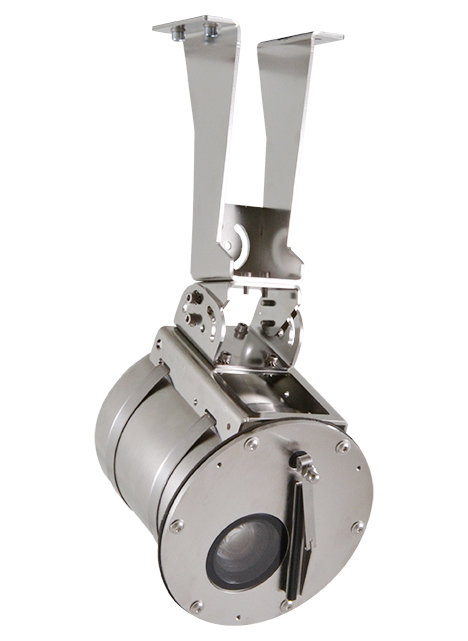

Installation of NVX even in tight spaces is facilitated by the quick connectors and the practical, modular support supplied as standard for assembly on walls, ceilings or railings. NVX versions are available with integrated wiper or with a polycarbonate window.
This camera is certified Lloyd's Register Type Approval System Test Specification Number 1. It can therefore be used in marine applications for environmental categories that include boats, ships, open decks, enclosed spaces, technical premises subject to heat generated by other equipment or as a visual support for mooring manoeuvres (ENV1, ENV2, ENV3 and ENV5).
Features:
- Exceptional corrosion resistance
- Impeccable quality image
- Image electronic stabilizer
- Quick connectors and modular integrated support
- Integrated video analysis available
| GENERAL |
| Simple installation thanks to quick connectors |
| Quick configuration and setup |
| MECHANICAL |
| AISI 316L stainless steel construction |
| Slot for safety chain |
| Unit weight: • 4.9kg (10.8lb) (fastening support included) • 4kg (8.8lb) (fastening support not included) |
| HOUSING'S WINDOW |
| Extra clear glass window • Thick: 3mm (0.1in) |
| Polycarbonate window (available only for version without wiper) • Thick: 3mm (0.1in) |
| ELECTRICAL |
| Supply voltage/Current consumption: • 24Vac, 1.32A, 50/60Hz • 24Vdc, 0.9A • PoE+ (IEEE 802.3at) |
| Power consumption: • 21W |
| NETWORK |
| Ethernet connection: 100 Base-TX |
| Connector: RJ45 |
| CYBERSECURITY |
| Digitally signed firmware |
| Password restricted access (HTTP digest) |
| Support of various user access levels |
| Control of accesses IEEE 802.1X |
| HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3 |
| Centralised certificate management |
| Complies with ONVIF Security Service specifications |
| VIDEO |
Video encoder • Communication protocol: ONVIF, Profile Q, Profile S and Profile T |
| I/O INTERFACE |
| I/O alarm board (version with wiper) • Input for remote reset: 1 • Relay outputs: 1+1 (1 relay reserved for washer pump and one configurable, 1A, 30Vac/60Vdc max) |
| CAMERAS |
| SONY FCB-EV7520 Day/Night Full HD 30x |
| Resolution: Full HD 1080p (1920x1080) |
| Image Sensor: 1/2.8" Exmor™ R CMOS sensor |
| Effective Pixels: approx. 2.13 Megapixels |
| Minimum Illumination: • Colour: 0.0013lx (50 IRE, High sensitivity on) • B/W: 0.0008lx (30 IRE, High sensitivity on) |
| Focal length: from 4.3mm (wide) up to 129mm (tele) |
| Zoom: 30x (360x with digital zoom) |
| Iris: from F1.6 up to F14 (Auto, Manual) |
| Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end) |
| Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Shutter speed: from 1/1s up to 1/10000s (Auto, Manual) |
| White balance: Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto) |
| Gain: from 0dB up to 50.0dB (Auto, Manual) |
| Wide Dynamic Range: 120dB |
| Focus System: Auto (PTZ Trigger, Full Auto), Manua |
| Picture Effects: E-flip |
| Noise removal (2D, 3D): Off, On (from level 1 up to level 5) |
| Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority, Brightness priority) |
| De-fog: Off, Low, Mid, High |
| Privacy zones masking (maximum 8 settable masks) |
| Indoor Flicker Reduction |
| Gain Limit: from10.7dB up to 50dB |
| High sensitivity: On/Off |
| Backlight Compensation: On/Off |
| Auto Slowshutter: On/Off |
| Exposure compensation: Off, On (from -10.5dB up to +10.5dB) |
| Sharpness: from level 0 up to level 15 |
| High Light Compensation (HLC): Off, Low, Mid, High, Masking Level (Off, On, from level 1 up to level 15) |
| Digital image stabilization: On/Off |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature • Version with 24Vac or 24Vdc power supply: from -40°C (-40°F) up to +65°C (149°F) • Version with PoE+ power supply: from -40°C (-40°F) up to +60°C (140°F) • Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) |
| Surge immunity: up to 1kV line to line, up to 2kV line to earth (Class 3) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN61000-6-4, EN50130-4, EN55032 (Class A), FCC Part 15 (Class A), ICES003 (Class A) |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| IP protection degree (EN60529): IP66, IP67, IP68 (2h30min, 2m (6.56ft)), IP69 |
| Vibration test: EN50130-5, EN60068-2-6 |
| UL certification: cULus Listed, TYPE 4X, TYPE 6P |
| EAC certification |
| NDAA-compliant |
| CERTIFICATIONS - RAILWAY APPLICATIONS |
| Compliance to railway application standard: EN50121-4 (only with 24Vac or 24Vdc power supply) |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval • Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
| Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2 |
