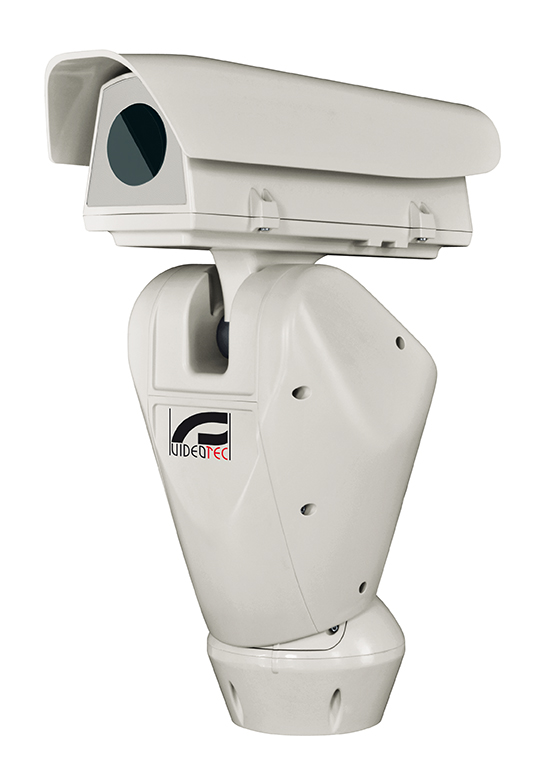

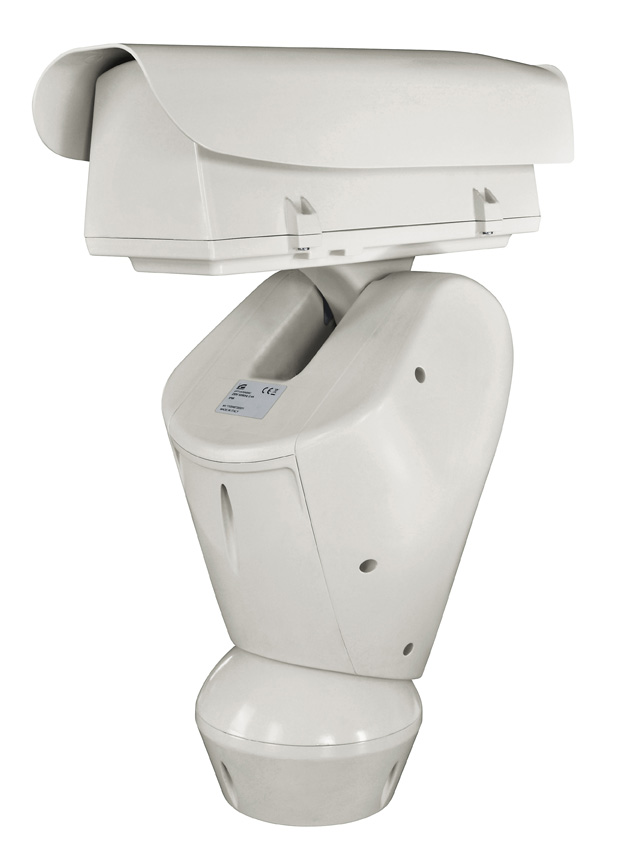

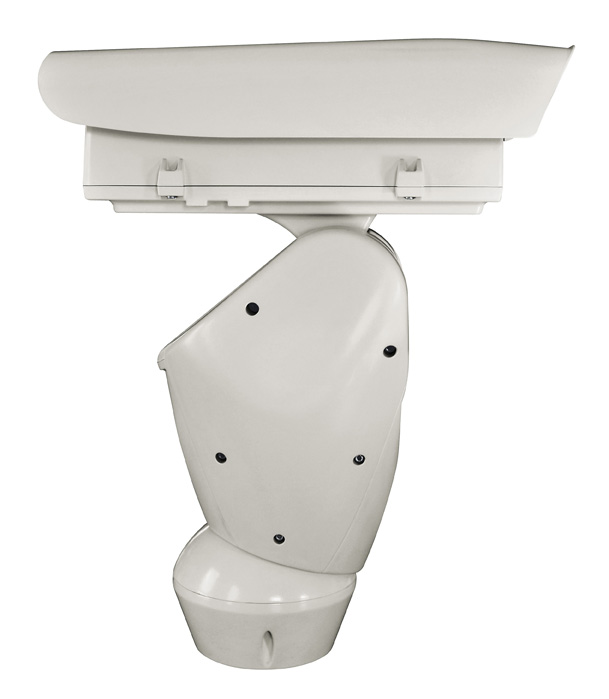

VideoTec - UPKT2BFSAN00A - ULISSE RADICAL THERMAL PTZ Full IP, H.264, Onvif-S, 24Vac, thermal camera optical zoom 3x (digital zoom 4x), 336X256, 7.5-8.3Hz
Part number:
UPKT2BFSAN00A
Price:
ULISSE RADICAL THERMAL is the first Videotec ready-to-use thermal PTZ camera system that integrates exceptional factory-assembled combinations of lens and thermal camera for unsurpassed intrusion detection and visual awareness in total darkness or extreme environmental conditions.
Features:
- Continuous zoom lens, 3x thermal optics, 35-105mm and digital zoom up to 8x, 24x total zoom
- Advanced Autofocus system
- Analogue or IP (ONVIF S) versions
- Advanced Thermographic Function (STR, Spot Temperature Reading)
- DDE, Digital Detail Enhancement
- Dynamic adjustment of contrast (ACE, Active Contrast Enhancement)
- Operating temperature: from -40°C (-40°F) up to +65°C (149°F)
| GENERAL |
| Constructed from aluminium and tecnopolymer |
| Epoxypolyester powder painting, RAL9002 colour |
| Top mount (OTT) |
| Transmission through toothed belt |
| Slip-ring |
| Electronic limit switches |
| Zero backlash |

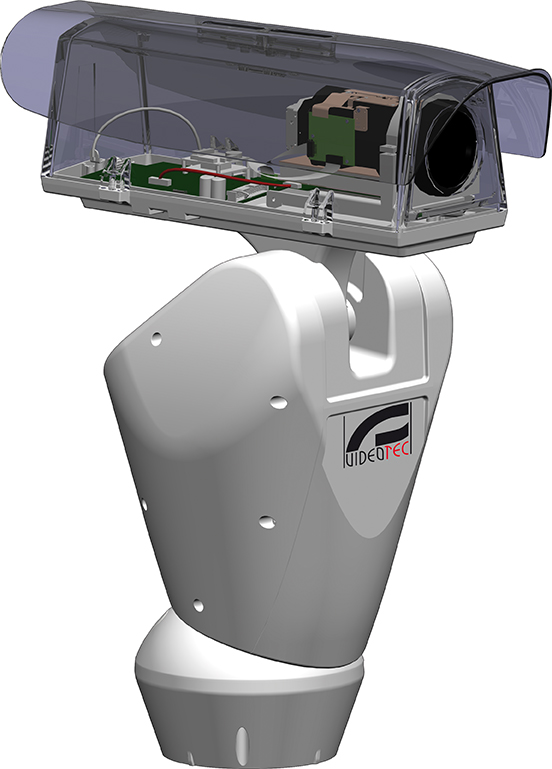

| Pre-installed camera and lens |
| MECHANICAL |
| Cable glands: 3xM16 |
| Horizontal rotation: 360°, continuous rotation |
| Vertical rotation: from -40° up to +90° |
| Horizontal speed (variable): from 0.02°/s up to 100°/s |
| Tilt speed (variable): from 0.02°/s up to 50°/s |
| Internal usable area (WxHxL): 90x115x325mm (3.5x4.5x13in) |
| Accuracy of preset positions: 0.02° |
| Unit weight: 17kg (37lb) |
| HOUSING'S WINDOW |
| Germanium window |
| Thick: 4mm (0.16in) |
| External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 88.1% |
| Medium transmittance (from 11.5μm up to 14μm): 77.7% |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac, 0.4A, 50/60Hz |
| 120Vac, 0.8A, 50/60Hz |
| 24Vac, 4A, 50/60Hz |
| Power consumption: |
| 100W max |
| 28.5W, P&T static, heating switched off |
| 4 self-powered alarm inputs |
| 2 dry contacts: 30Vdc max o 30Vac, @ 1A |
| NETWORK |
| Connector: RJ45, 10BASE-T/100BASE-T |
| Protocol: ONVIF, Profile S (TCP/IPv4, UDP/IPv4, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, RTSP, RTCP, RTP) |
| SERIAL COMMUNICATIONS |
| Configuration through OSM |
| 2 half-duplex serial RS-485 interfaces or full-duplex RS-422 |
| Firmware updating from console in remote mode (PELCO D, MACRO) |
| Up to 999 units, addressable by means of dip-switches |
| Protocols supported: AMERICAN DYNAMICS, ERNITEC, PANASONIC, PELCO D, MACRO |
| VIDEO |
| Compression: H.264/AVC, JPEG |
| Independent video streams: 2 |
| Image resolution: from Full D1 (720x576 for PAL, 720x480 for NTSC) to 352x240 in 18 steps |
| CAMERAS |
| Thermal camera (336x256): |
| Pixel dimension: 17μm |
| Digital Zoom: 4x |
| Thermal sensitivity (NEdT): < 50mK at f/1.0 |
| Spectral response - long wave infrared (LWIR): from 7.5μm to 13.5μm |
| Internal shutter (only for sensor compensation): Video stop < 1sec. |
| Scene range (High Gain): -40°C ÷ +160°C (-40°F ÷ +320°F) |
| Scene range (Low Gain): -40°C ÷ +550°C (-40°F ÷ +1022°F) |
| Thermal camera (640x512): |
| Pixel dimension: 17μm |
| Digital Zoom: 8x |
| Thermal sensitivity (NEdT): < 50mK at f/1.0 |
| Spectral response - long wave infrared (LWIR): from 7.5μm to 13.5μm |
| Internal shutter (only for sensor compensation): Video stop < 1sec. |
| Scene range (High Gain): -40°C ÷ +160°C (-40°F ÷ +320°F) |
| Scene range (Low Gain): -40°C ÷ +550°C (-40°F ÷ +1022°F) |
| LENSES |
| 3x optical zoom, 35-105mm, F1.6 |
| Minimum focusing distance: 7m (23ft) |
| Field of view (640x512 pixel): |
| Wide: 17.97°H, 14.33°V |
| Zoom tele: 5.93°H, 4.75°V |
| Field of view (336x256 pixel): |
| Wide: 8.98°H, 7.15°V |
| Zoom tele: 2.97°H, 2.38°V |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature: from -40°C (-40°F) up to +65°C (149°F)* |
| Cold start: -40°C (-40°F) |
| Surge immunity: up to 1kV line to line, up to 2kV line to earth (Class 4) |
| * peak temperature |
| Relative humidity: from 10% up to 95% (no condensation) |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN610000-6-4, EN55022 (Class A), FCC Part 15 (Class A) |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| IP protection degree: EN60529, IP66 |
| Salty fog resistance: EN50130-5, EN60068-2-52 |
| UL certification : cULus Listed (TYPE 4X) |
| EAC certification |
