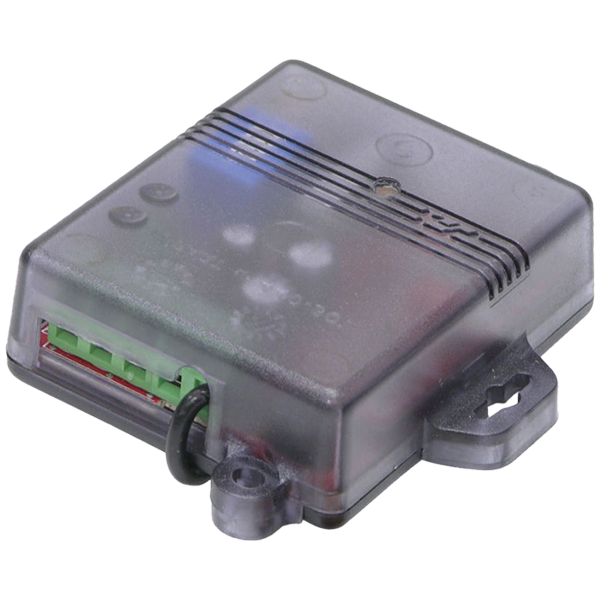

This mini RF receiver is compatible with all 315MHz ENFORCER transmitters, both code hopping and fixed-code (see page 4 of the manual for a list of compatible transmitters). It can be used for a variety of applications, such as allowing the same transmitter to open/close a gate and open/close a garage door. The receiver comes in one- or two-channel versions. Each channel can learn the codes of up to 15 different transmitter buttons.

Features:

• Small size: 33/16“x29/16“x3/4” (80 x 65 x 19 mm)
• Control garage doors, etc.
• Four programmable relay output modes: 4-Second momentary, 1-second momentary, toggle, and validity outputs
• Flexible operating voltage: 11-24 V AC/DC (16~24 VAC/DC must cut LP4)
• Compatible with all 315MHz ENFORCER transmitters, including both fixed-code and code-hopping (CODEBUMPTM)
• 315MHz (433.92MHz) available
• LED Indicates RF reception, learn mode entered, transmitter learned, and memory cleared
• Mode switches for easy transmitter learning
