Trendnet - TI-IG215 - Industrial 2.5G PoE+ Injector

Name: Trendnet - TI-IG215 - Industrial 2.5G PoE+ Injector
Brand: Trendnet
SKU: TI-IG215

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

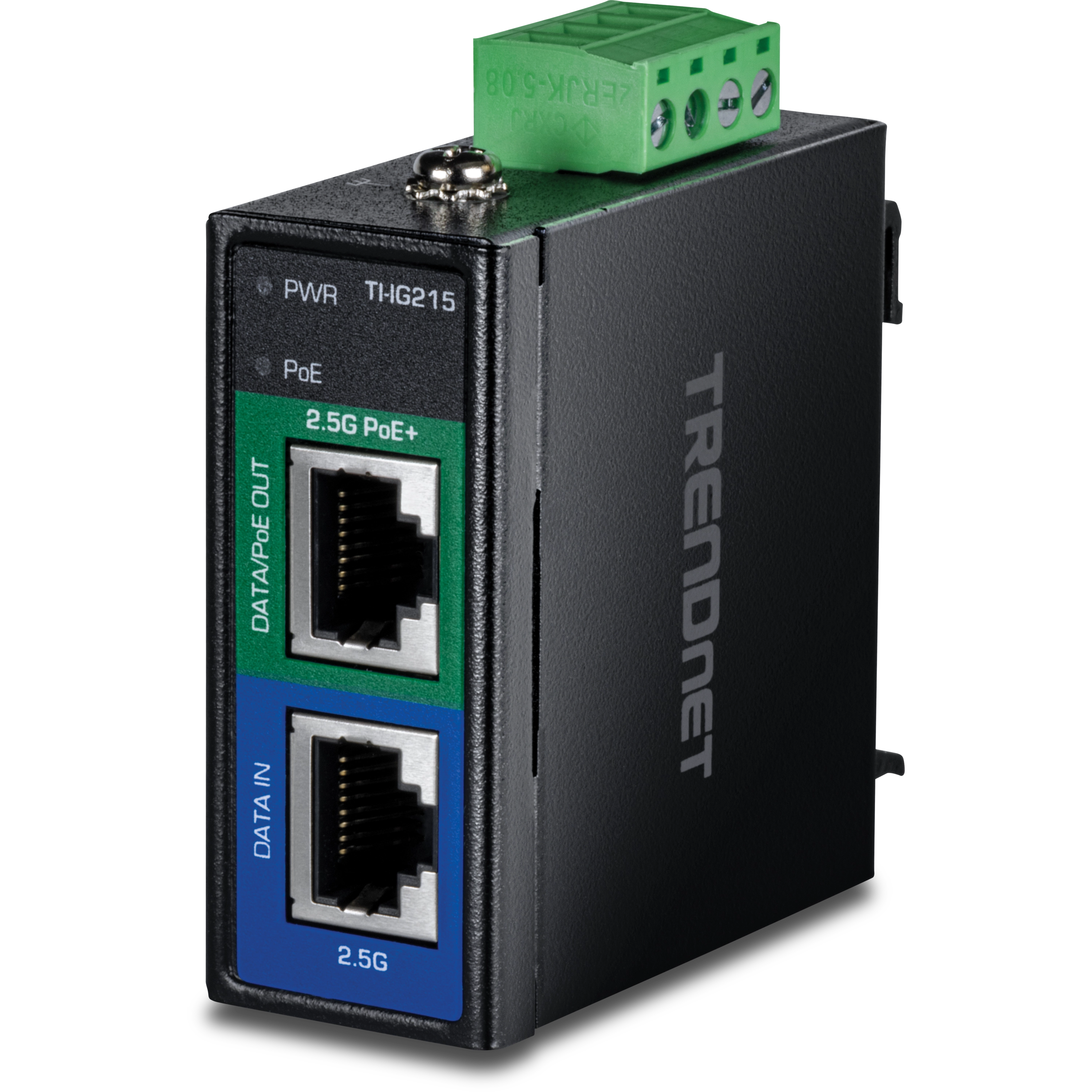

• 1 x 2.5G PoE+ port (Data + PoE out)
• 1 x 2.5G port (Data in)
• 30W PoE power budget
• Supports PoE (15.4W) and PoE+ (30W) devices
• Uses IEEE 802.3af and IEEE 802.3at industry PoE standards for greater device interoperability
• Network a PoE device located up to 100m (328 ft.) away
• Fanless design eliminates operating noise and lowers energy consumption
• Extreme operating temperature range - 40° — 75° C (-40° — 167° F)
• Redundant power inputs with overload current protection

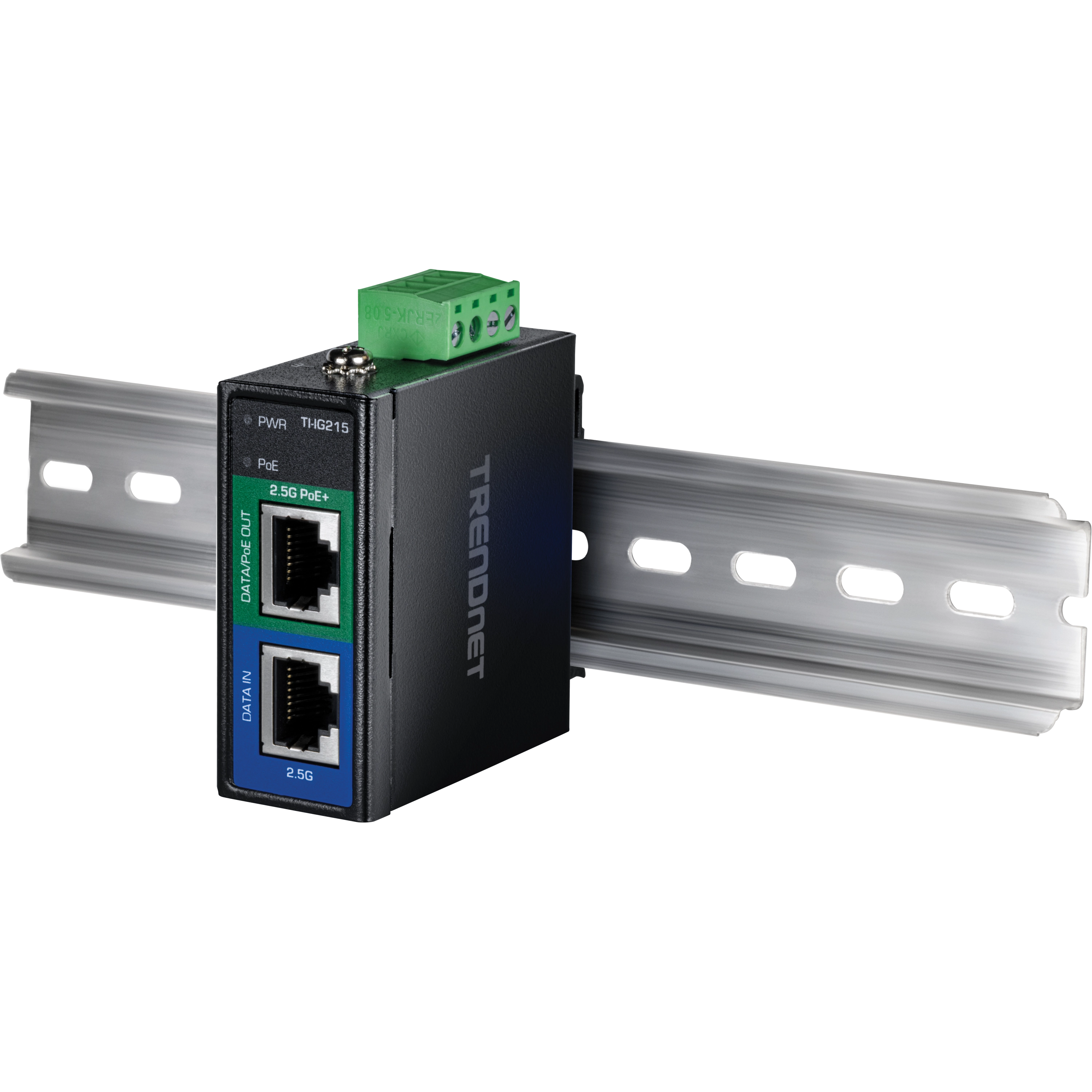

• Includes DIN-Rail mount and wall mount
• Power supply sold separately (model: TI-S15052)
• NDAA / TAA compliant (U.S. and Canada only)

Standards	• IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3af • IEEE 802.3at • IEEE 802.3bz
Device Interface	• 1 x 2.5GBASE-T port (10M/100M/1G/2.5G) • 1 x 2.5GBASE-T PoE+ port (10M/100M/1G/2.5G) • 4-pin removable terminal block • LED indicators
Power	• Input: 48 – 57V DC • Compatible power supply: TI-S15052 (sold separately) • Max. consumption: 4.3W @ 57V (with no PD connected)
PoE	• PoE budget: 28 – 30W • Pins 1, 2, 3, and 6 for power (mode A)

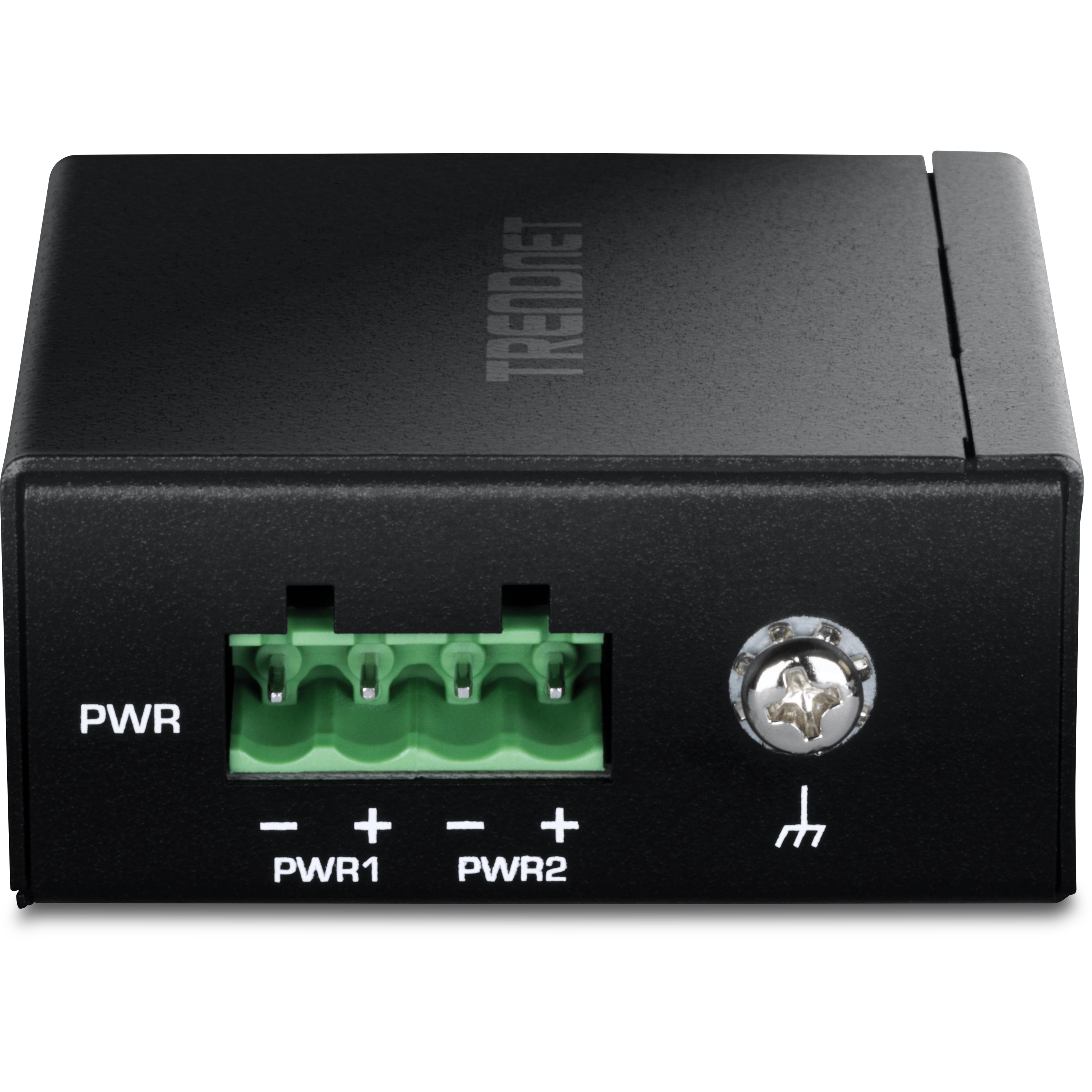

Terminal Block	• Redundant power inputs, 4 pin • Wire range: 0.34mm2 to 2.5mm2 • Solid wire (AWG): 12-24/14-22 • Stranded wire (AWG): 12-24/14-22 • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm • Wire strip length: 7-8mm
MTBF	7,680,000 hours @ 25° C
Housing	• IP50 metal case • DIN-Rail mount • Wall mount • Grounding point • Contact 6kV/Air 8kV ESD protection • 6kV RJ45 surge protection
Operating Temperature	-40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	60 x 58 x 26mm (2.36 x 2.28 x 1.02 in.)
Weight	133g (4.7 oz.)
Certifications	CE, FCC, LVD, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-31), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Warranty	3-year
Package Contents	• TI-IG215 • Removable terminal block • DIN-Rail and wall mount kit

Name

Description

Size

Downloads

File

TI-IG215 - Industrial 2.5G PoE+ Injector - Datasheet.pdf

0.2mb

The TRENDnet Industrial 2.5G PoE+ Injector TI-IG215 allows users to supply PoE+ power to a non-PoE 2.5G switch. Simply connect the injector to a non-PoE switch and run an Ethernet cable of up to 100 metres (328 feet) to connect a PoE/PoE+ device to the network. This multi-gigabit industrial PoE+ injector can supply up to 30 W of power to a PoE device. Its fanless design eliminates operating noise and reduces energy consumption. The TI-IG215 is equipped with an IP50-rated metal enclosure that is designed to withstand high levels of vibration and shock, and operate within an extreme temperature range of -40°C to 75°C (-40°F to 167°F), making it ideal for use in harsh industrial environments.
