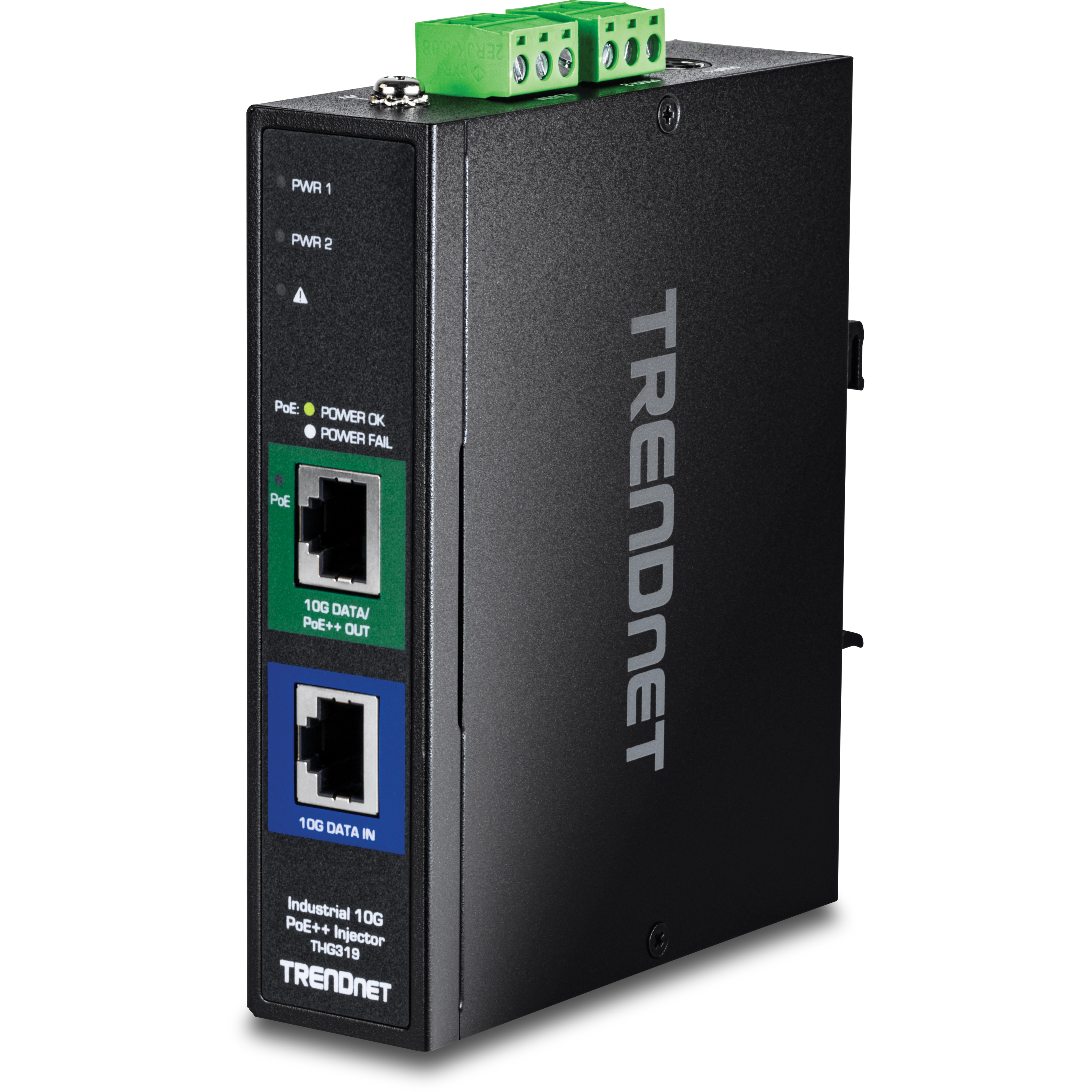

Trendnet - TI-IG319 - Industrial 10G PoE+ Injector

Name: Trendnet - TI-IG319 - Industrial 10G PoE+ Injector
Brand: Trendnet
SKU: TI-IG319

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 1 x 10G PoE++ port (Data + PoE out)
• 1 x 10G port (Data in)
• 120W PoE power budget
• Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
• Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
• Network a PoE device located up to 100m (328 ft.)
• Fanless design eliminates operating noise and lowers energy consumption
• Extreme operating temperature range -40° – 75° C (-40° – 167° F)
• Includes DIN-Rail mount and wall mount
• Power supply sold separately (model: TI-S15052)
• NDAA / TAA compliant (U.S. and Canada only)

Standards	• IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3af • IEEE 802.3an • IEEE 802.3at • IEEE 802.3bt • IEEE 802.3bz
Device Interface	• 1 x 10GBASE-T port (10M/100M/1G/2.5G/10G) • 1 x 10GBASE-T PoE++ port (10M/100M/1G/2.5G/10G) • 2 x 3-pin removable terminal block • LED indicators
Power	• Input: 48 – 57V DC • Compatible power supply: TI-S15052 (sold separately) • Max. consumption: 8.3W @ 57V DC (without PD connected)
PoE	• PoE budget: 120W • Pin 1, 2, 7, 8 for power – and pin 3, 4, 5, 6 for power +

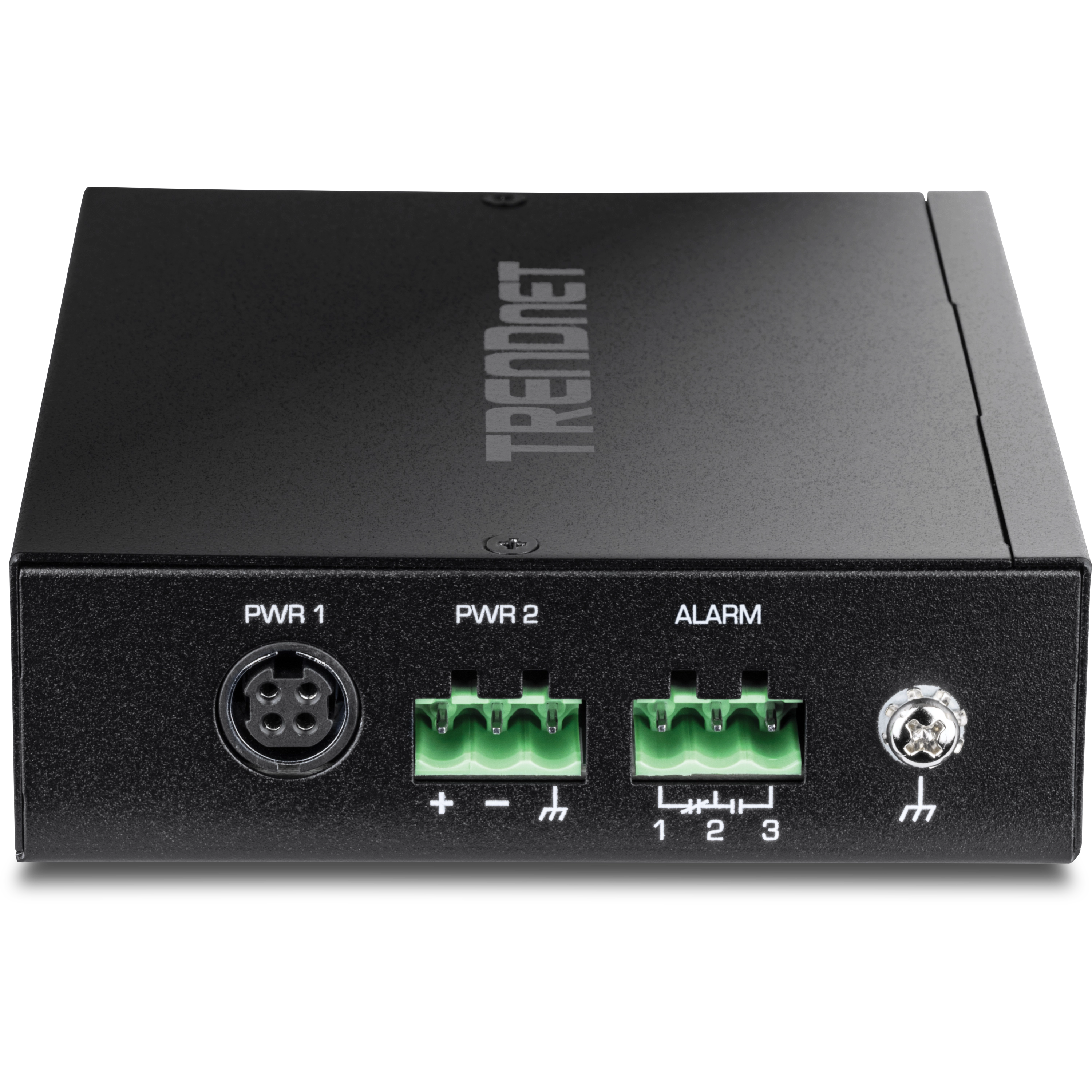

Terminal Block	• 2 x 3-pin (power, ground, and alarm relay) • Alarm Relay: 1A @ 24V DC • Wire range: 0.34mm2 to 2.5mm2 • Solid wire (AWG): 14-22 • Stranded wire (AWG): 14-22 • Torque: 5 lb. – In / 0.395Nm • Wire strip length: 7-8mm
MTBF	3,000,000 hours @ 25° C
Housing	• IP50 metal case • DIN-rail mount • Wall mount • Grounding point • Contact 6kV/Air 8kV ESD protection • 6 kV RJ45 surge protection
Operating Temperature	-40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	120 x 98 x 30mm (4.72 x 3.85 x 1.18 in.)
Weight	406g (14.3 oz.)
Certifications	• CE • FCC • LVD • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-31) • Vibration (IEC 60068-2-6) • IEC 61000-4-2 • IEC 61000-4-4 • IEC 61000-4-5
Warranty	3-year
Package Contents	• TI-IG319 • Removable terminal blocks • DIN-Rail and wall mount kit

Name

Description

Size

Downloads

File

TI-IG319 - Industrial 10G PoE+ Injector - Datasheet.pdf

0.2mb

The TRENDnet Industrial 10G PoE++ Injector model TI-IG319 enables users to provide PoE++ power to a non-PoE switch. Simply connect the injector to the switch and run an Ethernet cable of up to 100 metres (328 feet) to network a PoE/PoE+/PoE++ device. This multi-gig industrial PoE++ injector can supply up to 120 W of power to PoE devices. Its fanless design eliminates operating noise and lowers energy consumption. Designed to withstand a high degree of vibration and shock, the industrial 10G injector is equipped with an IP50-rated metal enclosure and can operate within an extreme industrial environment temperature range of -40° – 75° C (-40° – 16758° F).
