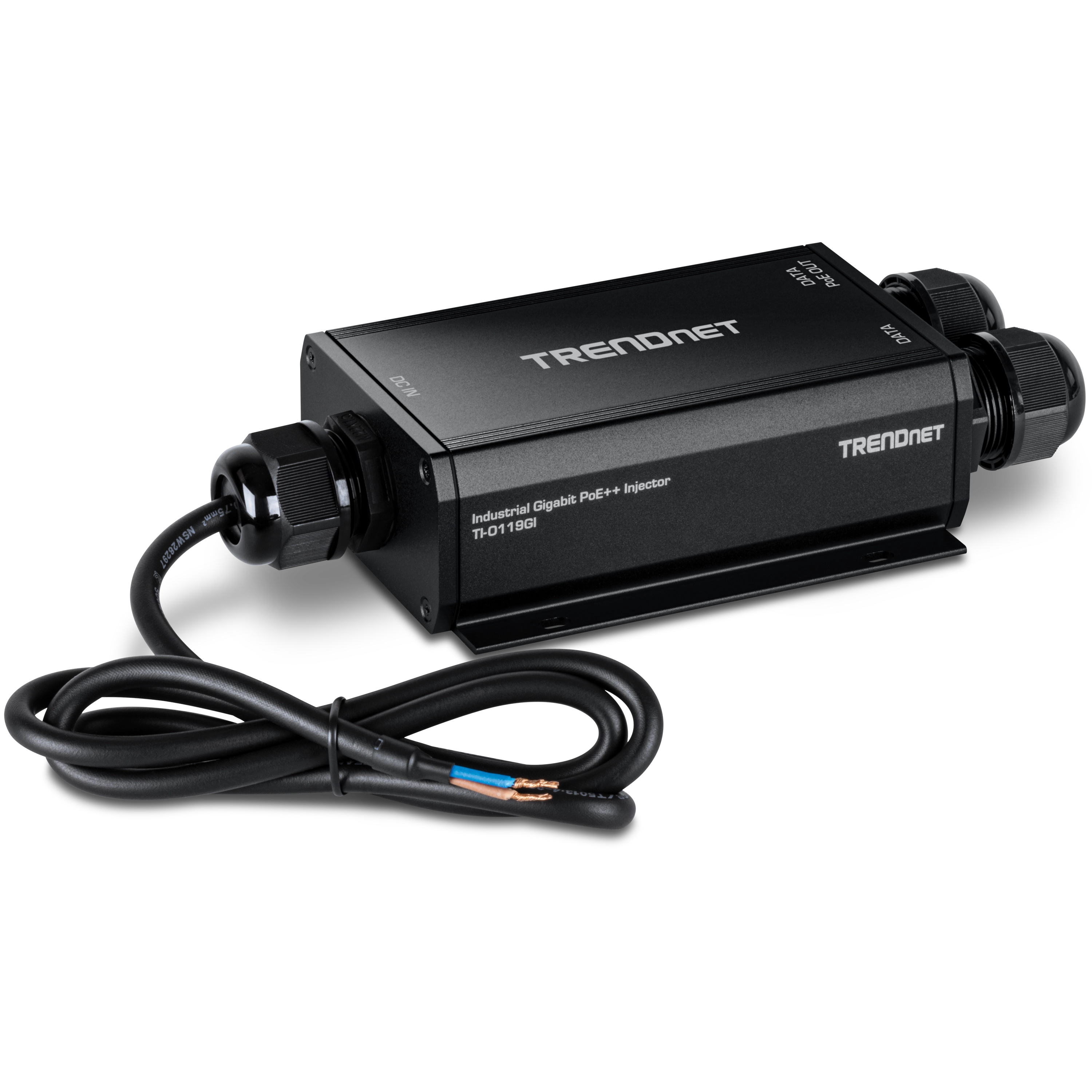

Trendnet - TI-O119GI - IP67 Outdoor Gigabit PoE++ Injector (24 - 60V)

Name: Trendnet - TI-O119GI - IP67 Outdoor Gigabit PoE++ Injector (24 - 60V)
Brand: Trendnet
SKU: TI-O119GI

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 1 x Gigabit PoE++ data out port
• 1 x Gigabit data in port
• 1 x Two-wire power connector
• 95W PoE power budget
• IP67 outdoor weather rated housing
• Extreme operating temperature range -40° to 75 °C (-40° to 167 °F)
• Supports 24 – 57V DC power input (power supply sold separately, model: TI-S15052)
• Supports VLAN pass-through
• Built-in 6kV ESD protection
• Wall mountable
• Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
• NDAA / TAA compliant (U.S. and Canada only)

Standards	• IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3af • IEEE 802.3at • IEEE 802.3bt

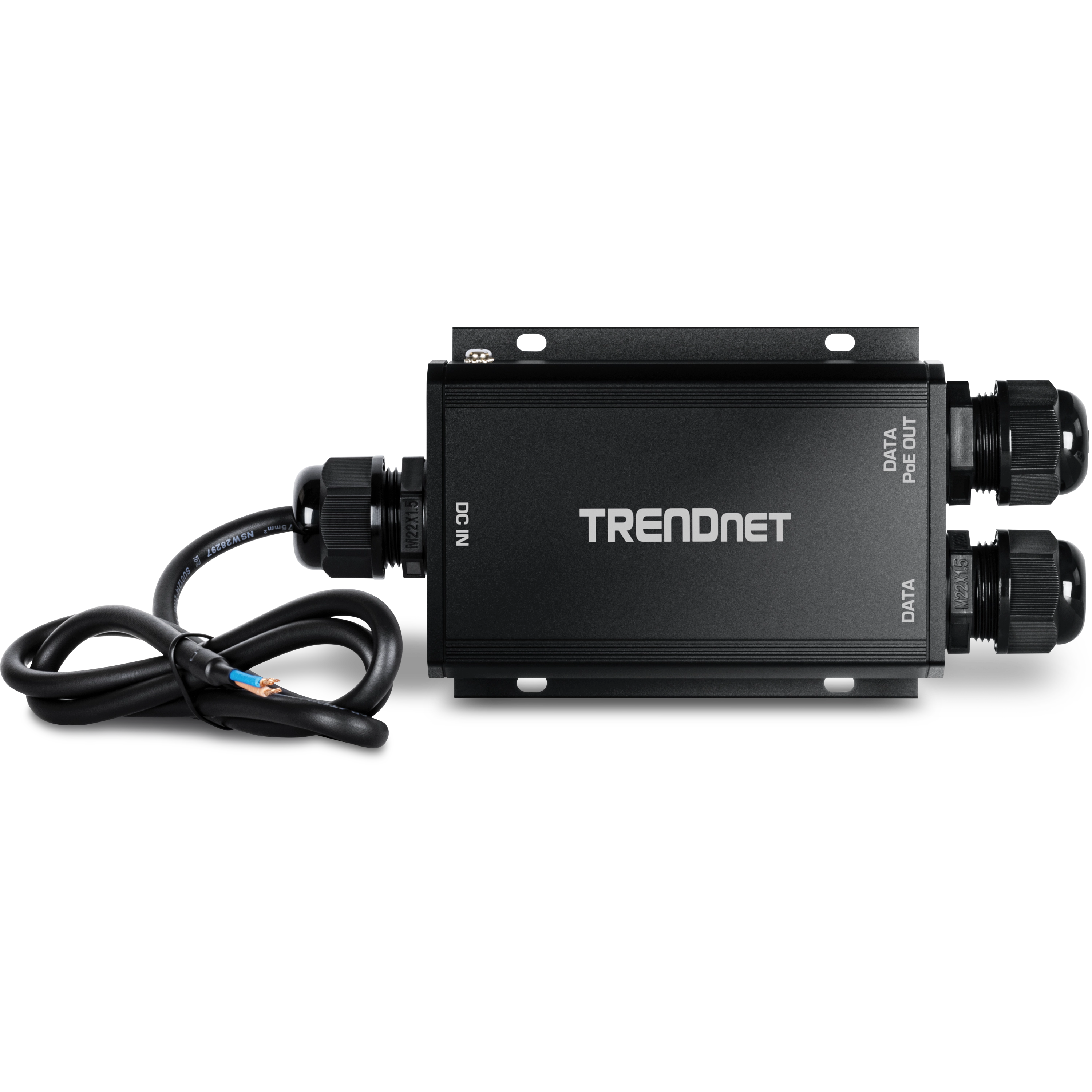

Device Interface	• 1 x Gigabit PoE++ port (Data + PoE out) • 1 x Gigabit port (Data) • 1 x Power connector • Wall mount
Data Transfer Rate	• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit: 2000Mbps (full duplex)
Special Features	Auto shut down if the current is over 700mA or in event of short circuit on either Ethernet ports
Power	• Input: 24 – 57V DC • Max. consumption: 3.84W (without PD) • Power cable: 91.5cm / 3ft.
PoE	• Up to 95W @ 52 – 57V DC • Up to 30W @ 24 – 48V DC • PoE Mode A: Pins 1, 2, 3, and 6 for power
MTBF	250,880 hours @ 25° C
Housing	• IP67 rated metal case • Wall mount • Grounding point • 6kV ESD protection • 8kV Air ESD protection • 6kV RJ-45 surge protection • Line to Ground 2kV surge protection
Operating Temperature	- 40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	190 x 76 x 42mm (7.5 x 3 x 1.65 in.)
Weight	576g (20.3 oz.)
Certifications	• CE • FCC • LVD • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-31) • Vibration (IEC 60068-2-6)
Warranty	3-year

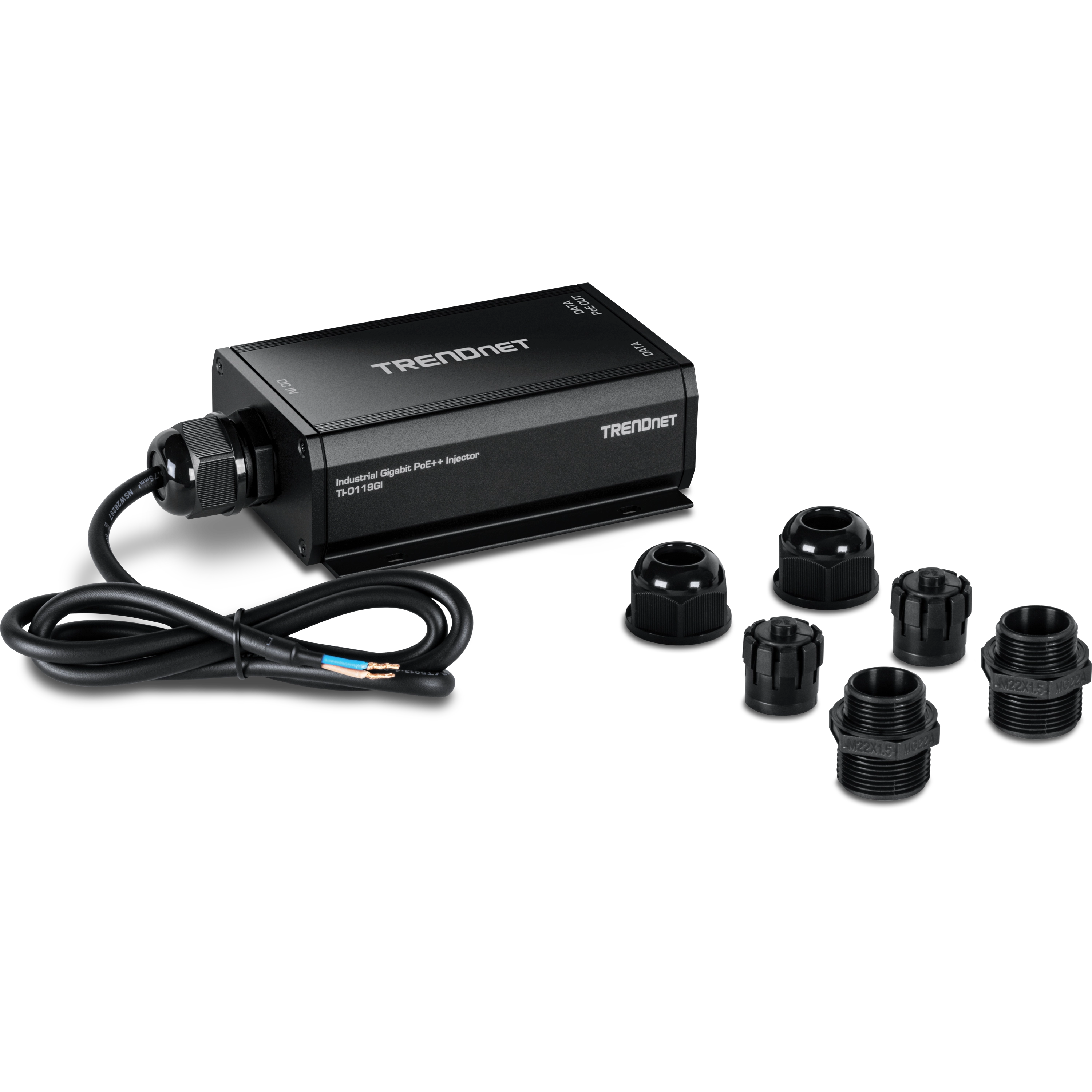

Package Contents	• TI-O119GI • Mounting kit

Name

Description

Size

Downloads

File

TI-O119GI - IP67 Outdoor Gigabit PoE++ Injector - Datasheet.pdf

0.3mb

TRENDnet’s Outdoor IP67 Gigabit PoE++ Injector model TI-O119GI combines electrical power with a gigabit network connection to produce a high-powered 95 W PoE++ network signal. Auto-sensing technology delivers the correct wattage to power your PoE, PoE+ and PoE++ devices conveniently. Connect the outdoor PoE++ injector to a non-PoE switch and run an Ethernet cable with data and power to network a PoE device up to 100 metres (328 feet) away. Designed to withstand a high degree of vibration and shock, the outdoor PoE++ injector is equipped with an IP67-rated metal enclosure and can operate within an extreme temperature range of -40° – 75° C (-40° – 167° F) in outdoor environments.
