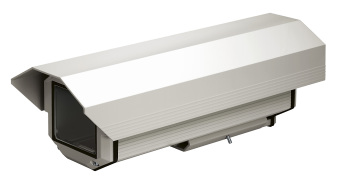

VideoTec - HEG37K1A143 - HEG housing 365mm with sunshield and fan-assisted triple heater IN 120/230Vac, 120W
Part number:
HEG37K1A143
Price:

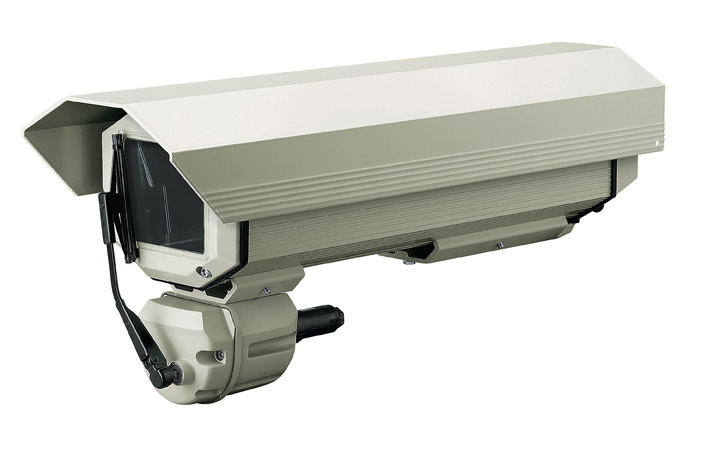

Robust and large aluminum housing designed to fit combinations of 1/2", 1/3" and 1/4" cameras and with optics of different kinds. It can be used for a variety of applications, for the monitoring of urban and highways, in particular if coupled with the PTH900 P&T series. The opening system allows an easy access for installation and servicing. It can be installed with cable sheaths, instead of regular cable glands using the junction box for the wiring harness. A wide range of accessories for mounting the equipment is available thereby satisfying all installation needs.
Features:
- For large lenses
- IP66/IP67
- Slide extractable body
- Version available with a very efficient cooling system for installation with IP
cameras and for high environmental temperature - Versions with reinforced double heater (down to -40°C(-40°F) or triple (down to
50°C (-58°F)) - Available accessories: heater, camera power supply, wiper, washer pump
| GENERAL |
| Constructed from aluminium |
| Epoxypolyester powder painting, RAL9002 colour |
| Stainless steel external screws |
| MECHANICAL |
| Internal usable area |
| Empty version: 134x88mm (5.3x3.4in) |
| Version with double or triple heater : 112x88mm (4.4x3.5in) |
| Internal usable length (without accessories) |
| HEG37: 365mm (14.3in) |
| HEG47: 450mm (18in) |
| Internal usable length (with accessories): |
| HEG37: 273mm (10.7in) |
| HEG47: 363mm (14in) |
| Cable glands: 3xM16 |
| Glass window extra clear |
| Dimensions (WxH): 94x80mm (3.7x3.1in) |
| Unit weight |
| HEG37: 4.1kg (9lb) |
| HEG47: 4.7kg (10.3lb) |
| ELECTRICAL |
| Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| 12Vdc, 1.6A max |
| 24Vac, 0.85A max, 50/60Hz |
| 120Vac, 0.35A max, 50/60Hz |
| 230Vac, 0.18A max, 50/60Hz |
| Supply voltage/Current consumption (version with double heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| 120Vac, 0.7A max, 50/60Hz |
| 230Vac, 0.35A max, 50/60Hz |
| Supply voltage/Current consumption (version with triple heater, continuous duty fan , Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)): |
| 120Vac, 1A max, 50/60Hz |
| 230Vac, 0.52A max, 50/60Hz |
| Supply voltage/Current consumption (version with heater, blower and thermostat for models with double filter for air renewal, Ton 35°C±3°C (95°F±5°F), Toff 20°C±3°C (71°F±5°F)): |
| 24Vac, 1A max, 50/60Hz |
| 120Vac, 0.37A max, 50/60Hz |
| 230Vac, 0.19A max, 50/60Hz |
| Camera power supply |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature with heating: from -20°C (-4°F) up to +60°C (140°F) |
| Operating temperature with double heater: from -40°C (-40°F) up to +60°C (140°F) |
| Operating temperature with triple heater: from -50°C (-58°F) up to +60°C (140°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60065 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3 |
| IP protection degree: |
| EN60529, IP66/IP67 (with cable glands) |
| EN60529, IP44 (with double filter for air renewal) |
| Salty fog resistance: to 1000 hours (ISO9227) |
| EAC certification |
