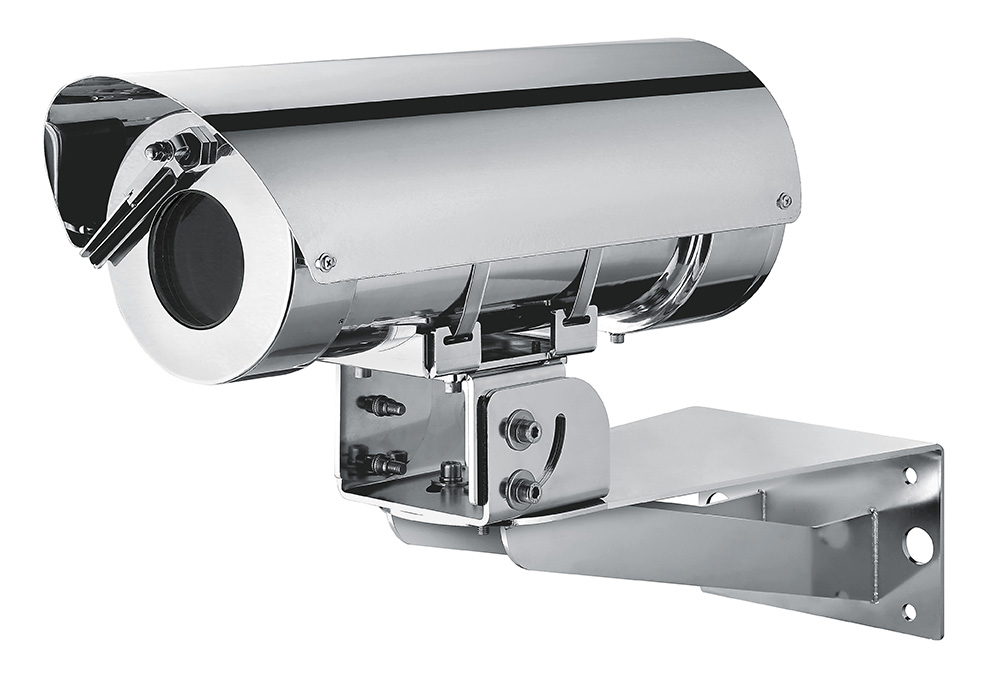

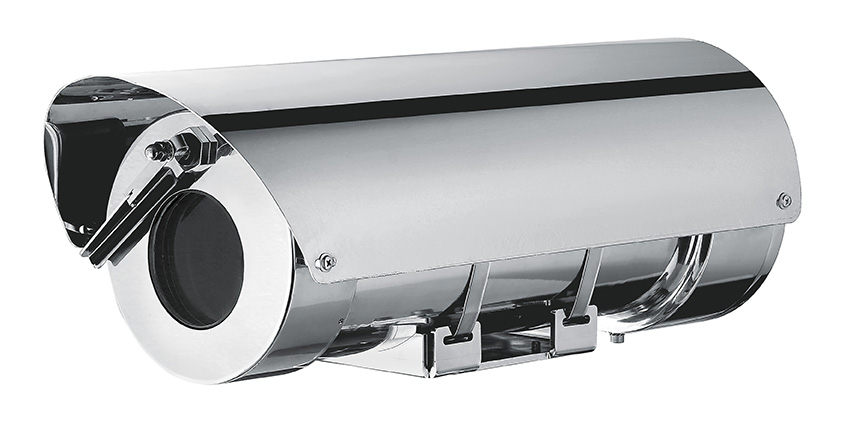

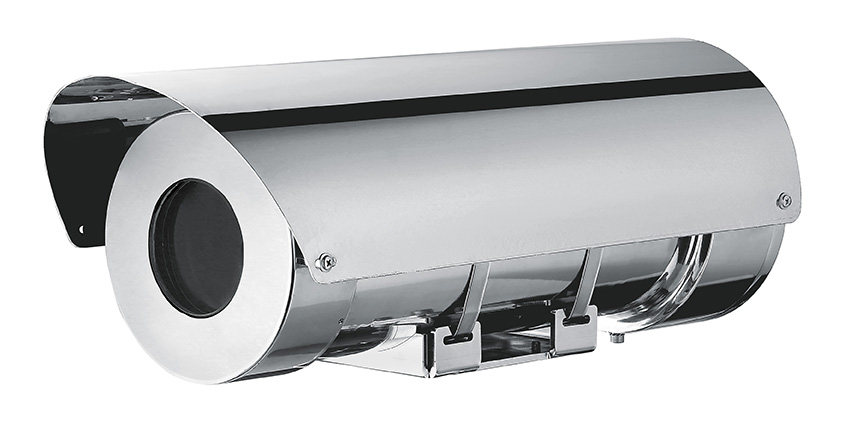

These explosion-proof housings for the MAXIMUS range have been certified and designed to meet the strictest standards regarding installation in potentially explosive environments, i.e. where there is the presence of gas and flammable dusts. The MAXIMUS range ensures excellent performance for monitoring critical processes in areas that carry a risk of explosion, such as refineries, gas pipelines, oil tankers, offshore platforms, industrial processes, chemical industries, etc. Equipped with heating, the housing has the same installation and operating temperatures, of between -40° C and + 60° (-40°F / +140°F). In the version with wiper, MHX is equipped with an integrated telemetry receiver that allows, through the RS485 serial interface, to receive data from the remote control for the activation of the wiper / washer and for switching an eventual external illuminator. The wiring is made easier thanks to the removable connectors on the circuit board. The control board, with removable connectors, is also equipped with an input for the wiper activation through a dry contact. The housing can eventually be controlled by VMS through a video encoder with RS485 serial port.

Features:

• Certifications Ex d for use in Zone 1 and 2, Group IIC (Gas), and in Zone Ex tb 21
  and 22 (Dust)
• Made of AISI 316L electropolished stainless steel
• 2 threaded holes ¾” NPT for use of cable glands or conduit
• Integrated telemetry receiver for version with wiper
• Sunshield and heater included
• Power supply: 230Vac, 24Vac or 120Vac
• Ambient temperature: from -40°C (-40°F) up to +60°C (140°F)
• Internal usable area (WxHxL): 80x82x245mm (3.1x3.2x9.6in)
• Options:
  Wiper
