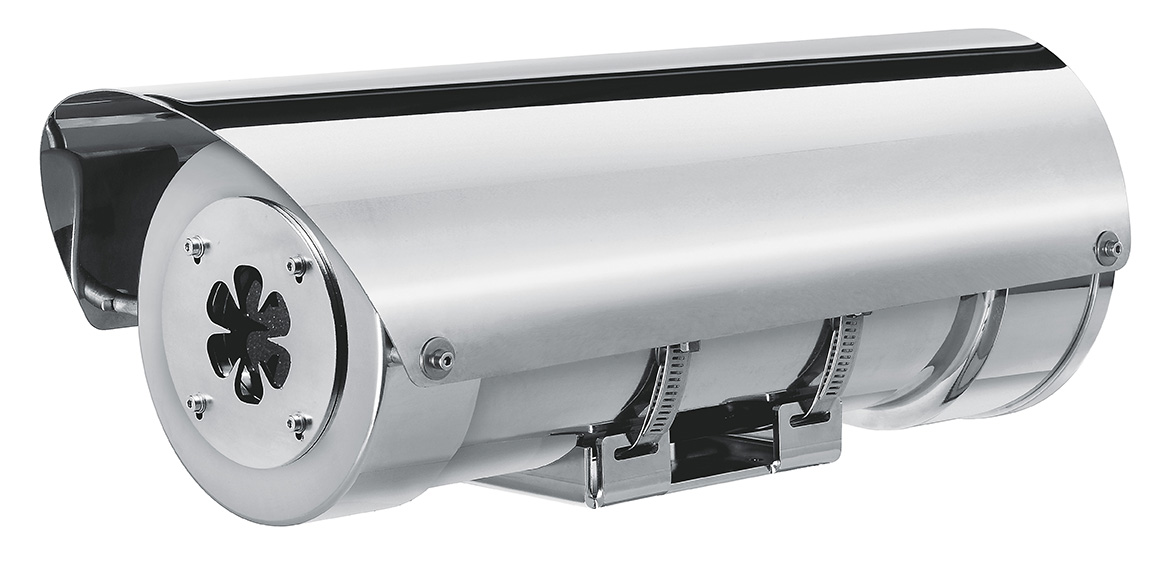

VideoTec - MHXT2C000B - MHXT housing 24Vac for thermal cameras, sunshield
Part number:
MHXT2C000B
Price:
Certified and Designed to Meet the Strictest Standards Regarding Installation in Potentially Explosive Environments, i.e. where there is the presence of gas and flammable dusts. The MAXIMUS range ensures excellent performance for monitoring critical processes in areas that carry a risk of explosion, such as refineries, gas pipelines, oil tankers, offshore platforms, industrial processes, chemical industries, etc. Equipped with heating, the housing has the same installation and operating temperatures, of between -40° C and + 60° (-40°F / +140°F). The wiring is made easier thanks to the removable connectors on the circuit board. The housing can eventually be controlled by VMS through a video encoder with RS485 serial port.
Features:
- Certifications Ex d for use in Zone 1 and 2, Group IIC (Gas), and in Zone Ex tb 21 and 22 (Dust)
- Made of AISI 316L electropolished stainless steel
- Germanium window with protection grid
- 2 threaded holes ¾” NPT for use of cable glands or conduit
- Integrated telemetry receiver
- Sunshield and heater included
- Ambient temperature: from -40°C (-40°F) up to +60°C (140°F)
- Power supply: 230Vac, 24Vac or 120Vac
- Internal usable area (WxHxL): 80x82x245mm (3.1x3.2x9.6in)
| GENERAL |
| AISI 316L stainless steel construction |
| Passivated and electropolished external surfaces |
| Silicone O-ring seals |
| MECHANICAL |
| 2 holes 3/4" NPT for cable entry |
| Window with protection grid |
| Sunshield |
| Unit weight: 16.5kg (36lb) |
| HOUSING'S WINDOW |
| Germanium window |
| Usable diameter: 56mm (2.2in) |
| Thick: 10mm (0.4in) |
| External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 87.3% |
| Medium transmittance (from 11.5μm up to 14μm): 67.3% |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac, 0.34A, 50/60Hz |
| 120Vac, 0.5A, 50/60Hz |
| 24Vac, 2.2A, 50/60Hz |
| 12Vdc, 2.8A |
| Heater (Ton 15°C±4°C (59°F±7°F), Toff 22°C±3°C (72°F±5°F)) |
| COMMUNICATIONS |
| Serial interface: 1 RS-485 line, half-duplex |
| CAMERAS |
| Compatible cameras: |
| Power consumption (assembly, camera and lens): 13W max |
| Cameras dimensions/Lenses that can be installed (WxHxL): 80x82x245mm (3.1x3.2x9.6in) max |
| Minimum distance between camera and housing's window: 10mm (0.4in) |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature/Installation temperature: from -40°C (-40°F) up to +60°C (140°F) |
| Operating temperature/Installation temperature (MHX2...A-U, in 24Vac and with pre-installed camera by Videotec): from -40°C (-40°F) up to +54°C (129.2°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1 |
| Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A) |
| RoHS (CE): EN50581 |
| Outdoor installation (CE): EN60950-22, ICE60950-22 |
| IP protection degree (EN/IEC60529): IP66, IP67 |
| Vibration test: EN50130-5, EN60068-2-6 |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07): cULus Listed |
| Electromagnetic compatibility (North America): FCC part 15 (Class A) |
| Level of protection Type (UL50E): 4X |
| CERTIFICATIONS - EXPLOSION-PROOF APPLICATIONS |
| ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31) |
| IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31) |
| EAC EX (TR CU 012/2011) |
| KCs (Employment and labor department 2016-54) |
| UL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31) (only versions in 24Vac with pre-installed camera by Videotec) |
| UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31) (only versions in 24Vac with pre-installed camera by Videotec) |
| For further details on certifications and markings, consult the relevant table. |
| ACCESSORIES |
| MBX1MAA Explosion-proof communication box in stainless steel , IN 230 Vac , with EMC filter for marine certification |
| MBX2MAA Explosion-proof communication box in stainless steel , IN 24 Vac , with EMC filter for marine certification |
| MBX3MAA Explosion-proof communication box in stainless steel , IN 120 Vac , with EMC filter for marine certification |
| MBA1S5A Explosion-proof communication box in aluminium , IN 230 Vac |
| MBA2S5A Explosion-proof communication box in aluminium , IN 24 Vac |
| MBA3S5A Explosion-proof communication box in aluminium , IN 120 Vac |
| OCTEX3/4C Cable gland in nickel-plated brass with gasket EX 3/4" NPT, unarmoured cable IECEX-ATEX-EAC Ex |
| OCTEXA3/4C Cable gland in nickel-plated brass with gasket EX 3/4" NPT, armoured cable IECEX-ATEX-EAC Ex |
| OCTEXB3/4P Barrier cable gland in nickel-plated brass EX 3/4" NPT, unarmoured cable IECEX-ATEX-EAC Ex |
| OCTEXBA3/4P Barrier cable gland in nickel-plated brass EX 3/4" NPT, armoured cable IECEX-ATEX-EAC Ex |
| OCTEX3/4 Cable gland in nickel-plated brass with gasket EX 3/4" NPT, unarmoured cable ATEX |
| OCTEXA3/4 Cable gland in nickel-plated brass with gasket EX 3/4" NPT, armoured cable ATEX |
| OCTEXB1/2C Barrier cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex |
| OCTEXB1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex |
| OCTEXBA1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, armoured cable IECEX-ATEX-EAC Ex |
| OCTEX1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex |
| OCTEXS1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex |
| OCTEXA1/2C Cable gland in nickel-plated brass EX 1/2" NPT armoured cable IECEX-ATEX-EAC Ex |
| OCTEX1/2-3/4P Cable glands reduction in nickel-plated brass Ex 3/4" - 1/2" NPT IECEX-ATEX-EAC Ex |
| OCTEXP3/4C Conduit cable gland nickel-plated brass 3/4" NPT IECEX-ATEX- c CSA us - EAC Ex ( operating temperature : from -60°C (-76°F) up to +80°C (+176°F) ) |
| OEXPLUG1/2P Plug EX 1/2“ NPT IECEX-ATEX-EAC Ex |
| OEXPLUG3/4P Plug EX 3/4" NPT IECEX-ATEX-EAC Ex |
| USB485 USB-RS485 converter |
