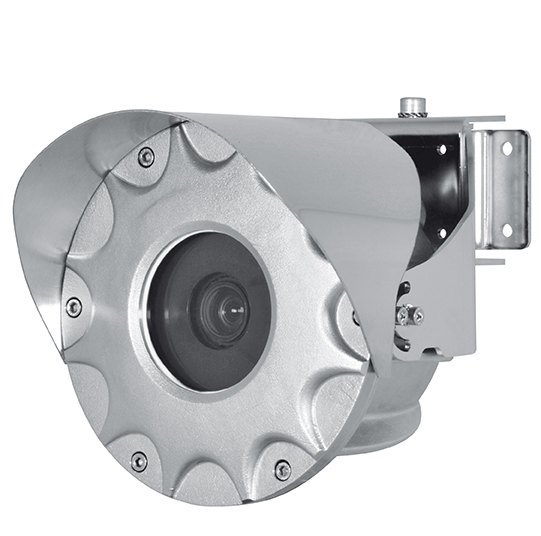

VideoTec - MMX2CAZA - MMX in AISI 316L, 24Vdc/Vac - POE+, FullHD Day/Night camera, zoom 3x, armoured cable 4m (13ft), sunshield
Part number:
MMX2CAZA
Price:
The explosion-proof Full HD camera MAXIMUS MMX is perfect for efficient video surveillance and control of processes in hazardous environments where the atmosphere is potentially explosive due to the presence of inflammable gases or dust, typical of the Oil&Gas, marine or industrial and foodstuff sectors.
The Full HD, 1080p camera, with 3x or 10x motorised zoom lens, offers multiple video streams (H.264/AVC, MJPEG, JPEG, MPEG4) and provides exceptional image quality, picking out every detail in a scene, even in the harshest environmental conditions.
An absolute advantage offered by this camera is its extremely easy and safe installation. The camera can be supplied with multipolar cabling. The camera can also be powered in PoE+, thereby allowing further simplification of installation operations. The camera is supplied with supports for wall, ceiling and railing installation and with a sunshield.
The MAXIMUS MMX range of cameras meets every installation need, providing maximum performance and excellent value for money.
The MAXIMUS MMX product is Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5.
Features:
- Certifications for use in Zones 1 and 2, IIB T6 or T5 Group (Gas) and in Zones 21
- and 22, IIIC T85ºC or T100ºC Group (Dust)
- Certification temperature: from -40ºC (-40ºF) up to +70ºC (158ºF)
- Marine Certification: Lloyd's Register Marine Type Approval
- AISI 316L stainless steel construction

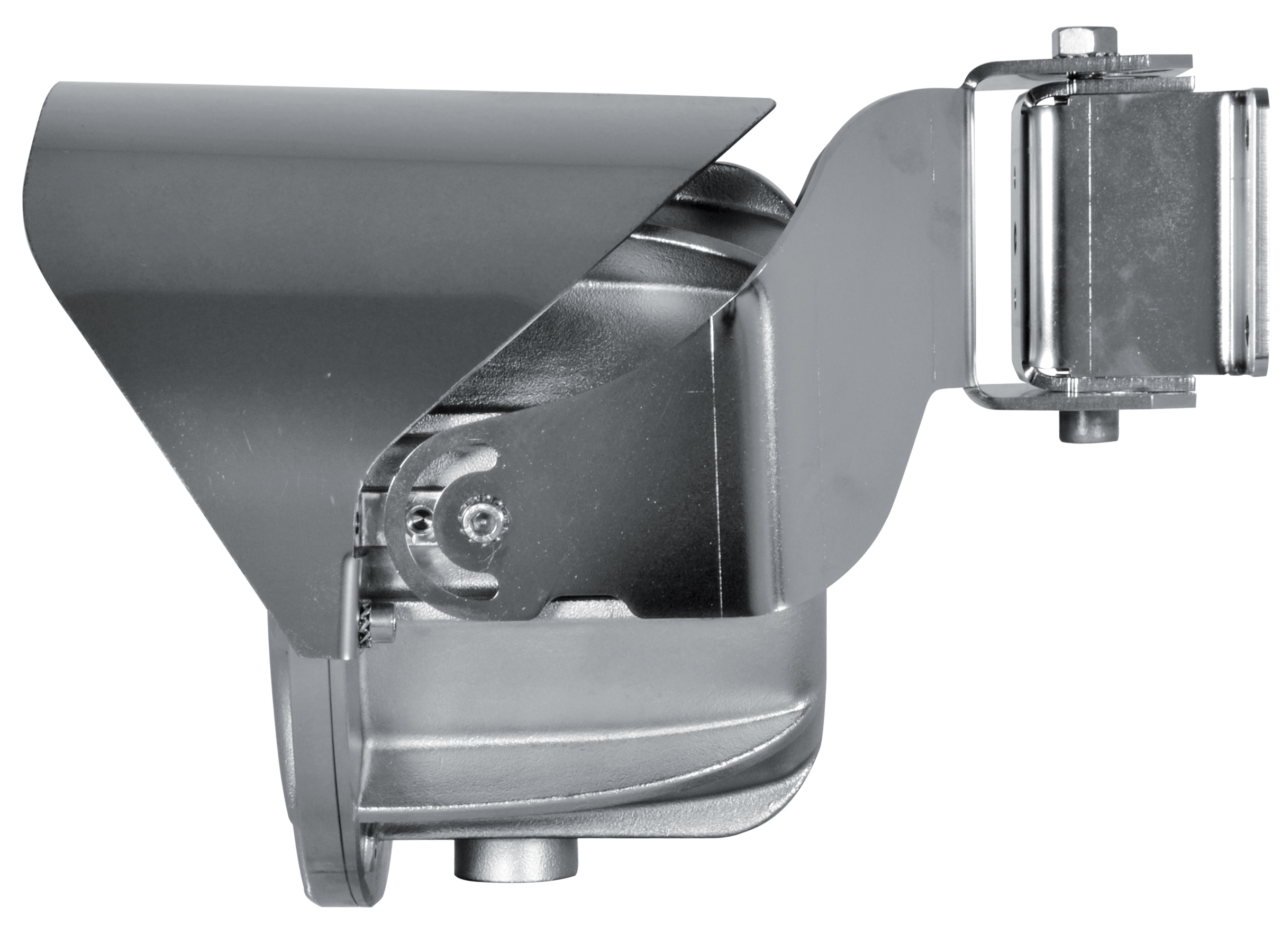

- Supports for ceiling, wall and parapet installation supplied
- Camera Full HD 1080p, 3x or 10x Day/Night
- Video compression H.264/AVC, MJPEG, JPEG and MPEG4
- Up to 3 simultaneous video streams
| MECHANICAL |
| AISI 316L stainless steel construction |
| External shot peened and electro-polished surfaces |
| Sunshield |
| Supports for wall, ceiling or parapet installation |
| Unit weight: |
| 6.5kg (14.3lb) (housing only + mounting bracket) |
| 8.5kg (18.7lb) (housing with 4m (13ft) armoured multipolar cable) |
| CABLE GLANDS |
| Cable entry: 1 hole, 1/2" NPT |
| Cable gland Ex d 1/2"NPT (with pre-installed cable only) |
| HOUSING'S WINDOW |
| Material: Thermally tempered glass |
| Usable diameter: 73.5mm (2.9in) |
| ELECTRICAL |
| Supply voltage/Current consumption |
| 24Vac, 1.32A, 50/60Hz |
| 24Vdc, 0.9A |
| PoE+ (IEEE 802.3at) |
| Armoured cable |
| External diameter: 18.6mm (0.73in)±0.2mm (0.008in) |
| Diameter under armature: 13.8mm (0.54in) |
| Colour: black RAL 9005 |
| Armoured cable composition: |
| 3x1mm² (17AWG) |
| 4x2x0.22mm² (24AWG) (cat. 5E F/STP) |
| NETWORK |
| Ethernet connection: 100 Base-TX |
| Connector: RJ45 |
| VIDEO |
| Video encoder |
| Communication protocol: ONVIF, Profile Q, Profile S and Profile T |
| Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
| Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG |
| 3 independent video streams Full HD |
| Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps |
| Selectable frame rate from 1 to 60 images per second (fps) |
| Web Server |
| Motion Detection |
| QoS: Differentiated DSCPs for streaming and device management |
| SNMP and NTCIP protocols |
| CAMERAS |
| Day/Night Full HD 10x |
| Resolution: Full HD 1080p (1920x1080pixel) |
| Signal system: 1080p/60fps max |
| Image Sensor: 1/3" CMOS sensor |
| Effective pixels: 2.48Megapixel |
| Minimum Illumination, colour (ICR-OFF): |
| 0.5lx IRE 50% |
| 0.125lx IRE 50% (Slow Shutter) |
| Minimum Illumination, B/W (ICR-ON): |
| 0.1lx IRE 50% |
| 0.025lx IRE 50% (Slow Shutter) |
| Lens: |
| From f= 5.1mm (wide) up to 51mm (tele) |
| From F1.6 up to F1.8 |
| Zoom: 10x (320x, with digital zoom) |
| Horizontal Viewing Angle: from 54° (wide) up to 4.9° (tele) |
| Minimum object distance: from 100mm (3.9in) (wide) up to 1000mm (39.4in) (tele) |
| Shutter speed: from 1/8s up to 1/30000s, 14 steps |
| White balance: Auto, Indoor, Outdoor, Manual |
| Wide Dynamic Range: On/Off, Light level |
| Exposure Control: Auto, Manual, Shutter priority, Iris priority, Brightness |
| S/N Ratio: 50dB |
| De-fog: Off, Auto, Manual |
| Backlight Compensation |
| Digital image stabilization: On/Off |
| Day/Night Full HD 3x |
| Resolution: Full HD 1080p (1920x1080pixel) |
| Signal system: max 1080p/30fps |
| Image Sensor: 1/2.8 type Exmor™ CMOS sensor |
| Effective pixels: 3.27Megapixel |
| Minimum Illumination, colour (ICR-OFF): |
| 1lx, 1/30s, F1.2,50% (Normal mode) |
| 0.25lx, 1/30s, F1.2, 50% (High sensitivity mode) |
| Minimum Illumination, B/W (ICR-ON): |
| 0.1lx, 1/30s, F1.2, 50% (Normal mode) |
| 0.03lx, 1/30s, F1.2, 50% (High sensitivity mode) |
| Lens: |
| From f= 3.0mm (wide) up to 9.0mm (tele) |
| From F1.2 up to F2.1 |
| Zoom: 3x (36x with digital zoom) |
| Horizontal Viewing Angle: From 90° (wide) up to 32° (tele) |
| Minimum object distance: 300mm (11.8in) (wide to tele) |
| Shutter speed: From 1/1s up to 1/10000s, 22 steps |
| White balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium vapor lamp (Fix, Auto), Manual |
| Wide Dynamic Range: On/Off |
| Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority), Brightness |
| S/N Ratio: 50dB |
| Gain limit: up to 28dB |
| Backlight Compensation |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature: from -40°C (-40°F) up to +65°C (149°F) |
| Certification temperature: from -40°C (-40°F) up to +65°C (149°F) (T6/T85°C) or +70°C (158°F) (T5/T100°C) |
| Relative humidity: from 10% up to 95% (no condensation) |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A) |
| RoHS (CE): EN50581 |
| Outdoor installation (CE): EN60950-22, ICE60950-22 |
| IP protection degree (EN/IEC60529): IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69 |
| Vibration test: EN50130-5, EN60068-2-6 |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07, UL62368-1 CAN/CSA C22.2 No. 62368-1-14): cULus Listed |
| Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A) |
| Level of protection Type (UL50E): 4X, 6P |
| BIS certification: IS 13252(PART 1):2010/ IEC 60950-1 : 2005 (certification only valid for the code: MMX2D0ZA) |
| RCM (Australian and New Zealand Regulatory Compliance Mark) |
| NDAA-compliant |
| CERTIFICATIONS - EXPLOSION-PROOF APPLICATIONS |
| ATEX (EN 60079-0, EN 60079-1, EN 60079-31) |
| IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31) |
| EAC EX (TR CU 012/2011) |
| INMETRO (ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC 60079-31) |
| KCs (Employment and labor department. 2020-33), only versions without armoured cable |
| UL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31) |
| UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31) |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification (only for models with Day/Night camera 10X zoom, FullHD): |
| Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
| Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2 |
| ACCESSORIES |
| MBA1S5A Explosion-proof communication box in aluminium , IN 230 Vac |
| MBA2S5A Explosion-proof communication box in aluminium , IN 24 Vac |
| MBA3S5A Explosion-proof communication box in aluminium , IN 120 Vac |
| OCTEXB1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex |
| OCTEXBA1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, armoured cable IECEX-ATEX-EAC Ex |
| OCTEX1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex |
| OCTEXA1/2C Cable gland in nickel-plated brass EX 1/2" NPT armoured cable IECEX-ATEX-EAC Ex |
| OCTEXS1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex |
