The solid construction of this housing makes it suitable for heavy-duty applications, such as the surveillance of ovens, foundries and other high-temperature environments.

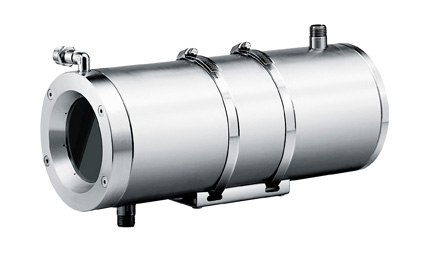

The NTW housing, made of polished stainless steel AISI 316L, can be equipped with a zinc selenide (ZnSe) window designed for thermal video cameras (with a wavelength from 7.5μm to 14μm), or a sapphire glass window for shortwave thermal video cameras (with a wavelength from 0.75μm to 4.5μm).
The NTW housing consists of a body with double chamber for the circulation of coolant or cooling air, closed by two very thick flanges. The rear flange enables cable passage using two cable glands PG13.5. Two 1/2” GAS connectors control the input/output of cooling fluids.
The housing is equipped with a flange designed to create an air barrier in front of the window, with the dual purpose of preventing dust deposits and reducing the temperature. We recommend using the filter unit with the air barrier to clean the air normally suctioned by a compressor and, therefore with the presence of oil particles.
Features:
- Made of AISI 316L electropolished stainless steel
- Effective monitoring even in complete darkness or in extreme environmental conditions, fog, rain or smoke
- For industrial installations with high-temperatures in corrosive environments
- For temperatures up to 400°C (752°F)
- Supplied air barrier
| GENERAL |
| Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat): |
| AISI 316L |
| UNI 6900-71: X 2 Cr Ni Mo 17 12 2 |
| DIN 17006: X 2 Cr Ni Mo 17 13 2 |
| N° werkstoff: 1.4404 |
| AFNOR: Z2 CND 17-12 |
| BSI: 316S11 |
| The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards: |
| ISO: 7380 |
| AISI: 316 |
| ISO quality: A4 |
| Resistance class ISO: from 50 to 70 |
| MECHANICAL |
| External body polishing |
| External dimensions (ØxL): 154x380mm (6.1x15in) |
| Internal usable area (WxH): 78x78mm (3.1x 3.1in) |
| Internal usable length: 345mm (13.6in) |
| Internal usable length (with power supply): 223mm (8.8in) |
| Flange thickness (back): 9mm (0.35in) |
| Gaskets: O-ring |
| 2 x 1/2” GAS connectors control the input/output of fluids |
| 1 x 1/4” Gas threaded joint with a reduction from 1/2”Gas to 1/4”Gas (flange with air barrier) |
| Cable glands: 2 PG13.5 (nickel-plated brass) |
| Cooling liquid (application example with incoming water at 20°C (68°F) temperature): |
| ambient temperature 200°C (392°F), water capacity 2l/min, temperature inside housing 32°C (89.6°F) |
| ambient temperature 300°C (572°F), water capacity 2.2l/min, temperature inside housing 41°C (105.8°F) |
| ambient temperature 400°C (752°F), water capacity 6.5l/min, temperature inside housing 44°C (111.2°F) |
| Cooling Air (Application example with incoming air at 17°C(62°F) and an environmental temperature at 80°C(176°F)): |
| with pressure 1bar, air capacity 10m³/h, temperature inside housing 45°C (113°F) |
| with pressure 2bar, air capacity 15m³/h, temperature inside housing 35°C (95°F) |
| Air barrier (Flange with 8 holes) |
| Male input 1/2” GAS |
| System pressure: 4bar max |
| Recommended minimum pressure: 2bar |
| Unit weight: 10.2kg (22lb) |
| HOUSING'S WINDOW |
| Usable diameter: 65mm (2.6in) |
| Zinc selenide (ZnSe) window |
| Thick: 4mm (0.16in) |
| Operating temperature: 200°C (392°F) max |
| Spectral range: from 7.5μm up to 14μm |
| Sapphire glass window |
| Thick: 1mm (0.03in) |
| Operating temperature: 400°C (752°F) max |
| Spectral range: from 0.75μm up to 4.5μm |
| ELECTRICAL |
| Camera power supply |
| IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A |
| IN 230Vac, 50/60Hz - OUT 24Vac, 400mA |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Maximum working temperature with water cooling: |
| zinc Selenide glass: 200°C (392°F) |
| sapphire glass window: 400°C (752°F) |
| Maximum working temperature with air cooling: 80°C |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60065, EN62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3 |
| IP protection degree (EN60529): |
| IP66 |
| EAC certification |
