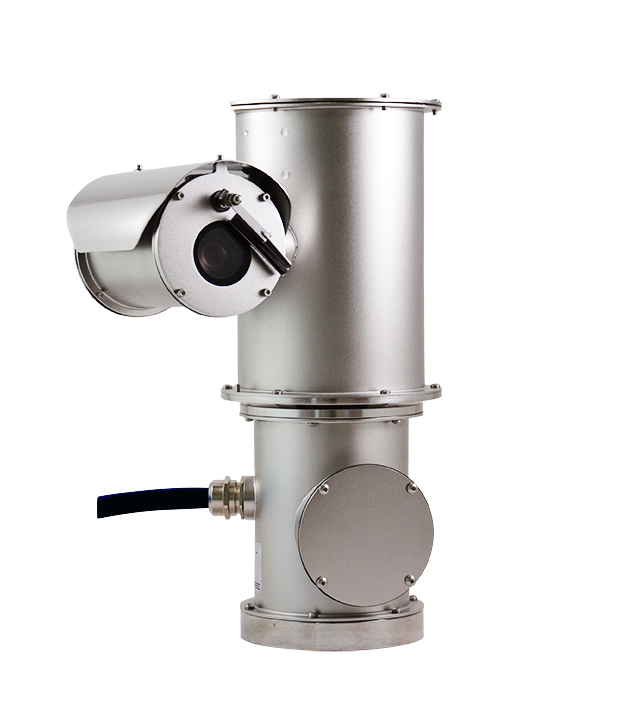

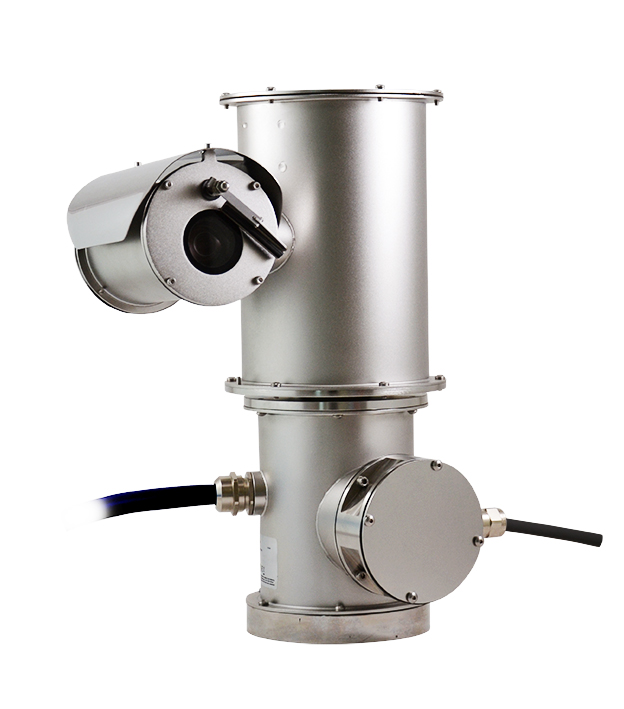

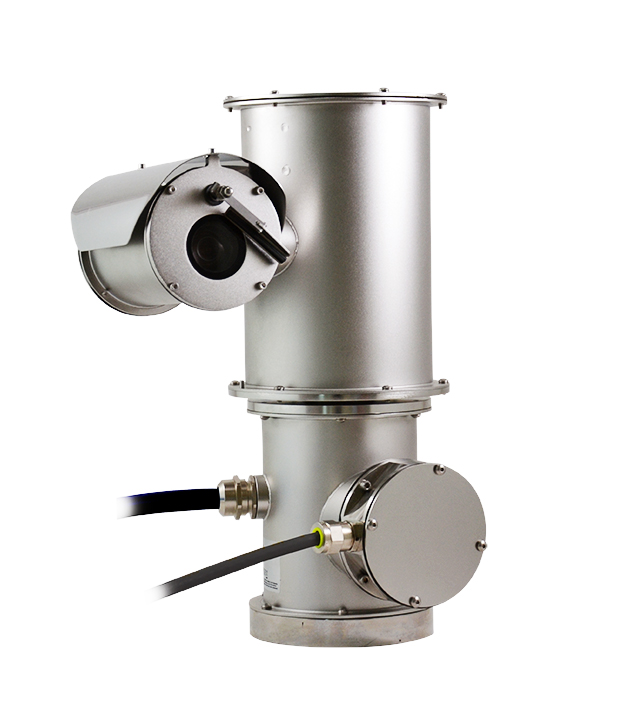

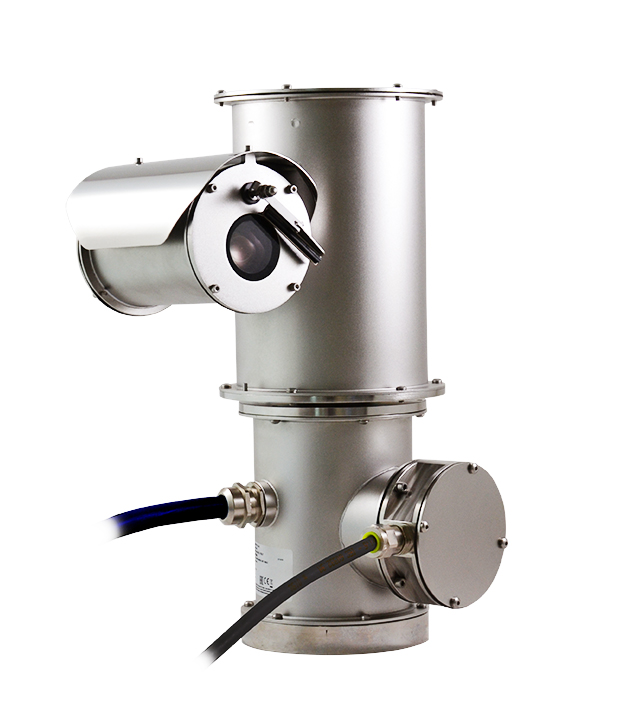

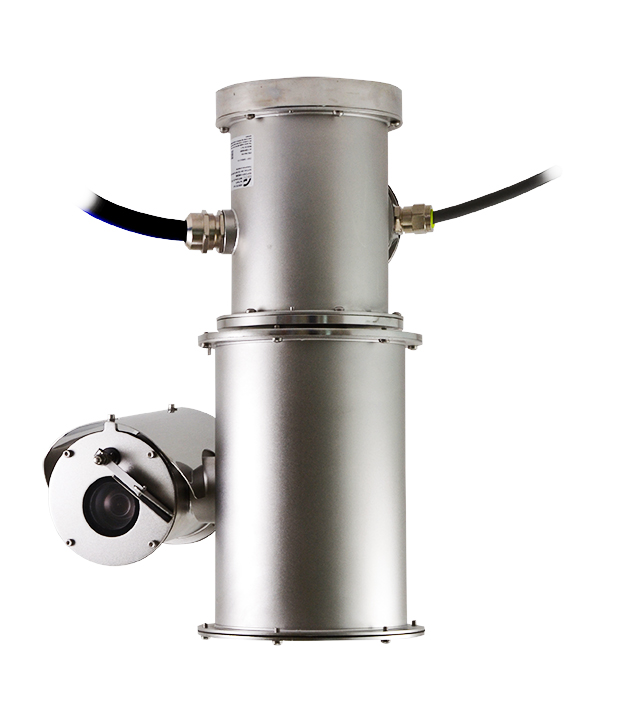

VideoTec - NXPTZHD22VW0Z00C - NXPTZ Series-2 With Sony FCB-EV7520 Full HD PTZ Camera, 24Vac
Part number:
NXPTZHD22VW0Z00C
Price:
The new generation NXPTZ SERIES2 with SONY FCB-EV7520 camera offers a high level of protection in security applications in highly corrosive environments, such as industrial and marine offshore/onshore areas.
The NXPTZ SERIES2 is resistant to rust and corrosion and does not require maintenance thanks to the absolute precision of the construction process and the solid AISI 316L stainless steel construction with mirco-shot and electropolished surfaces.
Features:
- Stainless steel IP PTZ camera
- Maximum resistance in corrosive environments
- Integrated video analysis available, VIDEOTEC ANALYTICS
- Junction box with integrated SFP slot to allow fiber optic connection
| MECHANICAL |
| AISI 316L stainless steel construction |
| External surfaces micro-shot peened in silicon and electro-polished |
| Dynamic positioning control system |
| Zero backlash |
| Pre-wired multipolar cable (3m (9.8ft), different lengths are available on request) |
| Horizontal rotation: 360°, continuous rotation |
| Vertical rotation: from -90° up to +90° |
| Horizontal speed (variable): from 0.1°/s up to 100°/s |
| Tilt speed (variable): from 0.1°/s up to 100°/s |
| Accuracy of preset positions: 0.02° |
| Integrated wiper |
| Unit weight: 22kg (44lb) |
| HOUSING'S WINDOW |
| Glass window extra clear |
| Thick: 5mm (0.2in) |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac ±10%, 0.5A max, 50/60Hz |
| 120Vac ±10%, 1A max, 50/60Hz |
| 24Vac ±10%, 5A max, 50/60Hz |
| Power consumption: |
| 120W max |
| 30W, P&T static, heating switched off |
| NETWORK |
| RJ45 port |
| Ethernet connection: 10BASE-T/100BASE-T |
| Slot SFP (SMALL FORM FACTOR PLUGGABLE) |
| Ethernet connection:100BASE-FX |
| Supply voltage: 3.3V |
| Standard: compliant MSA |
| The SFP module (not supplied by VIDEOTEC) must meet the following requirements: |
| Laser: Class 1, complies with EN60825-1 |
| Certification: UL/IEC 60950-1 or UL/IEC 62368-1 |
| CYBERSECURITY |
| Digitally signed firmware |
| Password restricted access (HTTP digest) |
| Support of various user access levels |
| Control of accesses IEEE 802.1X |
| HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3 |
| Centralised certificate management |
| Complies with ONVIF Security Service specifications |
| VIDEO ANALYTICS |
| Ultra-robust detection algorithms and auto-tracking, specifically for outdoor perimeter control. |
| Targets Classification: People, vehicles, generic objects |
| Programmable rules for video analysis, VIDEOTEC ANALYTICS (it is possible to rapidly configure up to ten rules for every preset using an intuitive control management interface) |
| Line crossing: the target triggers an alarm if it crosses the line in one or both directions |
| Entering/leaving area: the target triggers an alarm if it leaves or enters the configured area |
| Appearing in area: the target triggers an alarm if it appears inside the configured area |
| Loitering: the target triggers an alarm if it stays inside the configured area over the set time |
| Detection Mask: disables the detection activity in a portion of the image to prevent false alarms |
| Video Tampering Detection: a specific ONVIF alarm is triggered if the video camera view is obstructed (e.g. spray) |
| VIDEO |
| Video encoder |
| Communication protocol: ONVIF, Profile Q, Profile S and Profile T |
| Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
| Video compression: H.264/AVC, MJPEG, MPEG4 |
| 3 independent video streams Full HD |
| Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps |
| Selectable frame rate from 1 to 60 images per second (fps) |
| Web Server |
| Directional OSD (maximum 4 settable areas) |
| Motion Detection |
| Video analytics: VIDEOTEC ANALYTICS (optional) |
| QoS: Differentiated DSCPs for streaming and device management |
| SNMP and NTCIP protocols |
| I/O INTERFACE |
| I/O alarm board: |
| Alarm inputs: 1 |
| Relay outputs: 1+1 (1 relay reserved for washer pump and one configurable, 1A, 30Vac/60Vdc max) |
| Input for remote reset: 1 |
| CAMERAS |
| SONY FCB-EV7520 Day/Night Full HD 30x |
| Resolution: Full HD 1080p (1920x1080) |
| Image Sensor: 1/2.8" Exmor™ R CMOS sensor |
| Effective Pixels: approx. 2.13 Megapixels |
| Minimum Illumination: |
| Colour: 0.0013lx (50 IRE, High sensitivity on) |
| B/W: 0.0008lx (30 IRE, High sensitivity on) |
| Focal length: from 4.3mm (wide) up to 129mm (tele) |
| Zoom: 30x (360x with digital zoom) |
| Iris: from F1.6 up to F14 (Auto, Manual) |
| Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end) |
| Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Shutter speed: from 1/1s up to 1/10000s (Auto, Manual) |
| White balance: Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto) |
| Gain: from 0dB up to 50.0dB (Auto, Manual) |
| Wide Dynamic Range: 120dB |
| Focus System: Auto (PTZ Trigger, Full Auto), Manual |
| Picture Effects: E-flip |
| Noise removal (2D, 3D): Off, On (from level 1 up to level 5) |
| Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority, Brightness priority) |
| De-fog: Off, Low, Mid, High |
| Dynamic masking of privacy zones: maximum 24 masks settable, maximum 8 simultaneously displayable |
| Indoor Flicker Reduction |
| Gain Limit: from10.7dB up to 50dB |
| High sensitivity: On/Off |
| Backlight Compensation: On/Off |
| Auto Slowshutter: On/Off |
| Exposure compensation: Off, On (from -10.5dB up to +10.5dB) |
| Sharpness: from level 0 up to level 15 |
| High Light Compensation (HLC): Off, Low, Mid, High, Masking Level (Off, On, from level 1 up to level 15) |
| Digital image stabilization: On/Off |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature |
| Continuous working: from -40°C (-40°F) up to +65°C (149°F) |
| Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) (not valid for versions with VIDEOTEC ANALYTICS) |
| De-icing function intervention (cold start): from -40°C (-40°F) up to -10°C (14°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN55032 (Class A), EN61000-6-4, EN61000-3-2, EN61000-3-3 |
| Outdoor installation (CE): EN60950-22, ICE60950-22 |
| IP protection degree (EN/IEC60529): IP66, IP67, IP68, IP69 |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07, UL62368-1, CAN/CSA C22.2 No. 62368-1-14): cULus Listed (only for 24Vac version) |
| Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A) |
| Level of protection Type (UL50E): 4X (only for 24Vac version) |
| EAC certification |
| Restriction of Hazardous Substances (RoHS), Directive 2011/65/EU: EN50581 |
| Waste Electrical and Electronic Equipment (WEEE), Directive 2012/19/EU |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification (the 24Vac and 120Vac versions require a filter accessory FM1010): |
| Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
| Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2 |
