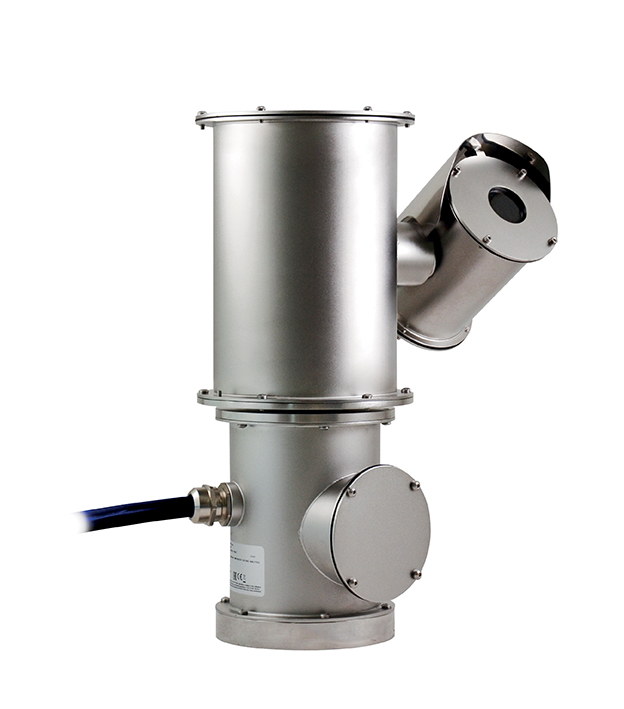

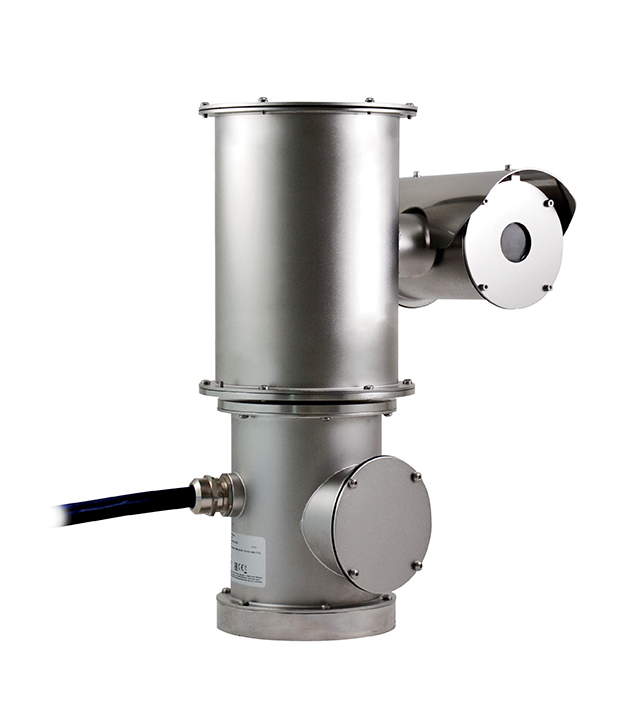

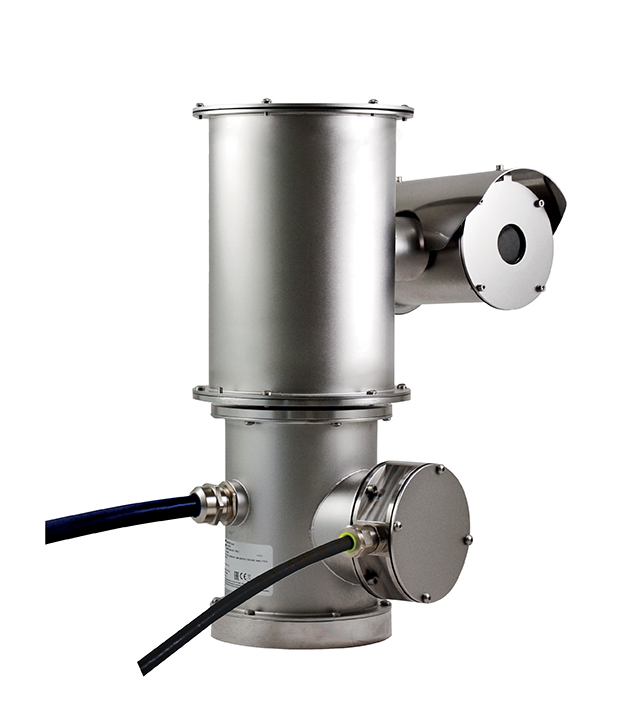

VideoTec - NXPTZR3D00Z00CH - NXPTZR Series-2 Radiometric Thermal PTZ Camera having 120Vac, 35mm Lens, 640x512 Resolution and 30Hz Frequency
Part number:
NXPTZR3D00Z00CH
Price:
The new generation NXPTZR SERIES2 with thermal vision has a high level of protection in preventative security applications in highly corrosive environments, such as industrial and marine offshore/onshore areas where events may need to be detected at great distances and in critical conditions such as total darkness or low visibility.
The NXPTZR SERIES2 is resistant to rust and corrosion and does not require maintenance thanks to the absolute precision of the construction process and the solid AISI 316L stainless steel construction with mirco-shot and electropolished surfaces.
Features:
- Thermal camera with radiometric functions
- Entirely made from AISI 316L electropolished stainless steel
- Maximum resistance in corrosive environments
- Junction box with integrated SFP slot to allow fiber optic connection
| MECHANICAL |
| AISI 316L stainless steel construction |
| External surfaces micro-shot peened in silicon and electro-polished |
| Dynamic positioning control system |
| Zero backlash |
| Pre-wired multipolar cable (3m (9.8ft), different lengths are available on request) |
| Horizontal rotation: 360°, continuous rotation |
| Vertical rotation: from -90° up to +90° |
| Horizontal speed (variable): from 0.1°/s up to 100°/s |
| Tilt speed (variable): from 0.1°/s up to 100°/s |
| Accuracy of preset positions: 0.02° |
| Unit weight: 22kg (44lb) |
| HOUSING'S WINDOW |
| Germanium window (9mm, 13mm, 19mm, 25mm, 35mm lenses) |
| Thick: 1.5mm (0.06in) |
| External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 91.2% |
| Medium transmittance (from 11.5μm up to 14μm): 80.9% |
| Germanium window (50mm lens) |
| Thick: 2mm (0.08in) |
| External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 90% |
| Medium transmittance (from 11.5μm up to 14μm): 77% |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac ±10%, 0.5A max, 50/60Hz |
| 120Vac ±10%, 1A max, 50/60Hz |
| 24Vac ±10%, 5A max, 50/60Hz |
| Power consumption: |
| 120W max |
| 30W, P&T static, heating switched off |
| NETWORK |
| RJ45 port |
| Ethernet connection: 10BASE-T/100BASE-T |
| Slot SFP (SMALL FORM FACTOR PLUGGABLE) |
| Ethernet connection:100BASE-FX |
| Supply voltage: 3.3V |
| Standard: compliant MSA |
| The SFP module (not supplied by VIDEOTEC) must meet the following requirements: |
| Laser: Class 1, complies with EN60825-1 |
| Certification: UL/IEC 60950-1 or UL/IEC 62368-1 |
| CYBERSECURITY |
| Digitally signed firmware |
| Password restricted access (HTTP digest) |
| Support of various user access levels |
| Control of accesses IEEE 802.1X |
| HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3 |
| Centralised certificate management |
| Complies with ONVIF Security Service specifications |
| VIDEO |
| Video encoder |
| Communication protocol: ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service |
| Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
| Video compression: H.264/AVC, MJPEG, MPEG4 |
| 3 independent video streams |
| Image resolution: from 160x120pixel up to 720x480pixel in 5 steps |
| Selectable frame rate from 1 to 30 images per second (fps) |
| Web Server |
| Directional OSD (maximum 4 settable areas) |
| Motion Detection |
| QoS: Differentiated DSCPs for streaming and device management |
| SNMP and NTCIP protocols |
| I/O INTERFACE |
| I/O alarm board: |
| Alarm inputs: 1 |
| Relay outputs: 1+1 (1 relay reserved for washer pump and one configurable, 1A, 30Vac/60Vdc max) |
| Input for remote reset: 1 |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature |
| Continuous working: from -40°C (-40°F) up to +65°C (149°F) |
| Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) |
| De-icing function intervention (cold start): from -40°C (-40°F) up to -10°C (14°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A) |
| Restriction of Hazardous Substances (RoHS), Directive 2011/65/EU: EN50581 |
| Outdoor installation (CE): EN60950-22, ICE60950-22 |
| IP protection degree (EN/IEC60529): IP66, IP67, IP68, IP69 |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07, UL62368-1, CAN/CSA C22.2 No. 62368-1-14): cULus Listed (only for 24Vac version) |
| Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A) |
| Level of protection Type (UL50E): 4X (only for 24Vac version) |
| EAC certification |
| Waste Electrical and Electronic Equipment (WEEE), Directive 2012/19/EU |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification (the 24Vac and 120Vac versions require a filter accessory FM1010): |
| Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
| Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2 |
