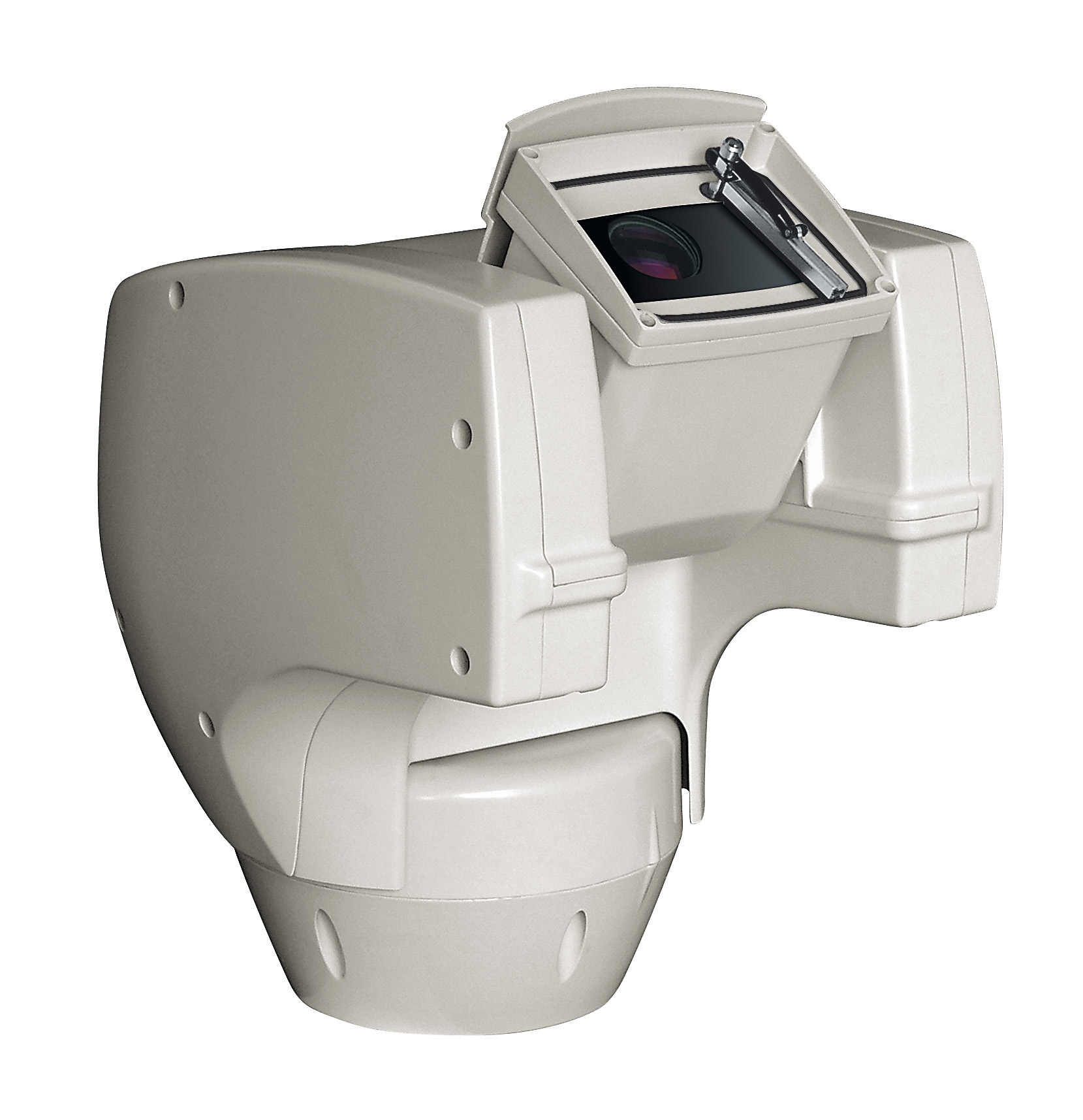

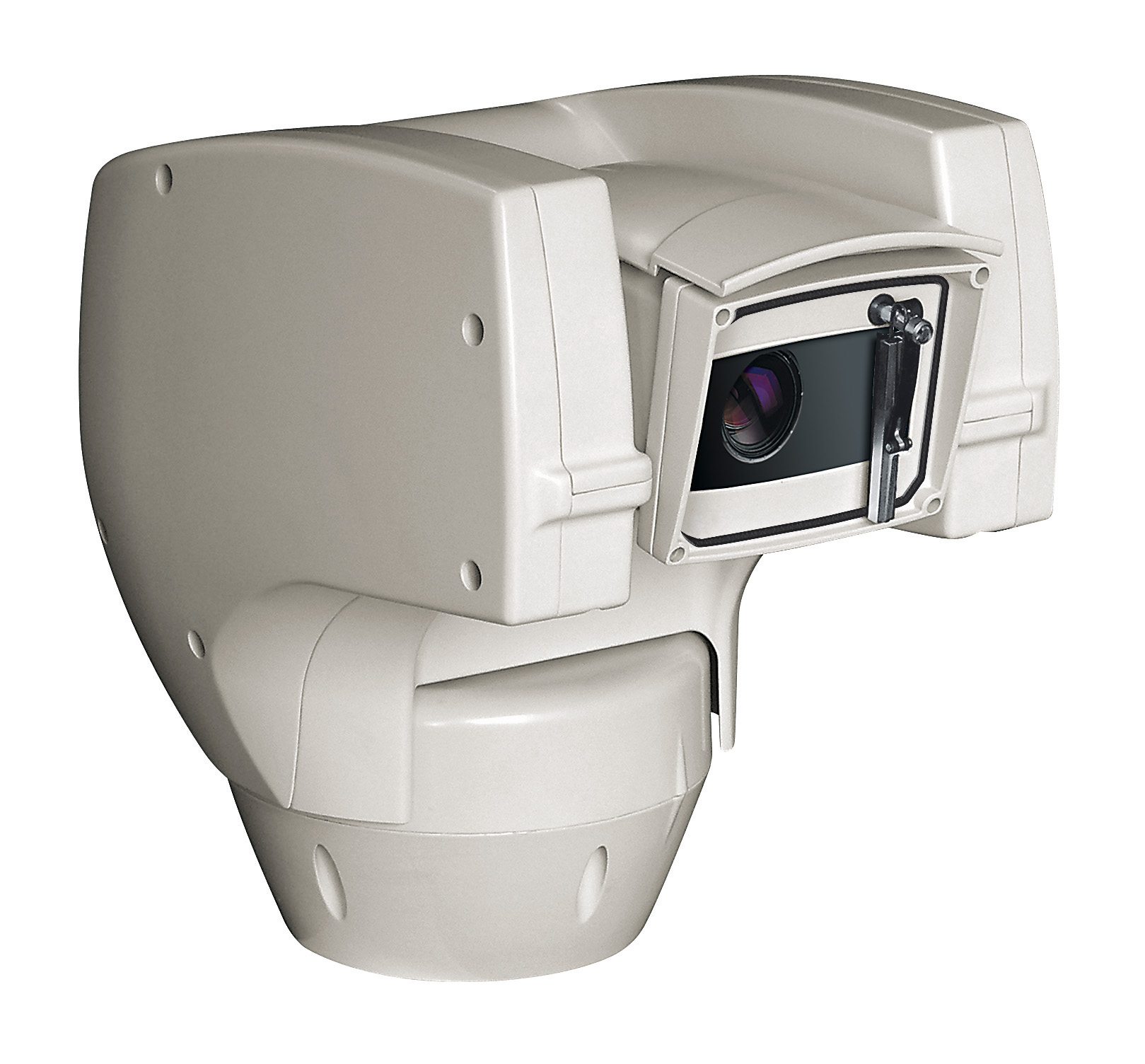

Videotec - UCHD21TAZ00B - ULISSE COMPACT DELUX 24Vac, Super Low-light Day/Night FullHD camera 30x zoom, H.264/AVC, IR LED illuminator 10° 850nm, wiper
Part number:
UCHD21TAZ00B
Price:

ULISSE COMPACT DELUX is a Full HD network camera featuring the new imaging and encoding technology for outdoor surveillance that generates incredibly vivid and clear colour video images day or night.



In particular, thanks to the camera’s increased light sensitivity, the DELUX technology can obtain bright images with well-defined colours in very low light conditions – even typical night-time conditions to 0.006 lux (0.0006 lux in black and white).



ULISSE COMPACT DELUX integrates a Day/Night, FullHD camera, 1080p with a 30x optical zoom and a frame rate of 60fps. It is capable of accurately pinpoint details in any scene – even dynamic, rapidly changing situations.



In addition to improved light sensitivity, with outstanding colour rendering and greater noise reduction, the DELUX technology has brought new advanced performances to the ULISSE COMPACT, namely in the proportional zoom control and management of Privacy Masking.



ULISSE COMPACT DELUX is the ideal solution for the surveillance of urban and industrial areas, critical infrastructures, traffic and car parks, and perimeters and borders.



Features:

  • Camera Full HD 1080p, 30x, 60fps
  • Minimum Illumination:
  • Colour: 0.006lx
  • B/W: 0.0006lx
  • Video compression H.264/AVC, MJPEG, JPEG and MPEG4
  • Complies with ONVIF, Profile Q, Profile S and Profile T
  • Up to 3 simultaneous video streams in FULL HD
  • LED illuminator
  • Wiper
GENERAL
Easy installation thanks to the self-centring connector
Zero backlash
Quick configuration and setup
Dynamic positioning control system
Functions: Preset Tour (Preset, Patrol, Autopan), Autoflip
Maximum number of presets: 250
MECHANICAL
Constructed from aluminium and tecnopolymer
Epoxypolyester powder painting, RAL9002 colour
Horizontal rotation: 360°, continuous rotation
Vertical rotation: from -90° up to +90°
Horizontal speed (variable): from 0.1°/s up to 200°/s
Tilt speed (variable): from 0.1°/s up to 200°/s
Accuracy of preset positions: 0.05°
Cable glands: 2xM16, 2xM12
Unit weight: 12.5kg (28lb) (13kg (28.7lb) with LED illuminator)
ELECTRICAL
Supply voltage/Current consumption:
230Vac, 0.4A, 50/60Hz
120Vac, 0.8A, 50/60Hz
24Vac, 4A, 50/60Hz
Power consumption:
40W, P&T static, heating switched off
60W, P&T in motion, heating switched off
125W, peak at start-up, heating switched on
Power consumption with illuminator on:
55W, P&T static, heating switched off
75W, P&T in motion, heating switched off
140W, peak at start-up, heating switched on
Cables input section: from 0.75mm² (18AWG) up to 1.5mm² (15AWG)
Cables signal section: from 0.14mm² (26AWG) up to 1.5mm² (15AWG)
NETWORK
Ethernet connection: 100 Base-TX
Connector: RJ45
VIDEO
Video encoder
Communication protocol: ONVIF, Profile Q, Profile S and Profile T
Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG
3 independent video streams Full HD
Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps
Selectable frame rate from 1 to 60 images per second (fps)
Web Server
Directional OSD (maximum 4 settable areas)
Motion Detection
QoS: Differentiated DSCPs for streaming and device management
SNMP and NTCIP protocols
I/O INTERFACE
I/O alarm board
Alarm inputs: 1
Relay outputs: 1 (1A, 30Vac/60Vdc max)
CAMERAS
Day/Night Full HD 30x DELUX
Resolution: Full HD 1080p (1920x1080)
Image Sensor: 1/2.8" Exmor™ R CMOS sensor
Effective Pixels: approx. 2.38 Megapixels
Minimum Illumination:
Colour: 0.006lx (F1.6, 30 IRE)
B/W: 0.0006lx (F1.6, 30 IRE)
Focal length: from 4.5mm (wide) up to 135mm (tele)
Zoom: 30x (480x with digital zoom)
Iris: from F1.6 up to F9.6 (Auto, Manual)
Horizontal Viewing Angle: from 61.60° (wide end) up to 2.50° (tele end)
Vertical Viewing Angle: from 37.07° (wide end) up to 1.44° (tele end)
Shutter speed: from 1/1s up to 1/10000s (Auto, Manual)
White balance: Auto, Manual
Gain: from 0dB up to 100dB (Auto, Manual)
Wide Dynamic Range: 120dB
Focus System: Auto, Manual, Trigger
Picture Effects: E-flip, Colour enhancement
Noise removal: 2D (3 levels), 3D (3 levels)
Exposure Control: Auto, Manual, Priority (Iris Priority, Shutter Priority), Brightness, Custom
De-fog: On/Off
Privacy zones masking: maximum 8 settable masks
Indoor Flicker Reduction
Auto Slowshutter: Off, On (from 1/30s up to 1/1s)
Exposure compensation: Off, On (from level 0 up to level 14)
Sharpness: from level 0 up to level 3
ILLUMINATORS

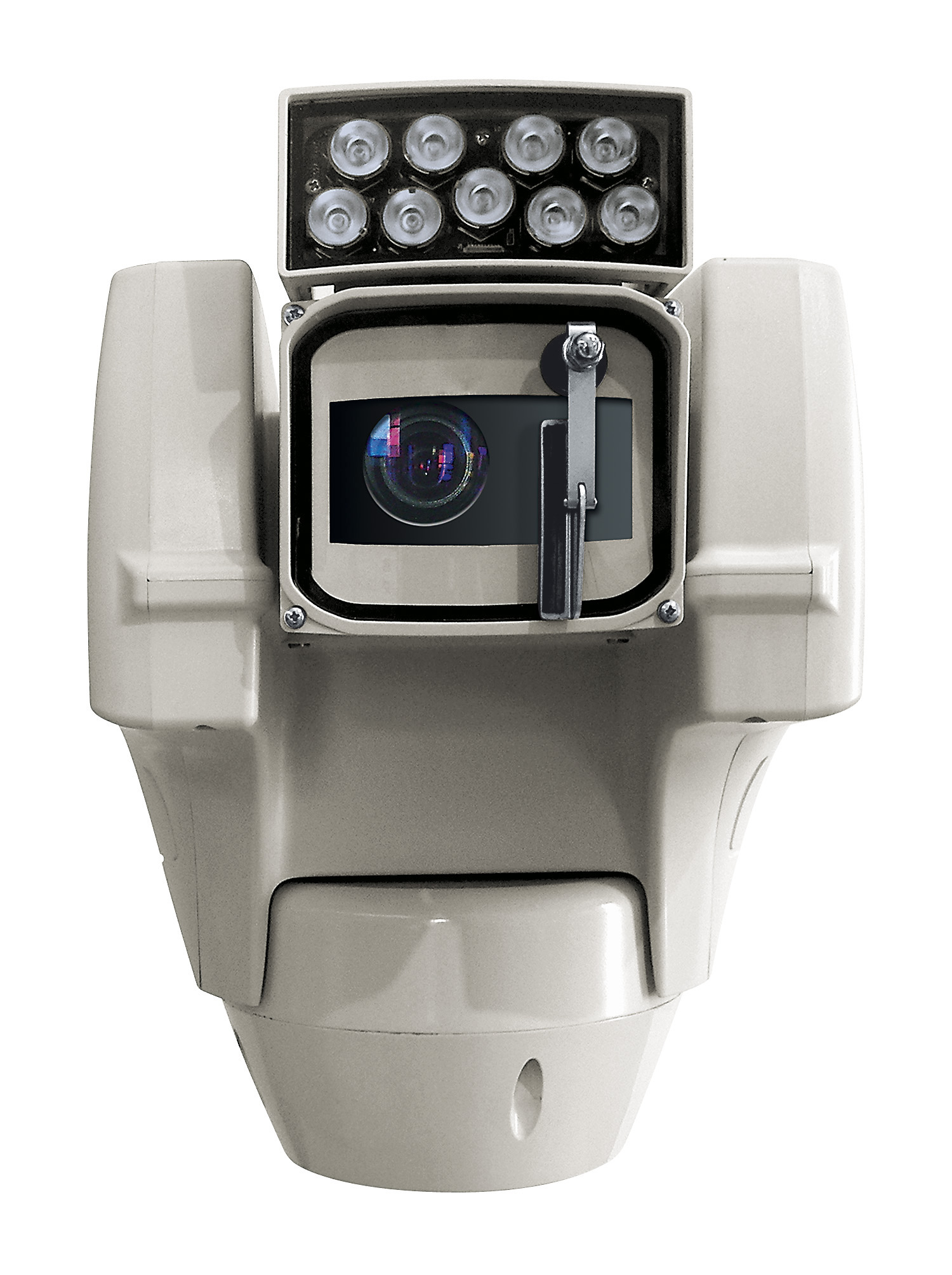

LED illuminator
Horizontal beam: 10° or 30°
Wavelength: 850nm, 940nm, white light
Automatic and remote switching on
The camera and the light beam are factory aligned
The pre-installed illuminator does not slow down the P&T’s rotation speed
ENVIRONMENT
For indoors and outdoors installation
Operating temperature
Continuous working: from -40°C (-40°F) up to +60°C (140°F)
Non continuous working (absolute maximum temperature for short periods): +65°C (149°F)
Wind resistance
Operational: up to 160km/h (99.4mph)
Stationary: up to 210km/h (130.5mph)
Surge immunity: up to 2kV line to line, up to 4kV line to earth (Class 4)
Relative humidity: from 10% up to 95% (no condensation)
CERTIFICATIONS
Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
Electromagnetic compatibility (CE): EN61000-6-4, EN50130-4, EN55032 (Class A), FCC Part 15 (Class A)
Outdoor installation (CE): EN60950-22, IEC60950-22
Photobiological safety (CE): EN62471
IP protection degree (EN60529): IP66
UL certification: cULus Listed
Level of protection Type: 4X
EAC certification
BIS certification: IS 13252(PART 1):2010/ IEC 60950-1 : 2005 (certification only valid for the codes: UCHD21TAZ00B, UCHD21UAZ00B, UCHD21WAZ00B)
