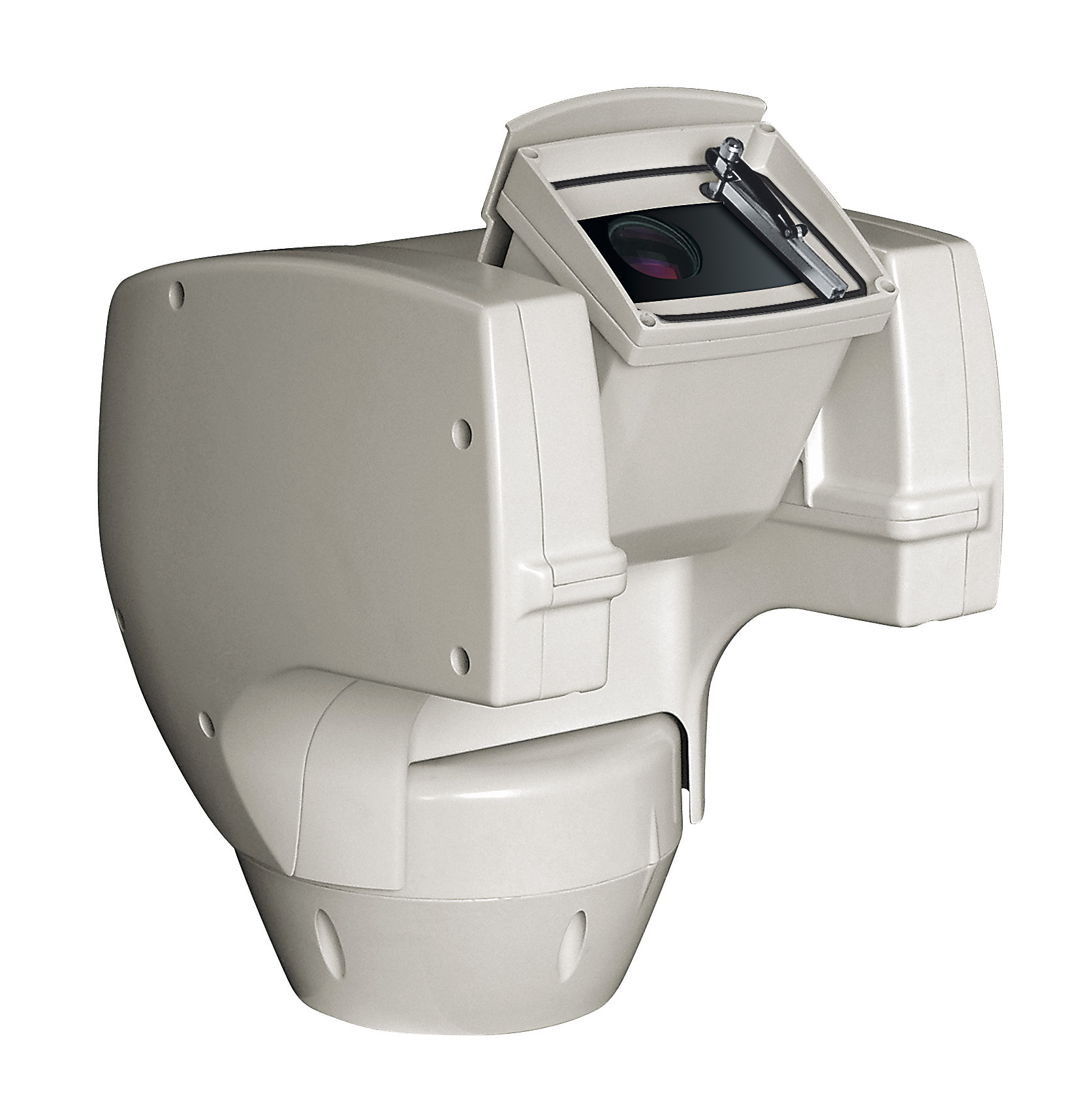

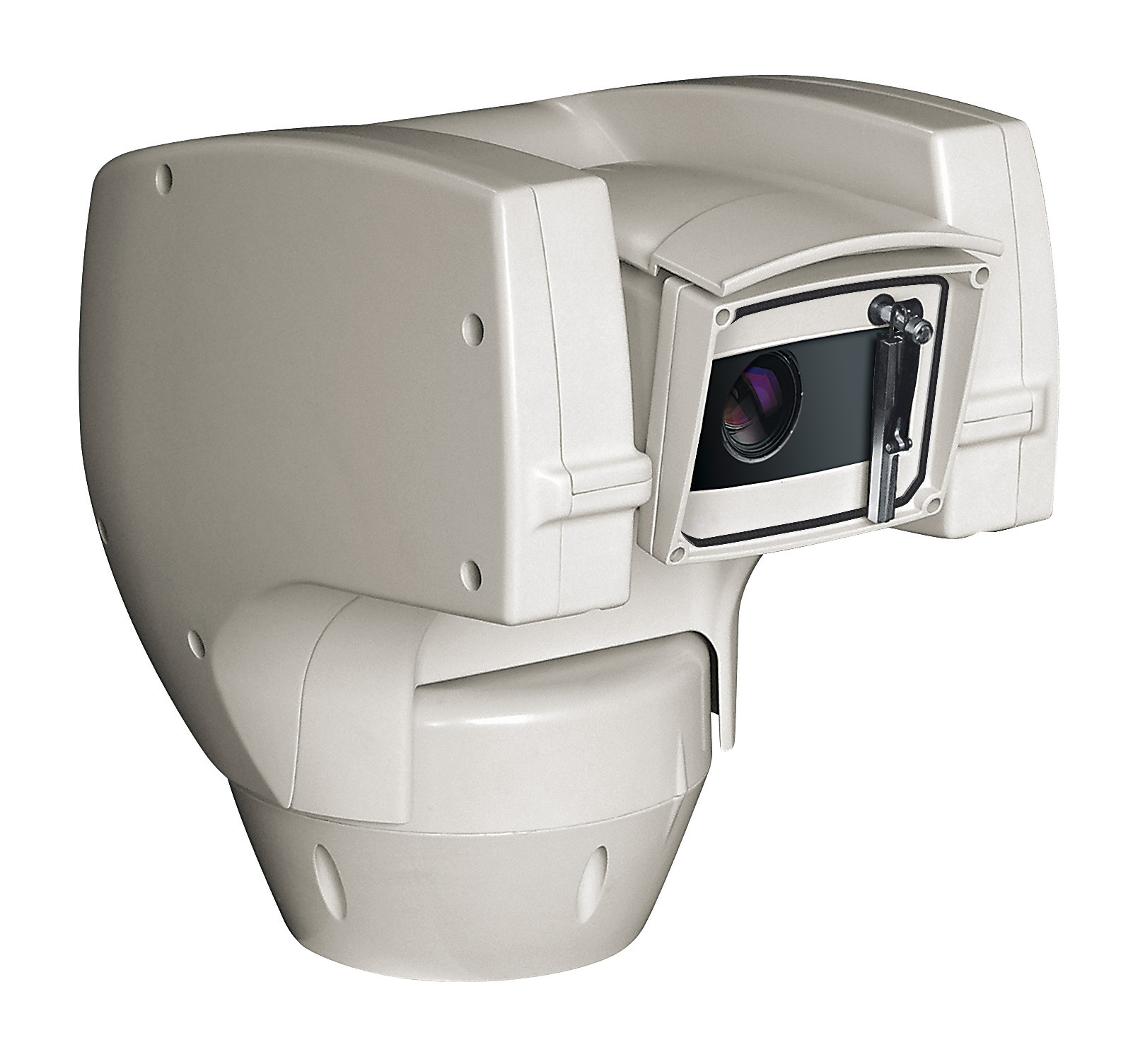

ULISSE COMPACT DELUX is a Full HD network camera featuring the new imaging and encoding technology for outdoor surveillance that generates incredibly vivid and clear colour video images day or night.
In particular, thanks to the camera’s increased light sensitivity, the DELUX technology can obtain bright images with well-defined colours in very low light conditions – even typical night-time conditions to 0.006 lux (0.0006 lux in black and white).
ULISSE COMPACT DELUX integrates a Day/Night, FullHD camera, 1080p with a 30x optical zoom and a frame rate of 60fps. It is capable of accurately pinpoint details in any scene – even dynamic, rapidly changing situations.
In addition to improved light sensitivity, with outstanding colour rendering and greater noise reduction, the DELUX technology has brought new advanced performances to the ULISSE COMPACT, namely in the proportional zoom control and management of Privacy Masking.
ULISSE COMPACT DELUX is the ideal solution for the surveillance of urban and industrial areas, critical infrastructures, traffic and car parks, and perimeters and borders.
Features:
GENERAL |
Easy installation thanks to the self-centring connector |
Zero backlash |
Quick configuration and setup |
Dynamic positioning control system |
Functions: Preset Tour (Preset, Patrol, Autopan), Autoflip |
Maximum number of presets: 250 |
MECHANICAL |
Constructed from aluminium and tecnopolymer |
Epoxypolyester powder painting, RAL9002 colour |
Horizontal rotation: 360°, continuous rotation |
Vertical rotation: from -90° up to +90° |
Horizontal speed (variable): from 0.1°/s up to 200°/s |
Tilt speed (variable): from 0.1°/s up to 200°/s |
Accuracy of preset positions: 0.05° |
Cable glands: 2xM16, 2xM12 |
Unit weight: 12.5kg (28lb) (13kg (28.7lb) with LED illuminator) |
ELECTRICAL |
Supply voltage/Current consumption: |
230Vac, 0.4A, 50/60Hz |
120Vac, 0.8A, 50/60Hz |
24Vac, 4A, 50/60Hz |
Power consumption: |
40W, P&T static, heating switched off |
60W, P&T in motion, heating switched off |
125W, peak at start-up, heating switched on |
Power consumption with illuminator on: |
55W, P&T static, heating switched off |
75W, P&T in motion, heating switched off |
140W, peak at start-up, heating switched on |
Cables input section: from 0.75mm² (18AWG) up to 1.5mm² (15AWG) |
Cables signal section: from 0.14mm² (26AWG) up to 1.5mm² (15AWG) |
NETWORK |
Ethernet connection: 100 Base-TX |
Connector: RJ45 |
VIDEO |
Video encoder |
Communication protocol: ONVIF, Profile Q, Profile S and Profile T |
Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG |
3 independent video streams Full HD |
Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps |
Selectable frame rate from 1 to 60 images per second (fps) |
Web Server |
Directional OSD (maximum 4 settable areas) |
Motion Detection |
QoS: Differentiated DSCPs for streaming and device management |
SNMP and NTCIP protocols |
I/O INTERFACE |
I/O alarm board |
Alarm inputs: 1 |
Relay outputs: 1 (1A, 30Vac/60Vdc max) |
CAMERAS |
Day/Night Full HD 30x DELUX |
Resolution: Full HD 1080p (1920x1080) |
Image Sensor: 1/2.8" Exmor™ R CMOS sensor |
Effective Pixels: approx. 2.38 Megapixels |
Minimum Illumination: |
Colour: 0.006lx (F1.6, 30 IRE) |
B/W: 0.0006lx (F1.6, 30 IRE) |
Focal length: from 4.5mm (wide) up to 135mm (tele) |
Zoom: 30x (480x with digital zoom) |
Iris: from F1.6 up to F9.6 (Auto, Manual) |
Horizontal Viewing Angle: from 61.60° (wide end) up to 2.50° (tele end) |
Vertical Viewing Angle: from 37.07° (wide end) up to 1.44° (tele end) |
Shutter speed: from 1/1s up to 1/10000s (Auto, Manual) |
White balance: Auto, Manual |
Gain: from 0dB up to 100dB (Auto, Manual) |
Wide Dynamic Range: 120dB |
Focus System: Auto, Manual, Trigger |
Picture Effects: E-flip, Colour enhancement |
Noise removal: 2D (3 levels), 3D (3 levels) |
Exposure Control: Auto, Manual, Priority (Iris Priority, Shutter Priority), Brightness, Custom |
De-fog: On/Off |
Privacy zones masking: maximum 8 settable masks |
Indoor Flicker Reduction |
Auto Slowshutter: Off, On (from 1/30s up to 1/1s) |
Exposure compensation: Off, On (from level 0 up to level 14) |
Sharpness: from level 0 up to level 3 |
ILLUMINATORS |

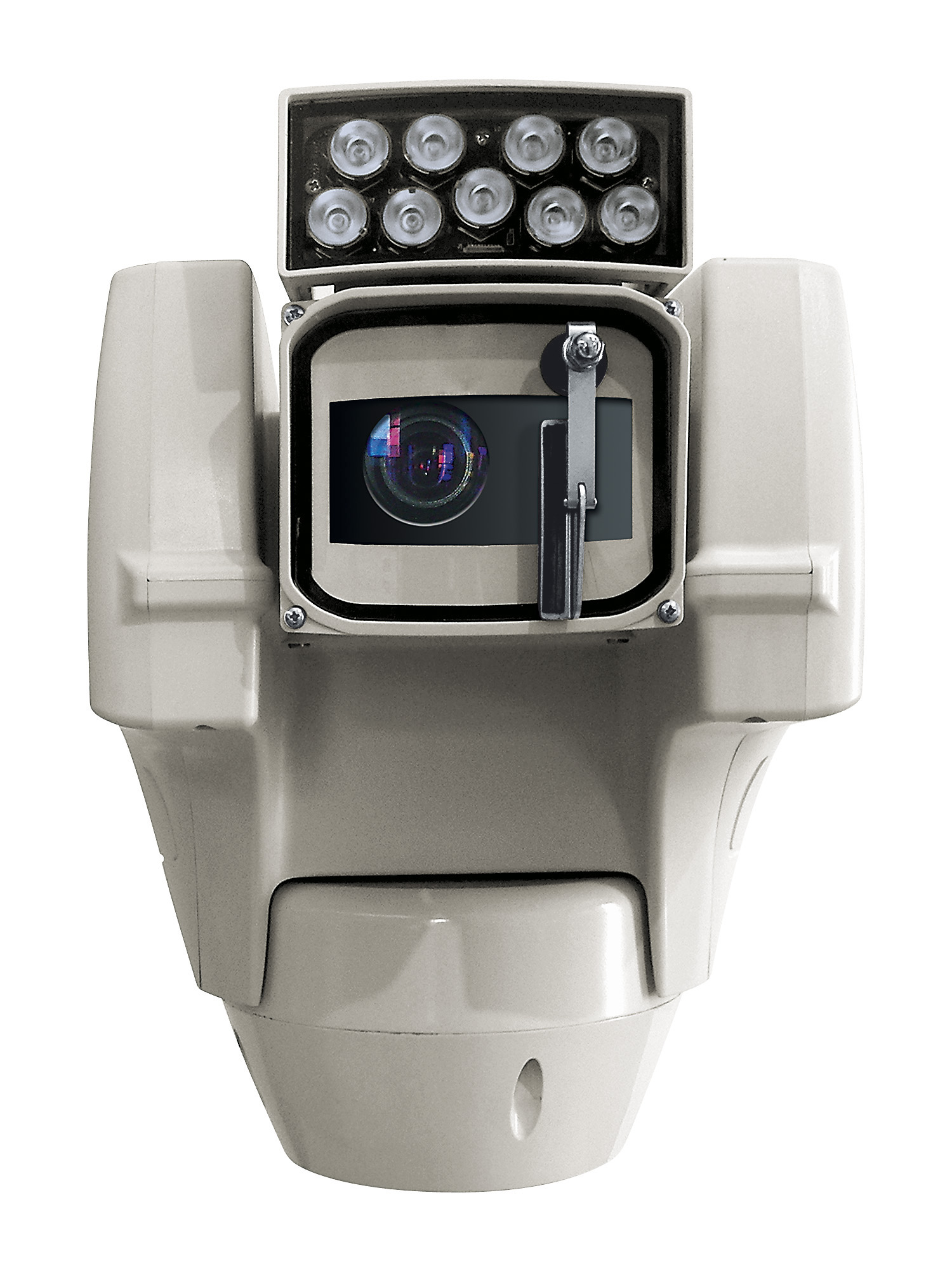

LED illuminator |
Horizontal beam: 10° or 30° |
Wavelength: 850nm, 940nm, white light |
Automatic and remote switching on |
The camera and the light beam are factory aligned |
The pre-installed illuminator does not slow down the P&T’s rotation speed |
ENVIRONMENT |
For indoors and outdoors installation |
Operating temperature |
Continuous working: from -40°C (-40°F) up to +60°C (140°F) |
Non continuous working (absolute maximum temperature for short periods): +65°C (149°F) |
Wind resistance |
Operational: up to 160km/h (99.4mph) |
Stationary: up to 210km/h (130.5mph) |
Surge immunity: up to 2kV line to line, up to 4kV line to earth (Class 4) |
Relative humidity: from 10% up to 95% (no condensation) |
CERTIFICATIONS |
Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
Electromagnetic compatibility (CE): EN61000-6-4, EN50130-4, EN55032 (Class A), FCC Part 15 (Class A) |
Outdoor installation (CE): EN60950-22, IEC60950-22 |
Photobiological safety (CE): EN62471 |
IP protection degree (EN60529): IP66 |
UL certification: cULus Listed |
Level of protection Type: 4X |
EAC certification |
BIS certification: IS 13252(PART 1):2010/ IEC 60950-1 : 2005 (certification only valid for the codes: UCHD21TAZ00B, UCHD21UAZ00B, UCHD21WAZ00B) |
