VideoTec - UE21F000A - ULISSE EVO PTZ 24Vac/dc - PoE 90W, camera Delux Super Low-light Day/Night FullHD zoom 30x, 1/2.8", H.264/AVC, wiper, black (RAL9005)
Part number:
UE21F000A
Price:

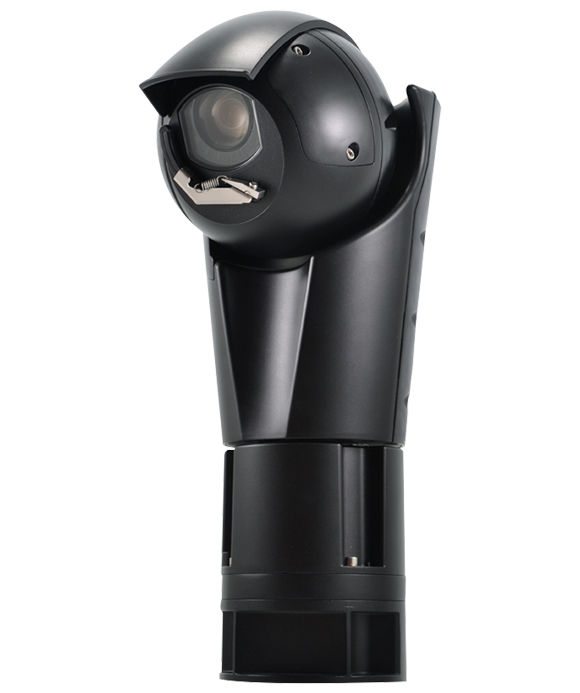

The PTZ ULISSE EVO video camera is ideal as a video surveillance solution for outdoor applications in urban centres, critical infrastructures, traffic and railways. It is designed to guarantee total reliability and continuous operations in the most challenging outdoor environments. It is ultra-resistant to corrosion and can withstand a wide temperature range (from -40°C to +65°C). The extra-sturdy structure is guaranteed by IK10, IP66/IP67/IP68, NEMA TYPE 4X and TYPE 6P protection ratings. Exceptional wind resistance up to 230km/h with PTZ moving at maximum speed.
ULISSE EVO has obtained Lloyd’s Register Marine Type Approval for the maritime and shipping sector and complies with the standard for railway applications.

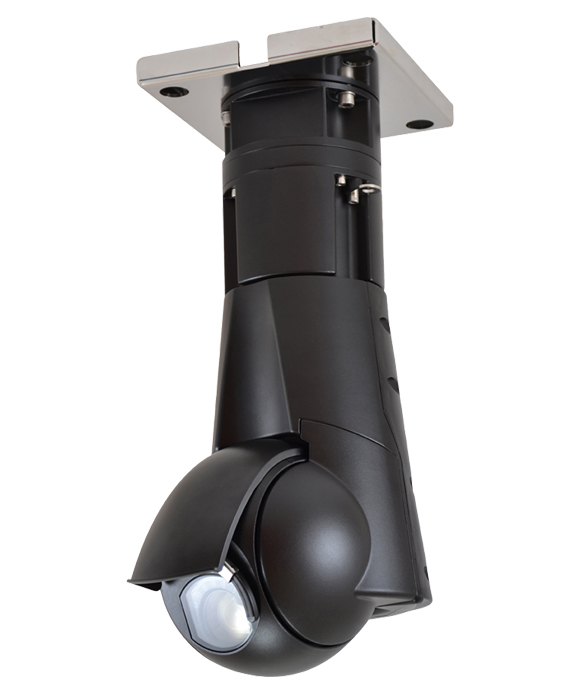

The modern, linear design of ULISSE EVO combines maximum strength and operational reliability with greatly reduced weight. This means easy and quick assembly and therefore lower installation costs and zero maintenance. It can even be mounted upside down, in the typical speed domes position. The supports can be supplied with quick-fit connectors for Ethernet/PoE, power supply and I/O. This means the unit can be replaced quickly and easily in case of on-site intervention.
Features:
- Designed to resist and last
- Impeccable quality image
- Integrated video analysis available
- Unbeatable solution for outdoor applications
| GENERAL |
| Easy installation thanks to the self-centring connector |
| Zero backlash |
| Quick configuration and setup |
| Dynamic positioning control system |
| Functions: Preset, Preset Tour (Patrol), Autoflip, Autopan via Preset Tour |
| Maximum number of presets: 250 |
| MECHANICAL |
| Constructed from aluminium and tecnopolymer |
| Epoxy-polyester powder painted, standard colours grey-white (RAL9002) or black (RAL9005) |
| Horizontal rotation: 360°, continuous rotation |
| Vertical rotation: from -90° up to +90° (with ceiling installation, from -40° up to +90°) |
| Horizontal speed (variable): from 0.1°/s up to 250°/s |
| Tilt speed (variable): from 0.1°/s up to 250°/s |
| Accuracy of preset positions: 0.05° |
| Cable glands: 2xM16 + 1xM20 + special gasket for pre-wired Ethernet cables |
| Unit weight: 7.1kg (15.6lb) (7.4kg (16.3lb) with LED illuminator) |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 24Vac ±20%, 5A, 50/60Hz |
| 24Vdc ±10%, 5A |
| PoE 90W (only with OHEP90INJ or OHEP90INJO accessories) |
| ECO-MODE function for energy saving: 21W, PTZ stopped |
| Power consumption: |
| 27W, PTZ stopped, heating switched off |
| 27W, PTZ in motion, heating switched off |
| 57W, peak at start-up, heating on and de-icing function |
| Power consumption with illuminator on: |
| 40W, PTZ stopped, heating switched off |
| 40W, PTZ in motion, heating switched off |
| 70W, peak at start-up, heating on and de-icing function |
| Power supply cables section: from 0.75mm² (18AWG) up to 2.5mm² (13AWG) |
| Cables signal section: from 0.14mm² (26AWG) up to 1mm² (17AWG) |
| Multipolar cable sheath diameter: |
| Cable glands M16: from 4.5mm (0.2in) up to 10mm (0.4in) |
| Cable glands M20: from 8mm (0.3in) up to 13mm (0.5in) |
| Alarm inputs: 2 (auto-powered from 12Vdc up to 18Vdc) |
| Relay outputs: 2 (1A, 30Vac/30Vdc max) |
| VIDEO |
| Video encoder |
| Communication protocol: ONVIF, Profile Q, Profile S and Profile T |
| Device configuration: TCP/IPv4-IPv6, UDP/IPv4 IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
| Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG |
| 3 independent video streams Full HD |
| Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps |
| Selectable frame rate from 1 to 60 images per second (fps) |
| Web Server |
| Directional OSD (maximum 4 settable areas) |
| Motion Detection |
| QoS: Differentiated DSCPs for streaming and device management |
| SNMP and NTCIP protocols |
| CYBERSECURITY |
| Digitally signed firmware |
| Password restricted access (HTTP digest) |
| Support of various user access levels |
| Control of accesses IEEE 802.1X |
| HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3 |
| Centralised certificate management |
| Complies with ONVIF Security Service specifications |
| CAMERAS |
| Day/Night Full HD 30x DELUX |
| Resolution: Full HD 1080p (1920x1080) |
| Image Sensor: 1/2.8" Exmor™ R CMOS sensor |
| Effective Pixels: approx. 2.38 Megapixels |
| Minimum Illumination: |
| Colour: 0.006lx (F1.6, 30 IRE) |
| B/W: 0.0006lx (F1.6, 30 IRE) |
| Focal length: from 4.5mm (wide) up to 135mm (tele) |
| Zoom: 30x (480x with digital zoom) |
| Iris: from F1.6 up to F9.6 (Auto, Manual) |
| Horizontal Viewing Angle: from 61.60° (wide end) up to 2.50° (tele end) |
| Vertical Viewing Angle: from 37.07° (wide end) up to 1.44° (tele end) |
| Shutter speed: from 1/1s up to 1/10000s (Auto, Manual) |
| White balance: Auto, Manual |
| Gain: from 0dB up to 100dB (Auto, Manual) |
| Wide Dynamic Range: 120dB |
| Focus System: Auto, Manual, Trigger |
| Picture Effects: E-flip, Colour enhancement |
| Noise removal: 2D (3 levels), 3D (3 levels) |
| Exposure Control: Auto, Manual, Priority (Iris Priority, Shutter Priority), Brightness, Custom |
| De-fog: On/Off |
| Privacy zones masking: maximum 8 settable masks |
| Indoor Flicker Reduction |
| Auto Slowshutter: Off, On (from 1/30s up to 1/1s) |
| Exposure compensation: Off, On (from level 0 up to level 14) |
| Sharpness: from level 0 up to level 3 |
| ILLUMINATORS |

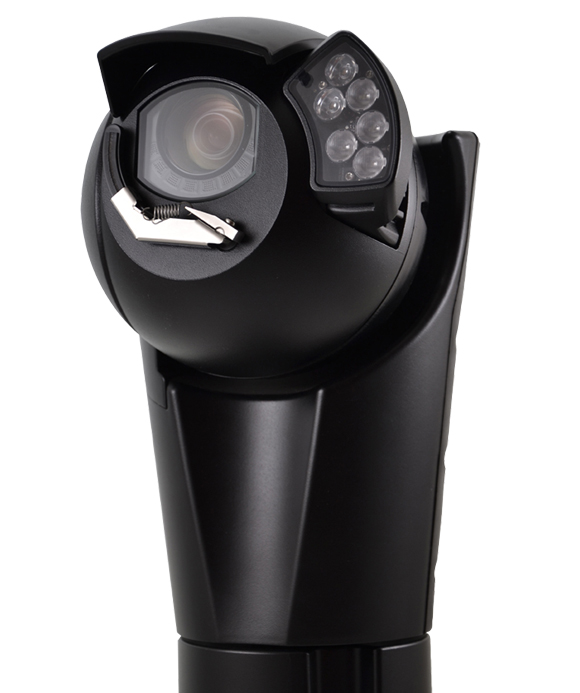

| LED illuminator |
| Wavelength: 850nm, 940nm (UEIxxx only), white light |
| UEIxxx |
| Wide beam: 40° (horizontal), 16° (vertical) |
| Spot beam: 14° (horizontal), 14° (vertical) |
| UEIxxxP |
| Wide beam: 13° (horizontal), 13° (vertical) |
| Spot beam: 13° (horizontal), 13° (vertical) |
| Wide beam activation: based on the scene brightness, from alarm input or manually |
| Spot beam activation (can be activated only when the wide beam is active): can be activated on preset, based on the zoom factor or with the wide beam |
| Automatic and remote switching on |
| No calibration required for light beam alignment with the camera |
| The illuminator does not slow down the P&T’s rotation speed |
| Automatic recognition of the type of illuminator installed |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature |
| Continuous functioning: from -40°C (-40°F) up to +65°C (149°F) (+50°C (122°F) for versions painted black) |
| Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) (not valid for versions with integrated video analysis, VIDEOTEC ANALYTICS) |
| De-icing function intervention: from -40°C (-40°F) up to -10°C (14°F) |
| Wind resistance |
| PTZ static: 230km/h (143mph) max. |
| PTZ in motion at the maximum speed with LED illuminator: 230km/h (143mph) max. |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN61000-6-4, EN50130-4, EN55032 (Class A) |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| Photobiological safety (CE): EN62471, IEC62471 |
| IP protection degree (EN60529): IP66, IP67, IP68 |
| Vibration test: EN50130-5, EN60068-2-6 |
| Salty fog resistance: EN50130-5, EN60068-2-52 |
| IK protection degree: IK10 (except glass window) |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1 07,UL62368-1 CAN/CSA C22.2 No. 62368-1-14): cULus Listed |
| Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A) |
| Level of protection Type (UL50E): 4X, 6P |
| EAC certification |
| Restriction of Hazardous Substances (RoHS), Directive 2011/65/EU |
| Waste Electrical and Electronic Equipment (WEEE), Directive 2012/19/EU |
| KC certification (UE21A000J, UE21F000J) |
| CERTIFICATIONS - RAILWAY APPLICATIONS |
| Compliance to railway application standard: EN50121-4 (the product requires the filter accessory SURGEPR) |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification (the product requires the filter accessory FM1010): |
| Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
| Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2 |
