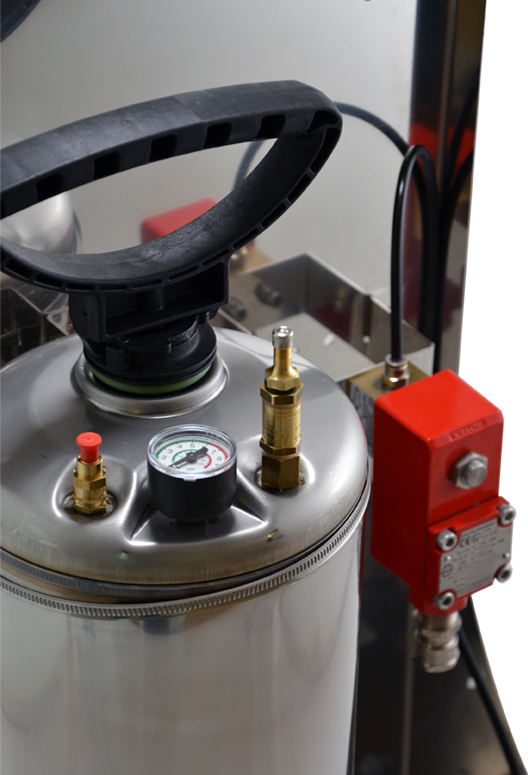

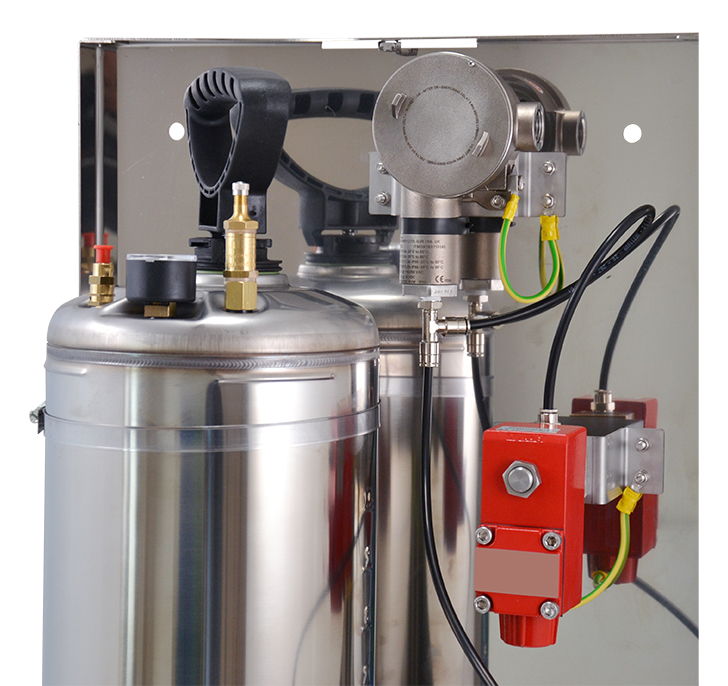

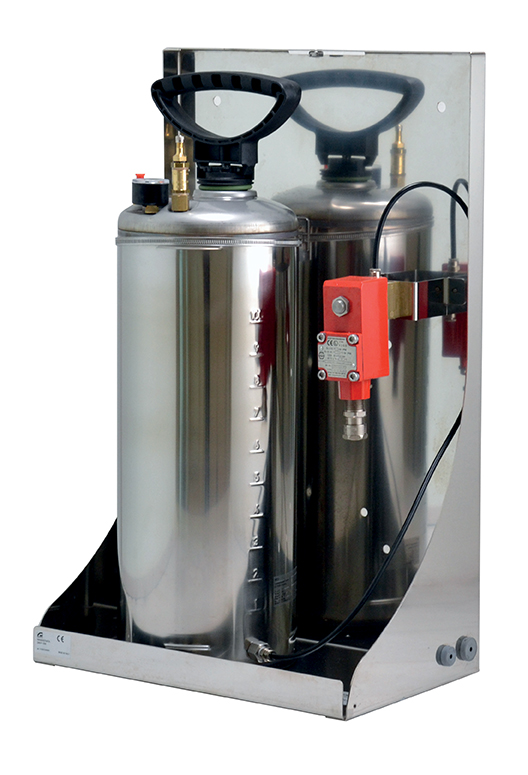

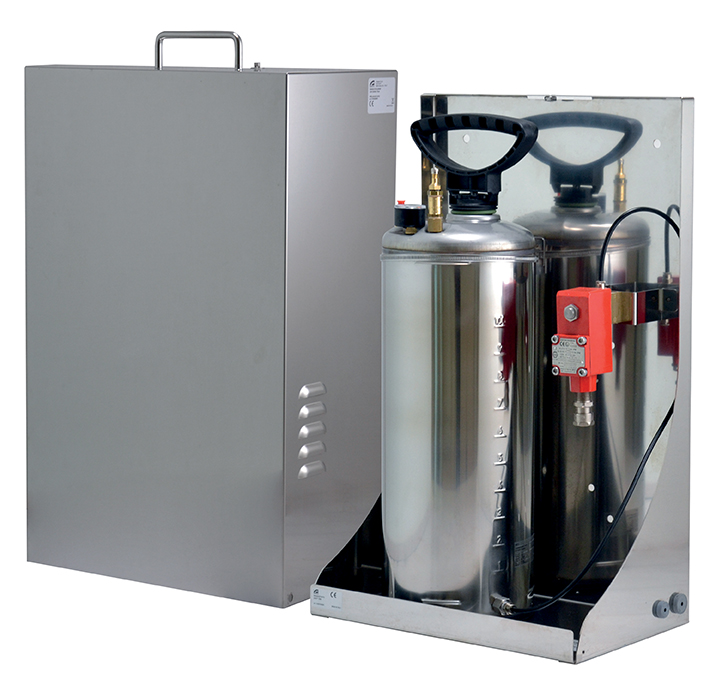

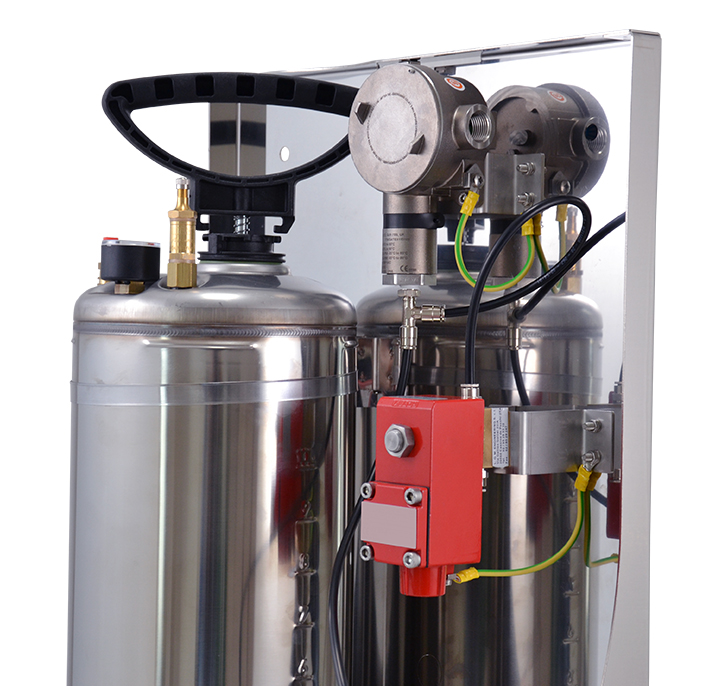

The WASEX washer pump is an important element for effective video surveillance in hazardous areas because it guarantees sharp images in all environmental conditions and reduces the need for maintenance. The WASEX system is designed for the MAXIMUS series and is also compatible with third-party products. The kit is composed of a 10-litre stainless steel tank with an explosion-proof certified solenoid valve and some versions of the product also have an explosion-proof certified pressure switch. The pressure switch is used to control the pressure in the tank. Some versions of the WASEX product is Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5.
Features:
- Maximum head: 30m (98ft) (antistatic water delivery pipe supplied, 20m (66ft))
- Water tank capacity: 10l (2.6gal)
- Suitable for MAXIMUS series or with third-party products
- Power supply in 24Vac or 24Vdc, 5W max
| MECHANICAL | |

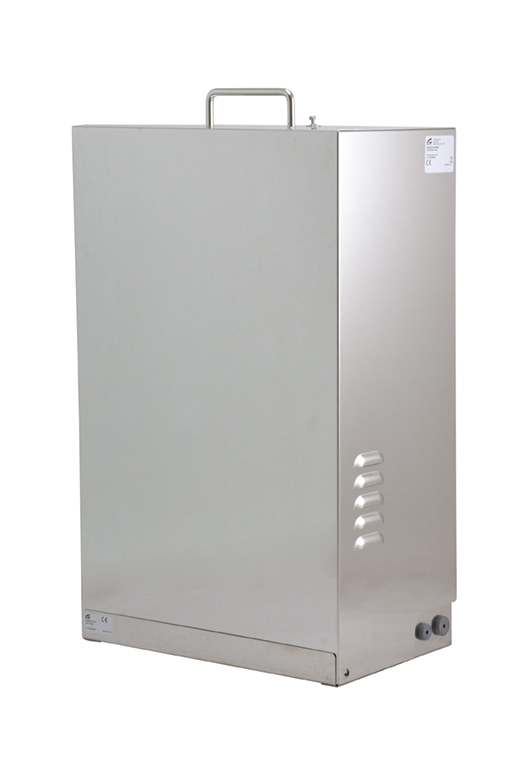

| External enclosure | stainless steel AISI 316L |
| Antistatic water delivery pipe | antistatic polymer |
| Length | 20m (66ft) |
| Schrader type compressed air filling valve | |
| Pressure | 6bar max |
| Delivery head | 20m (66ft), 4bar (with 20m water delivery anti-static pipe supplied) 30m (98ft), 6bar (with 30m water delivery anti-static pipe available as an accessory) Water tank capacity: 10l (2.6gal) |
| Cable inputs | 1 x 1/2" NPT (WASEX2T4AT, WASEX2T4GOR, WASEX2T4IN, WASEX2T4KC) 2 x 1/2" NPT (WASEX2T4ATPR) |
| Dimensions (WxHxL) | 429x697x255mm (16.9x27.4x10in) |
| Unit weight | 18kg (40lb) (WASEX2T4AT, WASEX2T4GOR, WASEX2T4IN, WASEX2T4KC); 20Kg (WASEX2T4ATPR) 18kg (40lb) (WASEX2T4AT, WASEX2T4GOR, WASEX2T4IN, WASEX2T4KC); 20Kg (WASEX2T4ATPR) 20Kg (WASEX2T4ATPR) |
| ELECTRICAL | |
| WASEX2T4AT, WASEX2T4GOR, WASEX2T4IN | |
| Solenoid valve | |
| Power supply | 24Vac, 50/60Hz or 24Vdc |
| Consumption | 5W |
| WASEX2T4ATPR | |
| ENVIRONMENT | |
| WASEX2T4AT, WASEX2T4GOR, WASEX2T4IN | |
| For indoors and outdoors installation | |
| Operating temperature of solenoid valve | from -40°C (-40°F) up to +60°C (140°F) |
| Operating temperature of device | depending on the solidification temperature of the liquid |
| Relative humidity | from 5% up to 95% |
| WASEX2T4ATPR | |
| CERTIFICATIONS- EXPLOSION-PROOF APPLICATIONS | |
| For information download the Data Sheet from the Download section. | |
| CERTIFICATIONS - MARINE APPLICATIONS | |
| Lloyd's Register Marine Type Approval certification | Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) Salty fog resistance: EN60068-2-52 Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2 |
