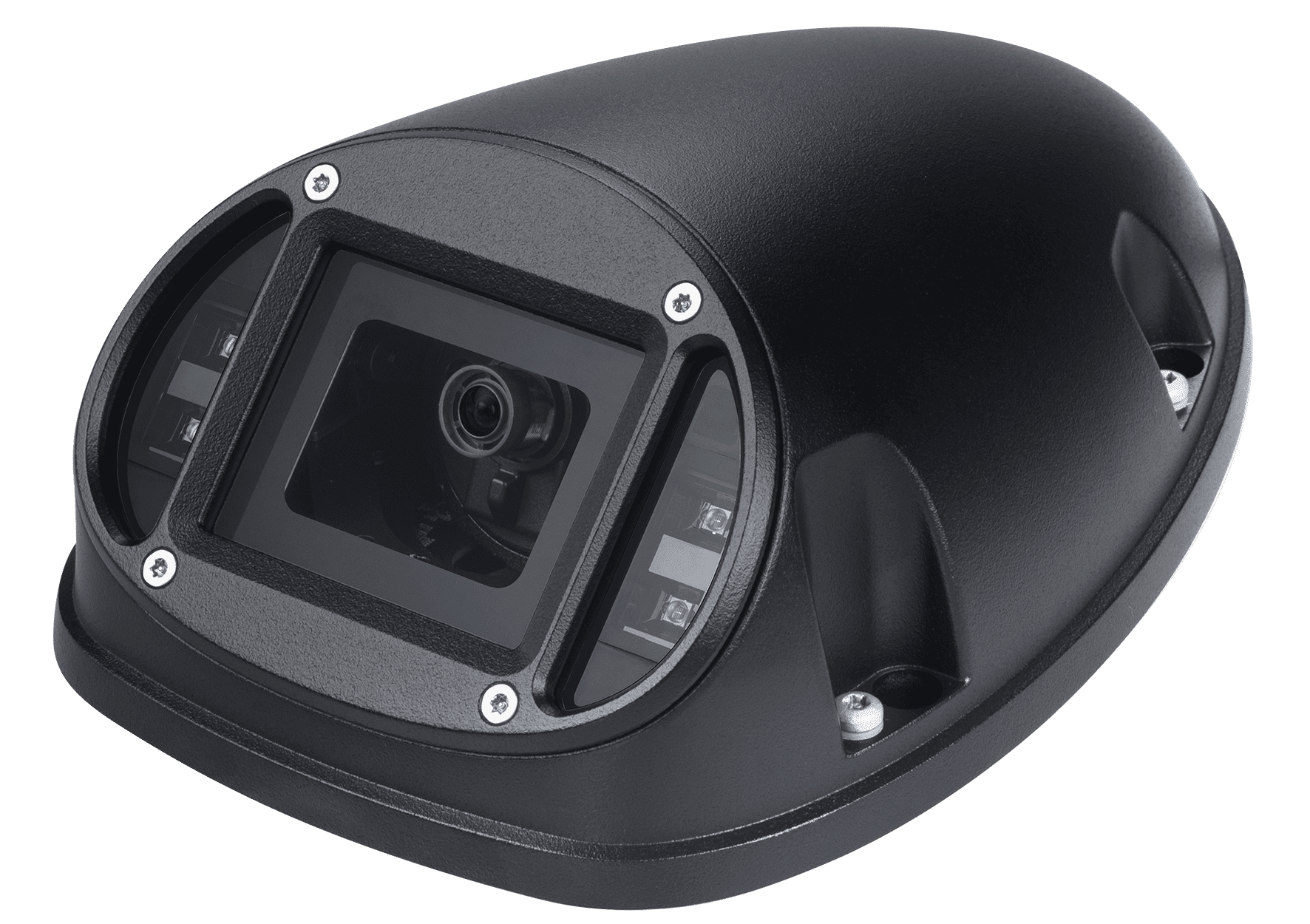

MD8564-EH-V2 5MP Mobile Dome Network Camera 6 mm
Part number:
MD8564-EH-V2
Price:
- • Designed for Vehicle Exterior Monitoring
- • 5MP Clarity, 2MP Cost
- • Pan Lens for Pantograph & Side Platform Coverage
- • Smart heater for Front Glass Automatic De-icing
- • Cyber Protection via Trend Micro IoT Security
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8GB |
| RAM | 2GB |
| Camera Specifications | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560X1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 6 mm; |
| Aperture | F2.0 |
| Iris Type | Fixed-iris |
| Field of View | 50° (Horizontal) 37° (Vertical) 63° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR, IR LED*4 |
| Minimum Illumination | 0.1 Lux @ F2.0 (Color) 0.01 Lux @ F2.0 (B/W) 0 Lux with IR illumination on |
| Pan Range | max: ± 0°~25° |
| Tilt Range | max: 0°~+40° |
| Rotation Range | ±170°(Tool-free) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE/Edge/Chrome plug-in,12x built in) |
| Storage | Micro SD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560X1920 60 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams (Up to 8 configurable profiles) |
| S/N Ratio | 65 dB |
| Dynamic Range | 120dB |
| Video Streaming | Adjustable resolution, quality and bitrate; Smart Stream III |
| Image Settings | |
| Image Settings | video title and time stamp overlay video orientation (flip, mirror, rotation), day/night settings illuminators, anti-overexposure |
| Image settings | size, quality and bit rate, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, EIS, scene mode (SignalLight, RailTrack) |
| Exposure | BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Privacy mask Scheduled profile settings |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with a built-in hardware deep learning accelerator |
| Solution Integration | |
| VADP Package | Trend Micro (3-year free trial), Onboard AI(Smart Motion Detection) |
| Video Motion Detection | Five-window video motion detection, people detection, and time filter |
| Alarm and Event | |
| Event Trigger | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, SD card life expectancy, shock detection, system boot Cybersecurity events (brute force attack, cyberattack, and quarantine events) with the Trend Micro package activated. |
| Event Action | Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card, push notification File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | Single HL3 cable with distributed connectors: -M12 4pin D-coded, Female connector for Network/PoE x1 -M12 5pin A-coded, male connector for DC 24V heater x1 Eearth/grounding point: M6 x1 + M8 x1 Venting valve with water-proof breathable membrane x1 |
| LED Indicator | System power and status indicator |
| Power Input | Camera: IEEE 802.3af PoE, B type, Class 0(37V~57V) Heater: DC 24V* *Comply with EN50155 #5.2 Table 4: Supply voltage limits and performance criteria |
| Power Consumption | Camera + IR: Max. 12.54W/ 7.24W (IR ON/OFF) Heater: 48W(24V, 2A) |
| Dimensions | 241 x 162 x 83 mm |
| Weight | approx.1490g |
| Casing | IP68, IP6K9K, NEMA 4X, IK10+ casing with AR-coated Heat-Strengthened glass |
| Certifications | |
| EMC | CE (EN 55035, EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A) |
| Safety | UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) |
| Environment | IK10+, Casing with color RAL9011, IP68/6K9K, NEMA 4X, 5mm Heat-Strengthened glass with Anti-Reflection coating |
| Railway | EN 50155: 2021 (OT4/ST1, norminal 24V DC), EN 50121-3-2:2016, EN 50121-4, EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:2010, EN 45545-2, IEC 60571 Ed 3.0,IEC 62236-3-2 Ed 3.0 |
| Automotive/Vehicles | ECE R118 |
| BI | BSMI |
| Operating Temperature | Starting Temperature: -40°C ~ 70°C (14°F ~ 158°F) Working Temperature (IR off): -40°C ~ 70°C (14°F ~ 158°F) (IR off) -40°C ~ 65°C (14°F ~ 149°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Storage Temperature | -40°C ~ 70°C (14°F ~ 158°F) |
| System Requirements | |
| Operating System | Microsoft Windows 11/10/7 Mac 10.4 (Chrome only) |
| Web Browser | Chrome 110.0 or above Internet Explorer 10/11; Microsoft Edge |
| Other Players | VLC: 3.0 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, screwdriver, alignment sticker, screw pack |
