Hanwha - SHD-1128FPW - White Plenum Rated Flush Mount. Compatible with: QNF-8010/9010, HCD-6010/6020R/7010RA/7020RA/7030RA, QND-6011/6021/8011/8021/6012R/6022R/6032R/ 7010R/7020R/7030R/8010R/8020R/8030R, LND-6012R/6022R/6032R, XND-6010/6020R/8

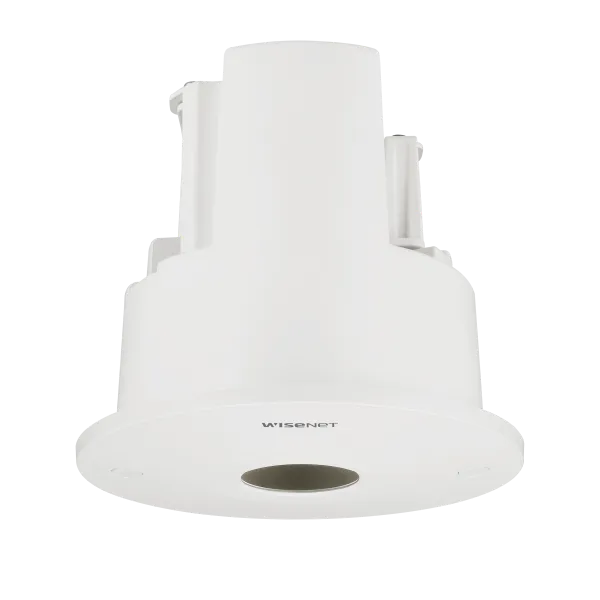

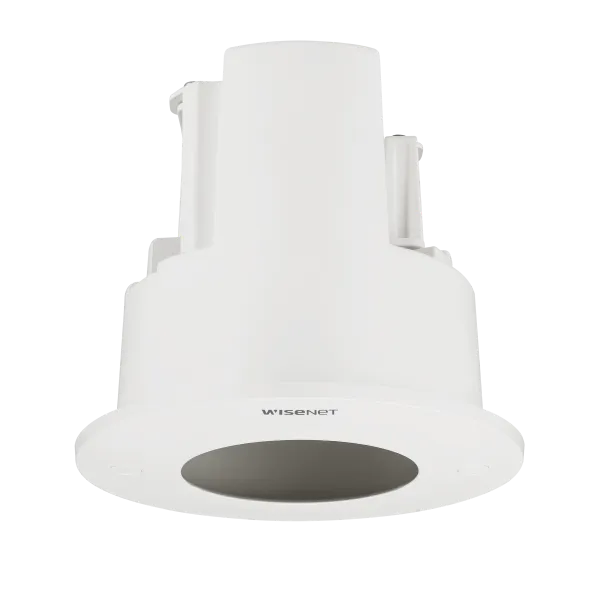

The Hanwha SHD-1128FPW is a plenum-rated, in-ceiling flush mount adapter engineered to recess specific fixed-lens dome network cameras into drop-ceiling tiles, drywall, or sheetrock surfaces.
Key Features:
• Color: White
• Material Enclosure: Plenum-rated aluminum top
• Cover: Polycarbonate(PC)
• Dimensions: Ø160x145.5mm (Ø6.30x5.73")
• Weight: 692g(1.53 Ib)
• Compatible models: HCD-6010 / HCD-6020R, HCD-7010R / HCD-7010RA / HCD-7020R / HCD-7020RA / HCD-7030R / HCD-7030RA, LND-6010R / LND-6011R / LND-6012R / LND-6020R / LND-6021R / LND-6022R / LND-6030R / LND-6031R / LND-6032R, QND-6010R / QND-6011 / QND-6012R / QND-6020R / QND-6021 / QND-6022R / QND-6030R / QND-6032R, QND-7010R / QND-7020R / QND-7030R, QND-8010R / QND-8011 / QND-8020R / QND-8021 / QND-8030R, QNF-8010, QNF-9010, XND-6010 / XND-6020R, XND-8020R / XND-8030R / XND-8040R, XNV-6011 / XNV-6011W.
| Color | White |
| Material | Enclosure : Plenum Rated Aluminum Top cover : Polycarbonate(PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | Ø160x145.5mm (Ø6.30x5.73") / 692g(1.53 Ib) |
| Tile thickness | 5~70mm |
| Conduit hole | 19.1mm(3/4") (M25) 12.7mm(1/2") (M20) |
| Supported products | HCD-6010 / HCD-6020R, HCD-7010R / HCD-7010RA / HCD-7020R / HCD-7020RA / HCD-7030R / HCD-7030RA, LND-6010R / LND-6011R / LND-6012R / LND-6020R / LND-6021R / LND-6022R / LND-6030R / LND-6031R / LND-6032R, QND-6010R / QND-6011 / QND-6012R / QND-6020R / QND-6021 / QND-6022R / QND-6030R / QND-6032R, QND-7010R / QND-7020R / QND-7030R, QND-8010R / QND-8011 / QND-8020R / QND-8021 / QND-8030R, QNF-8010, QNF-9010, XND-6010 / XND-6020R, XND-8020R / XND-8030R / XND-8040R, XNV-6011 / XNV-6011W |
