Hanwha - PNV-A9082RZ - 8MP IR Outdoor Vandal Dome AI, PTRZ Camera

Name: Hanwha - PNV-A9082RZ - 8MP IR Outdoor Vandal Dome AI, PTRZ Camera
Brand: Hanwha Vision
SKU: PNV-A9082RZ

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• Maximum 8MP resolution (1/1.2” sensor)
• 5.9~13.3mm(2.25x) motorized varifocal
• Long-range WiseIR distance up to 50m(164.04ft)
• PRTZ for easy installation
• 2 times per a day PTRZ preset support
• People/Vehicle/Crowd counting,
• Queue management, Heatmap
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• AI-based Image enhancement extremeWDR, WiseNRⅡ(Based on AI engine),
• WiseStream(Based on AI engine)
• Support Wisepower(Power monitoring)
• Device certificate(Hanwha Vision Root CA),
• Secure storage(Secure element with FIPS 140-3 level3/ CC EAL6+ certified), SBOM
• 2 SD slots edge storage
• IP66/IP67/IP6K9K, NEMA4X, IK11, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9)

Video
Imaging Device Size	1/1.2"
Type	CMOS
Resolution	3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. Framerate H.265/H.264	30fps/25fps(60Hz/50Hz)
MJPEG	30fps(@8MP Max. 5fps)
Min. Illumination (Lux) Color(1/30sec, 30IRE)	0.015
BW(1/30sec, 30IRE)	0.0015
Lens
Focal Length (mm)	5.9~13.3
Zoom Ratio	Optical 2.25x
Max Aperture Ratio (F number)	Wide: 1.5 Tele: 2.9
Angular Field of View	Horizontal: 109°~49° Vertical: 59°~27° Diagonal: 128°~56°
Min. Object Distance	0.8m(2.62ft)
Focus Control	Simple focus
Lens Type	P iris(IR corrected)
Pan / Tilt / Rotate Range	Pan: 0°~350° Tilt: -45°~85° Rotate: -95°~95°
Operational
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)	120
Digital Noise Reduction	WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization	Support
Motion Detection Quantity	8ea
Shape	8point Polygonal zones
Privacy Masking Quantity	32ea
Color / Option	Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Dynamic Privacy Masking: Color / Option	Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain Control	Off, Max gain, Manual
White Balance	ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDC	Support(Fill/stretch mode)
Electronic Shutter Mode	Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range	2~1/30,000sec
Video Rotation	Flip, Mirror, Hallway view(90°/270°)
Alarm Triggers	Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption
Alarm Events	When Alarm Trigger Occurred File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Light Type	IR LED
Light Viewable Length	IR WiseIR 50m(164.04ft)
IR Wavelength	850nm
Analytics
Classified Object Type	Person, Face, Vehicle, License plate
Attributes	Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type(car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses
Thumbnail	BestShot
Analytics Events	Based on AI Engine: Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) Normal: Defocus detection, Tampering, Audio detection, Shock detection
Business Intelligence	Based on AI Engine: People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Network
Ethernet	Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression	G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps)
Smart Codec	WiseStream(Based on AI engine)
Bitrate Control	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Unicast	Up to 20 users, Multicast Support, Multiple Streaming Up to 5 profiles, 3 virtual channel support
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
Application Programming Interface	ONVIF S, G, T, M, SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection	Support
Security
OS / Firmware Protect	Encrypted firmware, Secure boot, Signed firmware
User authentication	Digest authentication, Prevent brute-force attack
Network authentication	IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication	HTTPS, WSS(WebSocket Secure), SRTP
Access Control	IP-based access control, MAC-based access control, Auto logout
Data Protect	Encryption credentials, Encrypt compress for live recording file export
Audit	Access / System / Event Log management
Device ID	Device certificate(Hanwha Vision Root CA)
Secure Storage	SDcard partition encrypt(AES-256), Secure element
Supply Chain Security	SBOM
Security Certificate	Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
SoC Type	Wisenet 9
Dual NPU	Support
Memory RAM	4GB
Flash	8GB eMMC
Edge Storage	Micro SD/SDHC/SDXC Max. 1TB x 2slot (Total 2TB)
Edge Storage(OnCloud)	Micro SD/SDHC/SDXC Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating Condition	Temperature: -50°C~+55°C(-58°F~+131°F) Humidity: 0~100% RH(condensing) Others: +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent
Storage Condition	Temperature: -50°C~+60°C(-58°F~+140°F) Humidity: 0~90% RH(non-condensing)
EPA(Effective Projected Area)	0.017㎡
Input Voltage	PoE+(IEEE802.3at, Class4)
Power Consumption	PoE: Max. 17.5W, typical 11.0W
Wisepower	Power monitoring
Mechanical
Color	White
Material	Aluminum, Hard-coated dome
RAL Code	RAL9003
Product Dimensions	ø180x135mm(ø7.09x5.31")
Product Weight	2,100g(4.63lb)
Compatible Conduit Hole	19.1mm(3/4")(M25)
Compatible Gang Box	Single, Double, 4" Octagon, Square
Certifications & Standards
EMC	FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety	UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment	IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK11, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
DORI (EN62676-4 standard)
Detect (25PPM/8PPF)	Wide: 54.8m(179.73ft) Tele: 168.5m(552.89ft)
Observe (63PPM/19PPF)	Wide: 21.9m(71.89ft) Tele: 67.4m(221.16ft)
Recognize (125PPM/38PPF)	Wide: 11.0m(35.95ft) Tele: 33.7m(110.58ft)
Identify (250PPM/76PPF)	Wide: 5.5m(17.97ft) Tele: 16.9m(55.29ft)

Name

Description

Size

Downloads

File

Datasheet

0.9mb

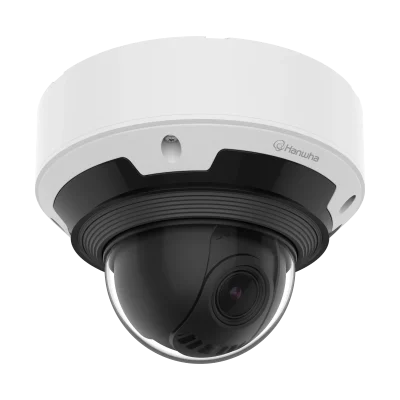

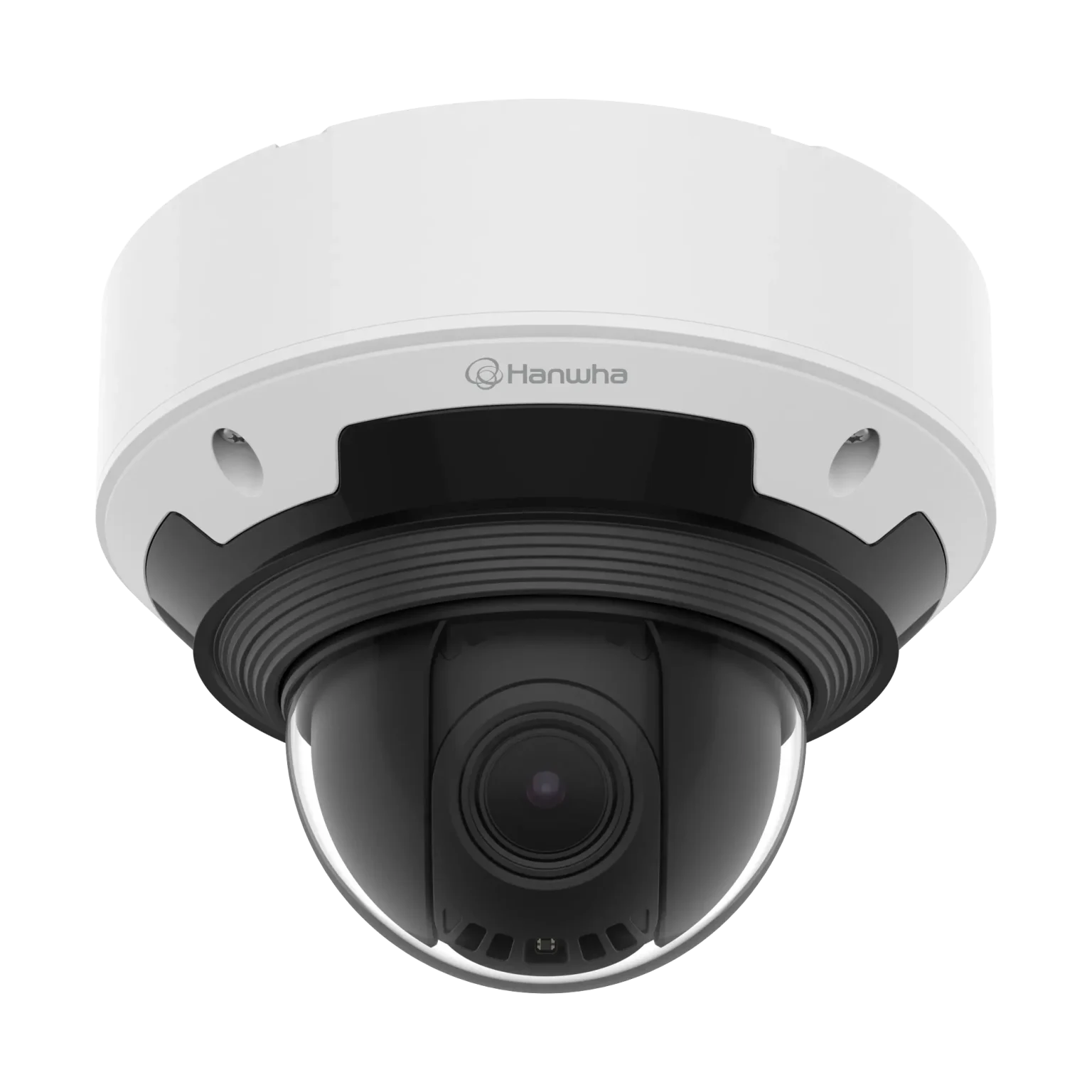

The Hanwha Vision PNV-A9082RZ is an 8MP AI outdoor vandal dome camera powered by the Wisenet 9 platform, featuring a large 1/1.2" sensor delivering 3840x2160 resolution at 30fps. It includes a 5.9~13.3mm motorized varifocal lens with remote PTRZ adjustment, a hard-coated dome bubble, and a horizontal field of view from 109° to 49°. WiseIR provides 30m of infrared range. Video features include AI-based WiseStream, WiseNR II, extremeWDR, DIS with a built-in gyro sensor, handover, and dynamic privacy masking. AI engine-based analytics include object detection, motion detection, line crossing, IVA area, slip & fall, sound classification, and business intelligence. Object attributes include person, face, and vehicle. The camera is rated IP66/IP67, IK10, NEMA 4X, and NEMA-TS 2, operating from -50°C to +55°C. It features a secure element with FIPS 140-3 level 3, dual microSD slots up to 2TB total, and PoE+ power with a metal shielded RJ-45 connector.
