• Module Design, supports a variety of lens/LED module/front cover accessory combinations
• Resolution: 3MP, Global shutter CMOS sensor
• Max. Framerate: 50fps
• Barcode recognition, WiseBCR based on an AI engine
• Ethernet: RJ-45(10/100/1000BASE-T), M12
• IP66/IP67, IK10(excluding the front window), IEC 60068-2-6(vibration), IEC 60068-2-27(shock)
| Video | |
|---|---|
| Imaging Device Size | 1/3" |
| Type | CMOS |
| Resolution | 2048x1536 |
| Max. Framerate | H.265/H.264: 50fps |
| Pixel Size | 2.25㎛ |
| Lens | |
| Optional Lens | 6mm / 8mm / 12mm / 16mm / 25mm |
| Operational | |
| Backlight Compensation | HDR |
| Electronic Shutter | Mode: Minimum, Maximum, Global shutter mode Speed Range: 33.3ms ~ 150㎲ |
| Video Rotation | Flip, Mirror |
| Alarm Interface | Input: 2ea, Output: 2ea |
| Alarm Triggers | Alarm input |
| Alarm Events | Trigger On/Off, Read/NoRead |
| LED Out | Support via optional LED accessories (M12 pin connections), White/Red/Blue option |
| Analytics | |
| Advanced Analytics | Barcode recognition, WiseBCR based on AI engine |
| Barcode Type | 1D Code: Code128, CODE39, CODE93, Codabar, ITF (Interleaved 2 of 5), UPC, EAN 2D Code: QRcode, DataMatrix, Maxicode, PDF417 |
| Network | |
| Ethernet | RJ-45 (10/100/1000BASE-T), M12 |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast: Up to 6 users, Multicast: Support |
| Multiple Streaming | Up to 3 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | |
| API | ONVIF M, SUNAPI (HTTP API), Hanwha Vision Open Platform |
| General | |
| Edge Storage | Micro SD/SDHC/SDXC Max. 256GB x 1 slot |
| Environmental & Electrical | |
| Operating Condition | Temperature: -40°C~+55°C (-40°F~+131°F) Humidity: 0~95% RH (non-condensing) Start up should be done at above -30°C |
| Storage Condition | Temperature: -40°C~+60°C (-40°F~+140°F) Humidity: 0~95% RH (non-condensing) |
| Input Voltage | 24VDC |
| Power Consumption | 24VDC: Max 12.9W, Typical 6.7W * Max: LED On, Typical: LED Off |
| Mechanical | |
| Color | White, Black |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | W74.4mm x H77.4mm x D59.4mm |
| Product Weight | 420g |
| Indicator LED | Support |
| Status LED | Support |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 |
| Environment | IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, IEC 60068-2-6, IEC 60068-2-27 |

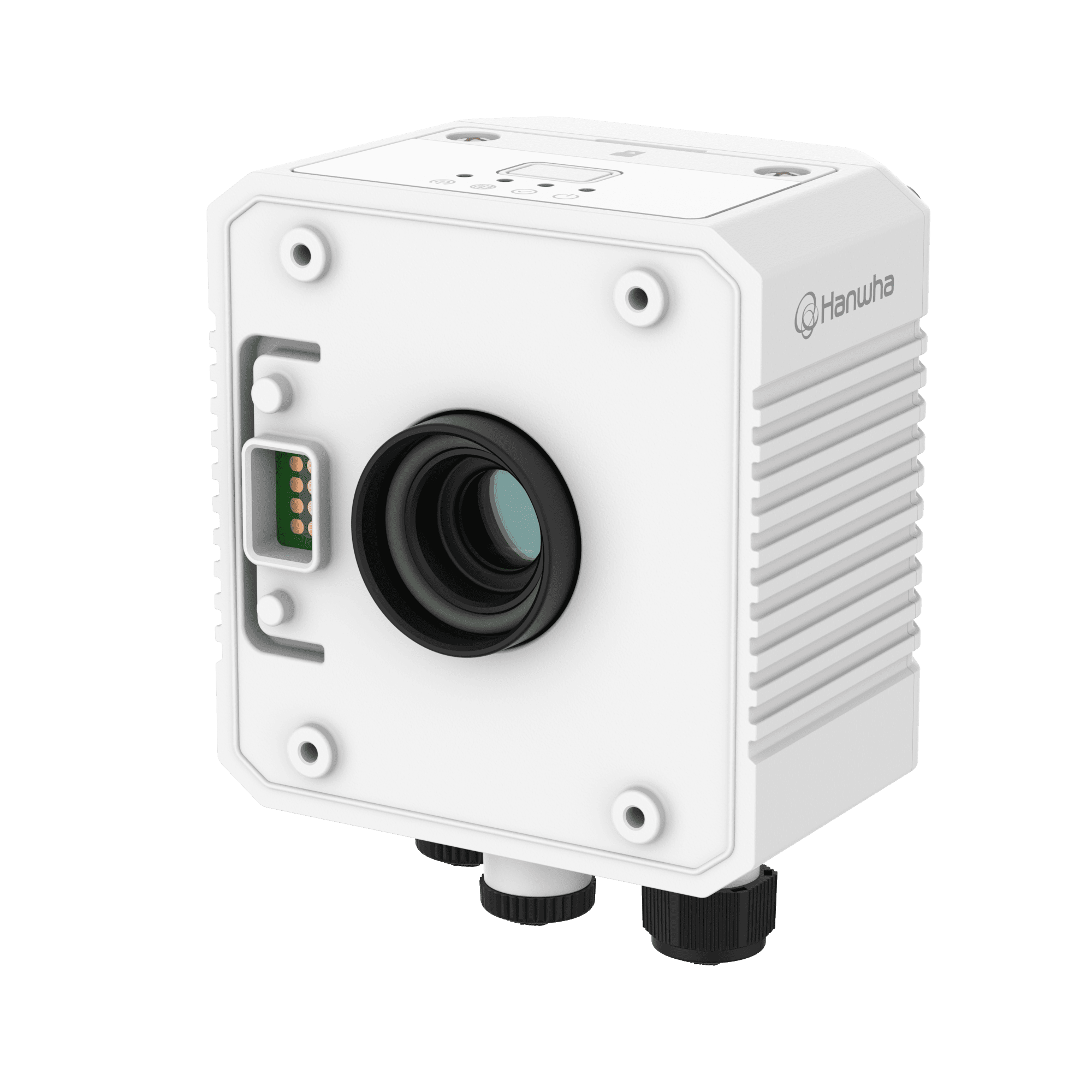

The Hanwha Vision TNS-7000M is a 3MP mono barcode recognition camera featuring a 1/3" CMOS sensor delivering 2048 x 1536 resolution at up to 50fps with 2.25μm pixel size and global shutter mode. It supports optional lenses 6, 8, 12, 6, 25mm and includes HDR backlight compensation, electronic shutter speeds from 33.3ms to 150μs, and flip/mirror video rotation. The camera features 2 alarm inputs and 2 alarm outputs, with support for external LED accessories via M12 pin connections. Powered by an AI-based WiseBCR engine, the camera recognizes 1D codes (Code128, CODE39, CODE93, Codabar, ITF, UPC, EAN) and 2D codes (QR code, DataMatrix, Maxicode, PDF417). The camera is rated IP66, IP67, and IK10, operating from -40°C to +55°C. It includes a single microSD slot up to 256GB, supports ONVIF Profile M, and is powered by 24VDC.
