Trendnet - TI-IG219 - Industrial 2.5G PoE++ Injector

Name: Trendnet - TI-IG219 - Industrial 2.5G PoE++ Injector
Brand: Trendnet
SKU: TI-IG219

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

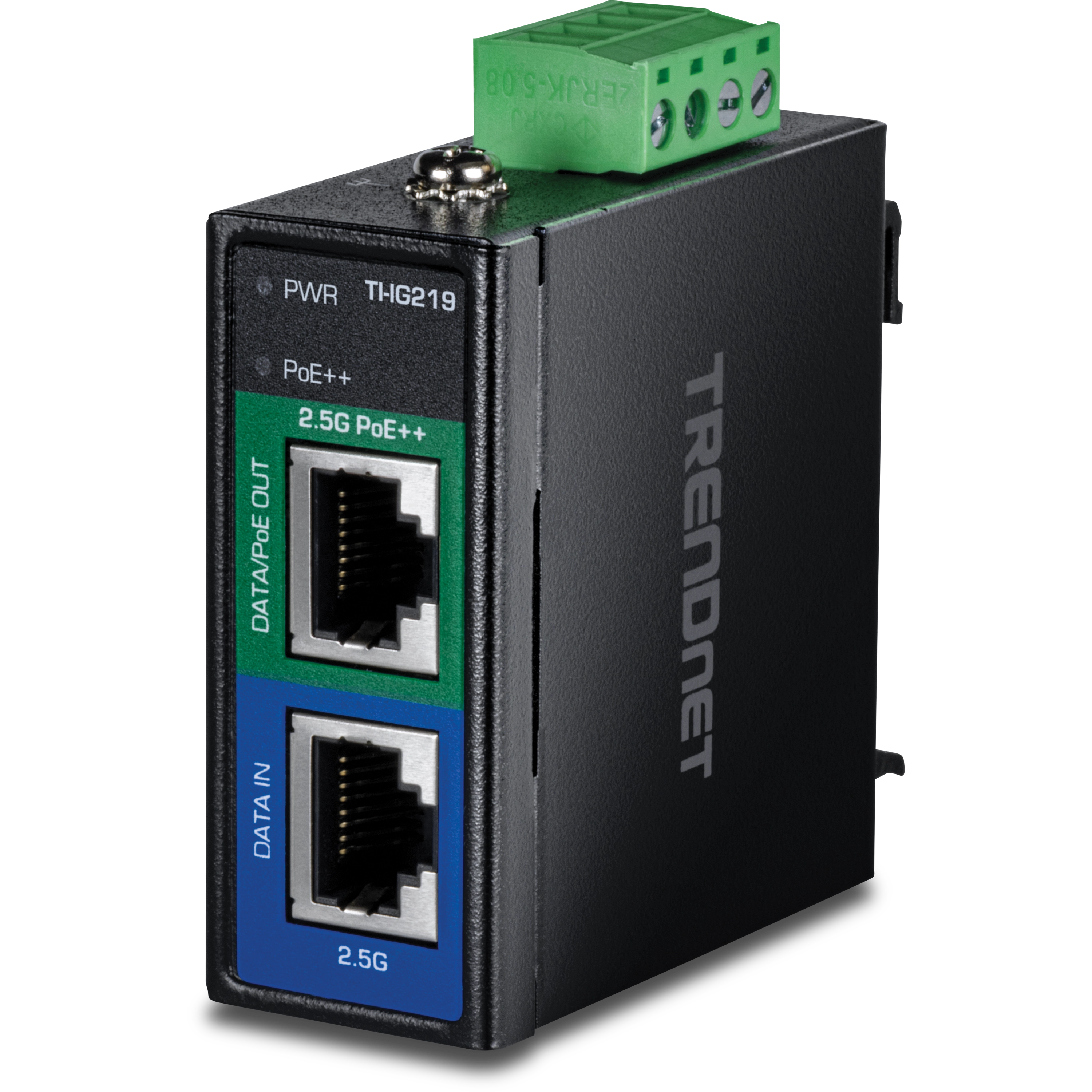

• 1 x 2.5G PoE++ port (Data + PoE out)
• 1 x 2.5G port (Data in)
• 95W PoE power budget
• Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
• Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
• Network a PoE device located up to 100m (328 ft.) away
• Fanless design eliminates operating noise and lowers energy consumption
• Extreme operating temperature range - 40° — 75° C (-40° — 167° F)
• Redundant power inputs with overload current protection

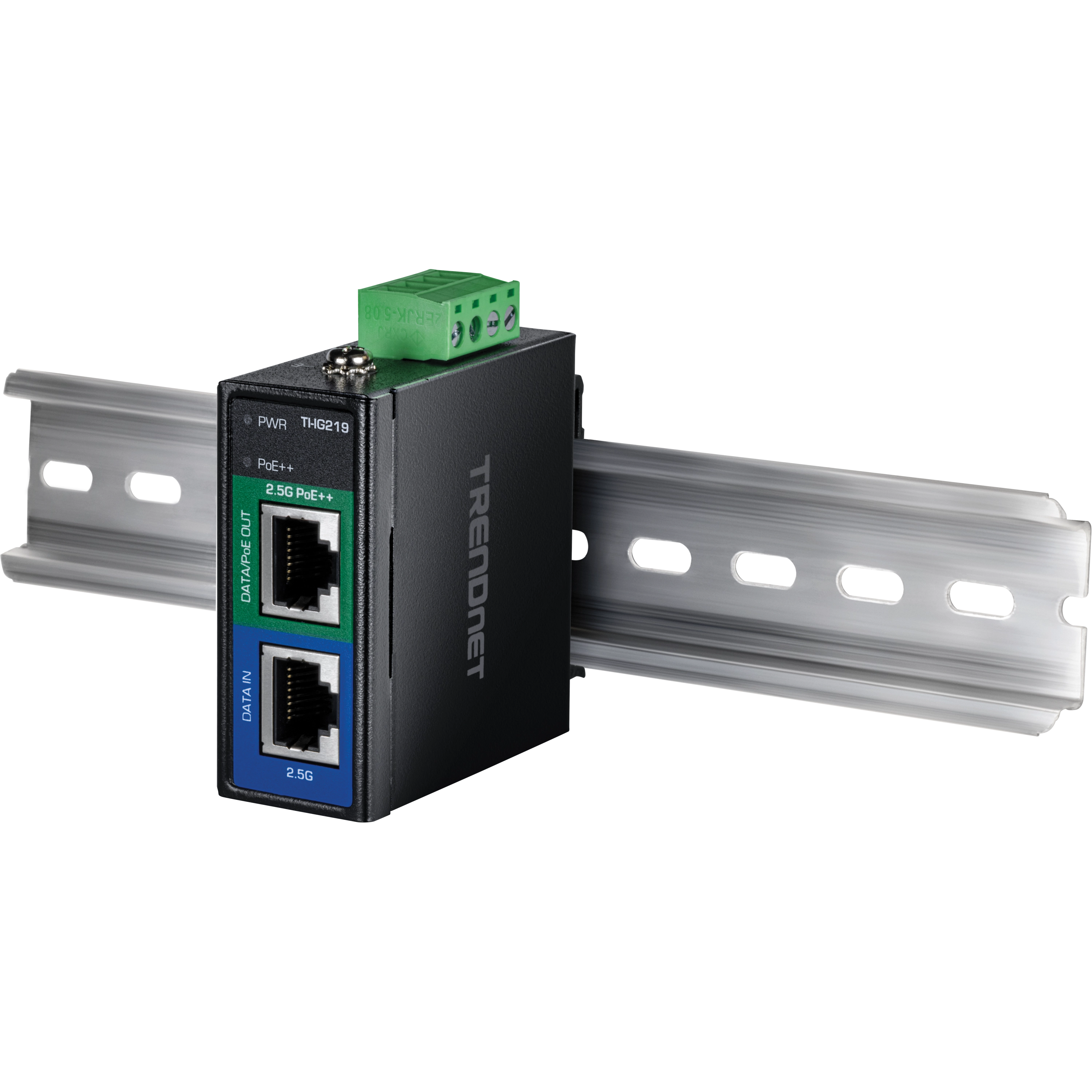

• Includes DIN-Rail mount and wall mount
• Power supply sold separately (model: TI-S15052)
• NDAA / TAA compliant (U.S. and Canada only)

Standards	• IEEE 802.3 • IEEE 802.3u • IEEE 802.3ab • IEEE 802.3af • IEEE 802.3at • IEEE 802.3bt • IEEE 802.3bz
Device Interface	• 1 x 2.5GBASE-T port (10M/100M/1G/2.5G) • 1 x 2.5GBASE-T PoE++ port (10M/100M/1G/2.5G) • 4-pin removable terminal block • LED indicators
Power	• Input: 48 – 57V DC • Compatible power supply: TI-S15052 (sold separately) • Max. consumption: 2W @ 57V (with no PD connected)
PoE	• PoE budget: 88 – 95W • Pins 3, 4, 5, 6 for power + and pins 1, 2, 7, 8 for power -

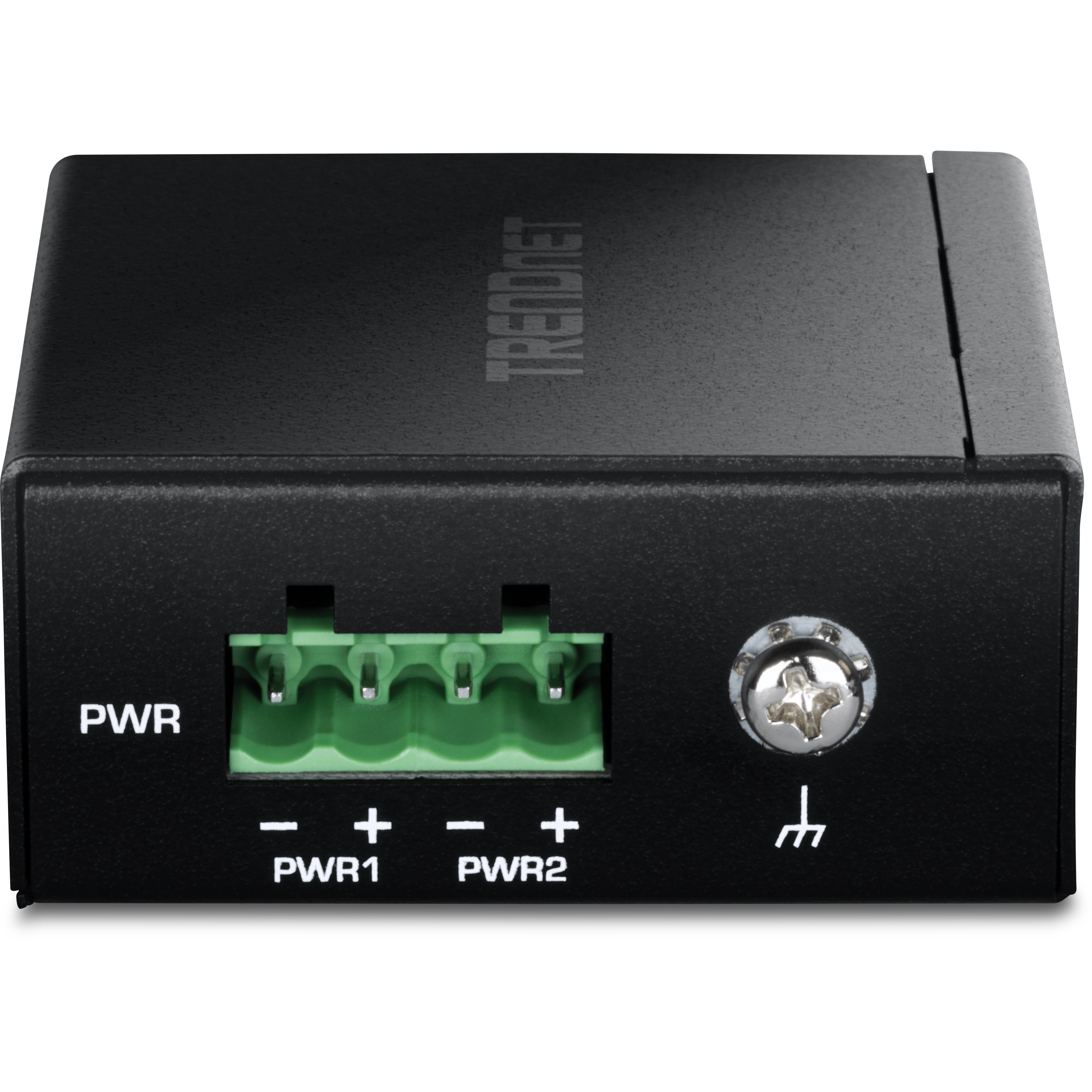

Terminal Block	• Redundant power inputs, 4 pin • Wire range: 0.34mm2 to 2.5mm2 • Solid wire (AWG): 14-22 • Stranded wire (AWG): 14-22 • Torque: 3.5 lb. – In / 0.3Nm / 0.39 Nm • Wire strip length: 7-8mm
MTBF	7,500,000 hours @ 25° C
Housing	• IP50 metal case • DIN-Rail mount • Wall mount • Grounding point • Contact 6kV/Air 8kV ESD protection • 6kV RJ45 surge protection
Operating Temperature	-40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	60 x 58 x 26mm (2.36 x 2.28 x 1.02 in.)
Weight	134g (4.72 oz.)
Certifications	CE, FCC, LVD, Shock (IEC 60068-2-27), Freefall (IEC 60068-2-31), Vibration (IEC 60068-2-6), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Warranty	3-year
Package Contents	• TI-IG219 • Removable terminal block • DIN-Rail and wall mount kit

Name

Description

Size

Downloads

File

TI-IG219 - Industrial 2.5G PoE++ Injector - Datasheet.pdf

0.2mb

The TRENDnet Industrial 2.5G PoE++ Injector model TI-IG219 enables users to provide PoE++ power to a non-PoE 2.5G switch. Simply connect the injector to a non-PoE switch and run an Ethernet cable of up to 100 metres (328 feet) to network a PoE, PoE+ or PoE++ device. This multi-gig industrial PoE++ injector can supply up to 95 W of power to a PoE device. Its fanless design eliminates operating noise and lowers energy consumption. Designed to withstand a high degree of vibration and shock, the 2.5G PoE++ injector is equipped with an IP50-rated metal enclosure and can operate within an extreme temperature range of -40° – 75° C (-40° – 167° F), making it ideal for harsh industrial environments.
