VideoTec - MPXR1AA000CH - MPXR SERIES2, in AISI 316L, IP thermal camera with radiometric functions, 230Vac, 35mm,336x256, 30Hz
Part number:
MPXR1AA000CH
Price:

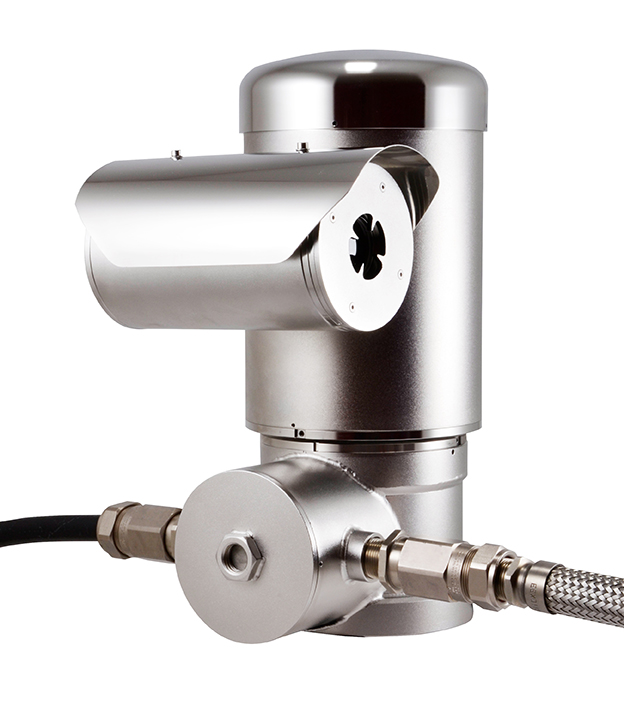

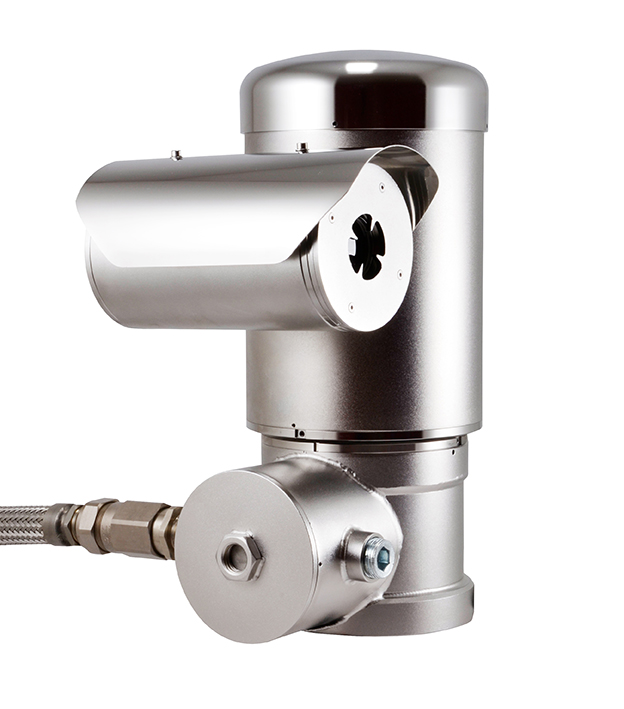

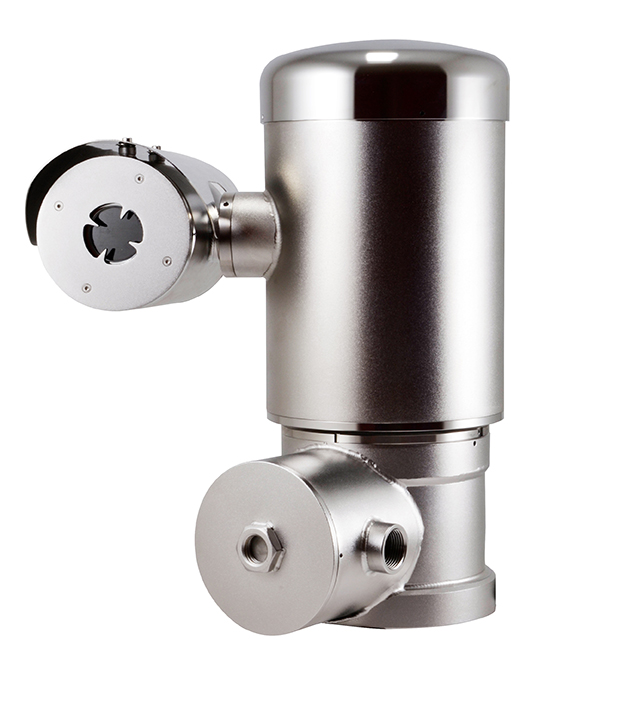

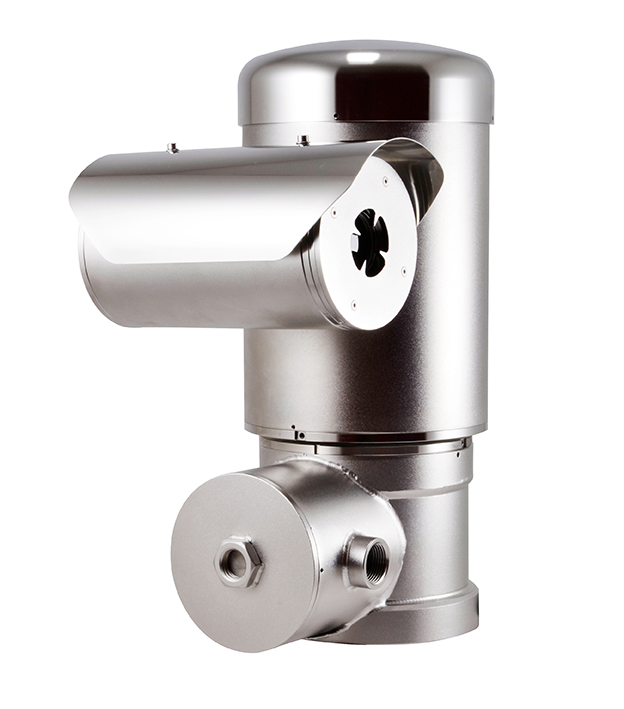

MAXIMUS MPXR SERIES2 is a certified explosion-proof PTZ thermal camera, ideal for effective video surveillance and process control in the Oil & Gas, marine or industrial sectors, in environments where the atmosphere is potentially explosive due to the presence of flammable gas or dust.
MAXIMUS MPXR SERIES2 offers maximum resistance in corrosive environments with industrial and marine environments thanks to construction in AISI 316L stainless steel and micro-shot peened and electro-polished surfaces. Furthermore, the IP66/IP67/IP68/IP69, NEMA Type 4X and Type 6P certification guarantees complete protection against water and dust entry, even in difficult conditions.
Features:
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Maximum resistance in corrosive environments
- Possibility of direct connection via fiber optic
- Thermal camera with radiometric functions
| GENERAL |
| AISI 316L stainless steel construction |
| External surfaces micro-shot peened and electro-polished |
| Dynamic positioning control system |
| Radiometric analysis: |
| on the 4 central pixels, if the thermal camera has radiometric functions |
| definition of a specific area, if the thermal camera has advanced radiometric functions |
| Radiometric alarm activation: If the temperature is over the threshold set, under the threshold set, between two thresholds set or outside the two thresholds set. |
| Actions on alarm: Activation of digital output, preset tour recall, home position recall, preset position recall and http get request. |
| MECHANICAL |
| Cable inputs: 2 x 3/4" NPT |
| Zero backlash |
| Horizontal rotation: 360°, continuous rotation |
| Vertical rotation: from -90° up to +90° |
| Horizontal speed (variable): from 0.1°/s to 100°/s |
| Tilt speed (variable): from 0.1°/s to 100°/s |
| Accuracy of preset positions: 0.02° |
| Unit weight: 26.5kg (58lb) |
| HOUSING'S WINDOW |
| Germanium window |
| Thick: 8mm (0.3in) |
| External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection |
| Internal treatment: antireflection |
| Spectral range: from 7.5μm up to 14μm |
| Medium transmittance (from 7.5μm up to 11.5μm): 87.5% |
| Medium transmittance (from 11.5μm up to 14μm): 72.1% |
| ELECTRICAL |
| Supply voltage/Current consumption: |
| 230Vac ±10%, 0.5A, 50/60Hz |
| 24Vac ±10%, 5A, 50/60Hz |
| 120Vac ±10%, 1A, 50/60Hz |
| Power consumption: |
| 120W max |
| NETWORK |
| RJ45 port |
| Ethernet connection: 10BASE-T/100BASE-T |
| Slot SFP (SMALL FORM FACTOR PLUGGABLE) |
| Ethernet connection:100BASE-FX |
| Supply voltage: 3.3V |
| Standard: MSA compliant |
| The SFP module (not supplied by VIDEOTEC) must meet the following requirements: |
| Laser: Class 1, complies with EN60825-1 |
| Certification: UL/IEC 60950-1 or UL/IEC 62368-1 |
| CYBERSECURITY |
| Digitally signed firmware |
| Password restricted access (HTTP digest) |
| Support of various user access levels |
| Control of accesses IEEE 802.1X |
| HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3 |
| Centralised certificate management |
| Complies with ONVIF Security Service specifications |
| VIDEO |
| Video encoder |
| Communication protocol: ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service |
| Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
| Video compression: H.264/AVC, MJPEG, JPEG, MPEG4 |
| 3 independent video streams |
| Image resolution: from 320x180pixel up to 720x480pixel in 4 steps |
| Selectable frame rate from 1 to 30 images per second (fps) |
| Web Server |
| Directional OSD (maximum 4 settable areas) |
| Motion Detection |
| QoS: Differentiated DSCPs for streaming and device management |
| SNMP and NTCIP protocols |
| I/O INTERFACE |
| Input for remote reset: 1 |
| Alarm inputs: 1 |
| Relay outputs: 1 (1A, 30Vac/60Vdc max) |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Certification temperature: from -40°C (-40°F) up to +80°C (+176°F) |
| Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) |
| De-icing function intervention (cold start): from -40°C (-40°F) up to -10°C (14°F) |
| Wind resistance |
| PTZ static: 230km/h (143mph) max. |
| PTZ operational at the maximum speed: 210km/h (130.5mph) max. |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN55032 (Class A), EN61000-6-4, EN61000-3-2, EN61000-3-3 |
| RoHS (CE): EN50581 |
| Outdoor installation (CE): EN60950-22, IEC60950-22 |
| Vibration test: EN50130-5, EN60068-2-6 |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07, UL62368-1, CAN/CSA C22.2 No. 62368-1-14): cULus Listed |
| Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A) |
| IP protection degree (EN/IEC60529): IP66, IP67, IP68, IP69 |
| Level of protection Type (UL50E): 4X, 6P |
| RCM (Australian and New Zealand Regulatory Compliance Mark) |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification (with MAXIMUS MBX communication box or with FM1010 filter): Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
