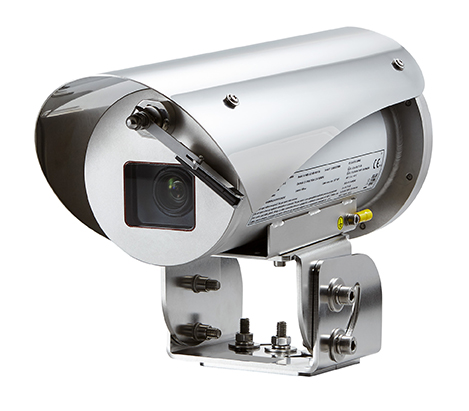

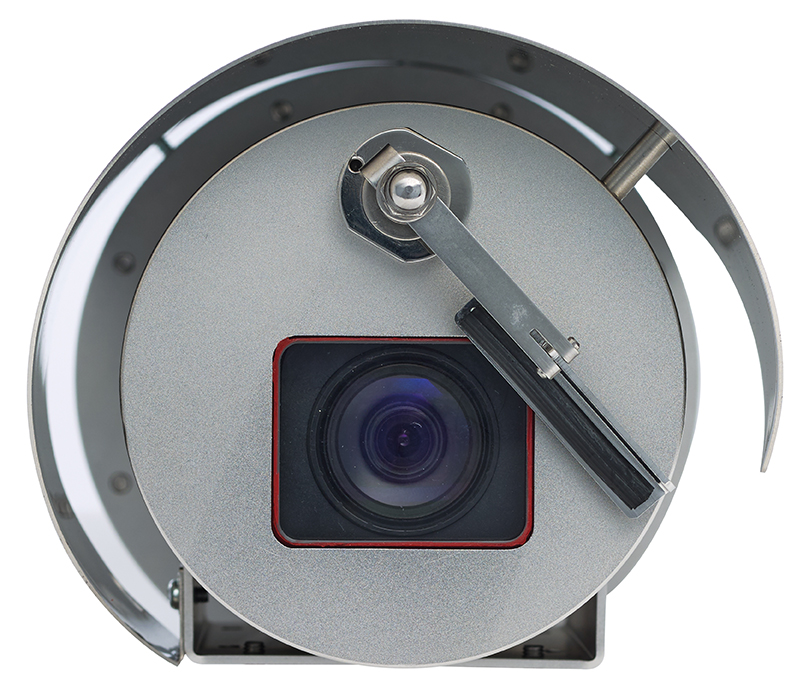

VideoTec - MVXHD210WFZ01B - MVX in AISI 316L, 12-24Vdc/24Vac, Super Low-light Day/Night DELUX FullHD camera 30x zoom, H.264/AVC, wiper, autofocus, cable tail 4m
Part number:
MVXHD210WFZ01B
Price:
MAXIMUS MVX is an IP Full HD super low-light Day/Night 1080p, zoom 30x, 60fps camera, which integrates DELUX imaging and encoding technology by Videotec for video recordings with incredibly bright colours by day and night. In particular, thanks to the camera’s increased light sensitivity, the DELUX technology can obtain bright images with well-defined colours in very low light conditions – even typical night-time conditions to 0.006 lux (0.0006 lux in black and white). Up to a maximum of 3 simultaneous and independent video streams can be transmitted via network in H.264/AVC, MPEG4, MJPEG or JPEG format.
Features:
- Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)
- Marine Certification: Lloyd's Register Marine Type Approval
- AISI 316L stainless steel construction
- External shot peened and electro-polished surfaces
- Camera Full HD 1080p, 30x, 60fps
- Minimum Illumination:
- Colour: 0.006lx
- B/W: 0.0006lx
- 4m (13ft) / 10m (32.8ft) preinstalled armoured multipolar cable with cable gland or, alternatively, with 4m (13ft) / 10m (32.8ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included)
| MECHANICAL |
| AISI 316L stainless steel construction |
| External shot peened and electro-polished surfaces |
| Sunshield |
| Integrated wiper |
| Unit weight: |
| 8.5kg (18.7lb) (housing with 4m (13ft) armoured multipolar cable) |
| 12kg (26.5lb) (housing with 10m armoured multipolar cable) |
| CABLE GLANDS |
| Cable entry: 1 hole, 3/4" NPT |
| Cable gland Ex db 3/4"NPT and 4m/10m (13ft/33ft) preinstalled multipolar armoured cable or with 4m/10m (13ft/33ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included) |
| HOUSING'S WINDOW |
| Material: Thermally tempered glass |
| Dimensions: 51x41mm (2x1.6in) |
| Thick: 12mm (0.47in) |
| ELECTRICAL |
| Supply voltage/Current consumption |
| 24Vac ±10%, 2.2A, 50/60Hz |
| 24Vdc ±5%, 2.2A |
| 12Vdc ±5%, 3.5A |
| Heater (Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)) |
| Armoured cable: |
| external diameter = 20.00 ± 0.50mm (0.79±0.20in) |
| under armour diameter = 15.20mm (0.60in) |
| colour: Black RAL 9005 |
| Armoured cable composition: |
| 3 x 2.5mm² |
| 7 x 0.34mm² |
| 4 x 2 x 0.22mm² (cat. 5E) |
| Cable tail composition: |
| 3 x 2.5mm², rated external diameter = 8.7mm (0.34in) |
| 7 x 0.34mm², rated external diameter = 6.4mm (0.25in) |
| 4 x 2 x 0.21mm², (cat. 5E), rated external diameter = 6.7mm (0.26in) |
| NETWORK |
| Ethernet connection: 100 Base-TX |
| Connector: RJ45 |
| CYBERSECURITY |
| Digitally signed firmware |
| Password restricted access (HTTP digest) |
| Support of various user access levels |
| Control of accesses IEEE 802.1X |
| HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3 |
| Centralised certificate management |
| Complies with ONVIF Security Service specifications |
| VIDEO |
| Video encoder |
| Communication protocol: ONVIF, Profile Q, Profile S and Profile T |
| Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast |
| Video compression: H.264/AVC, MJPEG, MPEG4 |
| 3 independent video streams Full HD |
| Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps |
| Selectable frame rate from 1 to 60 images per second (fps) |
| Web Server |
| Directional OSD (maximum 4 settable areas) |
| Motion Detection |
| Video analytics: VIDEOTEC ANALYTICS (optional) |
| QoS: Differentiated DSCPs for streaming and device management |
| SNMP and NTCIP protocols |
| I/O INTERFACE |
| I/O alarm board |
| Alarm inputs: 1 |
| Relay outputs: 1 (1A, 30Vac/60Vdc max) |
| CAMERAS |
| Day/Night Full HD 30x DELUX |
| Resolution: Full HD 1080p (1920x1080) |
| Image Sensor: 1/2.8" Exmor™ R CMOS sensor |
| Effective Pixels: approx. 2.38 Megapixels |
| Minimum Illumination: |
| Colour: 0.006lx (F1.6, 30 IRE) |
| B/W: 0.0006lx (F1.6, 30 IRE) |
| Focal length: from 4.5mm (wide) up to 135mm (tele) |
| Zoom: 30x (480x with digital zoom) |
| Iris: from F1.6 up to F9.6 (Auto, Manual) |
| Horizontal Viewing Angle: from 61.6° (wide end) up to 2.50° (tele end) |
| Vertical Viewing Angle: from 37.07° (wide end) up to 1.44° (tele end) |
| Shutter speed: from 1/1s up to 1/10000s (Auto, Manual) |
| White balance: Auto, Manual |
| Gain: from 0dB up to 100dB (Auto, Manual) |
| Wide Dynamic Range: 120dB |
| Focus System: Auto, Manual, Trigger |
| Picture Effects: E-flip, Colour enhancement |
| Noise removal: 2D (3 levels), 3D (3 levels) |
| Exposure Control: Auto, Manual, Priority (Iris Priority, Shutter Priority), Brightness, Custom |
| De-fog: On/Off |
| Privacy zones masking (maximum 8 settable masks) |
| Indoor Flicker Reduction |
| Auto Slowshutter: Off, On (from 1/30s up to 1/1s) |
| Exposure compensation: Off, On (from level 0 up to level 14) |
| Sharpness: from level 0 up to level 3 |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature: |
| Cold start from -40°C (-40°F) up to +65°C (149°F) |
| Running from -50°C (-58°F) up to +65°C (149°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A) |
| RoHS (CE): EN50581 |
| Outdoor installation (CE): EN60950-22, ICE60950-22 |
| IP protection degree (EN/IEC60529): IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69 |
| Vibration test: EN50130-5, EN60068-2-6 |
| UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07): cULus Listed |
| Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A) |
| Level of protection Type (UL50E): 4X, 6P |
| RCM (Australian and New Zealand Regulatory Compliance Mark) |
| CERTIFICATIONS - EXPLOSION-PROOF APPLICATIONS |
| ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31) |
| IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31) |
| EAC EX (TR CU 012/2011) |
| INMETRO (ABNT NBR IEC 60079-0 + Errata 1, ABNT NBR IEC 60079-1 + Errata 1, ABNT NBR IEC 60079-31) |
| KCs (Employment and labor department 2016-54), cable tail versions |
| ETL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31), cable tail versions |
| ETL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31), cable tail versions |
| CERTIFICATIONS - MARINE APPLICATIONS |
| Lloyd's Register Marine Type Approval certification (only if used with the filter accessory FM1010): |
| Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5) |
| Electromagnetic compatibility: EN60945 |
| Salty fog resistance: EN60068-2-52 |
| Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2 |
| ACCESSORIES |
| WASEX2T4AT Tank 10l (2.6gal) with integrated manual pump controlled by ATEX certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc |
| WASEX2T4GOR Tank 10l (2.6gal) with integrated manual pump controlled by EAC EX certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc |
| WASEX2T4IN Tank 10l (2.6gal) with integrated manual pump controlled by INMETRO certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc |
| MBX1MAA Explosion-proof communication box in stainless steel , IN 230 Vac , with EMC filter for marine certification |
| MBX2MAA Explosion-proof communication box in stainless steel , IN 24 Vac , with EMC filter for marine certification |
| MBX3MAA Explosion-proof communication box in stainless steel , IN 120 Vac , with EMC filter for marine certification |
| MBA1S5A Explosion-proof communication box in aluminium , IN 230 Vac |
| MBA2S5A Explosion-proof communication box in aluminium , IN 24 Vac |
| MBA3S5A Explosion-proof communication box in aluminium , IN 120 Vac |
| OCTEXP3/4C Conduit cable gland nickel-plated brass 3/4" NPT IECEX-ATEX- c CSA us - EAC Ex ( operating temperature : from -60°C (-76°F) up to +80°C (+176°F) ) |
| FM1010 EMC filter for Marine certification |
| BRACKETS AND ADAPTORS |

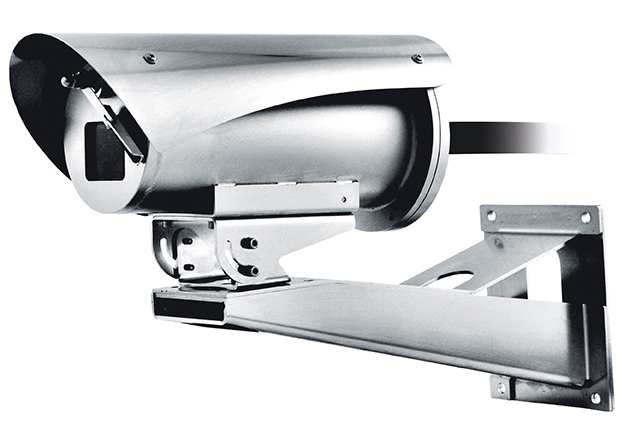

| NXWBS1 AISI 316L stainless steel wall bracket with joint |
| MHXWFWCA AISI 316L stainless steel ball joint |
| NXFWBT AISI 316L stainless steel parapet mounting bracket |
| NXCOL AISI 316L stainless steel pole adapter module |
| NXCW AISI 316L stainless steel corner adapter module |
| NXWTU AISI 316L stainless steel adapter module for oblique surfaces |
